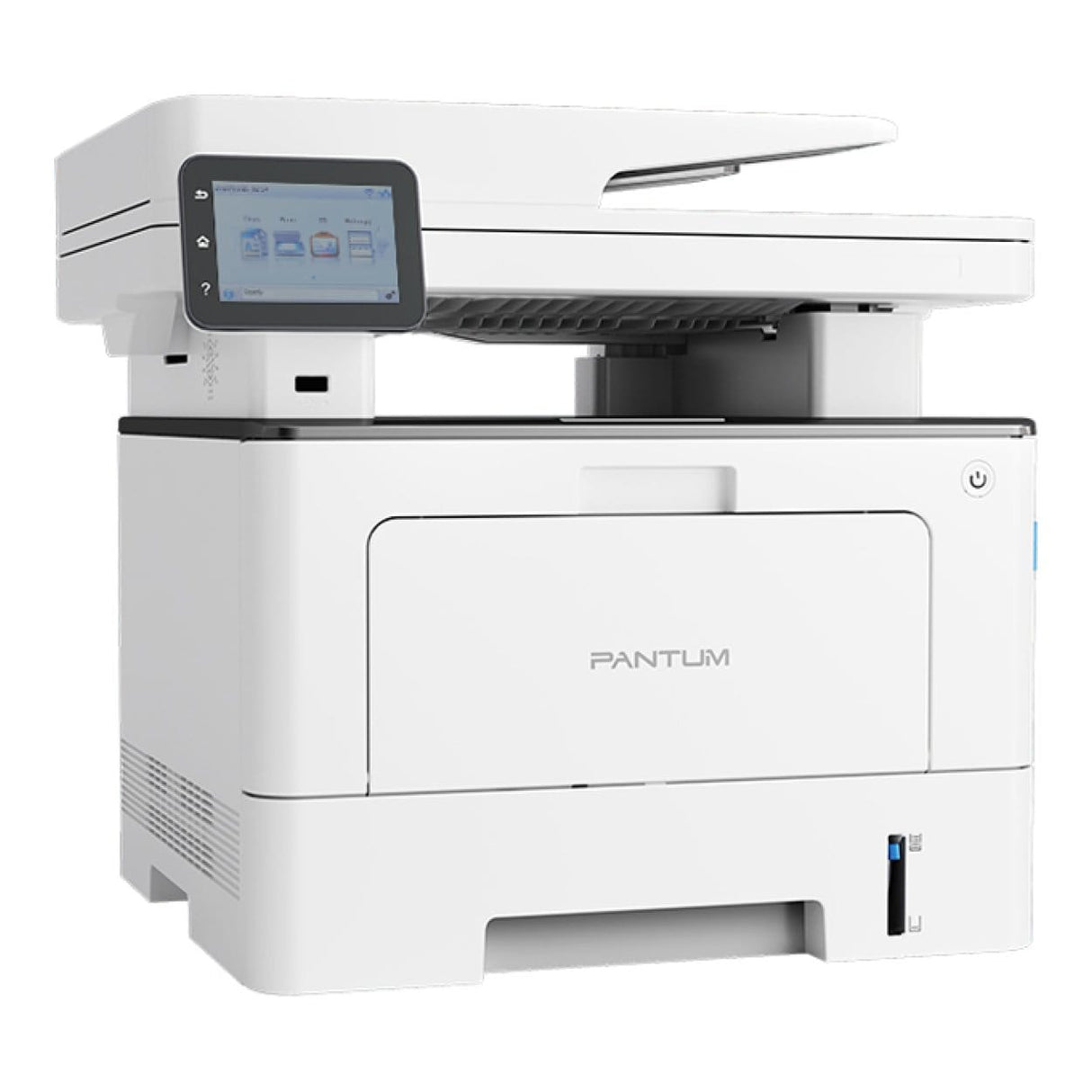

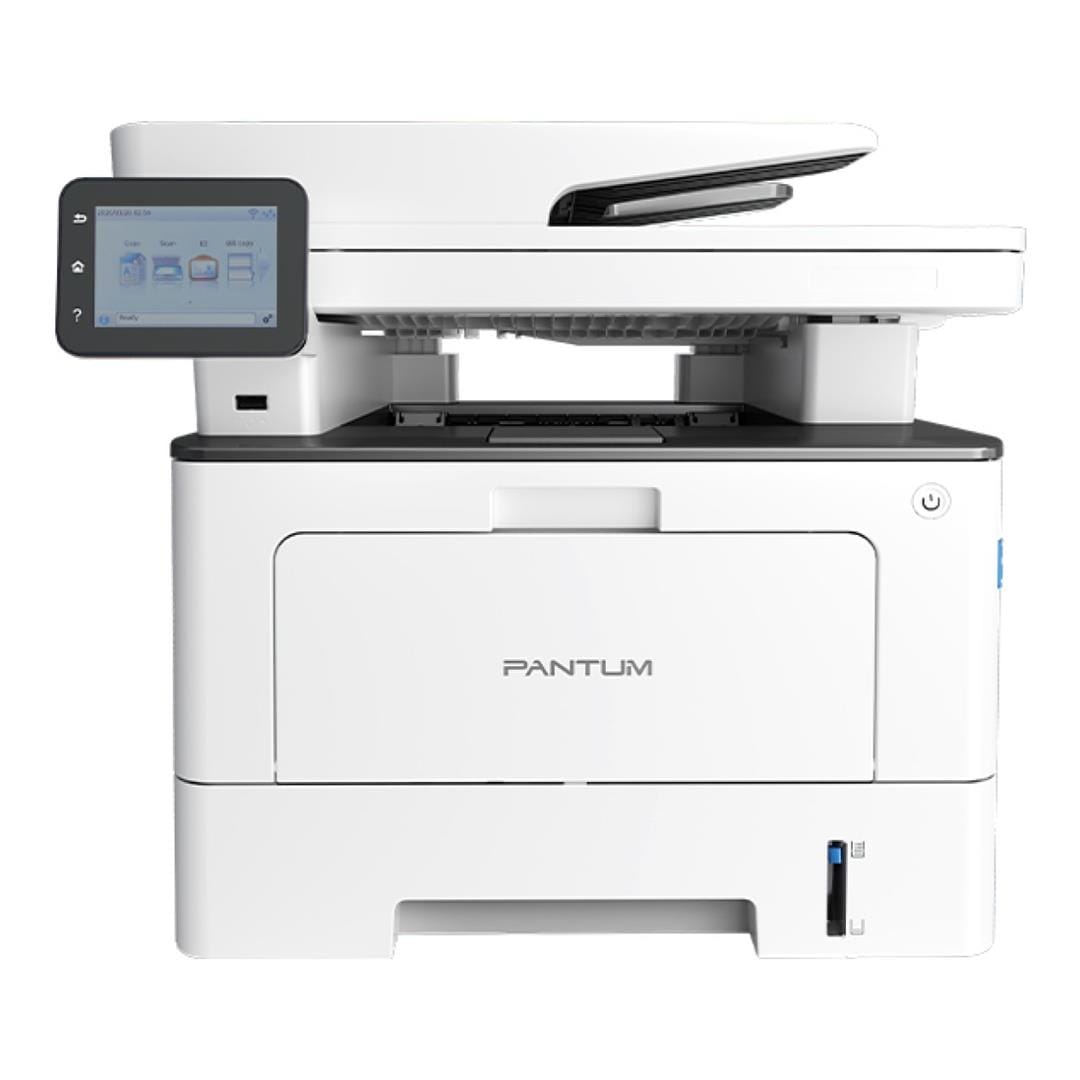

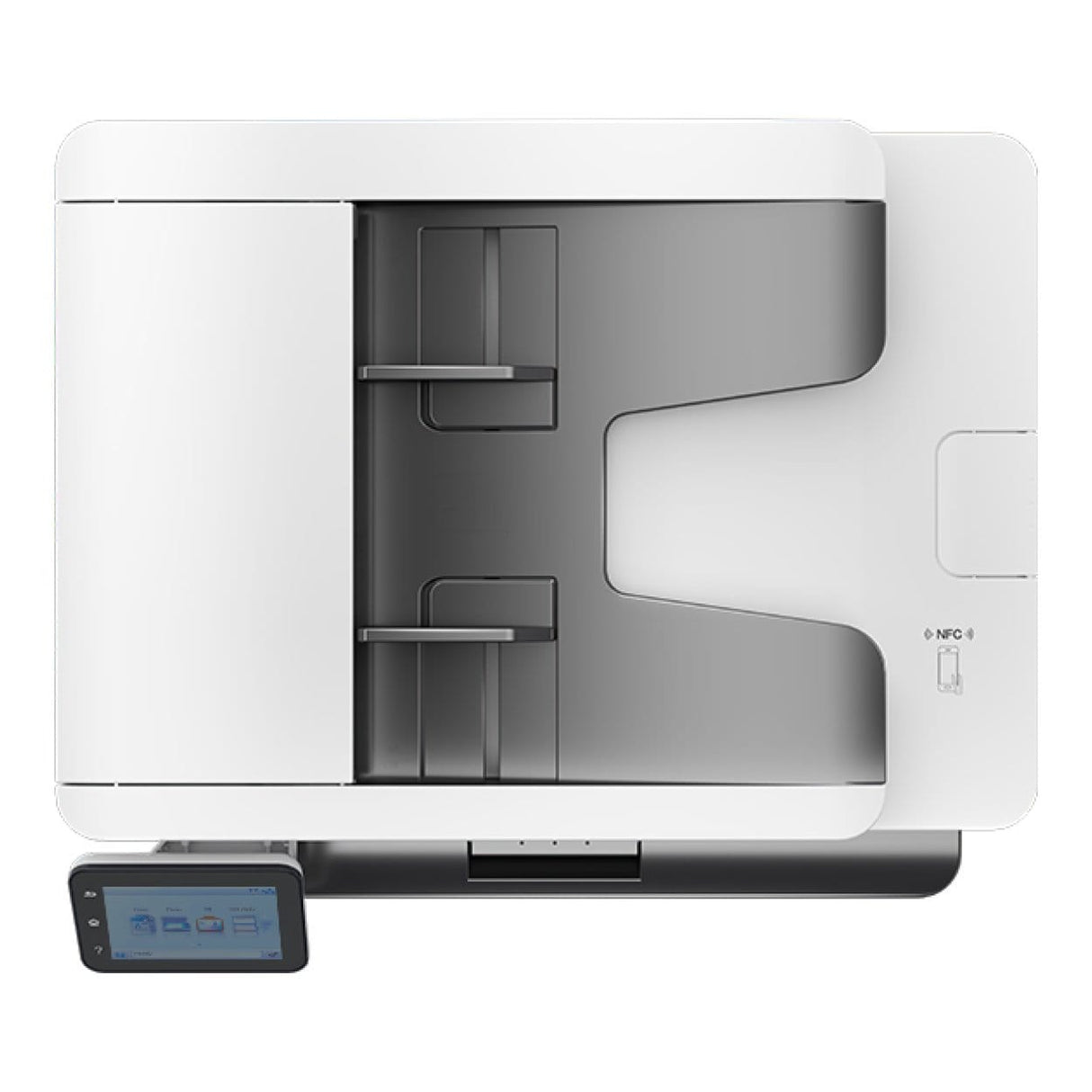

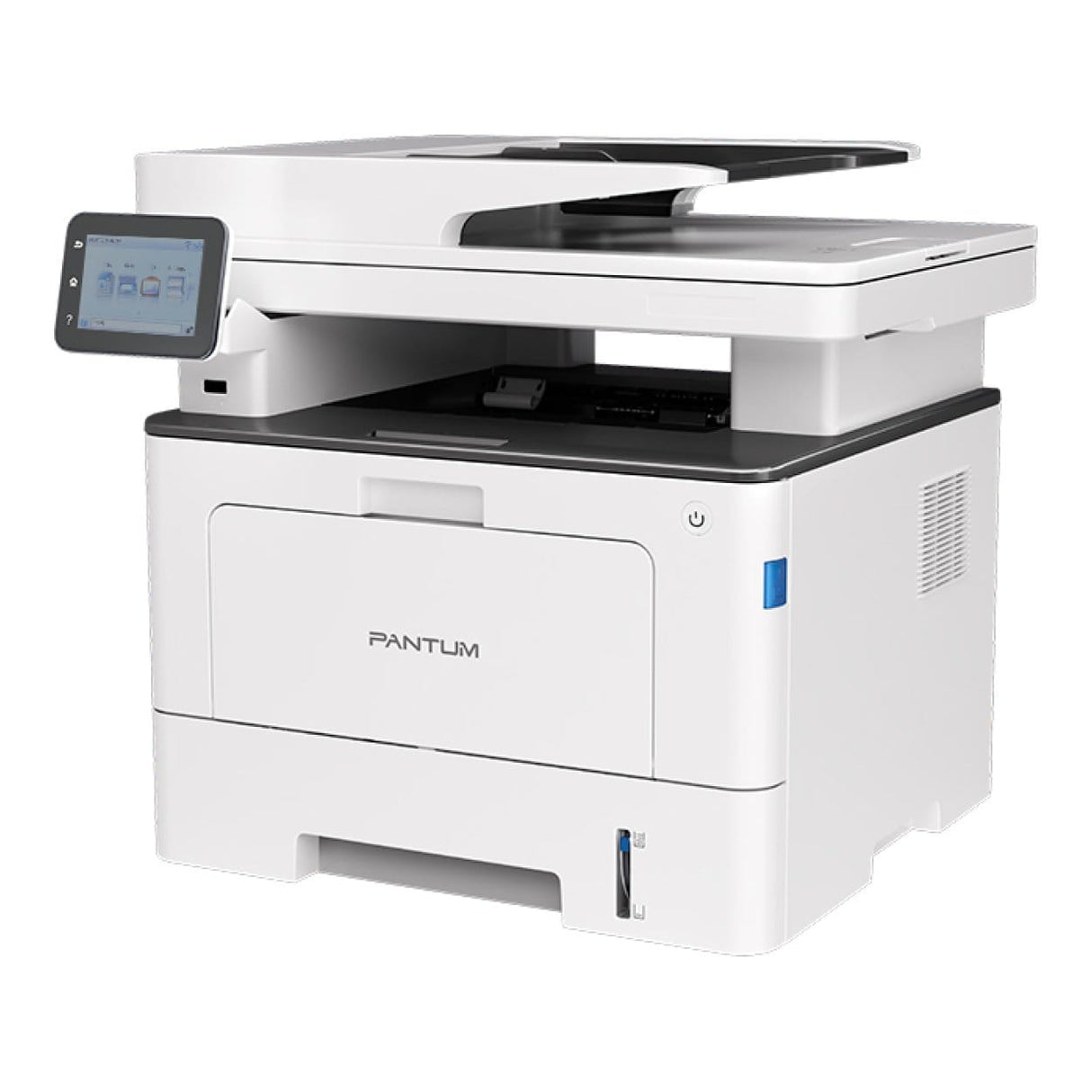

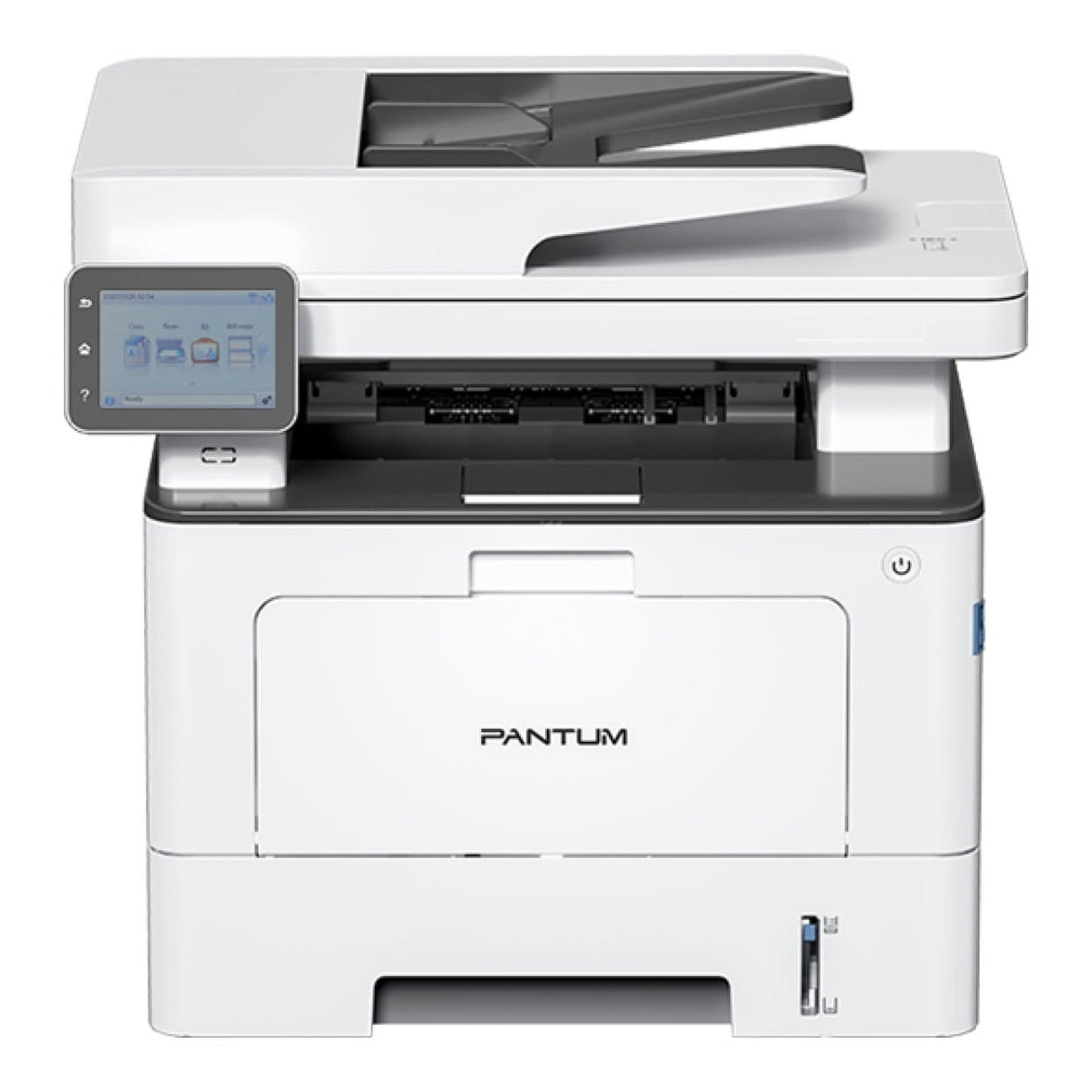

Pantum BM5223adw A4 Multifunction Mono Laser Printer BM5223ADW

Pantum BM5223adw A4 Multifunction Mono Laser Printer BM5223ADW

High-Speed and Auto-Duplex Efficiency

Boost your productivity with the swift printing speeds of up to (A4) / 70 ppm (A5L).
Simplify document management with automatic duplex printing, copying, and scanning via a 50-page Duplex Automatic Document Feeder (DADF), enhancing efficiency and reducing manual effort.

Safeguard Information with Advanced Data Security

Protect sensitive information with a 4-digit release code, ensuring that print jobs are only accessed by authorized users and preventing information leaks.Protect your networked print environment with built-in IPsec, SSL/TLS, and 802.1x support, defending against unauthorized access and potential threats.

Simplify IT Management with Seamless Control & Monitoring

Leverage Pantum’s Software Development Kit (SDK) to integrate mainstream Managed Print Services (MPS) software, enabling advanced remote control, management, and user restriction capabilities. IT managers and users can access the printer from a web browser by simply entering the IP address in the URL,and directly check or change settings.

10s Quick Wi-Fi Direct Connectivity

Connect to the printer via Wi-Fi Direct in just 10 seconds, making it easy to print without needing an internet connection, ideal for quick and secure printing needs.

High-Capacity Paper Handling for Large Jobs

Accommodate extensive printing requirements with expandable paper handling options. Two optional 550-sheet trays bring the maximum paper feed capacity to 1,410 sheets, ensuring you’re prepared for a high volume of work.

Connectivity at Your Fingertips

Enjoy a variety of connection methods, including USB, Ethernet, and Wi-Fi, to meet your printing needs with enhanced security.
Simplify the Wi-Fi configuration process with Bluetooth, allowing the printer to be quickly identified and connected to your Wi-Fi network.
Experience reliable and fast printing with support for both 2.4GHz and 5GHz dual-band Wi-Fi, ensuring you can always find the best frequency band for your network.
Additionally, print directly from your mobile phone using AirPrint, Mopria™ Print Service and Mopria Scan, without the need for a dedicated mobile app, making it incredibly easy to print files and photos from your iOS or Android device, wherever you are.

Specifications:

Control panel: 3.5 inch touch screen

Processor speed: 1.2G Hz

Memory: 1GB

Hard disc: NO

Recommended Monthly Duty Cycle: 750 to 4,000 pages

Maximum Monthly Duty Cycle: 100,000 pages

Interface: High-speed USB 2.0; IEEE 802.3 10/100/1000Base-Tx; Wi-Fi (2.4G/5G): IEEE 802.11a/b/g/n+Bluetooth USB interface: front USB HOST (1), rear USB DEV (1); Bluetooth interface

Input voltage: 110V: AC110-127V, 50/60Hz, 12A / 220V: AC220-240V, 50/60Hz, 6.5A

Power consumption: print average: ≤650W; ready: ≤8W; sleep: ≤1.4W; shutdown ≤0.5W

Energy Star standards: Energy Star 3.2

Noise: Ready: ≤30dB(A); Print: ≤56dB(A); Scan:≤56dB(A); Copy:≤57dB(A); Mute printing:≤50dB(A)

Operating Environment: Recommended temperature:10～32℃; basic used temperature: 5～35℃; Humidity range: 20% ～ 80%; Altitude: ≤3000m

Print

Print Speed: 42ppm (A4 single-sided); 44ppm (Letter single-sided); 70ppm (A5 long edge single-sided); A5 short edge: 9ppm

Duplex print speed: 20spm（A4）

First print out time: ≤5.9s

Print Languages: PCL5e, PCL6, PS, GDI

Duplex printing: Auto

U-disk print: YES

Mobile print: AirPrint, Mopria™ Print Service, Mopria Scan, APP print(iOS App/Android App)

NFC: YES (except IOS)

Operating system compatibility:

• Microsoft Windows: Server2008/Server2012/Server2016/2019/2022/XP/Win7/Win8/Win8.1/Win10/win11 (32/64 bit)
• Mac OS: 10.10~14.3
• Linux Ubuntu 16.04/18.04/20.04/22.04/24.04/
• Debian 10.0/Centos 7 (32/64 bit,intel Processor)
• Astra Linux Special Edition V1.6/Redhat 8.2.0/ Centos 8.2(64 bit,intel Processor)
• Android: 8.0 and later
• iOSAPP: iOS 13 and later
• HarmonyAPP: support HarmonyOS 2-4, HarmonyOS NEXT

Other printing functions: Booklet printing,usb printing, mute printing, envelope printing without wrinkles,confidential printing, PDF printing

Copy

Copy Speed: FB single-sided A4: 42cpm; FB single-sided Letter: 44cpm; ADF single-sided A4: 40cpm;; ADF double-sided A4: 20 pages/min

Duplex Copy Speed: ADF duplex A4: 20 pages/min

First copy out time: FB: less than 10s; ADF: Less than 11s; ADF duplex ≤20s

Copy Mode: Normal mode: Automatic (default), Text and Image, Text, Image; Special mode: Receipt copy, ID card copy (automatic correction), All-in-one copy, Clone copy, Poster copy, Copy by copy, Binding margin

Copy Resolution: FB: Maximum 600×600dpi; ADF: Maximum 600×600dpi

Zoom: 25%~400%

Maximum copy pages: 99 pages

Additional function: Copy settings: original size, copy to, double-sided copy, image quality, brightness, zoom, collate, multiple pages in one, clone, poster, flip mode

Scan

Scanner Tech: CIS

Scanner type: FB+DADF

Scanner mode: Colour, Gray, Black & White

ADF duplex scanning speed:

• 300 gray duplex scanning mode A4: 24ppm (48ipm)
• 300 color duplex scanning mode A4: 8ppm (16ipm)
• 300 gray duplex scanning mode Letter: 50 ipm

ADF single-sided scanning speed:

• 300 gray single-sided scanning mode A4: 40ppm
• 300 color single-sided scanning mode A4: 13ppm
• 300 gray single-sided scanning mode Letter: 42 ppm

ADF input capacity: 50 pages

Maximum scan dpi:

• FB: pull scan 2400x2400dpi (displayed on the driver side as 2400dpi),
• FB: push scan 1200 x 1200dpi (displayed on the driver side as 1200dpi)
• ADF: pull scan/push scan: 600x600dpi (displayed on the driver side as 600dpi)

Maximum scan size: FB: 216×297mm; ADF: 216×356mm

Scan Destinations: Scan to PC, Mail, FTP, SMB, U-disk

Scan format: Push scan: PDF, TIFF, JPG, OFD

Pull scan: PDF, TIFF, JPG, BMP, PNG, OFD, DOCX, XLS, XLSX, PPTX, TXT, Searchable PDF

Pantum scan application software: YES

Other scan function: OCR

Paper handling

Paper input tray:

• standard input tray: 250 pages
• Multipurpose input tray: 60 pages
• Optional tray: 550 pages (Maximum:2)
• Max input tray: 1,410 pages

Paper output tray: 150 pages

Paper output full detection: YES

Media type:

• 1. Automatic paper feeder: plain paper, thick paper, transparent film, thin paper, recycled paper
• 2. Multi-purpose paper feeder: plain paper, thick paper, card paper, label paper, envelope, thin paper, extra thick paper
• 3. Optional paper tray: plain paper, thick paper, thin paper

Media size: A4, A5, JIS B5, IS0 B5, A6, Letter,Legal,Executive,Folio,Oficio,Statement, Japanese Postcard, Monarch Env, DL Env, C5 Env, C6 Env, No.10 Env, ZL, Big 16K, Big 32K, 16K, 32K, B6, Yougata4, Postcard, Younaga3, Nagagata3, Yougata2

Min size: 80mm x 148mm

Max size: 216mm x 356mm

Media weight input tray: 60 -120g/㎡

Multipurpose tray: 60-200g/㎡

Optional tray: 60-120g/㎡
