Pantum ADF-CIS Cable for M7300 302111011201

Pantum ADF-CIS Cable for M7300 302111011201

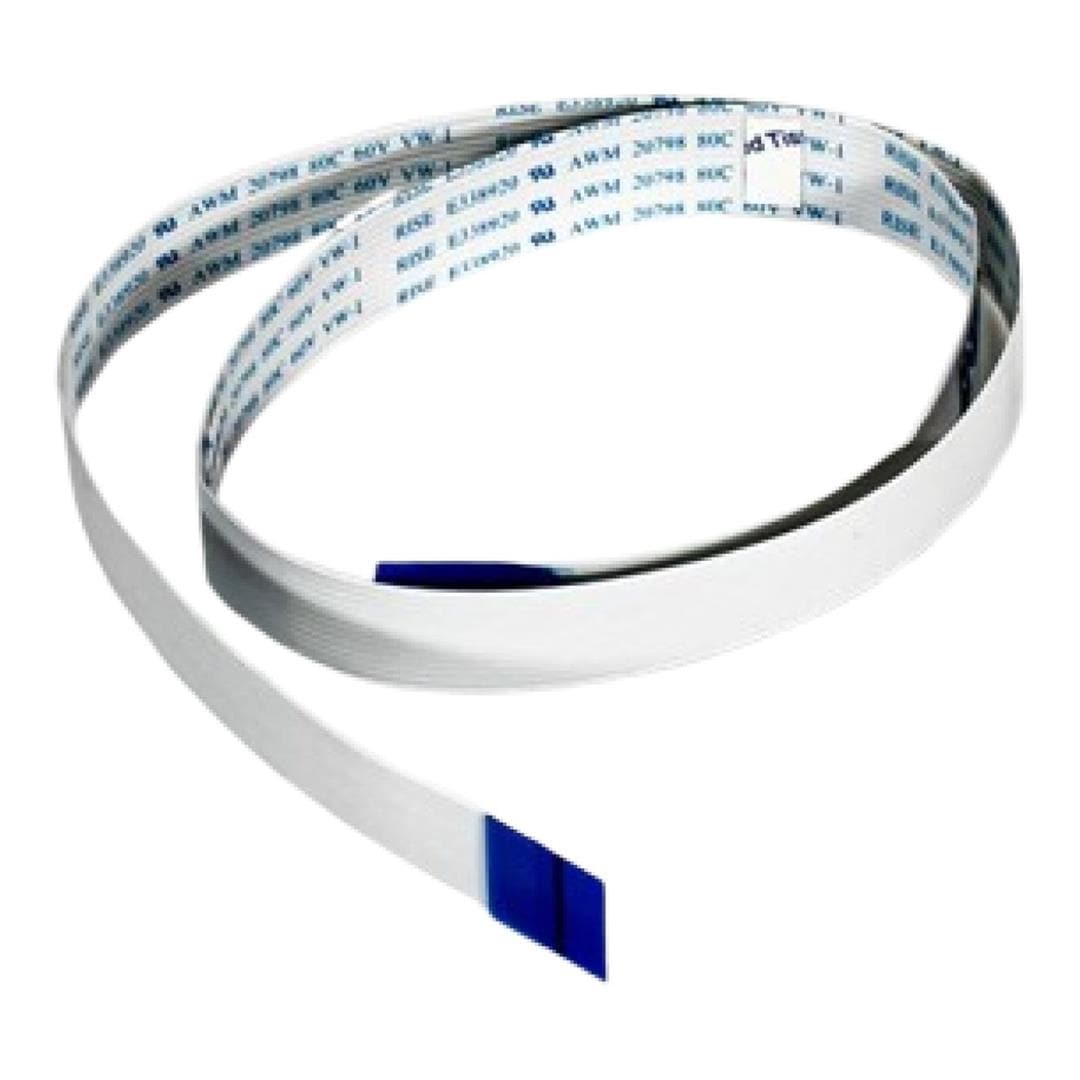

The Pantum ADF-CIS Cable (SKU: 302111011201) is an original internal replacement cable designed for Pantum M7300 series multifunction printers. It connects the ADF (Automatic Document Feeder) CIS scanner module to the printer’s mainboard, enabling accurate scanning, copying, and document feeding operations.

• Original Pantum Spare Part – Designed specifically for M7300 series devices
• ADF-CIS Connection Cable – Links the scanner (CIS) unit to the control board
• Ensures Scanning Functionality – Transfers image data and control signals during scanning
• Compact Internal Cable Design – Optimised for internal routing within the printer
• Reliable Signal Transmission – Maintains stable communication between components

The 302111011201 ADF-CIS cable is a critical internal component used in Pantum multifunction printers equipped with an Automatic Document Feeder (ADF). Its primary function is to connect the CIS (Contact Image Sensor) scanning assembly to the printer’s logic board, allowing scanned image data to be transmitted for processing.

Within the M7300 series, the ADF system relies on this cable to ensure that documents fed through the scanner are accurately captured and processed. If the cable becomes damaged or disconnected, it may result in scan errors, incomplete image capture, or total ADF failure.

As part of Pantum’s official spare parts catalogue, this component is specifically listed for M7300-series printers, confirming compatibility and correct fitment within the device architecture.

Specifications:

Product Type: Internal printer cable (ADF-CIS connection)

SKU / Part Number: 302111011201

Compatibility: Pantum M7300 series (and related M7xxx platforms)

Function:

• Connects ADF CIS scanner to mainboard
• Transfers image data and control signals

Installation: Internal (requires technical installation)
