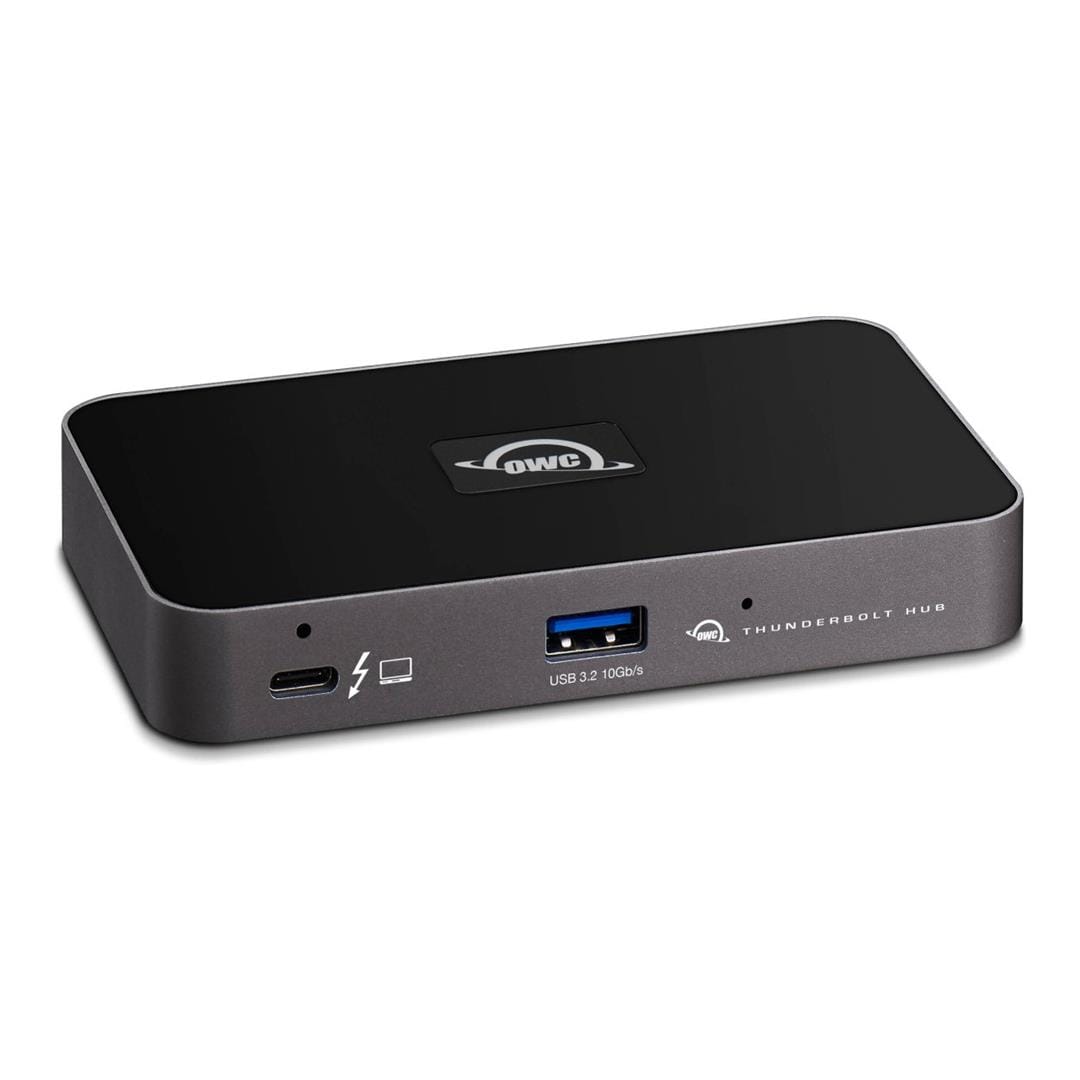

OWC Thunderbolt Hub OWCTB4HUB5P

OWC Thunderbolt Hub OWCTB4HUB5P

Add more full speed Thunderbolt ports to your computer

More Ports for A World of Possibilities

For the first time ever, the OWC Thunderbolt™ Hub lets you consolidate and simplify the connectivity between all your devices with all the Thunderbolt ports you’ve always wanted. The OWC Thunderbolt Hub’s four Thunderbolt (USB-C) ports and one USB port massively expand the connection possibilities of your Apple M1 Mac, any Apple ‘Intel’ Mac with Thunderbolt 3, or any Thunderbolt 4 PC so you can do more and do it all easier.

One Hub to Connect Them All

Through a single Thunderbolt port on your Mac or PC1, you can literally connect and charge anything via this compact hub: dual 4K displays or one 5K/6K/8K display, high-performance storage including NVMe solutions, A/V mixers, phone or tablet, even desktop accessories like a keyboard or mouse. Accessories with past, present or future USB or Thunderbolt interfaces…they all connect to the OWC Thunderbolt Hub.

Connectivity Reimagined

Removing any device other than the last one in a daisy chain will break your chain and disconnect devices until the chain connection is re-established. The OWC Thunderbolt Hub lets you create three separate “tree branch” chains so you can remove devices from one chain without affecting or disconnecting the other chains. You can even add three Thunderbolt bus-powered devices.

Multi-Drive

In the past, daisy chaining external storage required you to place it as close to the front of the chain for the fastest and most reliable performance. That wasn’t possible with bus-powered drives as they had to be placed last in the Thunderbolt chain…and the chain was limited to just one bus-powered device! Now you can connect multiple portable SSDs directly to the OWC Thunderbolt Hub and experience the fastest speed your storage device can deliver.

A Higher Vision

Thanks to its Thunderbolt technology, the OWC Thunderbolt Hub lets you connect to a 5K/6K/8K display or two 4K displays. Enjoy more precise and vivid details in graphic-intensive CAD drawings and Photoshop images. Edit large format video on one display while previewing the raw playback on the second display. Attend a video meeting on one screen while editing content on another. Whatever your workstation display needs, the OWC Thunderbolt Hub gives you the vision to take it to a higher level.

Keeps the Power Flowing

Whether you’re taking a short break or are done for the day, the OWC Thunderbolt Hub keeps you powering ahead. No matter if your machine goes into sleep mode, the Thunderbolt and USB ports continue to power and/or charge connected devices.

Disconnect in One Click

OWC Dock Ejector software safely disconnects multiple drives connected to the OWC Thunderbolt Hub in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss.

Secure Your Workflow with OWC ClingOn

Active workspaces expose gear to bumps, shoves, and the random tail wag from a pet. Just one ill-timed touch can cause an accidental cable disconnection interruption to your workflow. OWC ClingOn custom cable stabilizers (sold separately) screw into the OWC Thunderbolt Hub’s housing to secure your Thunderbolt (USB-C) connections so you can work with confidence even in the highest foot traffic environments.

Technical Specifications:

Ports & Connectivity

Device Ports

• 1 × Thunderbolt 4 (USB-C) Host Port Up To 40 Gb/s (5000 MB/s)
• 3 × Thunderbolt 4 (USB-C) Device Ports
• 1 × USB 3.2 Gen 2 Type-A Port Up To 10 Gb/s (1250 MB/s), Backwards Compatible With USB 2.0 / 3.0

UASP Support
UASP (USB Attached SCSI Protocol) Supported

Display Support

Maximum Display Support

• 1 × 8K Display At 60 Hz
• 1 × 4K Display At 120 Hz
• 2 × 4K Displays At 60 Hz
• 1 × 4K Display At 60 Hz
• 1 × 4K Display At 30 Hz
• 2 × 5K Displays At 60 Hz

Display Support By Port
Thunderbolt 4 Supports Up To 8K At 60 Hz Or 4K At 120 Hz Using Native Thunderbolt 4 Displays Or USB-C Displays Supporting DisplayPort 1.4

Power

Power Delivery
Thunderbolt 4 Host Port Provides Up To 60 W To Host Computer
Thunderbolt 4 Device Ports Provide Up To 15 W Per Port
USB Port Provides Up To 1.5 A For Bus-Powered Devices

Power Supply
External UL-Listed Universal Auto-Switching Power Supply

AC Input
100–240 V, 50/60 Hz, 1.5 A

DC Output
+20 V, 5.5 A

Power Consumption
110 W

External Power Adapter
Yes

Physical Specifications

Housing Material
Chassis: Aluminum
Covers: Polycarbonate

Housing Color
Chassis: Space Gray
Covers: Black

Dimensions (H × W × L)
1.7 × 7.3 × 11.8 cm (0.7 × 2.9 × 4.6 Inch)

Weight
209 g (0.46 lb)

Security Slot
Yes

Environmental

Operating Temperature
0°C To 30°C

Storage Temperature
-20°C To 60°C

Operating Altitude
-304.8 m To 3048 m (-1000 ft To 10000 ft)

Storage Altitude
-304.8 m To 12192 m (-1000 ft To 40000 ft)

Operating Humidity
5% To 95% Non-Condensing

Storage Humidity
5% To 95% Non-Condensing

Compliance & Certifications

Certifications

• BSMI
• CE
• FCC
• ICES
• RCM
• VCCI

RoHS Compliance
Yes

REACH Certification
Yes

UPC
810586035606
