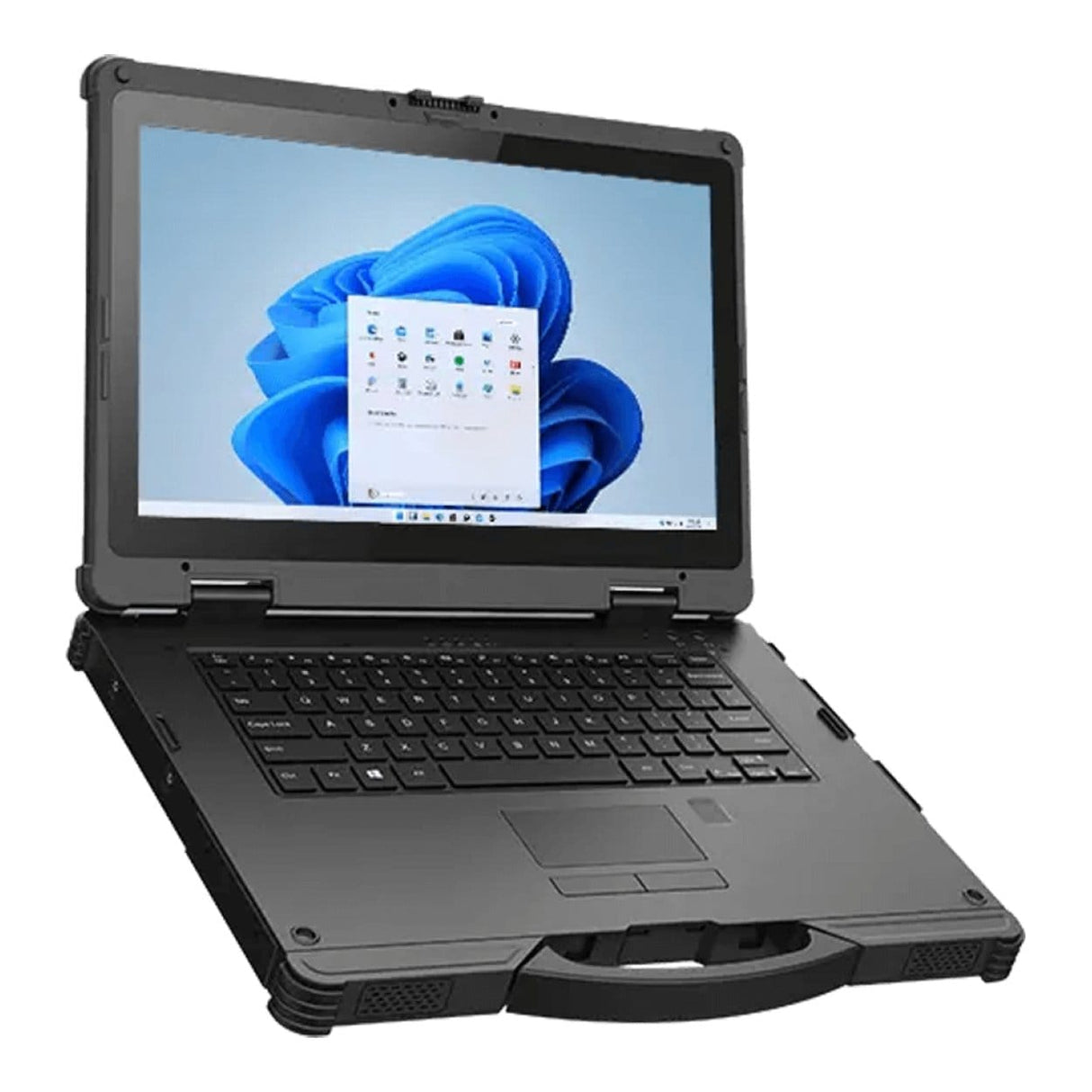

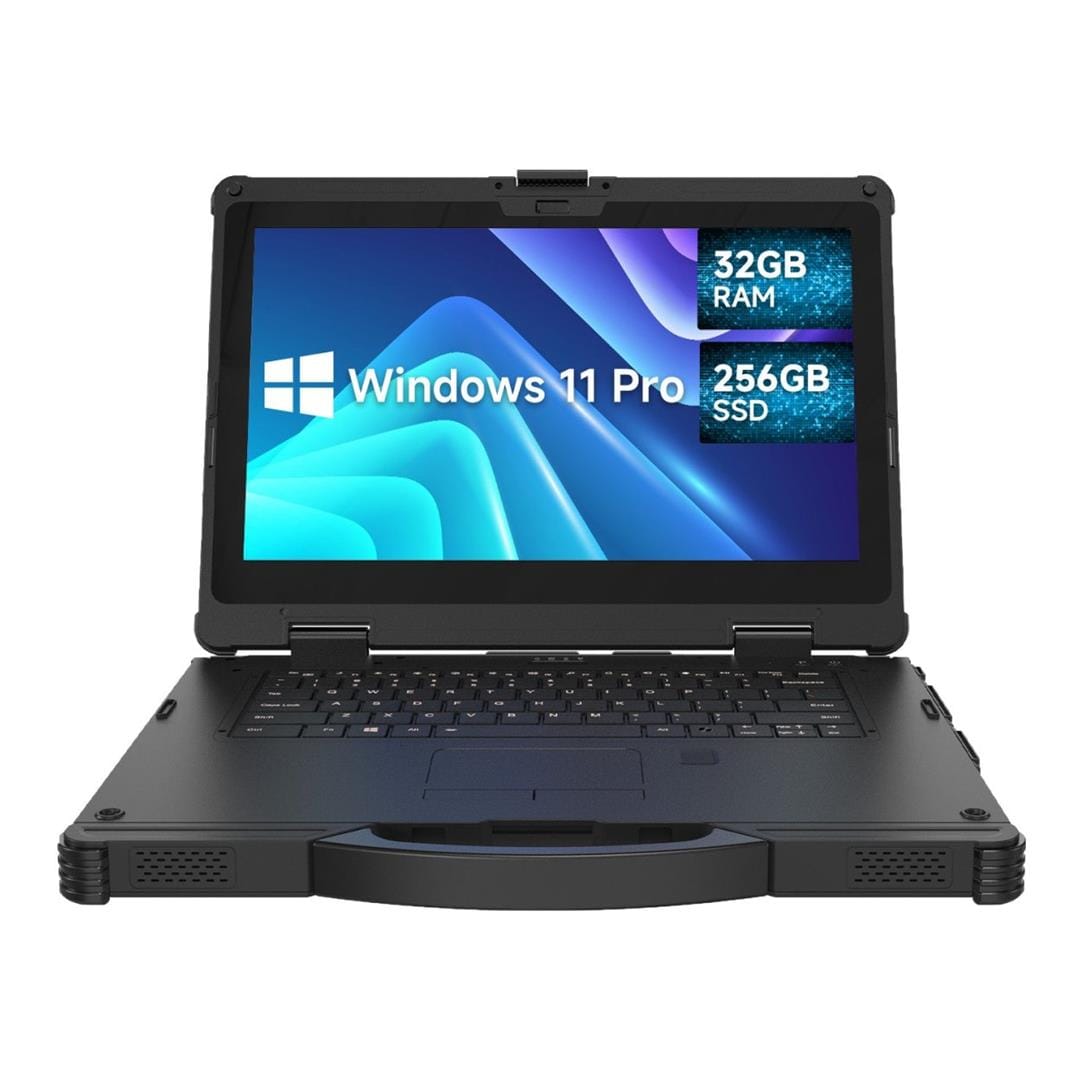

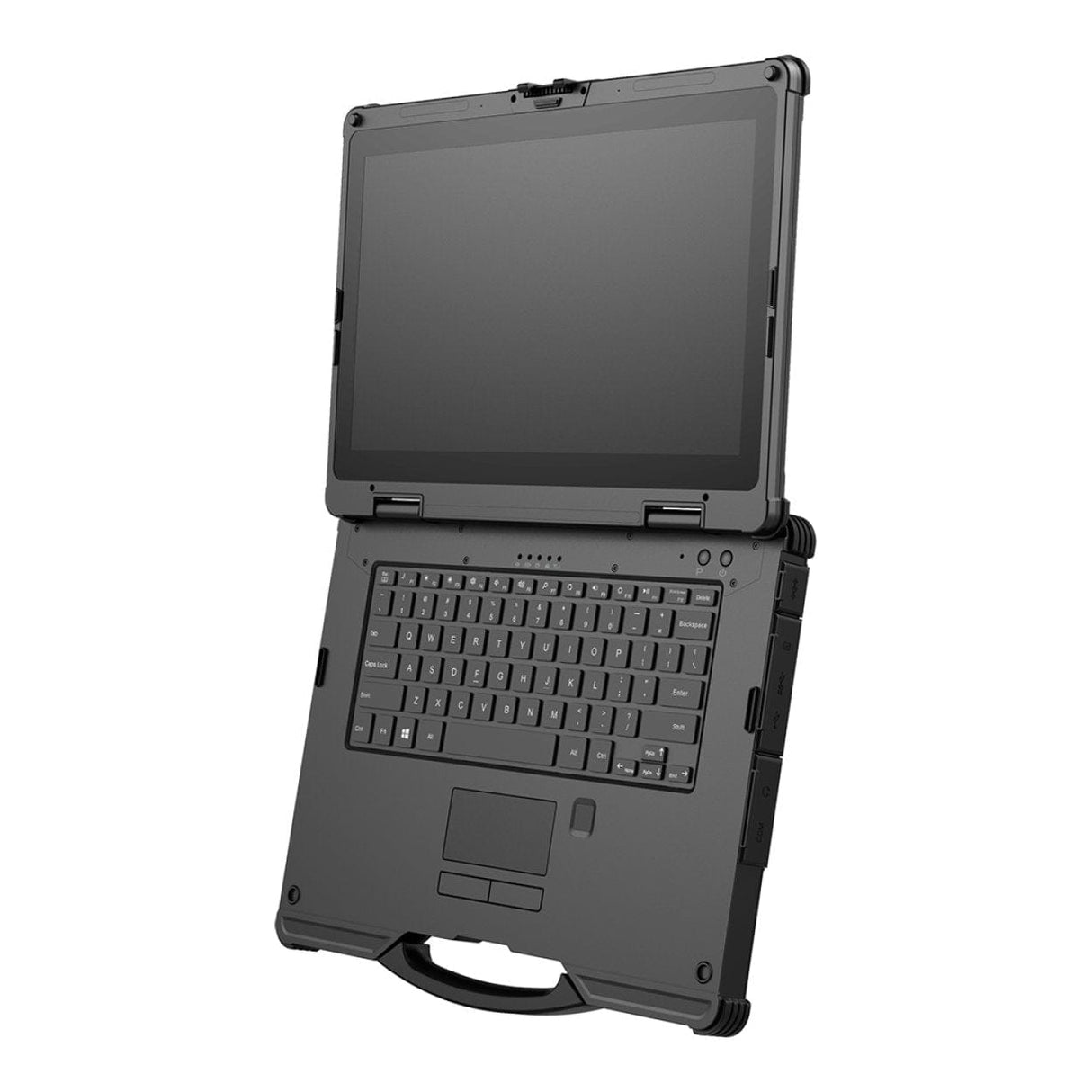

ONERugged N14M 14-inch FHD Rugged Laptop - Intel Core Ultra 7 155H 256GB SSD 32GB RAM Win 11 Pro

ONERugged N14M 14-inch FHD Rugged Laptop - Intel Core Ultra 7 155H 256GB SSD 32GB RAM Win 11 Pro

Key Features

• Intel Core Ultra 7 155H processor with dedicated AI engine (NPU)
• Intel Arc integrated graphics for accelerated graphics and compatible professional workloads
• 32GB RAM for demanding multitasking and professional applications
• 256GB SSD storage
• Windows 11 Pro operating system
• 14-inch Full HD 1920 x 1080 IPS display with up to 1000 nits brightness
• IP65-rated protection for demanding working environments
• MIL-STD-810H tested rugged construction
• Dual-battery design with removable 4850mAh / 56Wh main battery and 14.4Wh built-in battery
• Thunderbolt 4 connectivity for high-speed data and display expansion
• 5MP front-facing web camera
• Backlit keyboard for low-light working environments
• Dual Gigabit Ethernet ports
• RS232 serial connectivity for industrial and legacy equipment
• GPS and GLONASS positioning support
• Optional 4G mobile broadband connectivity
• Optional 5G expansion support

Features

Rugged AI Computing for Demanding Workloads

The ONERugged N14M combines Intel Core Ultra processing with a rugged mobile platform designed for professional field, industrial and enterprise environments. This configuration is powered by an Intel Core Ultra 7 155H processor and 32GB RAM, providing additional processing and multitasking capability for demanding professional workloads.

A dedicated neural processing unit (NPU) provides hardware acceleration for compatible AI tasks, helping process suitable workloads locally while Windows 11 Pro provides a familiar platform for business and industrial applications.

Intel Core Ultra 7 Performance

The Intel Core Ultra 7 155H is based on Intel's Meteor Lake-H architecture and combines multiple processing engines with a dedicated NPU for AI acceleration. Its hybrid architecture is designed to balance demanding performance workloads with efficient background processing.

The supplied configuration includes 32GB RAM and a 256GB SSD, providing a responsive environment for multitasking, field applications, diagnostics, data processing and compatible AI-enabled software.

Dedicated AI Processing

The integrated NPU provides a dedicated AI processing engine for compatible applications. This allows suitable AI workloads to be accelerated locally rather than relying entirely on conventional CPU or GPU resources.

Local AI processing can be useful for professional workflows where responsiveness, connectivity limitations or local data handling are important considerations.

Intel Arc Integrated Graphics

Intel Arc integrated graphics provide accelerated visual performance for compatible graphics, media and professional applications. ONERugged's N14M platform uses Intel's Xe LPG graphics architecture to support modern graphics workloads alongside the Core Ultra processor.

Windows 11 Pro

Windows 11 Pro provides a familiar operating environment for business, industrial and field applications, with support for enterprise productivity, security and management features.

The N14M platform also incorporates a dedicated Copilot key for convenient access to supported Windows AI functionality where available.

14-inch Full HD High-Brightness Display

The 14-inch IPS display delivers a Full HD 1920 x 1080 resolution in a 16:9 format. Brightness of up to 1000 nits helps improve visibility in brightly lit indoor environments and outdoor working conditions.

The display is complemented by a backlit keyboard for more accurate input in low-light environments and integrated dual 4Ω 3W speakers for convenient audio output.

Optional Touch Operation

Selected N14M configurations support a 10-point capacitive touch display with Corning Gorilla Glass and glove-touch operation, allowing compatible applications to be controlled directly from the screen in suitable working environments.

Note: Touch functionality is configuration dependent and should not be assumed to be included unless specifically stated.

Built for Challenging Environments

The ONERugged N14M is designed for demanding professional environments and carries an IP65 rating in accordance with IEC sealing specifications. It is also tested to MIL-STD-810H standards for rugged operation.

The supplied regional specification lists an operating temperature range of -20°C to 60°C, a storage temperature range of -30°C to 70°C and operation in humidity levels of up to 95% non-condensing.

ONERugged also specifies drop resistance of up to 1.22 metres for the N14M platform.

High-Capacity Dual-Battery Design

The N14M combines a removable 4850mAh / 56Wh main lithium-ion battery with a 1300mAh / 14.4Wh built-in battery. This dual-battery architecture is designed to provide greater flexibility for extended field operation.

The removable main battery can be exchanged when additional compatible batteries are available, while the integrated battery helps support the system during mobile working scenarios.

Thunderbolt 4 and Industrial Connectivity

The N14M combines modern high-speed connectivity with interfaces required for industrial and legacy equipment. Its USB Type-C port supports Thunderbolt 4, with ONERugged specifying transfer speeds of up to 40Gbps and support for compatible external displays.

Alongside Thunderbolt 4, the system provides USB, HDMI, dual Gigabit Ethernet and RS232 connectivity, helping it integrate into a variety of field and industrial workflows.

Ports & Connectivity

• 1 x USB Type-C Port with Thunderbolt 4
• 1 x USB 3.2 Port
• 1 x USB 3.0 Port
• 1 x USB 2.0 Port
• 1 x HDMI Port
• 2 x RJ45 10/100/1000 Gigabit Ethernet Ports
• 1 x RS232 Serial Port
• 1 x 3.5 mm Combo Audio Jack
• 1 x SIM Card Slot
• 1 x TF Card Slot
• 1 x 12-pin Pogo Interface for USB and Charging
• 1 x DC 19V / 3.78A Power Input
• 1 x Anti-theft Lock Port
• Optional M.2 2280 PCIe Expansion Slot
• Optional M.2 E-Key Interface

Wireless & Mobile Connectivity

The regional N14M configuration supports dual-band Wi-Fi for wireless network access and Bluetooth connectivity for compatible peripherals. GPS and GLONASS positioning support are also provided for suitable field and location-based applications.

Optional mobile broadband expansion allows selected configurations to support 2G, 3G and 4G connectivity, with additional optional M.2 expansion available for 5G capability.

Note: Cellular connectivity requires the appropriate optional hardware, SIM card and compatible network service.

5MP Web Camera

A 5MP front-facing camera supports video conferencing, remote collaboration and field documentation. The N14M platform also incorporates a physical camera privacy shutter for additional control when the camera is not required.

Enterprise Security

The N14M platform includes a number of security-focused design features for professional deployments. A physical camera shutter helps protect visual privacy, while a dedicated RF control function provides quick control over wireless connectivity.

Fingerprint authentication and NFC functionality are configuration dependent. The regional specification lists an optional SPI fingerprint reader supporting power-on login and optional NFC functionality.

Control Centre Software

ONERugged's Control Centre software provides centralised access to supported system-management functionality. Available controls include hardware information, battery configuration, wireless and GPS controls, backup and restore functionality and keyboard shortcut customisation.

Designed for Industrial Applications

The combination of Core Ultra processing, rugged construction and industrial connectivity makes the N14M suitable for a broad range of professional environments, including manufacturing, public surveying, transportation, utilities, equipment diagnostics and automotive applications.

Package Contents

• ONERugged N14M Rugged Laptop
• DC Charger Adapter

Optional Features & Accessories

• 10-Point Touch Display with Corning Gorilla Glass and Glove-Touch Support
• NFC
• 4G Mobile Broadband Connectivity
• 5G M.2 Mobile Broadband Module
• Removable Replacement Battery
• Compatible Battery Charging Solution

• Specifications and Images may vary depending upon region / model.

Technical Specifications

Specification	Details
Product	ONERugged N14M 14-inch Rugged AI PC
Product Type	Laptop
Form Factor	Clamshell
Processor Family	Series 1 Intel Core Ultra 7
Processor Model	155H
Processor Frequency	0.90 GHz / Up to 4.80 GHz (24 MB Cache, 16 Cores)
vPro Security	Not Supported
NPU	Intel AI Boost, up to 11 TOPS
Display Diagonal	35.6 cm (14'')
HD Type	FHD
Display Resolution	1920 x 1080
Display	Touchscreen, IPS, Fully laminated, Anti-glare, 1000 nits, Corning Gorilla Glass
Internal Memory	32 GB 4800 MHz
Internal Memory Type	DDR5-SDRAM
Memory Slots	2 x Memory Slots
Max Memory	Up to 64 GB
Total Storage Capacity	256 GB M.2 PCIe NVMe
Storage Media	SSD
Storage Slot	2 x M.2
Max Storage Support	Up to 1 TB
On-board Graphics Card Model	Intel Arc Graphics
Discrete Graphics Card Model	Not Supported
Keyboard	Backlit, US layout keyboard with AI key
Camera	5 MP front camera with privacy shutter
Fingerprint Reader	Included
Smartcard Reader	Not Supported
Security Chip	Not Specified
Operating System Installed	Windows 11 Pro
Connectivity	Wi-Fi 6E, Bluetooth 5.3
Mobile Broadband	4G LTE / 5G Capable (Module sold separatly)
Battery	Dual-battery, 14.4 Wh built-in + 56 Wh hot-swappable Li-ion
Battery Life	Up to 8.5 hours (User Dependant)
Power Adapter	71.82 W (19 V / 3.78 A) DC power adapter
Product Colour	Black
Weight	Not Specified
Warranty	3-year Carry-in
Bundled Accessories	None
Ports and Slots	1 x Thunderbolt 4 USB Type-C 40Gbps 1 x USB 3.2 1 x USB 3.0 1 x USB 2.0 1 x HDMI 2.0 2 x RJ-45 Gigabit Ethernet 1 x RS232 serial port 1 x 3.5 mm audio combo jack 1 x SIM card slot 1 x TF card slot 1 x Pogo 12-pin USB and charging interface 1 x DC power input
