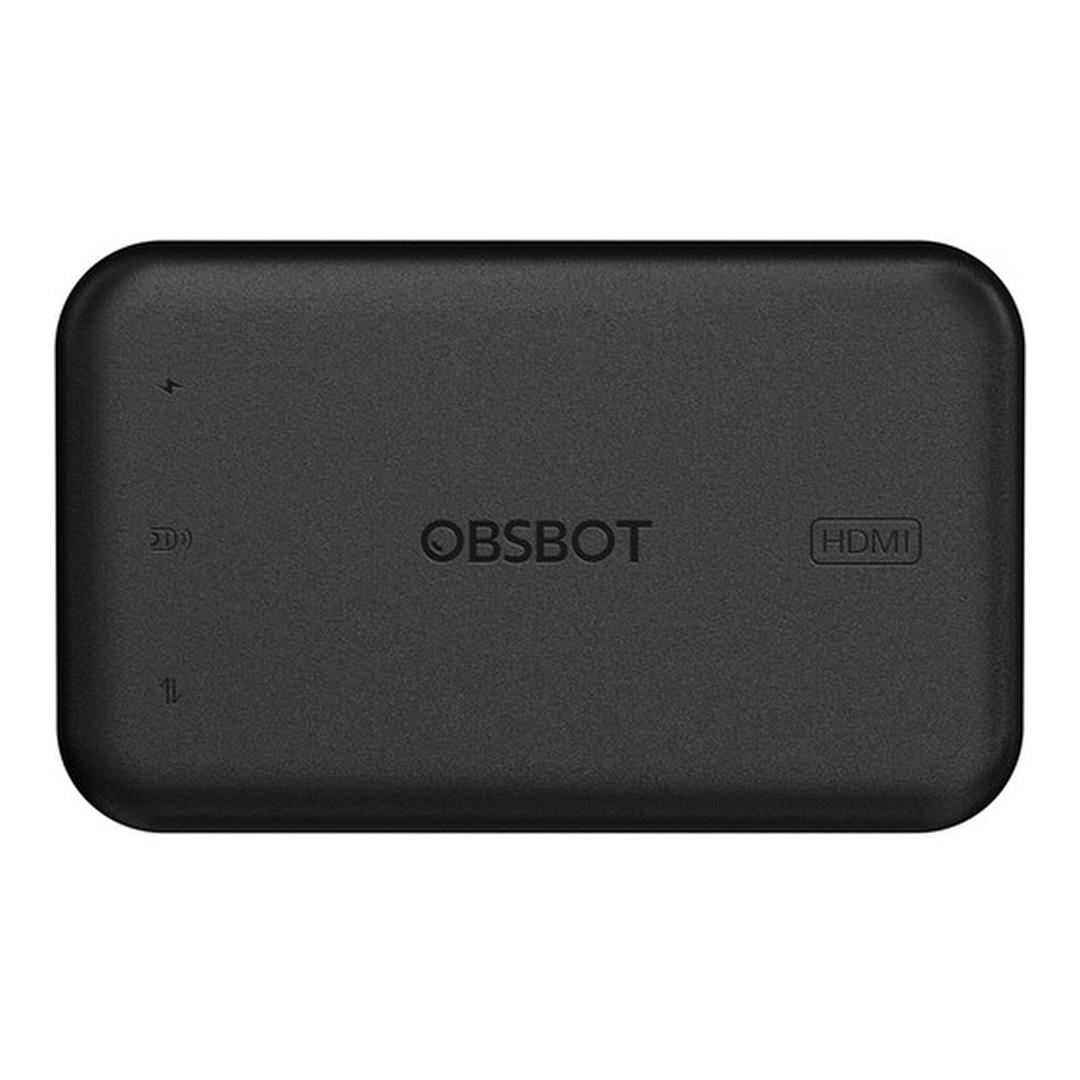

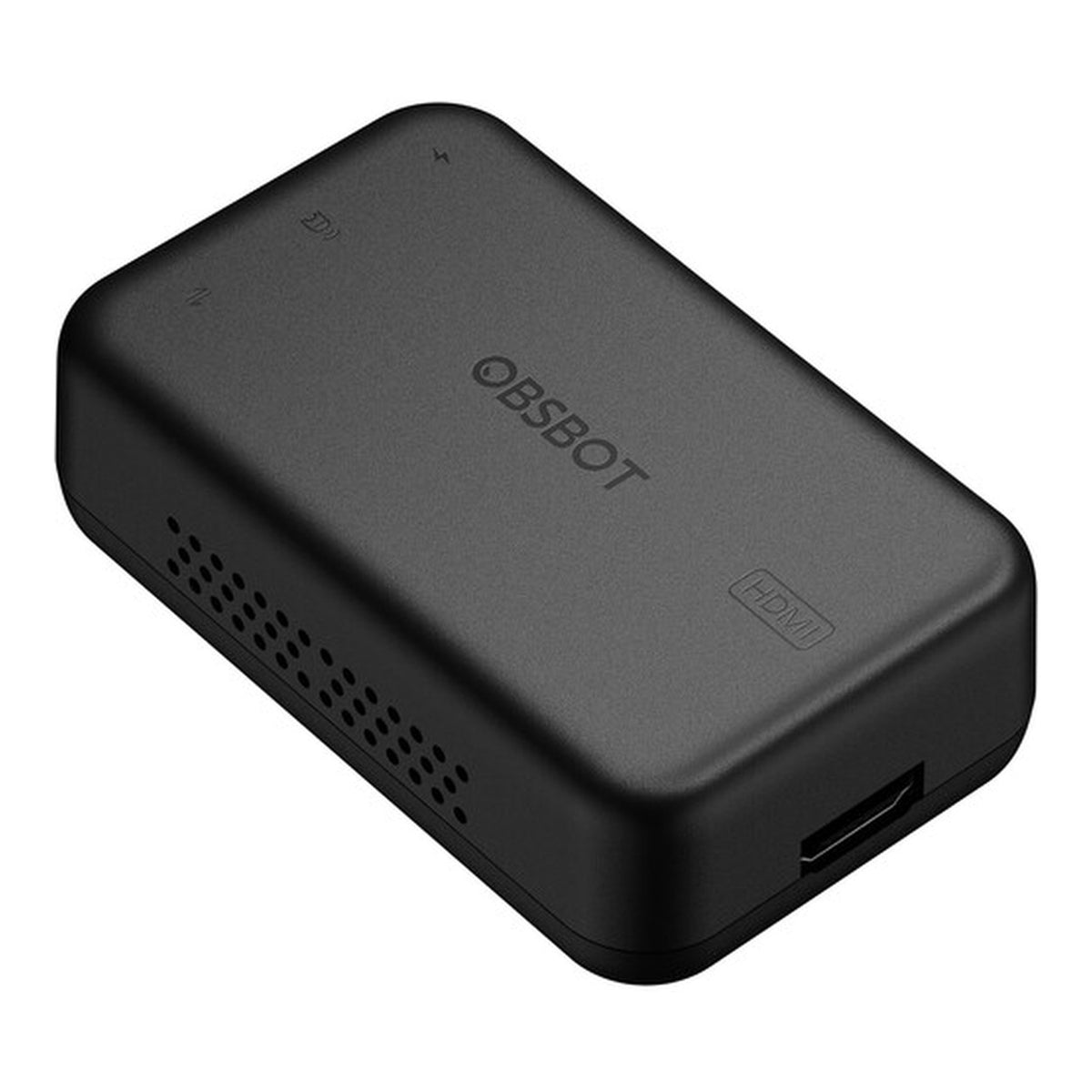

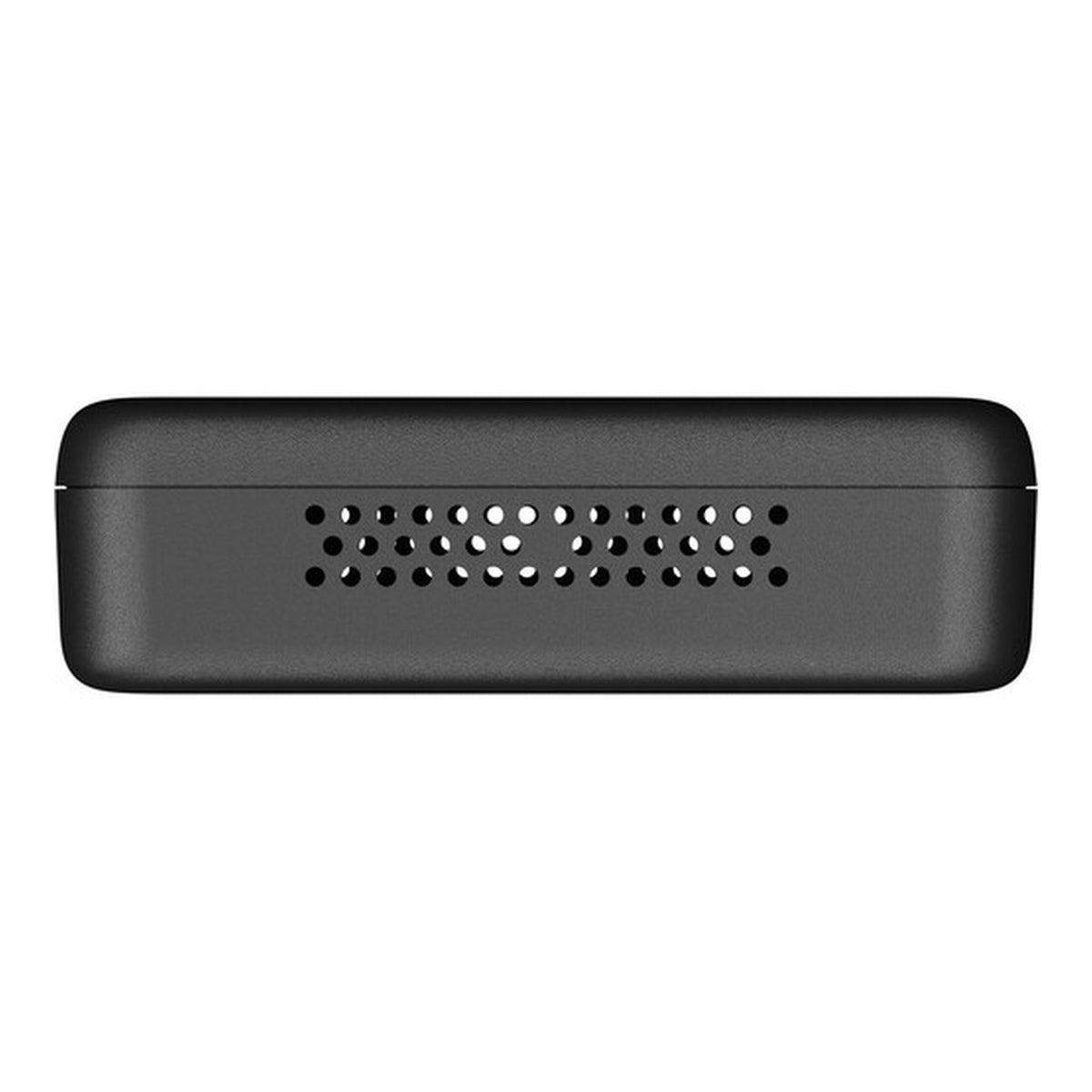

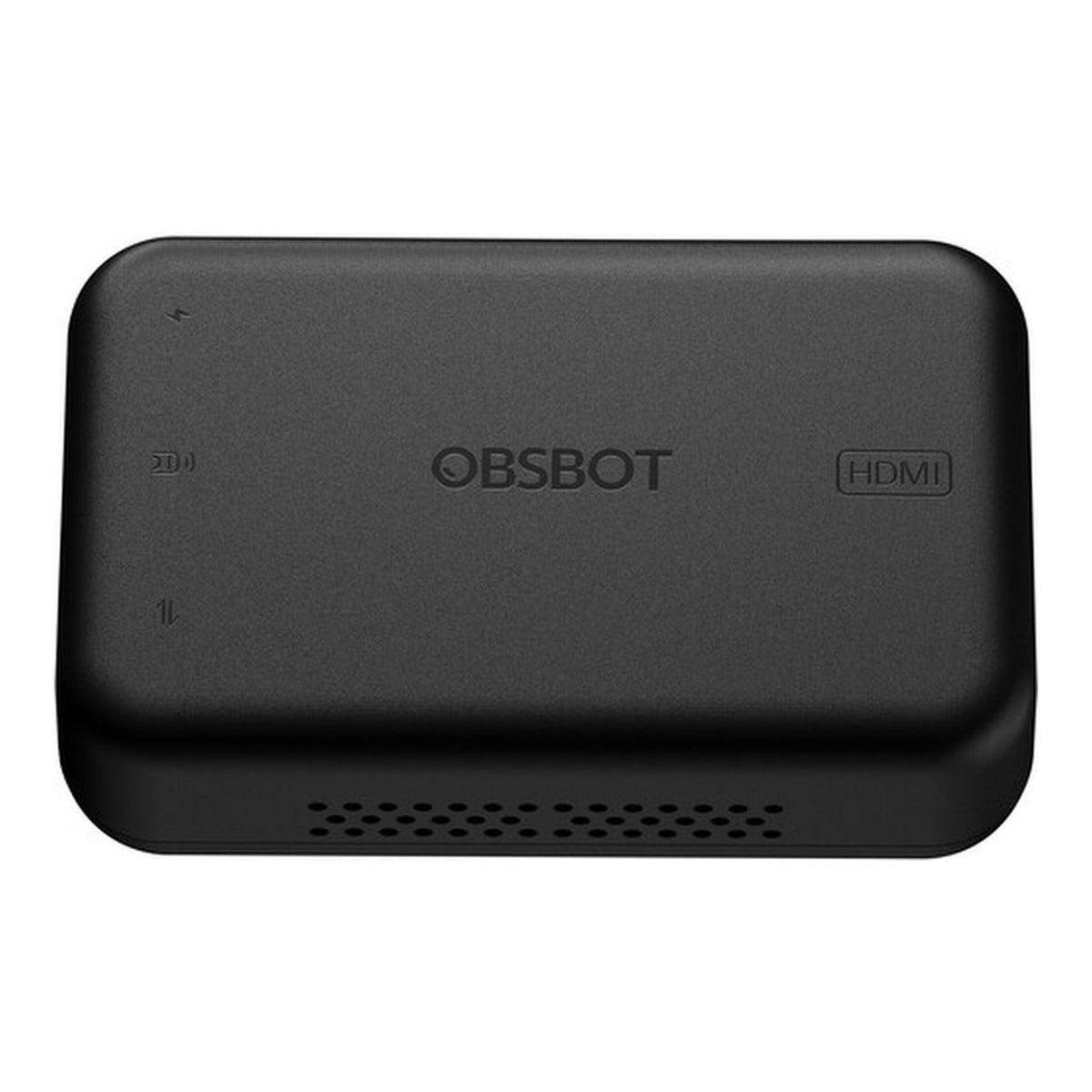

OBSBOT UVC to HDMI Converter OHB-2110-CA

OBSBOT UVC to HDMI Converter OHB-2110-CA

The OBSBOT OHB-2110-CA UVC to HDMI Converter provides a convenient way to connect a compatible USB UVC webcam to HDMI-based displays, video switchers and other AV equipment. Designed for OBSBOT webcams and other compatible UVC cameras, it converts the incoming USB video feed into a standard HDMI signal with support for resolutions up to 4K at 30fps or Full HD at 60fps.

Key Features:

• Converts compatible USB UVC webcam video to HDMI output
• Supports up to 3840 x 2160 4K video at 30fps
• Supports Full HD 1920 x 1080 video at up to 60fps
• HDMI 1.4 output for displays, video switchers and compatible AV equipment
• USB-C camera input for compatible UVC webcams
• Compatible with UVC 1.1 and UVC 1.5 camera protocols
• Supports H.264 and MJPEG video decoding
• Low-latency video conversion for live production and conferencing
• Plug-and-play operation with no additional driver required
• USB-A control port supports compatible OBSBOT remote-control receivers
• Supports OBSBOT Tiny and Meet series cameras plus other compatible UVC webcams
• USB-C power input with PD 3.0 support
• Firmware can be updated using OBSBOT software
• Compact design suitable for live production, conferencing and AV installations

Features

4K UVC to HDMI Conversion

The adapter converts video from a compatible UVC camera connected through USB-C into an HDMI output signal. It supports output resolutions up to 3840 x 2160 at 30fps, providing detailed 4K video for compatible displays, production switchers and monitoring equipment.

Full HD at up to 60fps

For applications where smoother motion is preferred, the converter supports 1920 x 1080 Full HD output at frame rates up to 60fps. This makes it suitable for livestreaming, presentations, conferencing and other real-time video workflows.

Low-Latency Video Output

The UVC to HDMI Adapter is designed for low-latency signal conversion, helping maintain responsive real-time video when using a compatible webcam with an HDMI display or production system.

Plug-and-Play Operation

No dedicated driver installation is required for normal operation. Connect the compatible UVC camera to the USB-C camera input, connect the adapter to an appropriate USB-C power source and connect the HDMI output to the required display or video device.

Compatible with UVC Cameras

The adapter supports cameras using UVC 1.1 or UVC 1.5 protocols. It is designed for OBSBOT Tiny and Meet series devices while also supporting other compatible UVC webcams.

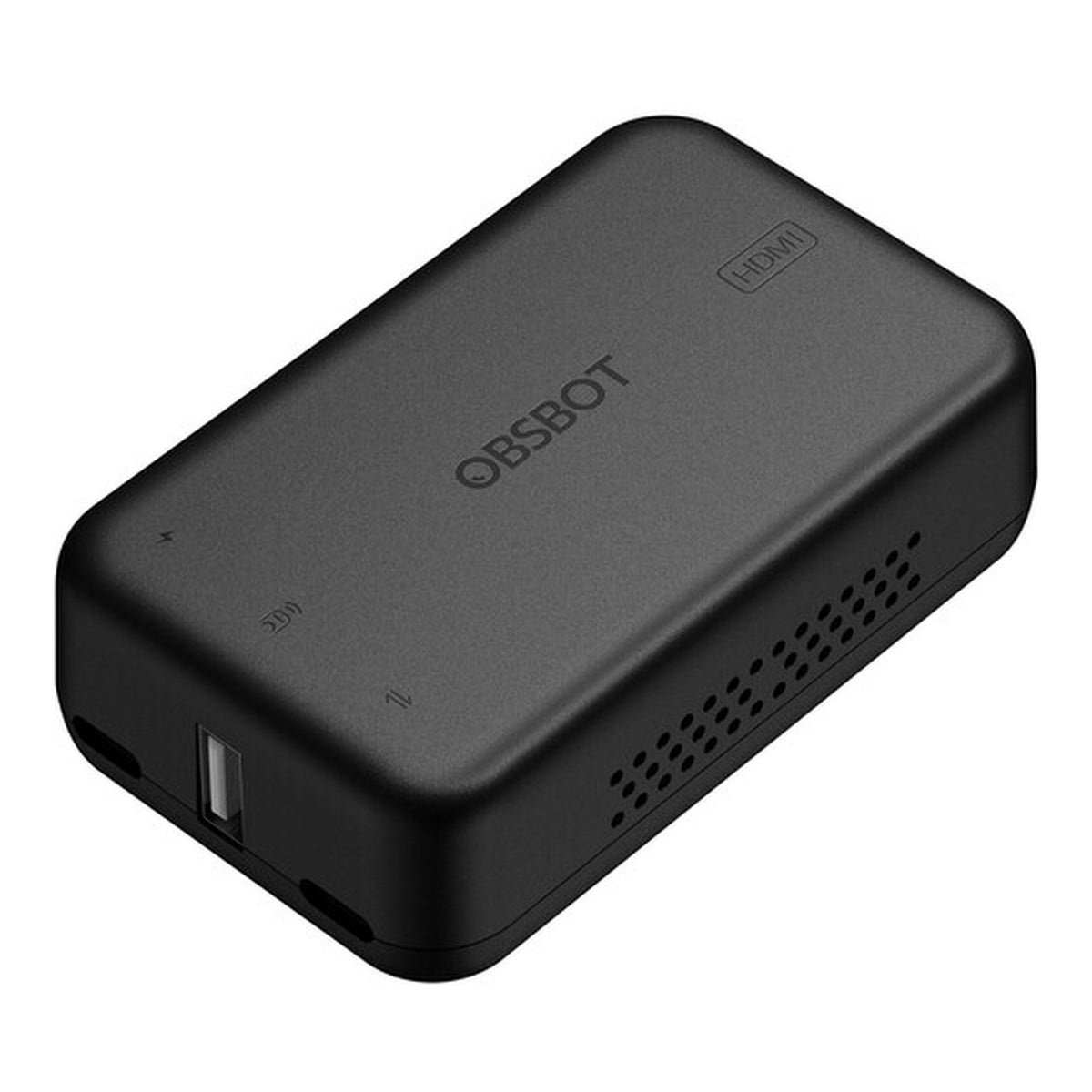

OBSBOT Remote Controller Support

A dedicated USB-A port allows a compatible OBSBOT remote-control receiver to remain connected while the webcam is operating through the HDMI converter. This allows supported Tiny and Meet series cameras to retain convenient remote-control functionality without being connected directly to a computer.

USB-C Camera Input

The dedicated USB-C data input receives the UVC video signal from the connected webcam. Supported H.264 input resolutions include 4K at 30fps and Full HD at up to 60fps, while compatible MJPEG video streams are also supported.

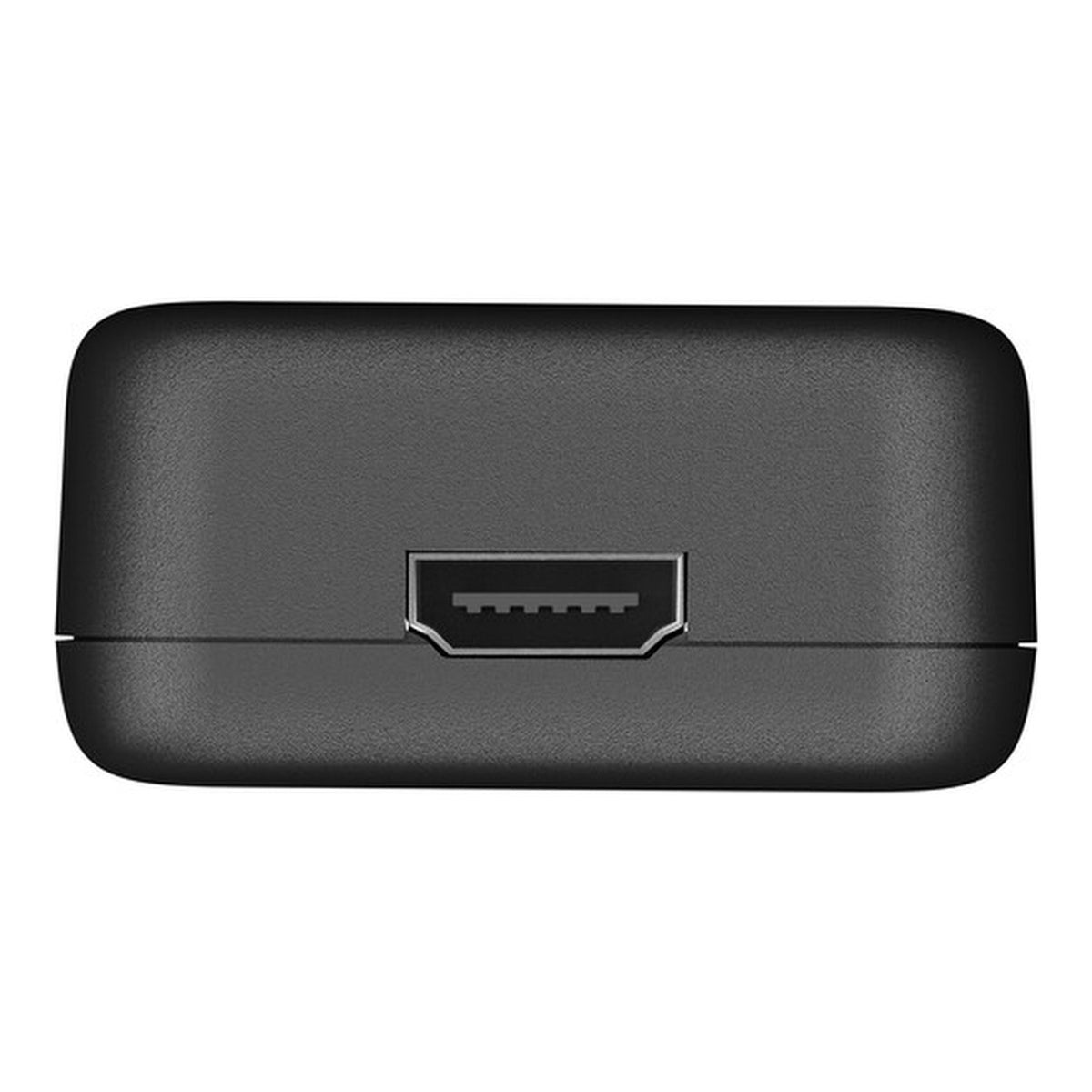

HDMI 1.4 Output

The HDMI 1.4 output connects the converted camera signal to an HDMI-equipped monitor, television, switcher, projector or other compatible AV device. Maximum output resolution is 3840 x 2160 at 30fps, with Full HD output supported at up to 60fps.

Flexible USB-C Power

A separate USB-C port supplies power to the converter. The unit supports compatible 9V / 2A or 5V / 3A power sources with PD 3.0 support. OBSBOT recommends a power supply of at least 5V / 2A / 10W and advises against powering the adapter from a computer USB port.

Firmware Upgrade Support

The adapter supports firmware upgrades through OBSBOT software, helping maintain compatibility and provide access to supported performance or functionality updates.

Compact AV Integration

Measuring approximately 90.5 x 55.5 x 27.2mm, the converter can be integrated into desktop, studio, conferencing and portable production setups without taking up significant space.

• A compatible UVC webcam is required and sold separately.
• HDMI cable is sold separately.
• USB-C power adapter is not included and is sold separately.
• A minimum 5V / 2A / 10W power supply is recommended by OBSBOT.
• Maximum resolution depends on the video format and output configuration used.
• OBSBOT remote controller and USB receiver are sold separately.
• Specifications and images may vary depending upon region / model.

Technical Specifications:

Choose the OBSBOT OHB-2110-CA UVC to HDMI Converter to integrate compatible USB webcams into HDMI-based AV and live-production workflows, with up to 4K 30fps output, low-latency conversion, OBSBOT remote-control support and straightforward plug-and-play operation.
