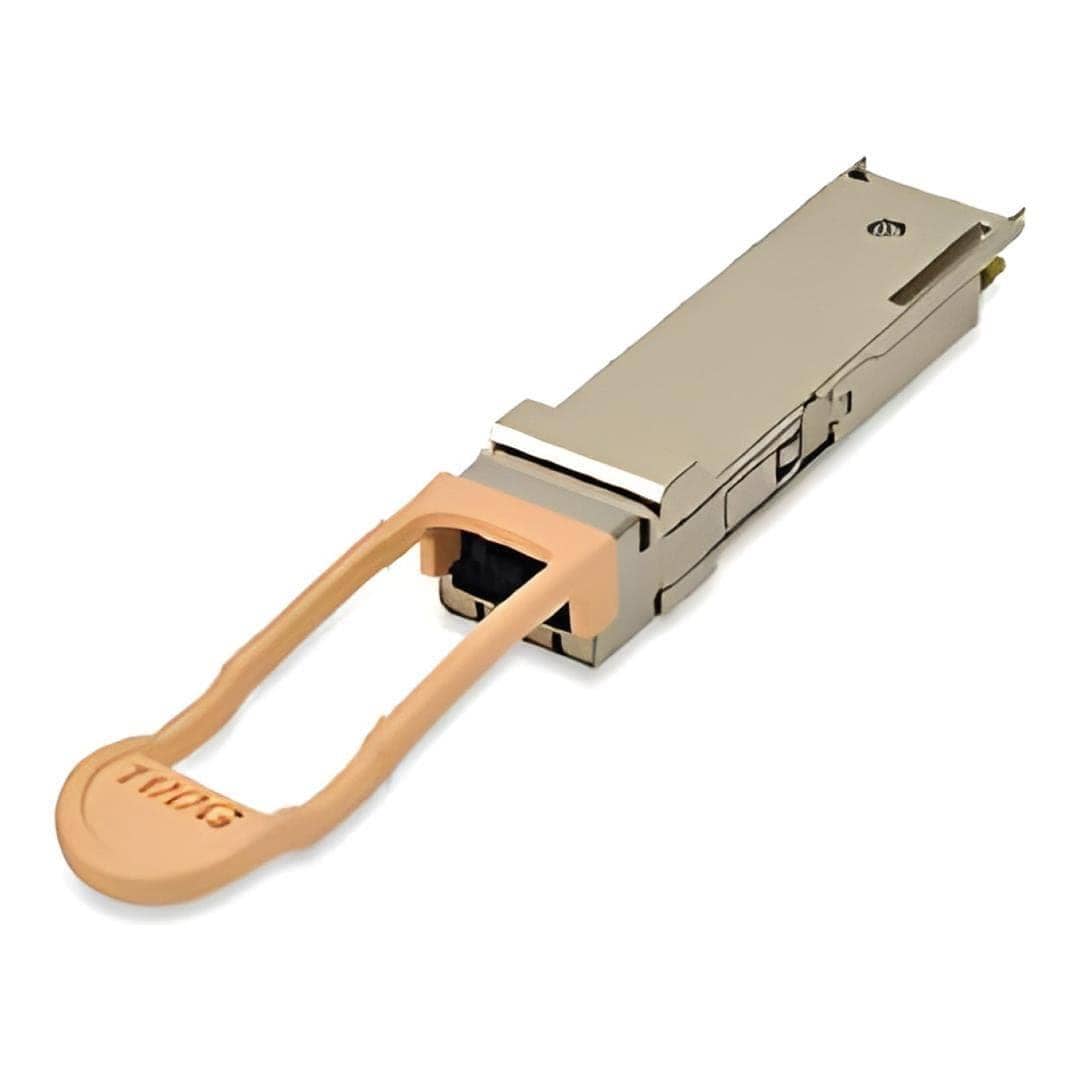

NVIDIA Mellanox MMA1B00-C100D Compatible 100GBASE-SR4 QSFP28 Ethernet Optical Transceiver Module

NVIDIA Mellanox MMA1B00-C100D Compatible 100GBASE-SR4 QSFP28 Ethernet Optical Transceiver Module

The NVIDIA/Mellanox MMA1B00-C100D Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 70m over OM3 and 100m over OM4 multimode fibre (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. The module also supports breakout to 4x 25GBASE-SR SFP28. The transceiver is compliant with QSFP28 MSA, SFF-8636, IEEE 802.3bm, and CAUI-4 standards. Digital diagnostics are provided via the I2C interface for real-time monitoring.

It is suitable to be used in various applications, such as data centres, high-performance computing networks, enterprise core and distribution layer applications.

Features:

• Built-in Semtech Chip, and Max. Power Consumption 2.5W
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Interoperates with SFP-25GSR-85 for 4x 25G Breakout Applications
• FS BOX - Support Real-time Configuration
• High-Speed Electrical Interface Compliant to IEEE 802.3bm
• Interoperable with Other IEEE-compliant 100G Interfaces for Seamless Integration
• Hot Pluggable QSFP28 MSA Compliant, Class 1 FDA Laser Safety, and RoHS Compliant
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities

Technical Specifications:

NVIDIA/Mellanox Ethernet Compatible: MMA1B00-C100D
Vendor Name: FS
Form Factor: QSFP28
Max. Data Rate: 103.125Gbps (4x 25.78Gbps)
Wavelength: 850nm
Max. Cable Distance: 70m@OM3 / 100m@OM4
Connector: MTP/MPO-12/UPC
Media: MMF
Transmitter Type: II-VI VCSEL
Receiver Type: PIN
TX Power: -8.4 ~ 2.4dBm
Minimum Receiver Power: -10.3dBm
Power Budget: 1.9dB
Receiver Overload: 2.4dBm
Typical Power Consumption: ≤ 2.5W
Extinction Ratio: > 2dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
Modulation (Electrical): 4x 25G NRZ
Modulation (Optical): 4x 25G NRZ
CDR (Clock and Data Recovery): TX & RX Built-in CDR
Packaging Technology: COB (Chip on Board) Packaging
Bit Error Ratio (BER): 5E-5
MTBF: 30,800,000 Hours (@40°C, 60% CL)
Protocols: QSFP28 MSA, SFF-8636, IEEE 802.3bm, CAUI-4
Warranty: 5 Years
