Nikon ME-D10 Shotgun Microphone for ZR NIACMED10

Nikon ME-D10 Shotgun Microphone for ZR NIACMED10

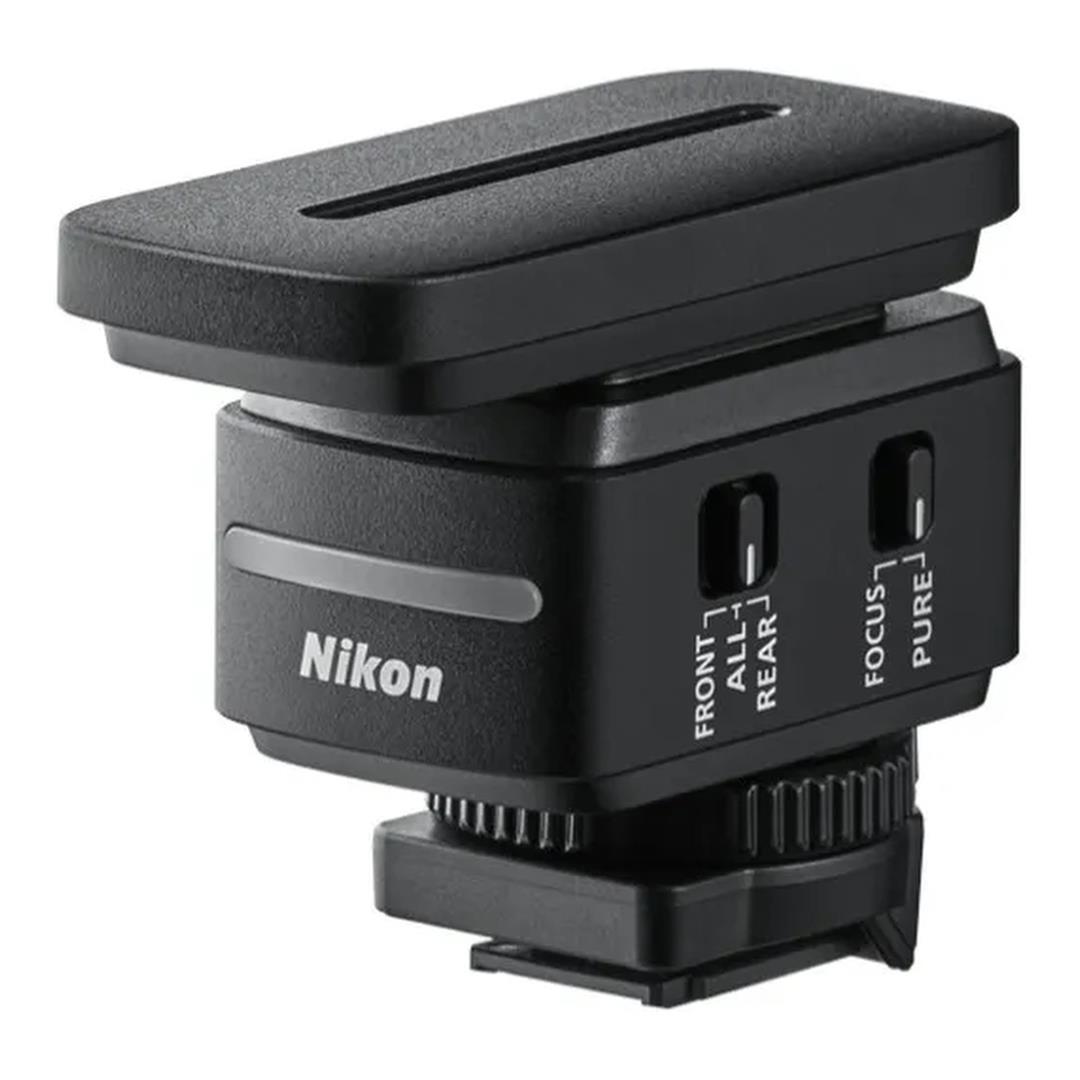

The Nikon ME-D10 is a compact digital shotgun microphone designed specifically for the Nikon ZR cinema camera. Connecting directly through the ZR's digital accessory shoe, it receives both power and digital audio connectivity from the camera without requiring a separate battery or audio cable. Support for 48 kHz/24-bit and 48 kHz/32-bit float recording, selectable PURE and FOCUS audio modes, three pickup-direction settings and a built-in shock mount make it a versatile solution for filmmaking, interviews, presentations, live streaming and location sound recording.

Key Features:

• Compact digital shotgun microphone designed for the Nikon ZR cinema camera.
• Connects directly to the ZR digital accessory shoe without a separate audio cable.
• Powered directly by the camera, eliminating the need for a separate microphone battery.
• Supports professional 48 kHz/32-bit float audio recording when used with the Nikon ZR.
• Also supports 48 kHz/24-bit audio recording.
• PURE mode provides a wide, flat frequency response for natural ambient and source recording.
• FOCUS mode is optimised for clearer human voice capture in noisy environments.
• Three selectable pickup directions: Front, Rear and All/Omnidirectional.
• Built-in shock mount helps reduce vibration and handling noise transferred from the camera.
• Large front and rear status lamps provide clear recording-status information.
• Selectable status-lamp brightness with High, Low and Off settings.
• Supplied wind muff helps reduce wind noise during outdoor recording.
• Compact body measures approximately 34 × 58.5 × 73 mm.
• Lightweight design weighs approximately 86 g excluding accessories.

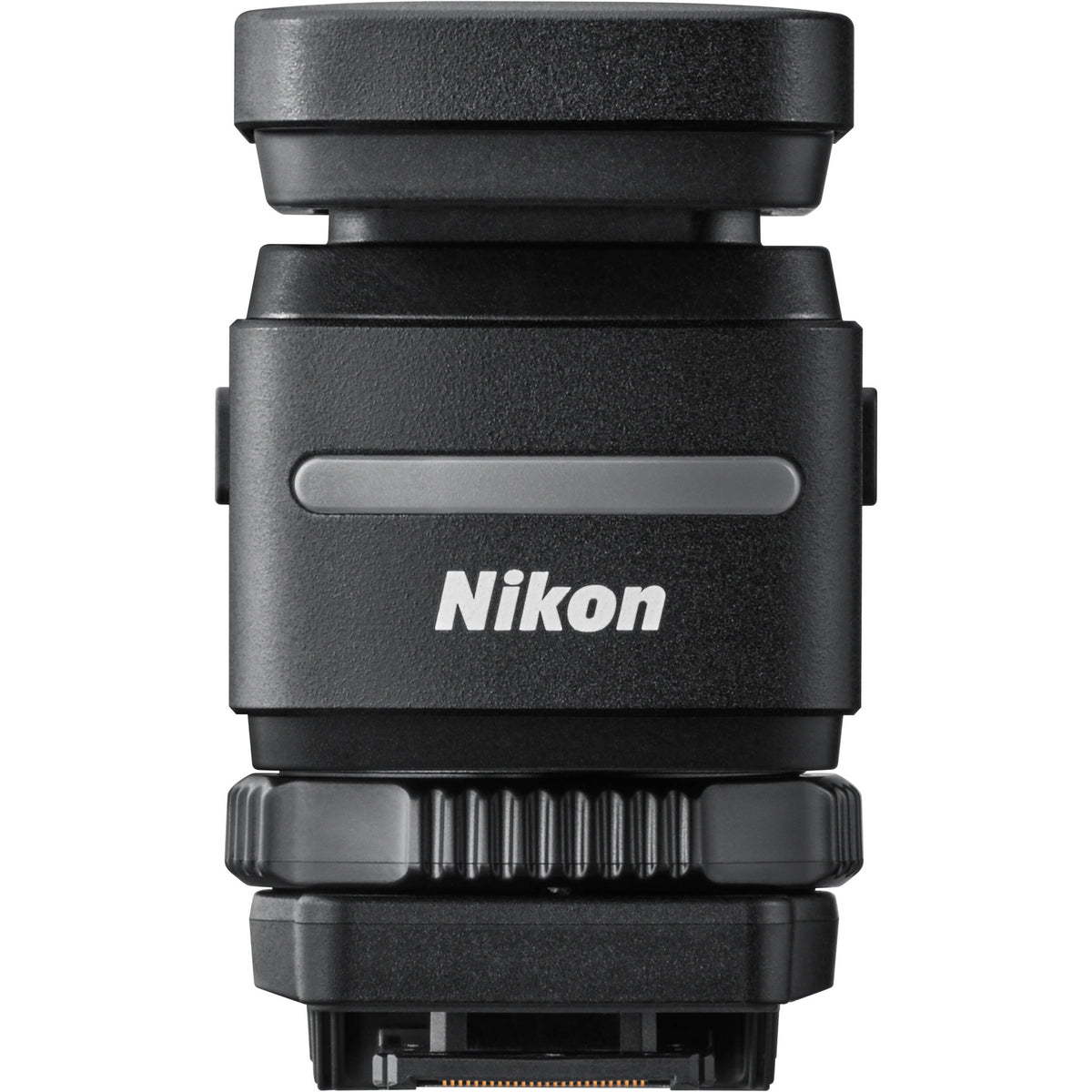

Designed Specifically for the Nikon ZR

The ME-D10 is designed to connect directly to the digital accessory shoe on the Nikon ZR. The digital connection carries audio data while also supplying power to the microphone, resulting in a clean setup without the need for a separate microphone cable or internal microphone battery.

Nikon currently lists the ZR as the compatible camera for the ME-D10. It should not be assumed to work with other Nikon cameras simply because they feature a conventional accessory or hot shoe.

32-Bit Float Audio Recording

When connected to the Nikon ZR, the ME-D10 supports audio recording at 48 kHz/32-bit float as well as conventional 48 kHz/24-bit recording. The expanded dynamic range of 32-bit float recording provides additional flexibility when working with audio that contains large changes in volume and can make level adjustment during post-production easier.

This is particularly useful for unpredictable recording environments such as interviews, documentaries, events and location filming where sound levels may change rapidly.

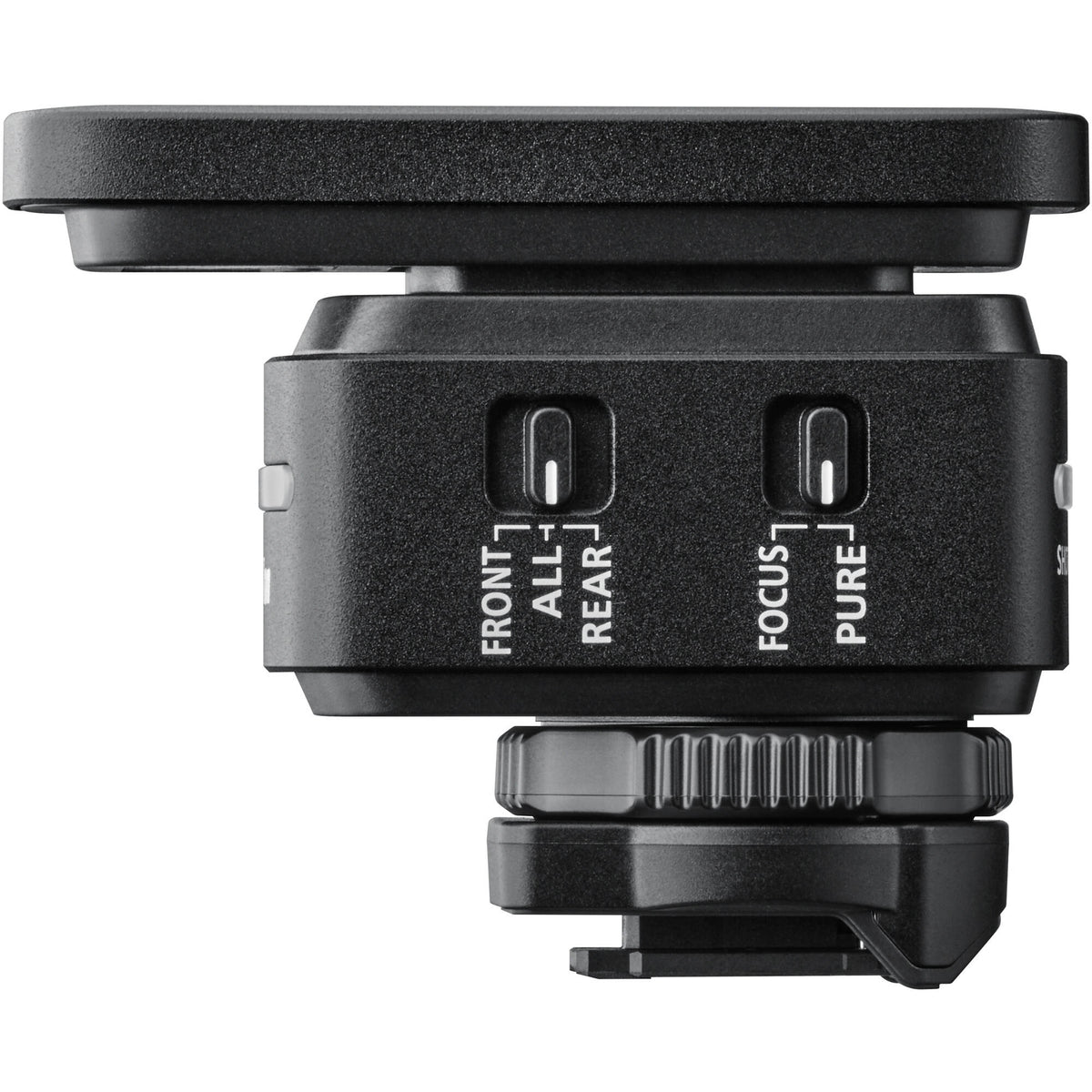

PURE Mode for Natural Sound

PURE mode is designed to capture the sound of the scene as naturally as possible. It provides a frequency response of 40 Hz to 20 kHz and is suited to applications such as musical performances, environmental sound, ambience and field recordings where creators want greater flexibility when processing the audio later.

FOCUS Mode for Clearer Voice Capture

FOCUS mode is optimised for human speech and provides a frequency response of 90 Hz to 20 kHz. It is particularly useful for interviews, product presentations, live streaming and other situations where speech intelligibility is more important than capturing the complete low-frequency ambience of the surrounding environment.

Three Selectable Pickup Directions

The ME-D10 provides three pickup-direction settings directly on the microphone. FRONT prioritises sound arriving from in front of the camera, REAR allows sound to be captured from behind the camera, and ALL provides omnidirectional pickup around the microphone.

This allows the same microphone to adapt to different production requirements without having to replace or reposition the microphone for every recording situation.

Front Pickup for Subjects and Interviews

The FRONT setting is useful when the main sound source is positioned in front of the camera, such as an interview subject, presenter, performer or other on-camera subject.

Rear Pickup for Camera-Side Commentary

The REAR setting prioritises sound from behind the camera. This can be useful for camera operators, presenters or creators who want to record commentary while remaining behind the ZR.

Omnidirectional Pickup

The ALL setting captures sound from around the microphone rather than prioritising only the front or rear. This makes it useful when recording environmental ambience, group conversations or situations where sound originates from several directions.

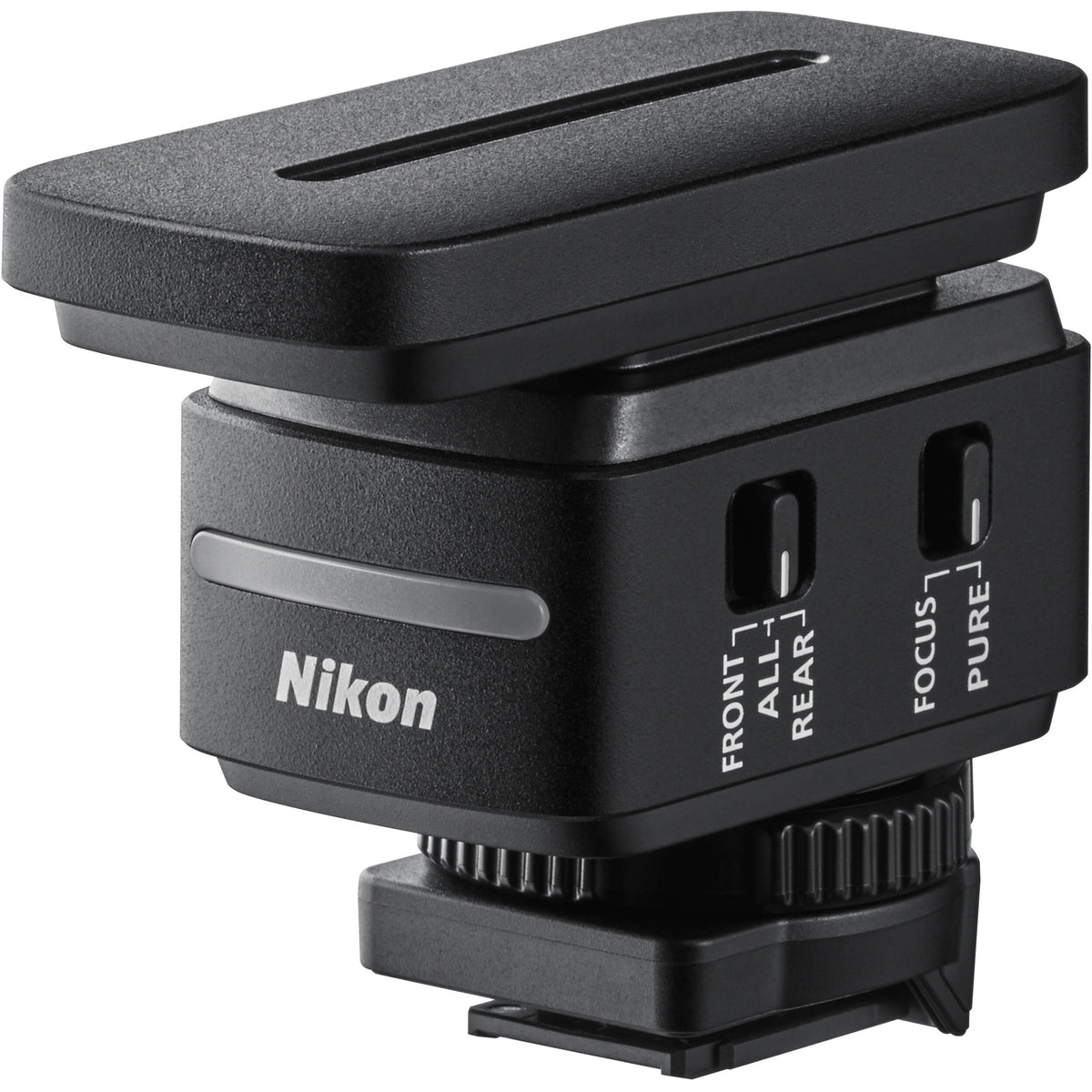

Built-In Shock Mount

The microphone incorporates its own shock-mount mechanism to help reduce vibration noise transferred from the camera body. This helps isolate the microphone from small movements and handling vibrations during handheld filming and other mobile shooting situations.

Clear Recording Status Indicators

Large status lamps are positioned at both the front and rear of the microphone so recording information can be monitored whether the operator is positioned in front of or behind the camera.

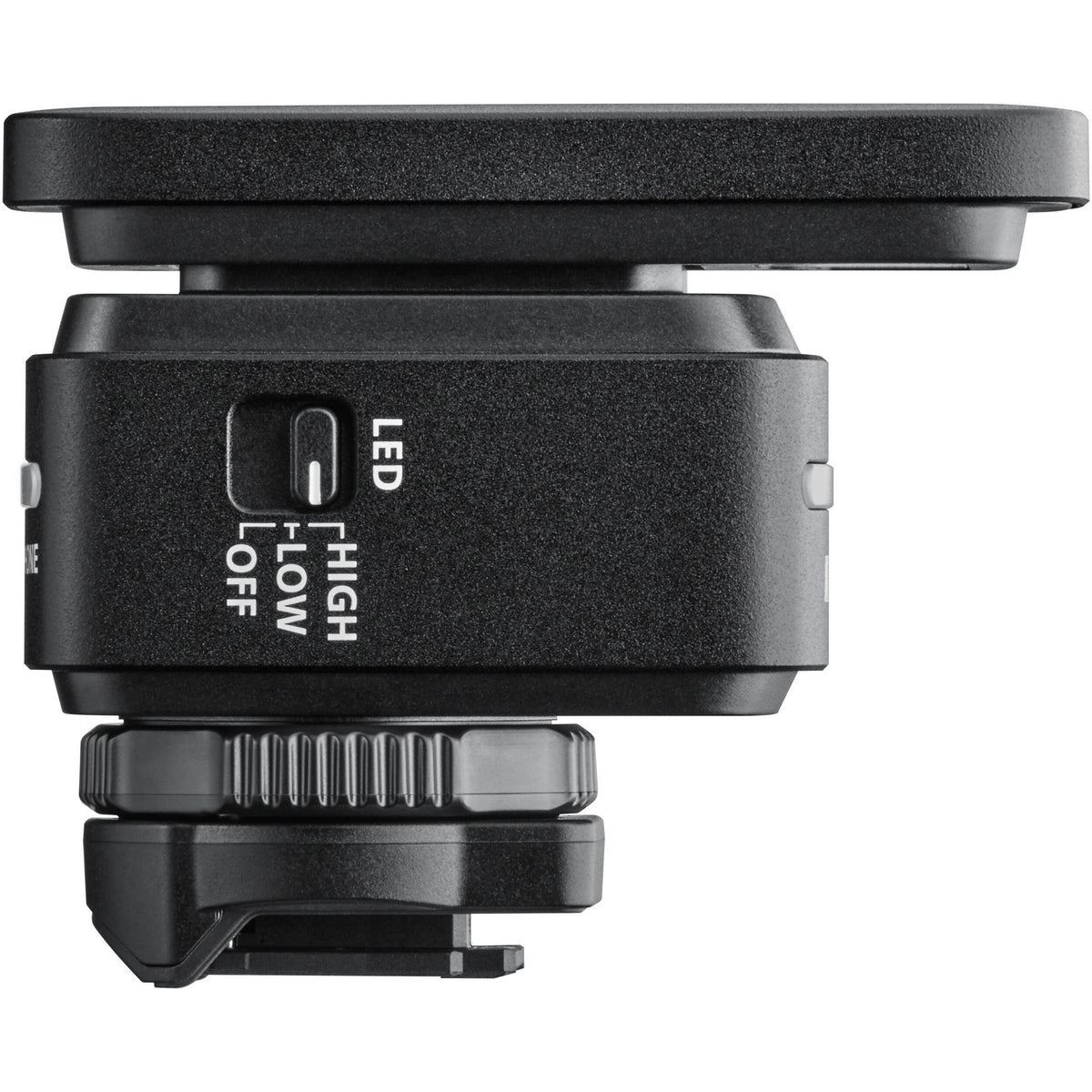

A dedicated LED brightness switch allows the status lamps to be set to High, Low or Off according to the production environment.

No Separate Battery Required

The ME-D10 receives operating power directly from the Nikon ZR through the digital accessory shoe. This removes the need to monitor or replace a separate microphone battery and helps simplify camera preparation before filming.

Power to the microphone is controlled by the camera and ends when the ZR is switched off or enters the relevant standby state.

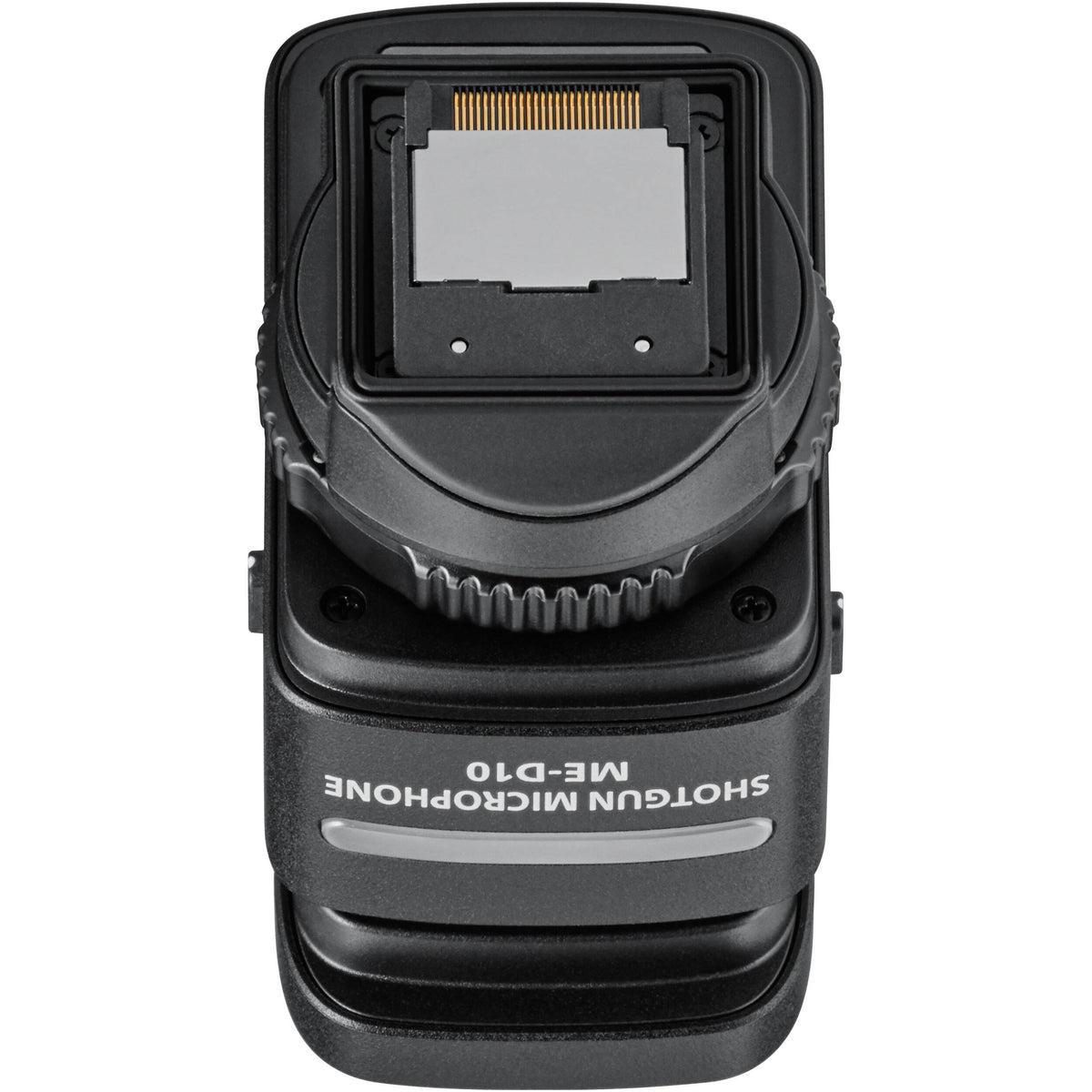

Cable-Free Digital Connection

Because audio and power are transmitted through the digital accessory shoe, no separate 3.5 mm microphone cable is required. This creates a cleaner camera setup with fewer cables around the camera body and reduces the risk of an external microphone cable becoming disconnected during filming.

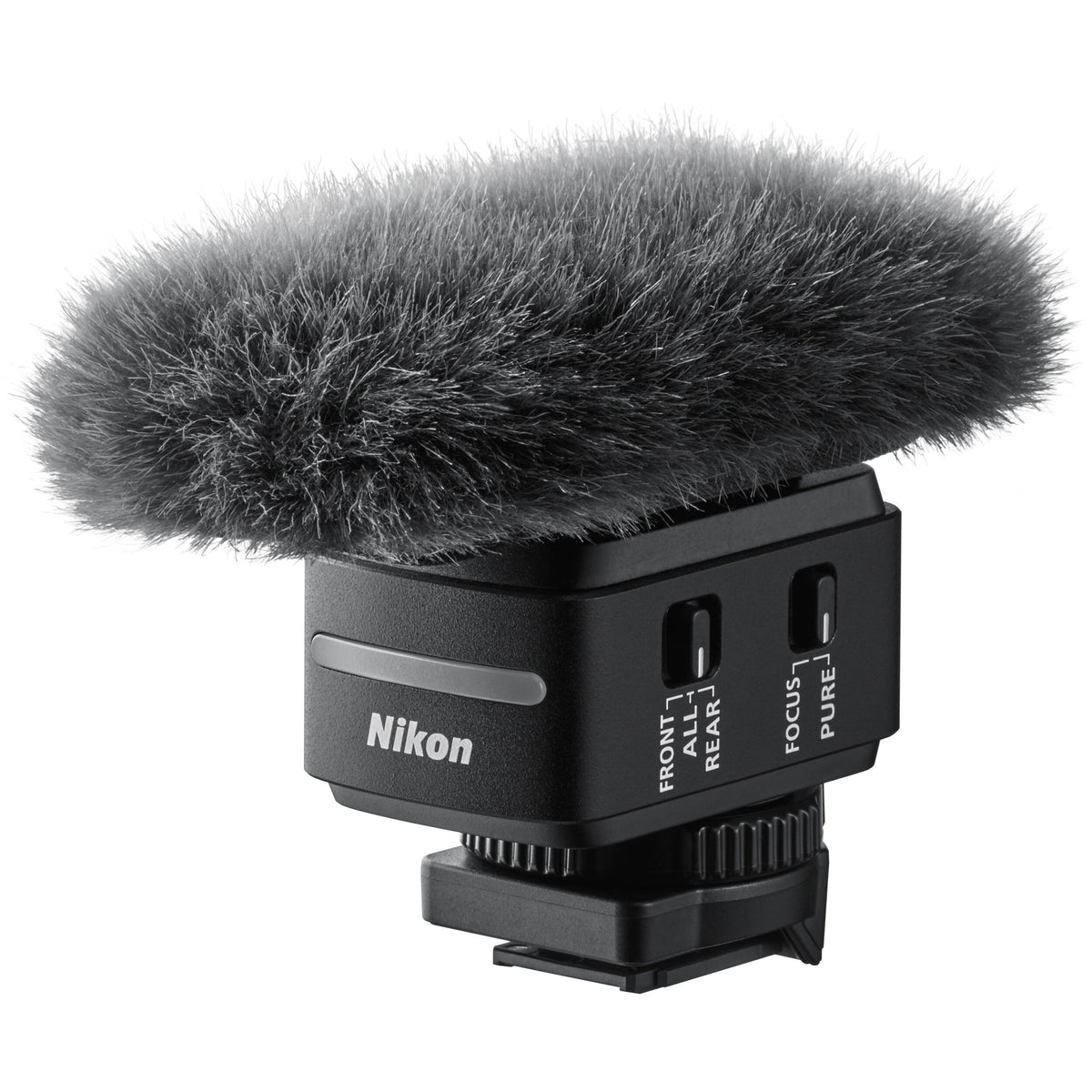

Included Wind Muff

A dedicated wind muff is supplied with the ME-D10 and can be fitted over the pickup section to help reduce unwanted wind noise when recording outdoors.

Compact and Lightweight

The ME-D10 measures approximately 34 × 58.5 × 73 mm and weighs approximately 86 g for the microphone body itself. Its compact construction keeps the ZR setup manageable while still adding dedicated directional audio recording capabilities.

Technical Specifications:

Specification	Details
Brand	Nikon
Model	ME-D10
Nikon Product Number	27245
Retailer Product Code	NIACMED10
Product Type	Digital shotgun microphone
Compatible Camera	Nikon ZR
Connection	Nikon digital accessory shoe
Separate Audio Cable Required	No
Power Supply	Supplied by the connected Nikon ZR camera
Separate Battery Required	No
Pickup Directions	Front, Rear and All / Omnidirectional
Microphone Modes	PURE and FOCUS
PURE Mode Frequency Response	40 Hz–20,000 Hz
FOCUS Mode Frequency Response	90 Hz–20,000 Hz
Sampling Frequency	48 kHz when attached to Nikon ZR
Supported Bit Depth	24-bit and 32-bit float when attached to Nikon ZR
32-Bit Float Recording	Yes
Built-In Shock Mount	Yes
Status Lamps	Front and rear
Status Lamp Brightness	High, Low or Off
Pickup Pattern Control	FRONT / ALL / REAR switch
Audio Mode Control	FOCUS / PURE switch
Mount Lock	Integrated lock ring
Wind Protection	Dedicated wind muff included
Width	Approximately 34 mm
Height	Approximately 58.5 mm
Depth	Approximately 73 mm
Dimensions	Approximately 34 × 58.5 × 73 mm (W × H × D)
Weight	Approximately 86 g, microphone body only
Operating Temperature	-10°C to 40°C
GTIN / UPC	018208272457

What’s in the Box?

• 1 × Nikon ME-D10 Shotgun Microphone
• 1 × digital accessory foot cover
• 1 × wind muff
• 1 × soft case
• 1 × user manual
• 1 × warranty documentation

Capture clean, flexible digital audio directly on the Nikon ZR with the compact Nikon ME-D10 Shotgun Microphone.
