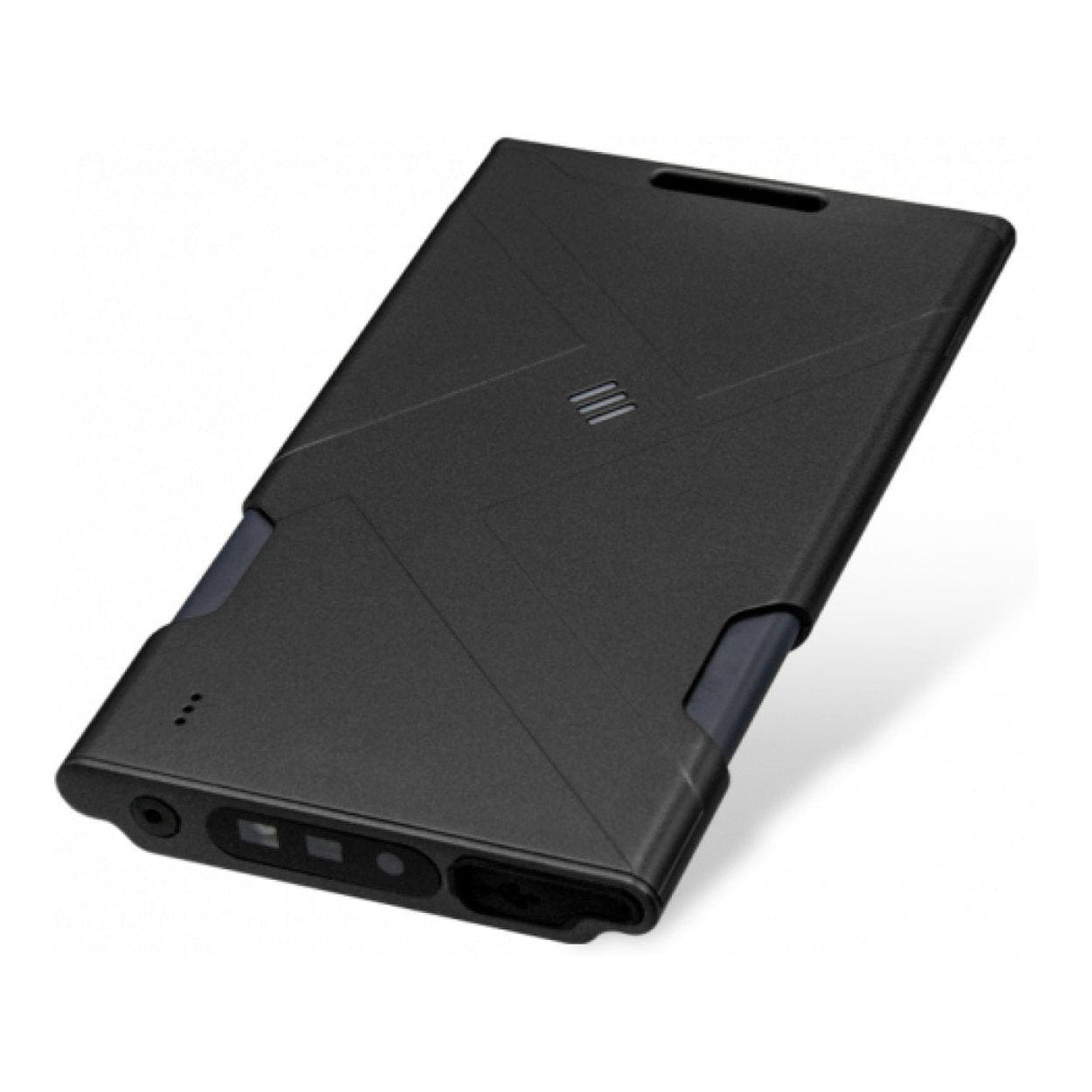

Newland WD3 1D/2D CMOS Wearable Barcode Reader

Newland WD3 1D/2D CMOS Wearable Barcode Reader

The WD3 is a feather-light badge scanner that packs high-performance in a compact yet sturdy design. You can use the scanner as a stand-alone device or wear it on a lanyard as a badge.

Gearup with the WD3

The lightweight WD3 Badge Scanner ensures reduced weariness and uninterrupted workflow to make your everyday tasks easier to perform.

Outstanding performance

Equipped with Newland's latest megapixel 2D technology, the WD3 can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on the screen.

Batch collection

The WD3 can be set to collect barcodes and store them in the memory to be uploaded to a host via a Bluetooth or cable connection. So, if you’re delivering bulk items to a single delivery point or taking the time to create a little inventory, the WD3 can work without the need for live host interaction.

Precision scanning

Acuscan can be set on the WD3, so the red laser cross aimer only decodes the exact barcode you want it to. Even on a cluttered picklist or when many smaller items are stored close to each other, the user can be sure their picking out the correct item all the time.

Compact and light-weight design

The WD3 is extremely thin and lightweight. So not only does it feel comfortable to hold, but if it is attached to the lanyard or retractable belt clip supplied, the weight and bulk are not noticeable.

High protection and industrial structure

The WD3 is built into an IP65-sealed and drop resistant (1.2m) housing with no moving parts that fortify itself inside and out. It can be used in all weather and cope with bumps, knocks and drops.

Nwear DNA

The WD3, as part of the Nwear family of devices, can easily connect to the Newland family of Android devices via the easy pairing application. Third-party devices running Android can also be connected easily with the scan of a QR code via the generic EasyConnect APK.

Technical Specifications:

Type: Wearable bar code reader

Scanner type: 1D/2D

Sensor type: CMOS

Connectivity technology: Wired & Wireless

Standard interfaces: Bluetooth, USB

Wireless range: 30 m

Product colour: Black

International Protection (IP) code: IP65

Protection features: Drop proof, Electrostatic Discharge (ESD) protection

Power source type: Battery

Battery technology: Lithium-Ion (Li-Ion)

Battery type: Built-in battery

Weight: 53 g, Width: 110.8 mm, Depth: 62.3 mm
