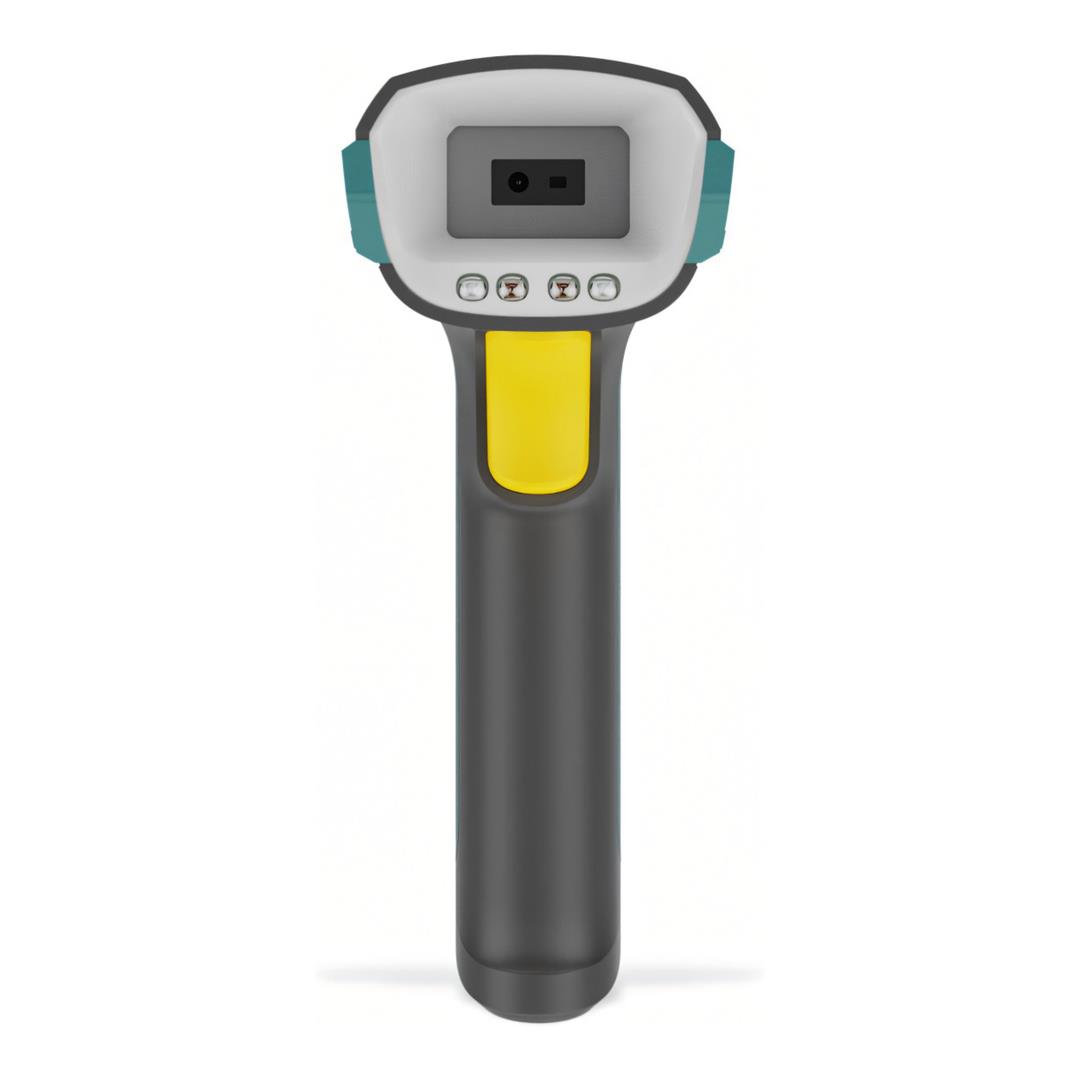

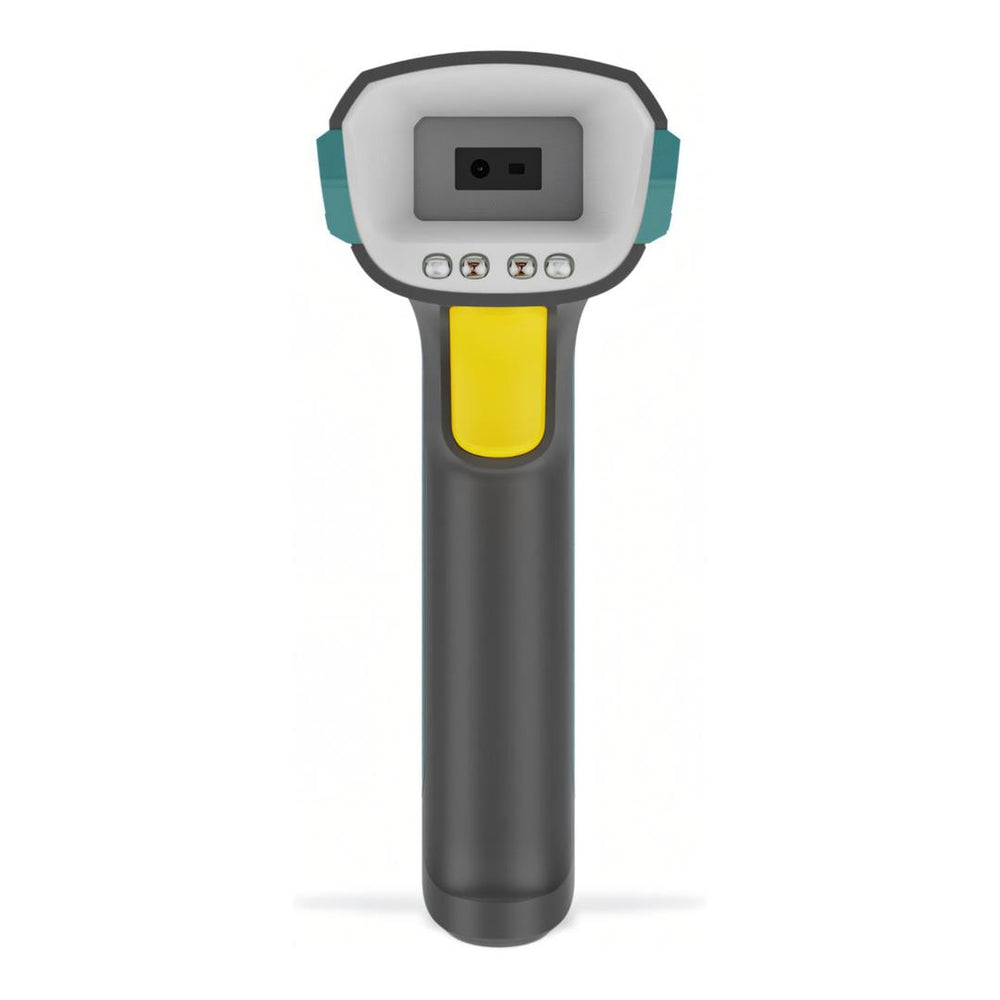

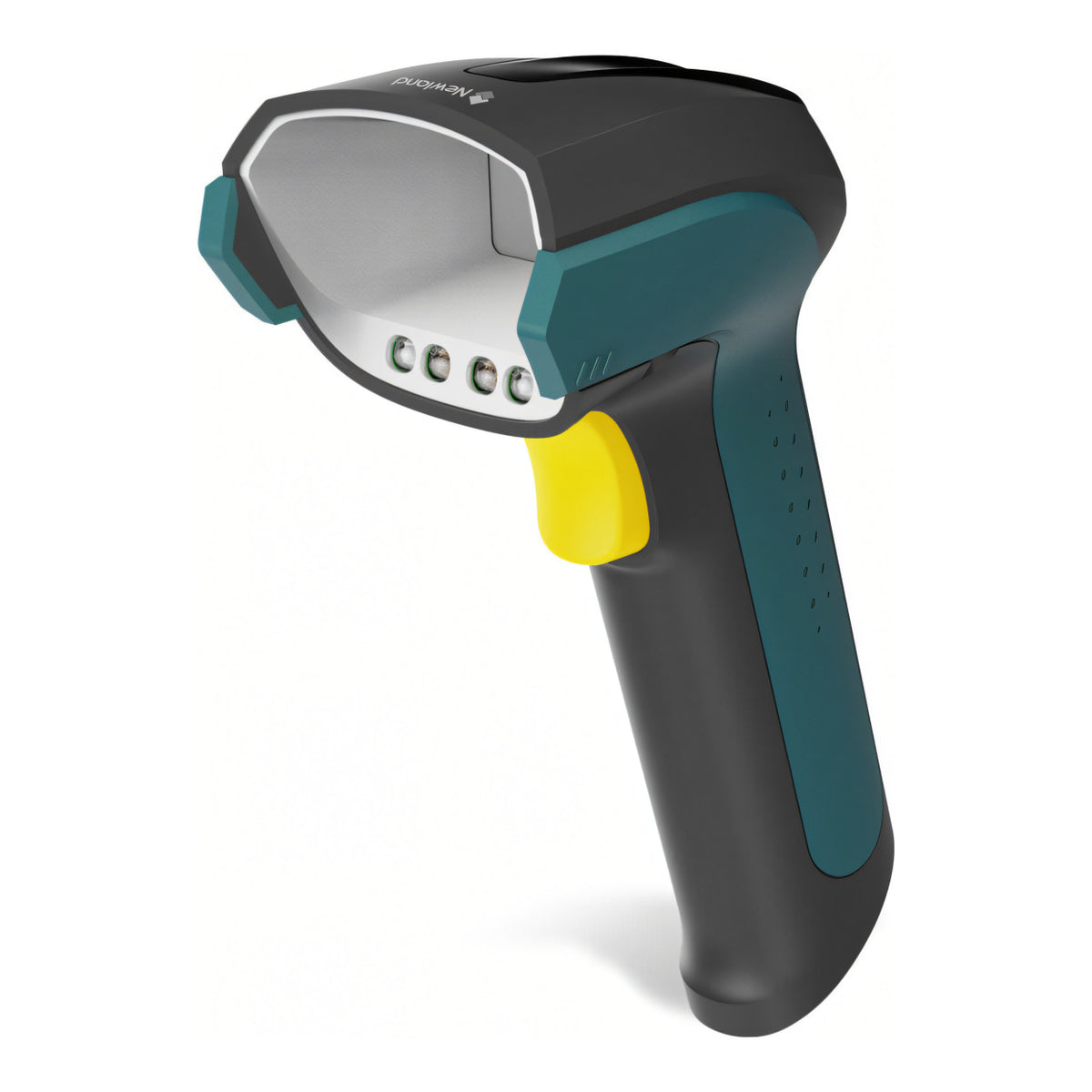

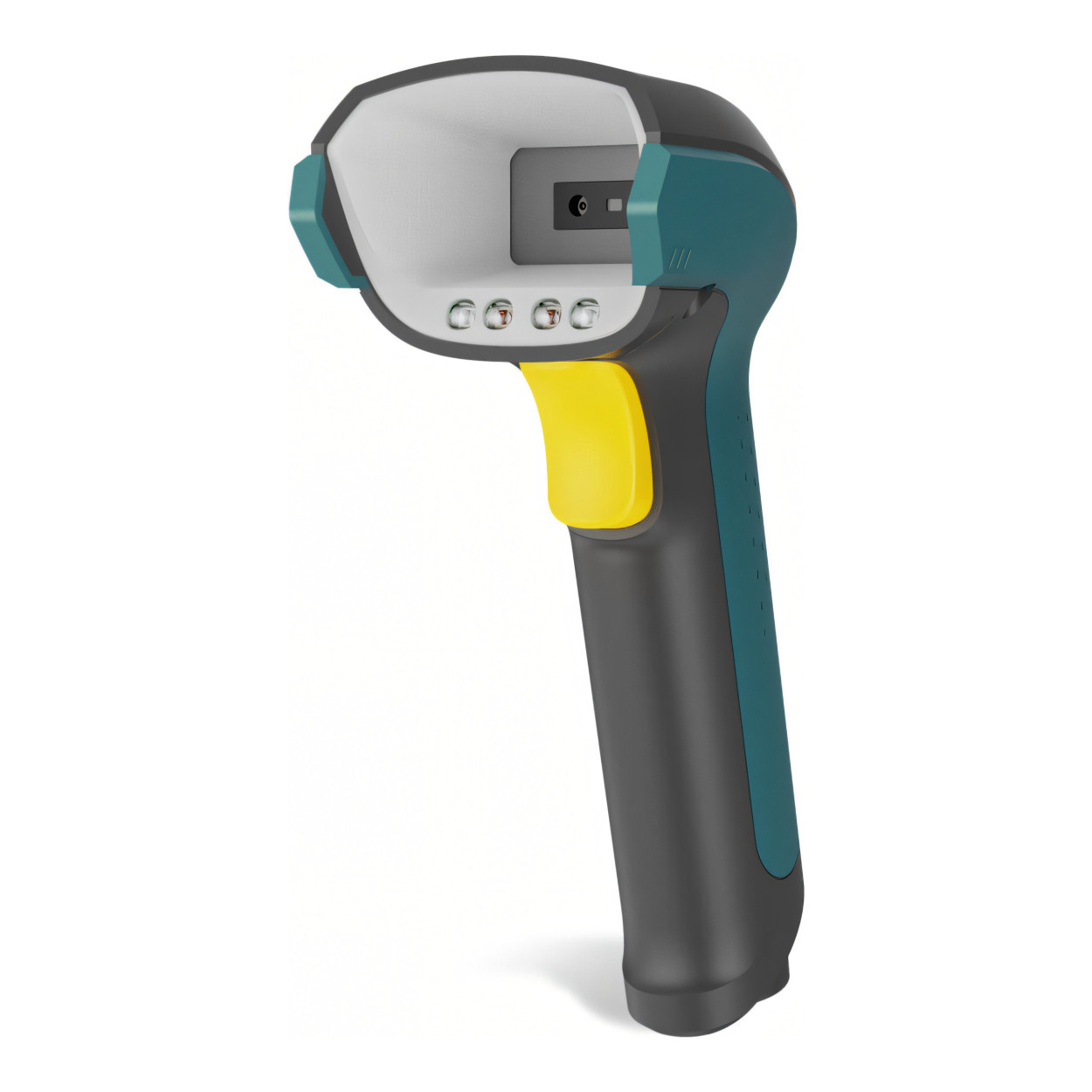

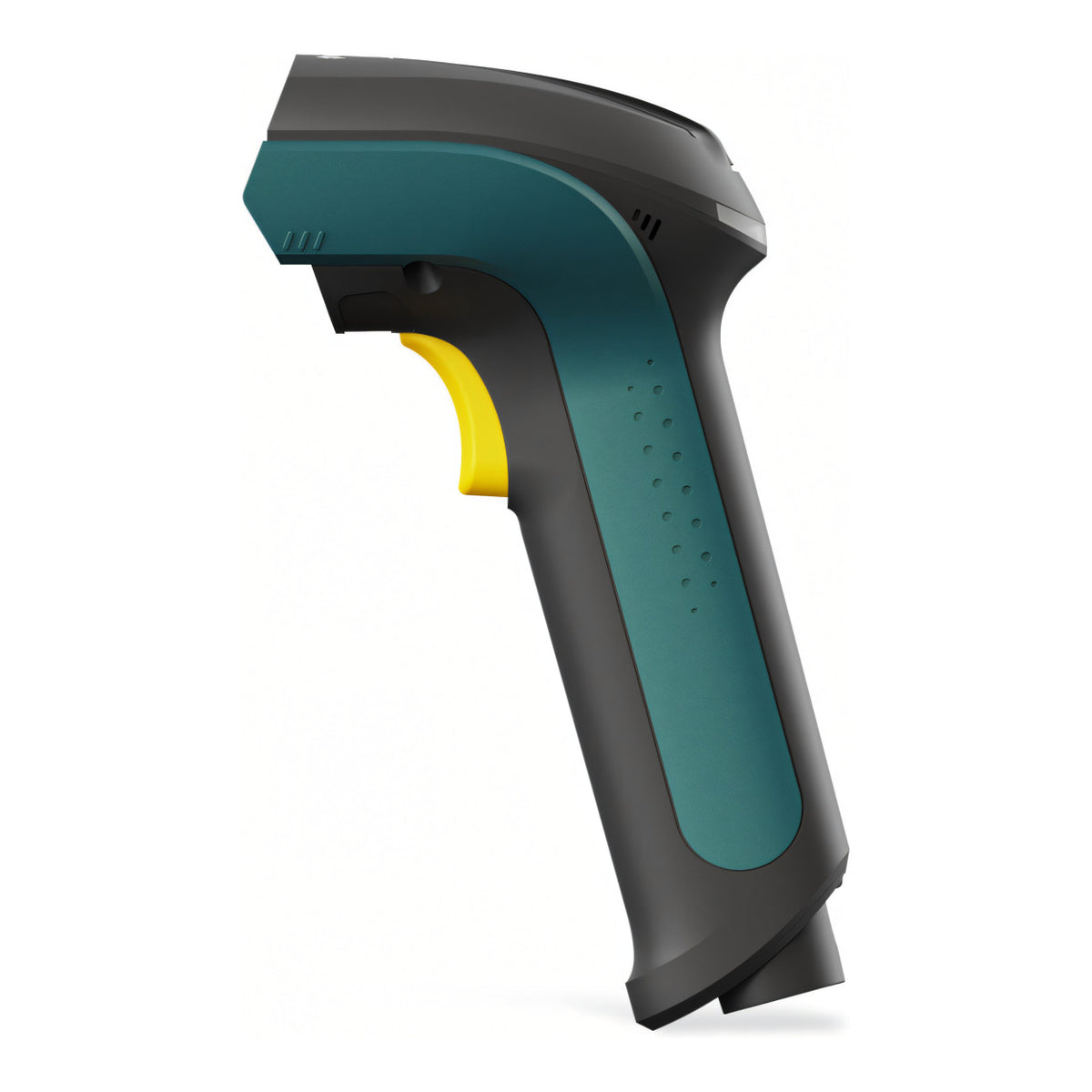

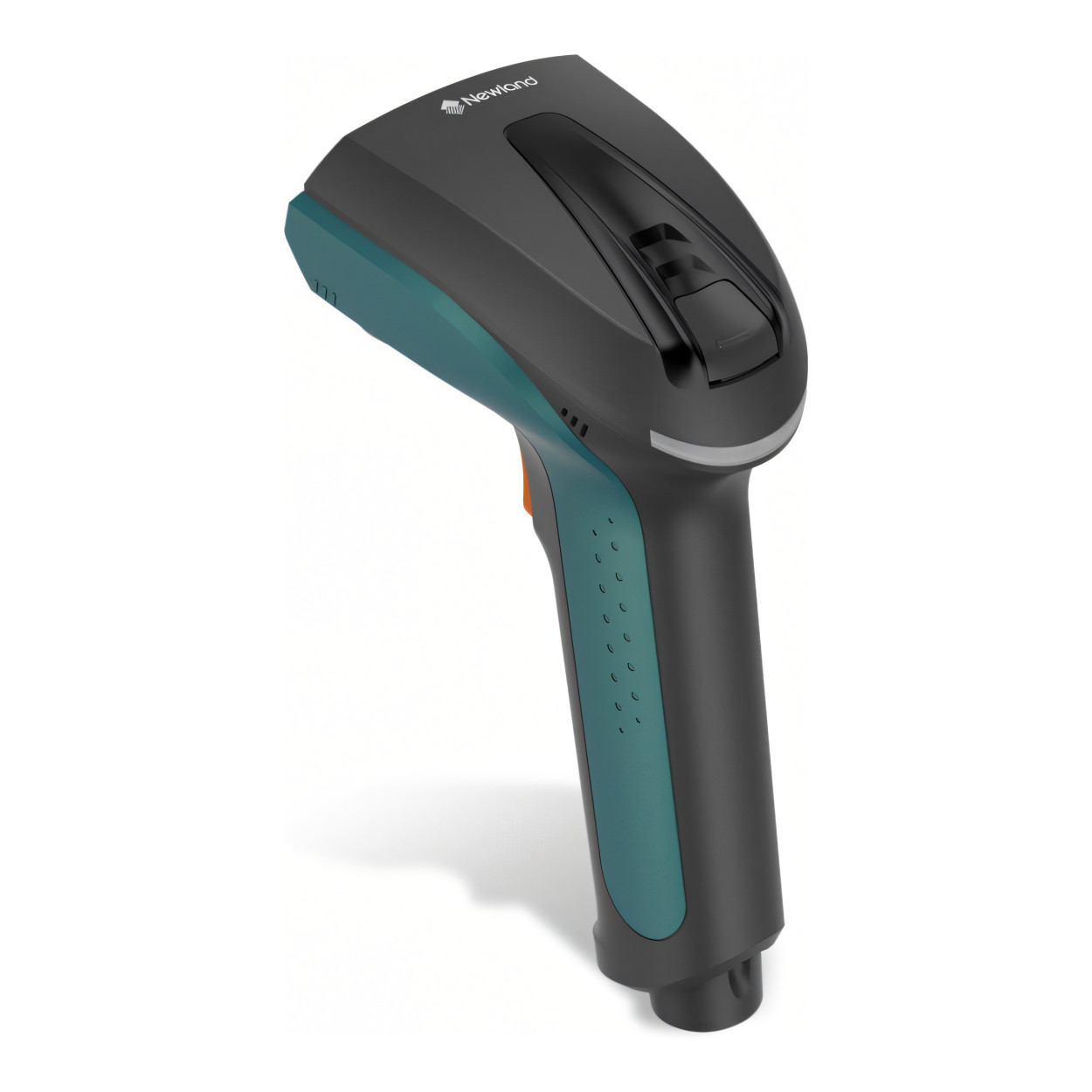

Newland NVH220 Lophius II 2D Bluetooth Wireless Handheld Scanner NLS-NVH220B-V2-XD
The Newland NVH220B V2 NLS-NVH220B-V2-XD is a rugged cordless industrial barcode scanner engineered for demanding manufacturing, warehousing and logistics applications. Its 1280 × 800 CMOS imaging system combines AI-powered decoding, DPM capability and OCR recognition to capture challenging 1D and 2D codes, including laser-etched and dot-peened direct part marks. Bluetooth operation, industrial Ethernet connectivity and a rugged IP64 housing provide the flexibility and durability required for intensive scanning environments.
Key Features
- High-resolution 1280 × 800 CMOS imager for 1D and 2D barcode capture.
- Advanced DPM decoding for challenging laser-etched and dot-peened codes.
- AI-powered barcode positioning and intelligent learning optimise decoding across different scenarios.
- Advanced OCR technology supports recognition of alphanumeric characters.
- Bluetooth cordless operation with up to 150m line-of-sight communication distance.
- XD industrial interface support including RS-232, TCP/IP, Modbus TCP, EtherNet/IP, PROFINET and MELSEC/SLMP.
- IP64-rated scanner withstands repeated drops from up to 2.4m.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Newland |
| Model | NVH220B V2 |
| Manufacturer Part Number | NLS-NVH220B-V2-XD |
| Product Type | Cordless Industrial Barcode Scanner |
| Decode Capability | 1D / 2D / DPM |
| Image Sensor | 1280 × 800 CMOS |
| 1D Resolution | ≥1.25mil |
| 2D Resolution | ≥2.82mil |
| Minimum Symbol Contrast | 15% |
| 2D Symbologies | QR Code / PDF417 / Micro QR / Data Matrix / Aztec |
| 1D Symbologies | EAN-13 / EAN-8 / UPC-A / UPC-E / ISSN / ISBN / Codabar / Code 128 / Code 93 / ITF-6 / ITF-14 / Interleaved 2 of 5 / Industrial 2 of 5 / Standard 2 of 5 / Matrix 2 of 5 / Code 39 / AIM 128 / GS1 Composite / GS1-128 / ISBT 128 / Code 11 / MSI-Plessey / Plessey and More |
| DPM Support | Laser-Etched and Dot-Peened Direct Part Marks |
| OCR | Supported |
| Decoding Technology | AI-Powered Barcode Positioning / Intelligent Learning / Newland UIMG Algorithm |
| Direct Illumination | Red and Blue LEDs |
| Diffuse Illumination | White LEDs |
| Aiming | 650nm Crosshair Laser |
| Field of View | 33° Horizontal / 22° Vertical |
| Scan Angle | 360° Roll / ±50° Pitch / ±50° Skew |
| Typical EAN-13 13mil Depth of Field | 35–200mm |
| Typical Code 39 5mil Depth of Field | 15–150mm |
| Typical Code 39 20mil Depth of Field | 75–270mm |
| Typical Data Matrix 10mil Depth of Field | 10–140mm |
| Typical QR Code 20mil Depth of Field | 10–200mm |
| Wireless Connectivity | Bluetooth |
| Communication Distance | Up to 150m Line of Sight |
| XD Interfaces / Protocols | RS-232 / TCP/IP / Modbus TCP / EtherNet/IP / PROFINET / MELSEC/SLMP |
| Notifications | Beep / LED Indicator / Vibration |
| Battery | 3.6V 3350mAh |
| Battery Runtime | ≥17 Hours Continuous Operation |
| Scans per Charge | Up to 60,000 |
| Expected Charging Time | Approximately 3 Hours |
| Typical Power Consumption | 1400mW |
| Scanner IP Rating | IP64 |
| Cradle IP Rating | IP42 |
| Drop Resistance | Up to 2.4m |
| ESD Protection | ±16kV Air / ±8kV Contact |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 5–95% RH, Non-Condensing |
| Scanner Dimensions | 68 × 86 × 180mm |
| Scanner Weight | 218g Including Battery |
| Cradle Dimensions | 103 × 127 × 123mm |
| Cradle Weight | 217g |
| What's in the Box: |
|
Capture demanding production and logistics barcodes with cordless flexibility, advanced DPM decoding and rugged industrial durability from the Newland NVH220B V2.
