Newland MT90 Orca II 5-inch HD Touchscreen Handheld Mobile Computer MT9052-EEA-2WE

Newland MT90 Orca II 5-inch HD Touchscreen Handheld Mobile Computer MT9052-EEA-2WE

Full touchscreen mobile computer

The MT90 Orca II is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca II is easy to set up and use right out of the box.

Megapixel barcode scanning

Developed for quick and efficient barcode scanning, the MT90 Orca II ensures maximum productivity. Its megapixel scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.

Reliable all day use with a replaceable battery

The MT90 Orca II has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.

Business-class durability

The MT90 Orca II is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, or 1.8m with a rubber boot, ensuring longer and more reliable use.

GMS (optional)

The MT90 Orca II has models with and without Google Mobile Services (GMS). GMS offers integrated Google applications such as Gmail, Google Maps and Google Play Store.

Accessories that match your operations

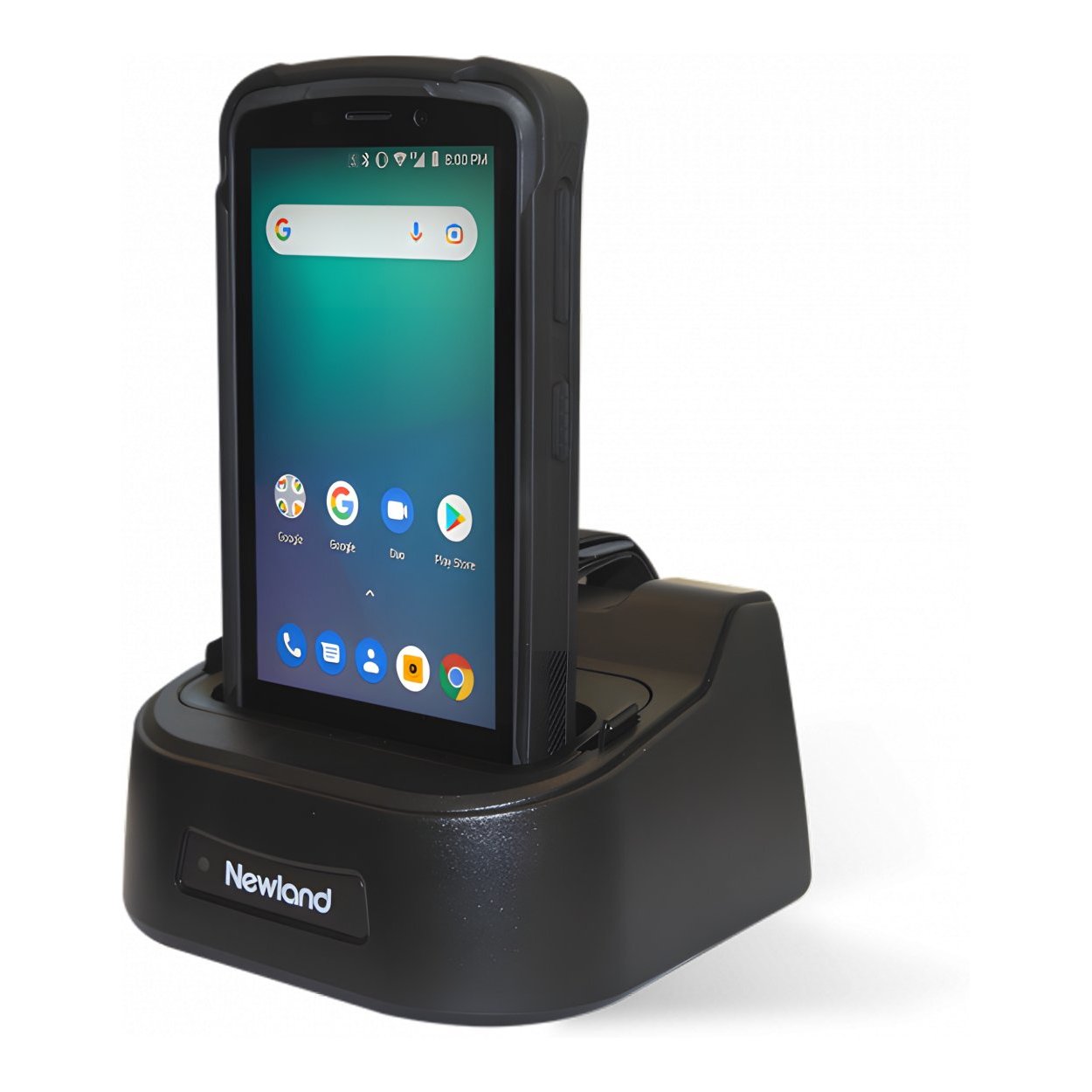

A wide range of accessories for the MT90 Orca II are included in the package, namely: USB cable, battery, and AC adapter. Various pistol grips, including both UHF and long-range, holsters, multi-charging cradles, communication (USB) cradle and vehicle cradle kit are also available for the MT90 Orca Series.

Technical Specifications:

Data Capture

1D Symbologies
All Major 1D Symbologies

2D Symbologies
All Major 2D Symbologies

Image Sensor
1280 × 800 CMOS

Aiming
Laser Diode

Illumination
White LED (625 ± 10 nm)

Performance

Operating System
Android 8.1 - GMS

Processor
1.5 GHz Quad-Core 64-Bit

Memory RAM
2GB

Memory Flash
16GB

Memory Storage Expansion (Max.)

• Micro SD Card (Max. 32GB)

Physical

Audio
Microphone / Speaker

Audio Jack
3.5 mm Earphone

Battery Type
3.8V, 4500 mAh

Buttons

• Side Keys Volume+
• Volume-
• Left Scan Key
• Right Scan Key
• Power Button
• Function Key
• Keypad (4 Keys)

Camera
8 Megapixels, Auto Focus, With LED Flashlight

Dimensions
155 (L) × 78.5 (W) × 20.5 (H) mm

Display
5" Full Colour (1280 × 720)

Expansion Slot

• Micro SD Card (Max. 32GB)

Expected Battery Life
10 Hours

Expected Charge Time
5 Hours (Charge via AC Adapter)

Interfaces
Micro USB OTG

Keypad
10 Keys (Side Keys Included)

Notifications

• Vibrator
• Speaker
• Multi-Color LED

Pogo Pin
Supported

Power Supply Input
DC 5V, 2A

Power Supply Output
AC 100–240V, 50–60Hz

SIM/TF

• Dual SIM: 1 SIM Card
• 1 Micro SIM Card

Touch Panel
Capacitive Touch Screen

Weight
265 g (Including Battery)

Wireless

WWAN Radio

• 2G: GSM (850 / 900 / 1800 / 1900 MHz)
• 3G: WCDMA (B1, B2, B5, B8)
• TD-SCDMA (B34, B39)
• CDMA 1x / EVDO (BC0)
• 4G: TDD-LTE (B38, B39, B40, B41 (100m))
• FDD-LTE (B1, B2, B3, B5, B7, B8, B2, B28a & b)

WLAN Radio
IEEE 802.11 a/b/g/n, 2.4GHz and 5GHz

WPAN Radio
Bluetooth 4.2 LE, Backward Compatible

GPS
GPS (AGPS), GLONASS

Environmental

Operating Temperature
-20°C to 55°C (-4°F to 131°F)

Storage Temperature
-40°C to 70°C (-40°F to 158°F)

Humidity
5% to 95% (Non-Condensing)

Electrostatic Discharge (ESD)
±15 kV (Air Discharge), ±8 kV (Direct Discharge)

Drop Rating
1.5 m, 1.8 m With Rubber Boot

IP Rating
IP65

Accessories

Standard Accessories

• Battery
• AC Adapter
• USB Cable
• Rubber Boot

Optional Accessories

• Charging Cradle
• Pistol Grip
• Long Range Pistol Grip
• UHF Pistol Grip
• Wrist Strap
• Hand Strap
• 3 Slot Cradle
• 4 Slot Battery Charger
• High Capacity Battery

Software

MDM (Certified)

• Ndevor
• SOTI
• Airwatch

Terminal Emulation (Compatible)

• StayLinked
• Ivanti Velocity

Configuration Tools
Ndevor

Certifications

Hardware Certifications

• CE RED
• FCCID
• RoHS
• IEC6247
• Laser Safety (Class II)

Warranty

Standard Warranty
2 Years

What's in the Box:

• Battery
• AC Adapter
• USB Cable
• Rubber Boot
