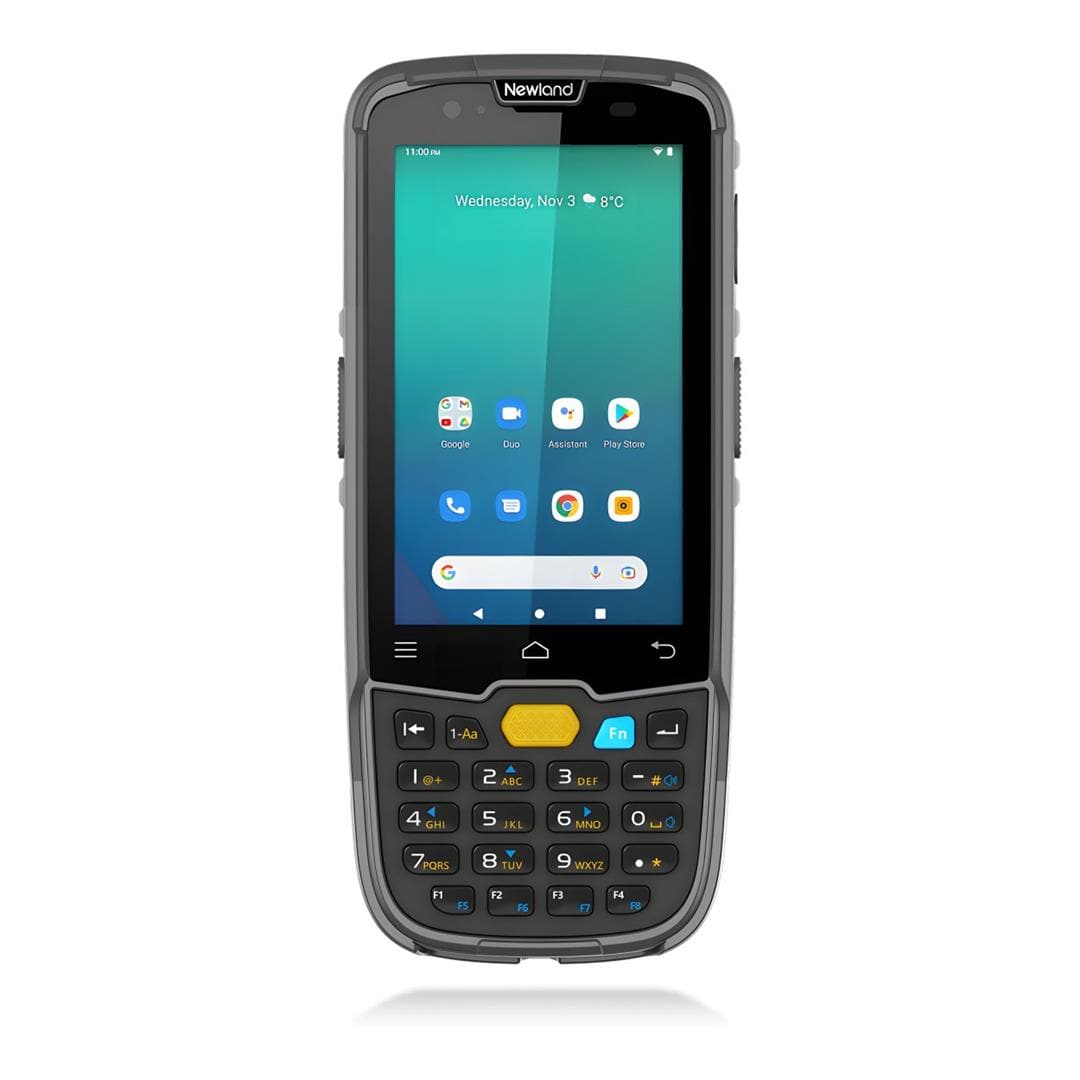

Newland MT6757 Sei Il 4-inch 2D CMOS Touchscreen Mobile Computer NLS-MT6757-W4

Newland MT6757 Sei Il 4-inch 2D CMOS Touchscreen Mobile Computer NLS-MT6757-W4

The MT67 Sei II offers efficient performance with Android 15 GMS AER and a 2.0 GHz octa-core processor. Designed for demanding environments, this device has an IP67 rating and can withstand drops from up to 1.5 meters onto concrete. It is ideal for various industries, including retail, logistics, and manufacturing, making the MT67 Sei II a valuable tool for enhancing your business operations.

Features:

Android Performance.

The MT67 Sei II operates on the Android 15 GMS AER operating system. It boasts all the features and benefits of Android 15, powered by an octa-core processor running at 2.0 GHz for high performance. With 4GB of RAM, it can effortlessly run multiple applications simultaneously, while its 64GB of flash memory allows for considerable offline storage of data. These features combine to make the device a powerful mobile computer, ensuring smoother operation.

High-Performance Scanning.

The MT67 Sei II features Megapixel 2D scanning technology, allowing for high-performance scanning of both 1D barcodes and 2D codes. This advanced technology, combined with the laser aimer, enables the MT67 to read even low-quality barcodes, including those that are damaged, distorted, or displayed in close proximity to each other.

Rugged Mobility Solution.

The MT67 Sei II is specifically designed for industries such as retail, logistics, and warehousing, among others. With its optional ergonomic pistol grip, IP67 rating, and ability to withstand a 1.5-meter drop onto concrete (or 1.8 meters with the protective case), this rugged and durable mobile computer is ready for any situation.

Style and comfort.

The design of the MT67 Sei II is well-balanced in weight, and its soft, curved edges enhance user comfort. The 4-inch capacitive full-color touchscreen presents sharp images and clear text. With two scan triggers on each side of the device and a side power button, the MT67 Sei II is suitable for both left and right-handed users, providing added comfort.

Wireless Technologies.

The device utilizes dual-band Wi-Fi for standard wireless communication, while its 4G capability enables connectivity beyond the network. Additionally, Bluetooth 5.0 is available for pairing with peripherals such as headsets, portable printers, and extra barcode scanners, e.g., from our Nwear Range.

Hot-Swappable Battery.

The MT67 Sei II features a USB-C interface and supports fast charging. Its 4,800 mAh battery allows for hot-swappable replacement and can be fully charged within 3 hours. This ensures no downtime and maximum efficiency throughout the entire shift.

Android Enterprise Recommended (AER).

The MT67 Sei II carries Google’s AER seal of approval, signaling it keeps pace with performance and security upgrades to its operating system and core functionality. This label, in combination with Newland’s free MDM Ndevor, enables clients to maintain secure visibility and control over their devices regardless of location.

Technical Specifications:

Data Capture
1D Barcodes
Spec: Code 128, Code 49, Code 16K, GS1-128 (UCC/EAN-128), AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF-6, ITF-14, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Code 39, ISSN, ISBN, Codabar, Code 93, Code 11, Plessey, MSI Plessey, RSS

2D Barcodes
Spec: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF417, QR Code, Data Matrix, DotCode

Depth of Field

• Code 39 (5 mil): 120 mm – 280 mm
• Data Matrix (10 mil): 110 mm – 260 mm
• EAN-13 (13 mil): 70 mm – 600 mm
• PDF417 (6.67 mil): 110 mm – 230 mm
• QR Code (15 mil): 55 mm – 400 mm

Performance
Operating System: Android 15, Android Enterprise Recommended (AER)
Processor: 2.0 GHz Octa-Core 64-Bit
RAM: 4 GB
Flash Memory: 64 GB

Physical Specifications
Dimensions: 162 × 68 × 17 mm
Weight: 265 g (Including Battery)
Display: 4" WVGA (800 × 480) Capacitive Touchscreen with 9H Hardened Glass
Display Brightness: 450 Nits
Expansion Slot: MicroSD/TF Card (Up to 128 GB)
Front Camera: 5 MP
Rear Camera: 13 MP with LED Flash and Autofocus
Keypad: 24 Keys, 3 Virtual Keys
Notifications: Speaker, Vibration, Multi-Colour LEDs
Sensors: Light and Proximity Sensor, Acceleration Sensor
SIM/TF Configuration: Nano SIM + TF Card

Battery and Power
Battery Type: 3.8 V, 4800 mAh
Backup Battery: 78 mAh
Battery Features: Hot-Swappable Battery Replacement
AC Adapter Input: AC 100 – 240 V, 50 – 60 Hz
AC Adapter Output: DC 5/7/9 V, 2 A
Charging Support: Fast Charging

Wireless Connectivity
GPS
Spec: GPS (A-GPS), BeiDou, GLONASS, Galileo

RFID
Spec: 13.56 MHz ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693

WLAN
Spec: IEEE 802.11 a/b/g/n/ac
Frequency Bands: 2.4 GHz and 5 GHz Dual-Band
Features: Fast Roaming, 802.11 d/h/i/k/r/v/w Support

WPAN
Bluetooth Version: Bluetooth 5.0 + BLE
Compatibility: Backward Compatible

WWAN

• 2G: GSM 850/900/1800/1900 MHz
• 3G: WCDMA (B1, B2, B5, B8), CDMA2000 1X/EV-DO Rev. A (BC0), TD-SCDMA (B34, B39)
• 4G TD-LTE: B34, B38, B39, B40, B41
• 4G FDD-LTE: B1, B2, B3, B5, B7, B8, B20, B28a, B28b

Environmental
Drop Resistance:

• 1.5 m Drops to Concrete (Six Sides)
• 1.8 m Drops with Protective Case Installed
  Tumbling Test: 0.5 m, 1000 Rounds
  DIP Test: 10 cm, 16,000 Cycles
  Electrostatic Discharge (ESD): ±8 kV Direct Discharge, ±15 kV Air Discharge
  Humidity: 5% to 95% (Non-Condensing)
  IP Rating: IP67
  Operating Temperature: -20°C to 55°C
  Storage Temperature: -30°C to 70°C

Software
Configuration Tools: Ndevor
MDM (Certified): Ndevor

Certifications
Hardware Certification: AER

Warranty
Standard Warranty: 2 Years
Comprehensive Service Contract: 3 Years, 5 Years
Warranty Extension: +1 Year, +3 Years

Accessories
Optional Accessories:

• 4-Slot Battery Charger
• Charging Cradle
• Pistol Grip
• Protective Case

What's in the Box:

• MT67 SEi II
• Protective Case
• Screen Protector
• Hand Strap
• Wrist Strap
• USB Cable
• Battery
• Multiplug Adapter
