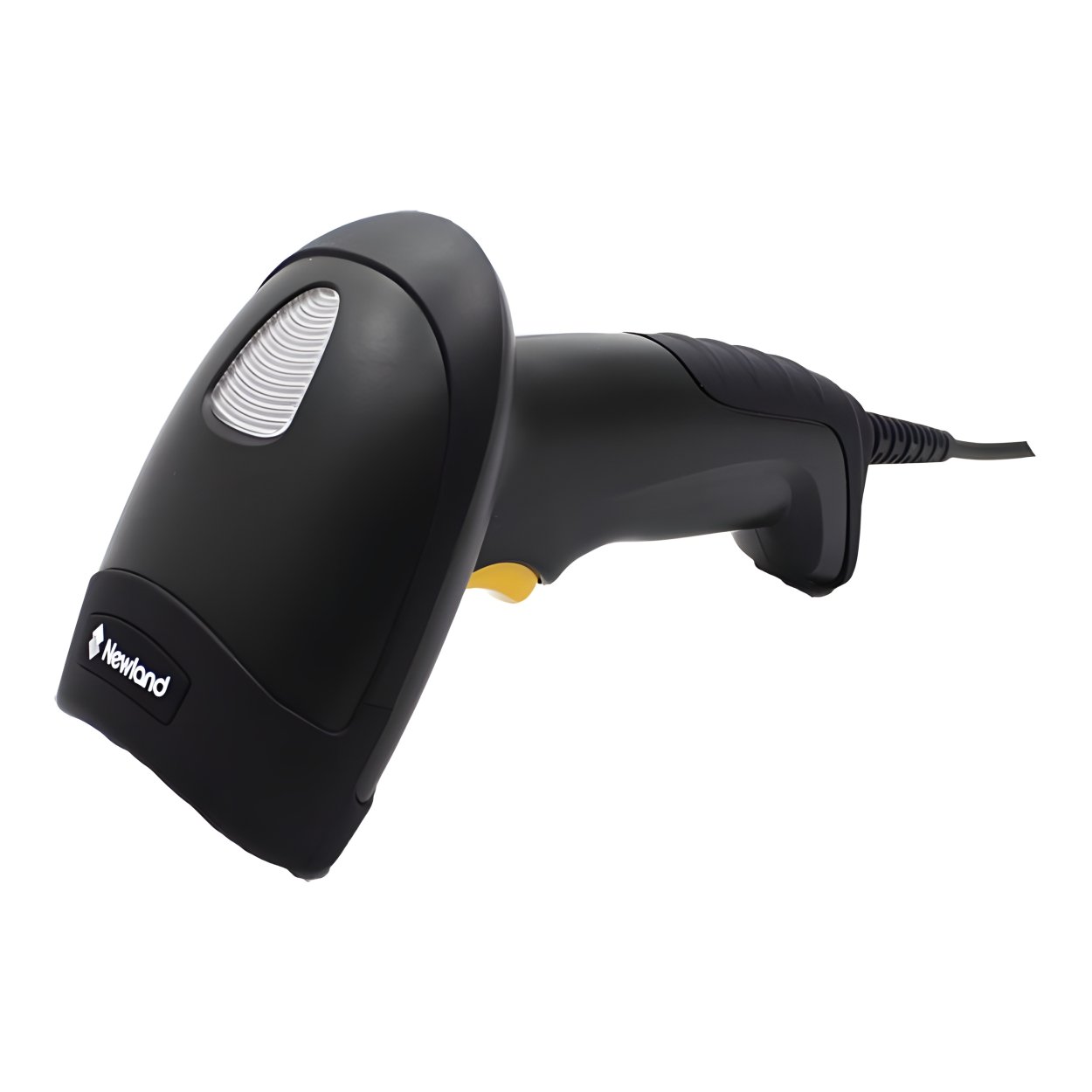

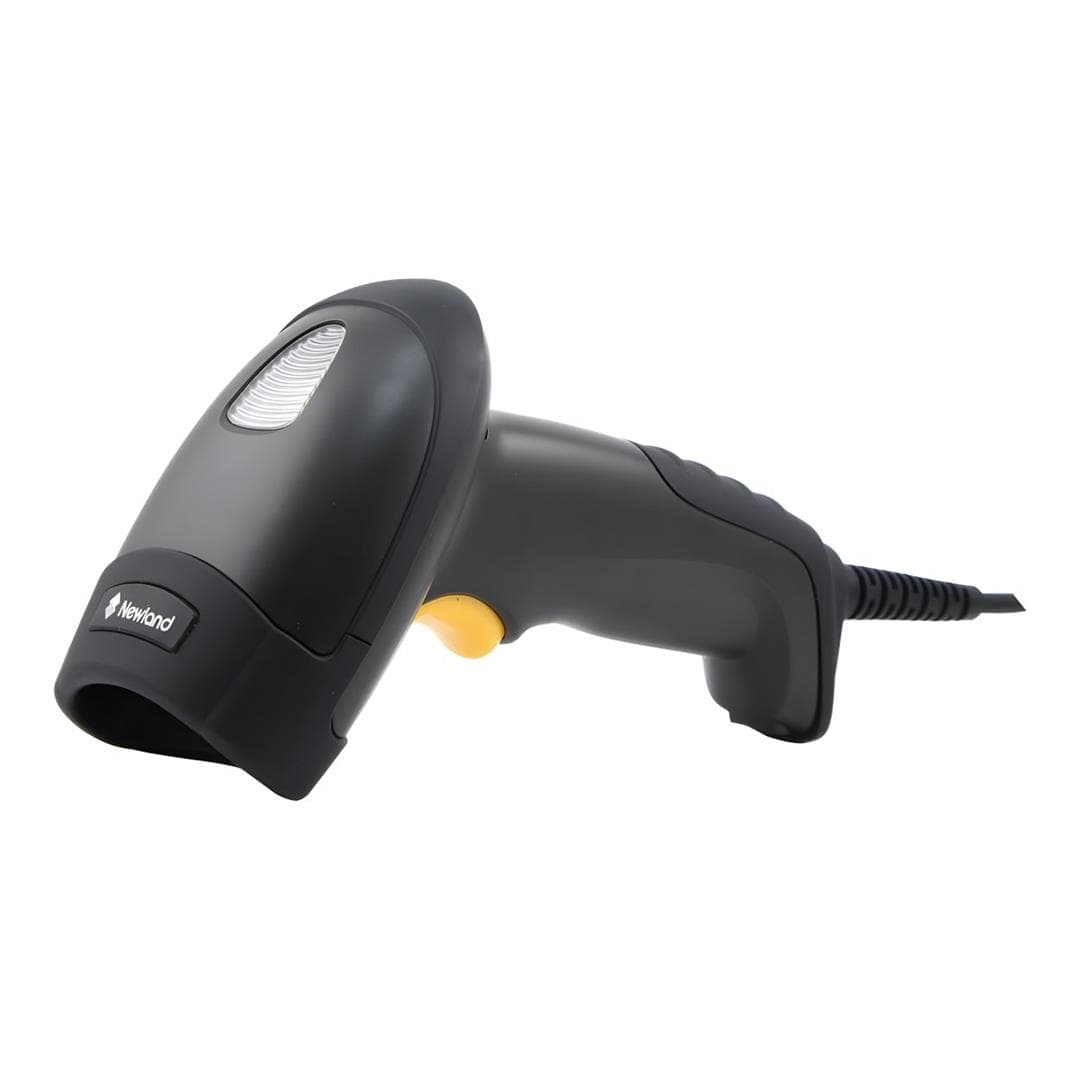

Newland HR3280 1D 2D CMOS Handheld Barcode Reader NLS-HR3280-S5

Newland HR3280 1D 2D CMOS Handheld Barcode Reader NLS-HR3280-S5

Extensive Data Capture Capabilities

Armed with Newland’s six-generation of 20170215 technology, the NLS-HR3280 provides the added value of postal barcodes decoding – extending its data capture capabilities.

Features:

• Durable Construction
• Extensive Data Capture Capabilities
• Ideal On-screen Barcode Scanning Solution
• Powerful Data Editing Capability
• User-friendly Dual-color Illumination

The NLS-HR3280, built into an IP42-sealed and drop resistant (1.5m) housing, can stand up to tough environments.

Armed with Newland’s six-generation of UIMG® technology, the HR3280 provides the added value of postal barcodes decoding, extending its data capture capabilities.

The HR3280 delivers unmatched reading performance for various O2O applications involving on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.

The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.

Designed with the end user in mind, the HR3280 combines both red and white LEDs, and the ability to use them separately or together to meet the lighting requirements of various applications.

Durable Construction

The NLS-HR3280, built into an IP42-sealed and drop resistant (1.5m) housing, can stand up to tough environments.

Powerful Data Editing Capability

The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.

User-friendly Dual-color Illumination

Designed with the end user in mind, the NLS-HR3280 combines both red and white LEDs, and the ability to use them separately or together to meet the lighting requirements of various applications.

Ideal On-screen Barcode Scanning Solution

The NLS-HR3280 delivers unmatched reading performance for various O2O applications involving on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.

Technical Specifications:

Data Capture

Supported 1D Symbologies

• EAN-13
• EAN-8
• UPC-A
• UPC-E
• ISSN
• ISBN
• Codabar
• Code 128
• Code 93
• ITF-6
• ITF-14
• Interleaved 2 of 5
• Industrial 2 of 5
• Standard 2 of 5
• Matrix 2 of 5
• GS1 Databar
• Code 39
• Code 11
• MSI-Plessey
• Plessey

Supported 2D Symbologies

• PDF417
• QR Code
• Data Matrix
• Aztec
• Maxicode

Image Sensor: CMOS 1280 × 800
Aiming: Green LED
Illumination: Red LED (625 ±10 nm) / White LED

Scan Modes

• Trigger (Level, Pulse)
• Sense
• Continuous Mode

Scan Rate: 60 Frames per Second

Depth of Field

• EAN-13 (13 mil): 45–510 mm
• Code 39 (5 mil): 75–220 mm
• PDF417 (6.67 mil): 70–215 mm
• Data Matrix (10 mil): 50–220 mm
• QR Code (15 mil): 20–330 mm

Field of View

• Horizontal: 39°
• Vertical: 24°

Scan Angle

• Roll: 360°
• Pitch: ±55°
• Skew: ±55°

Minimum Print Contrast: 25%

Performance

Processor: 1 GHz X1500

Physical

Buttons: Trigger

Operating Current (5 VDC):

• Typical: 238.2 mA
• Maximum: 260.5 mA

Standby Current (5 VDC): 71.3 mA

Dimensions (W × D × H): 113.5 × 73.3 × 159.0 mm
Input Voltage: 5 VDC ±5%

Interfaces

• RS-232
• USB

Material: PC, ABS

Notifications

• Beep
• LED Indicator

Power Consumption: 1289.6 mW (Typical)
Power Supply Input: DC 5 V, 1.5 A
Power Supply Output: AC 100–240 V, 50–60 Hz

Weight: 162 g

Environmental

Ambient Light: 0 to 100,000 Lux (Natural Light)
Operating Temperature: -20 °C to 60 °C
Storage Temperature: -40 °C to 70 °C
Humidity: 5% to 95% (Non-Condensing)

Electrostatic Discharge (ESD):

• ±15 kV (Air Discharge)
• ±8 kV (Direct Discharge)

Drop Resistance: 1.5 m
Ingress Protection Rating: IP52

Software

Configuration Tools: EasySet

Certifications

Compliance Certifications

• CE
• FCC
• RoHS
• IEC62471
• KC

Warranty

Standard Warranty: 5 Years
