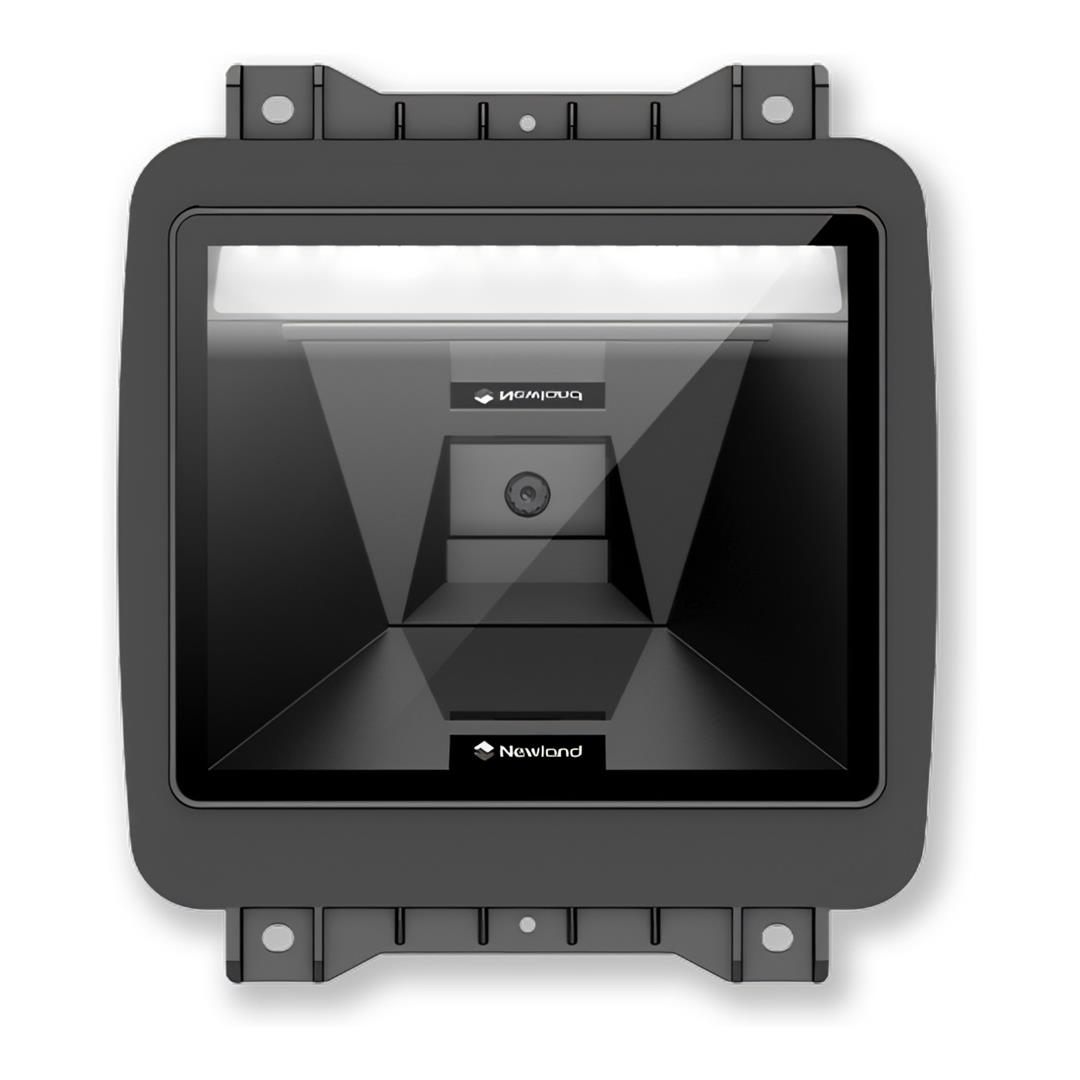

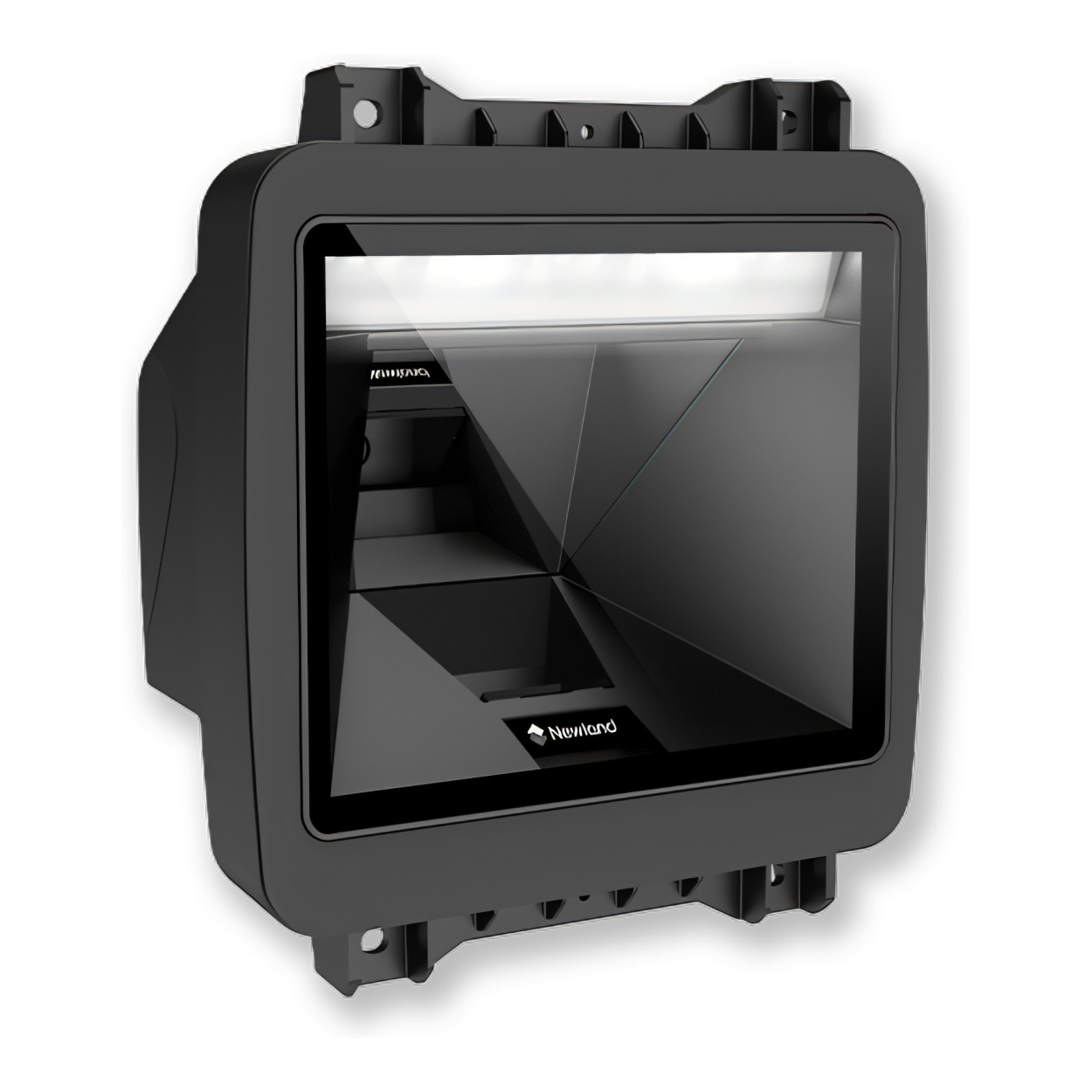

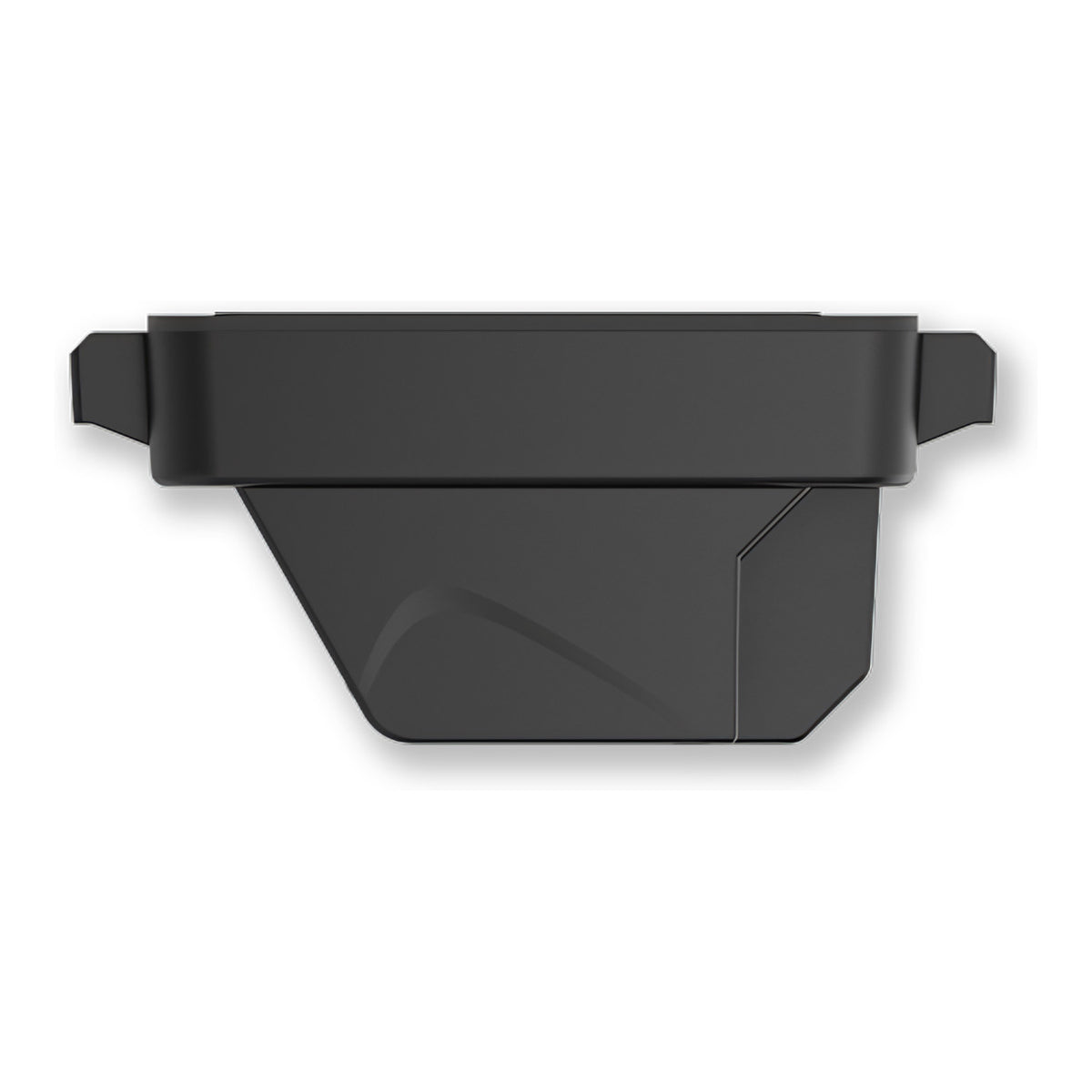

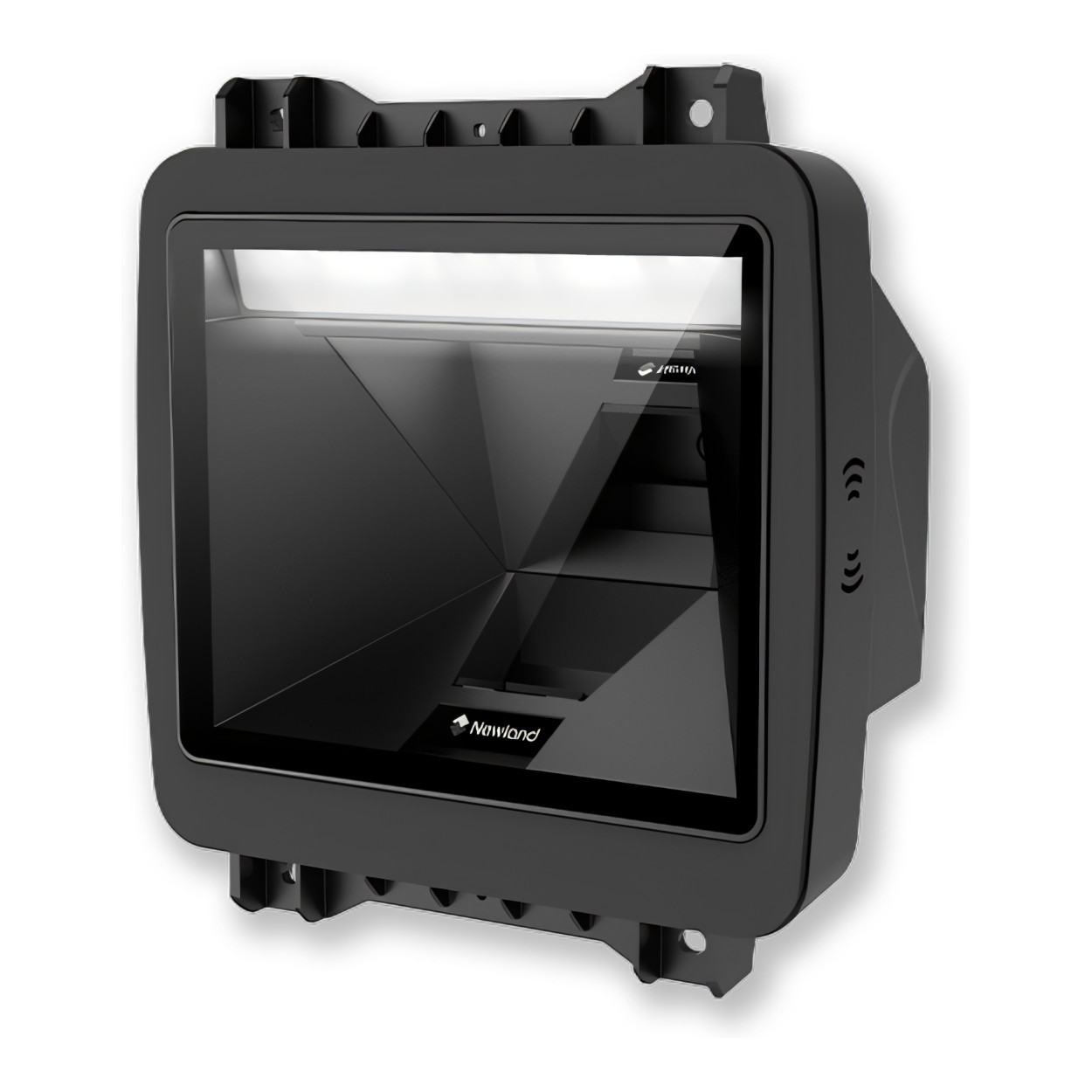

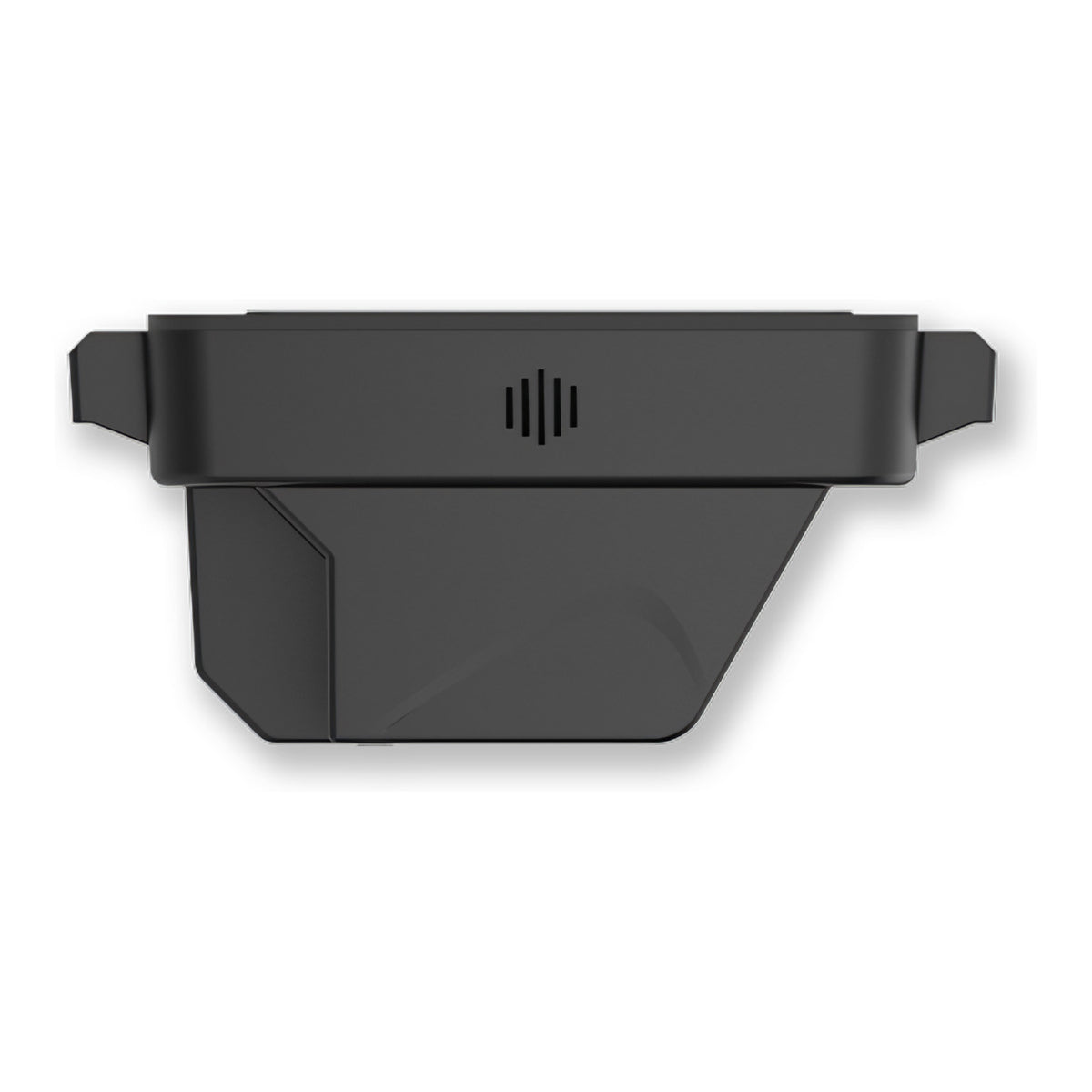

Newland FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner NLS-FM8080-20
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more about FirstShop delivery
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
Newland FM80 Salmon 2D CMOS Mega Pixel Large Window Fixed Mount Scanner NLS-FM8080-20
The Newland FM80 Salmon NLS-FM8080-20 is a fixed-mount 2D barcode scanner designed for self-service kiosks, point-of-sale systems and other embedded scanning applications. Its large scan window, 1280 × 1088 CMOS imaging system and support for motion speeds up to 3.5m/s enable fast capture of moving 1D and 2D barcodes. Advanced Sense Mode automatically activates scanning when a barcode is presented, helping provide intuitive operation in customer-facing and unattended environments.
Key Features
- 1280 × 1088 CMOS imaging sensor for reliable 1D and 2D barcode capture.
- Large scanning window suited to self-service, POS and embedded applications.
- High motion tolerance of up to 3.5m/s for quickly presented items.
- Advanced Sense Mode automatically detects and scans presented barcodes.
- Red LED illumination with a wide 42.4° horizontal field of view.
- USB and RS-232 interface support for flexible system integration.
- IP52-rated enclosure with robust ESD protection.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Newland |
| Product | FM80 Salmon |
| Manufacturer Part Number | NLS-FM8080-20 |
| Product Type | Fixed-Mount Barcode Scanner |
| Decode Capability | 1D / 2D |
| Image Sensor | 1280 × 1088 CMOS |
| Illumination | Red LED, 614–624nm |
| 1D Resolution | ≥3mil |
| 2D Symbologies | PDF417 / QR Code / Data Matrix / Aztec |
| 1D Symbologies | Code 11 / Code 128 / Code 39 / Code 32 / GS1-128 / AIM 128 / ISBT 128 / Codabar / Code 93 / UPC-A / UPC-E / Coupon / EAN-13 / EAN-8 / ISSN / ISBN / Interleaved 2 of 5 / Matrix 2 of 5 / Industrial 2 of 5 / ITF-14 / ITF-6 / Standard 2 of 5 / China Post 25 / MSI-Plessey / Plessey / GS1 DataBar / GS1 Composite |
| Typical Depth of Field | 0–140mm at 13mil / 50–90mm at 5mil |
| Field of View | 42.4° Horizontal / 36° Vertical |
| Scan Angle | 360° Roll / ±55° Pitch / ±50° Skew |
| Minimum Symbol Contrast | 15% at Code 128 10mil |
| Scan Mode | Advanced Sense Mode |
| Motion Tolerance | Up to 3.5m/s |
| Interfaces | USB / RS-232 |
| Notifications | Beep / LED Indicator |
| Operating Voltage | 5V DC ±5% |
| Operating Current | 0.4A Typical / 0.5A Maximum |
| Operating Power Consumption | 2W Typical / 2.5W Maximum |
| Standby Power Consumption | 1.25W |
| IP Rating | IP52 |
| ESD Protection | ±15kV Air / ±8kV Direct Contact |
| Ambient Light | 0–100,000 lux |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 5–95% RH, Non-Condensing |
| Dimensions | 149 × 78.5 × 166.5mm |
| Weight | 448.3g |
| Certifications | FCC Part 15 Class B / CE EMC Class B / RoHS |
| Standard Warranty | 5 Years |
| What's in the Box: |
|
Integrate fast, intuitive 1D and 2D barcode scanning into kiosks, POS systems and other fixed applications with the Newland FM80 Salmon.
