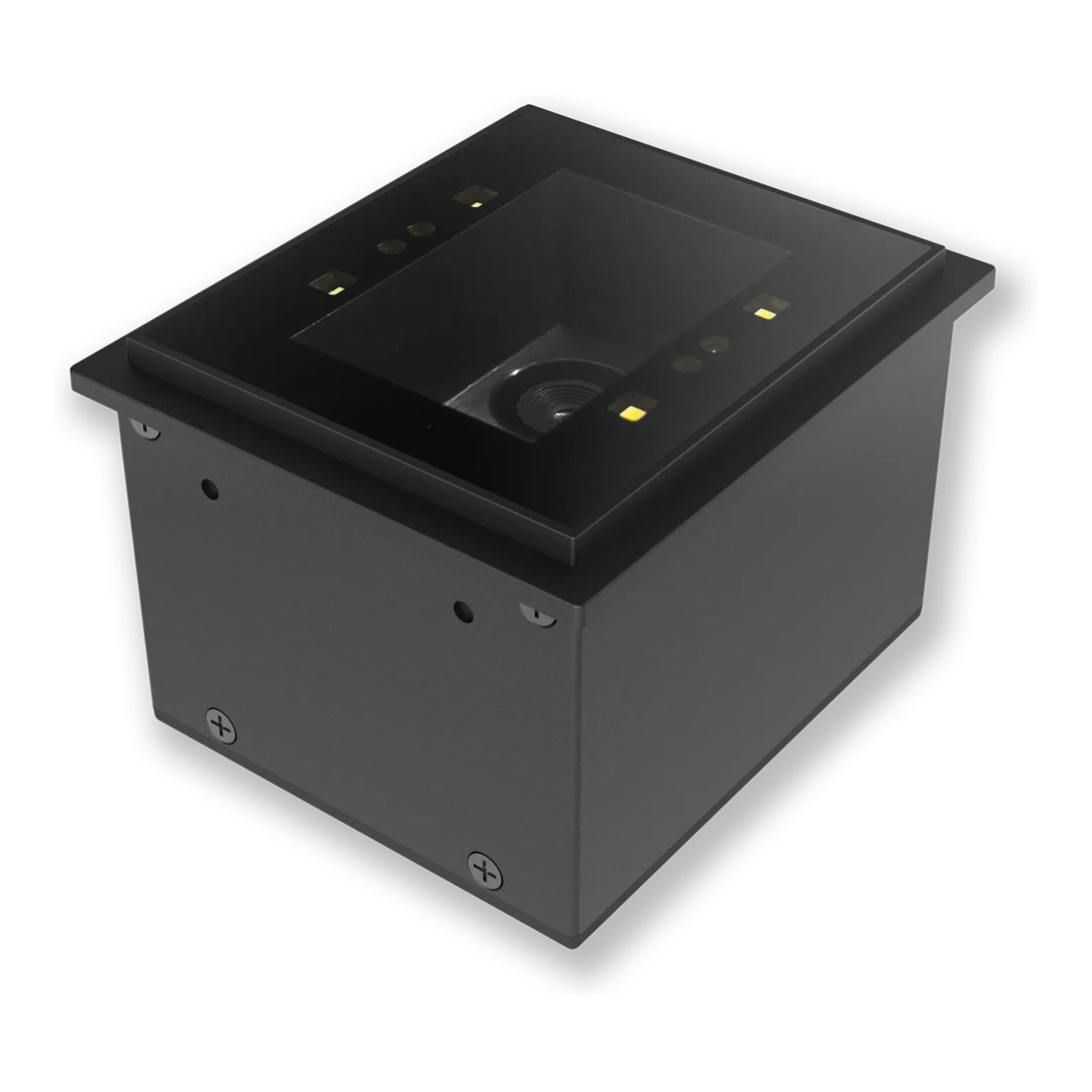

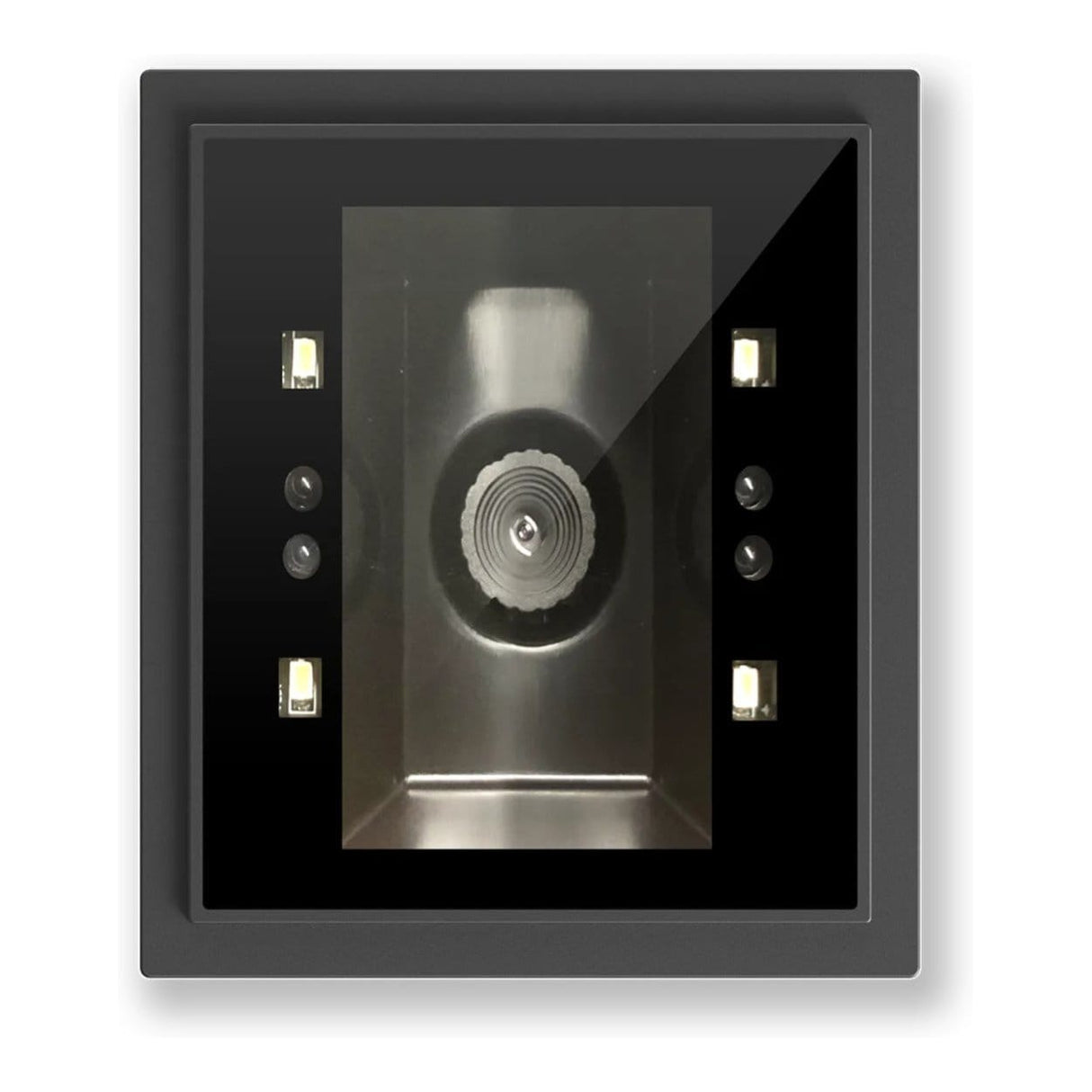

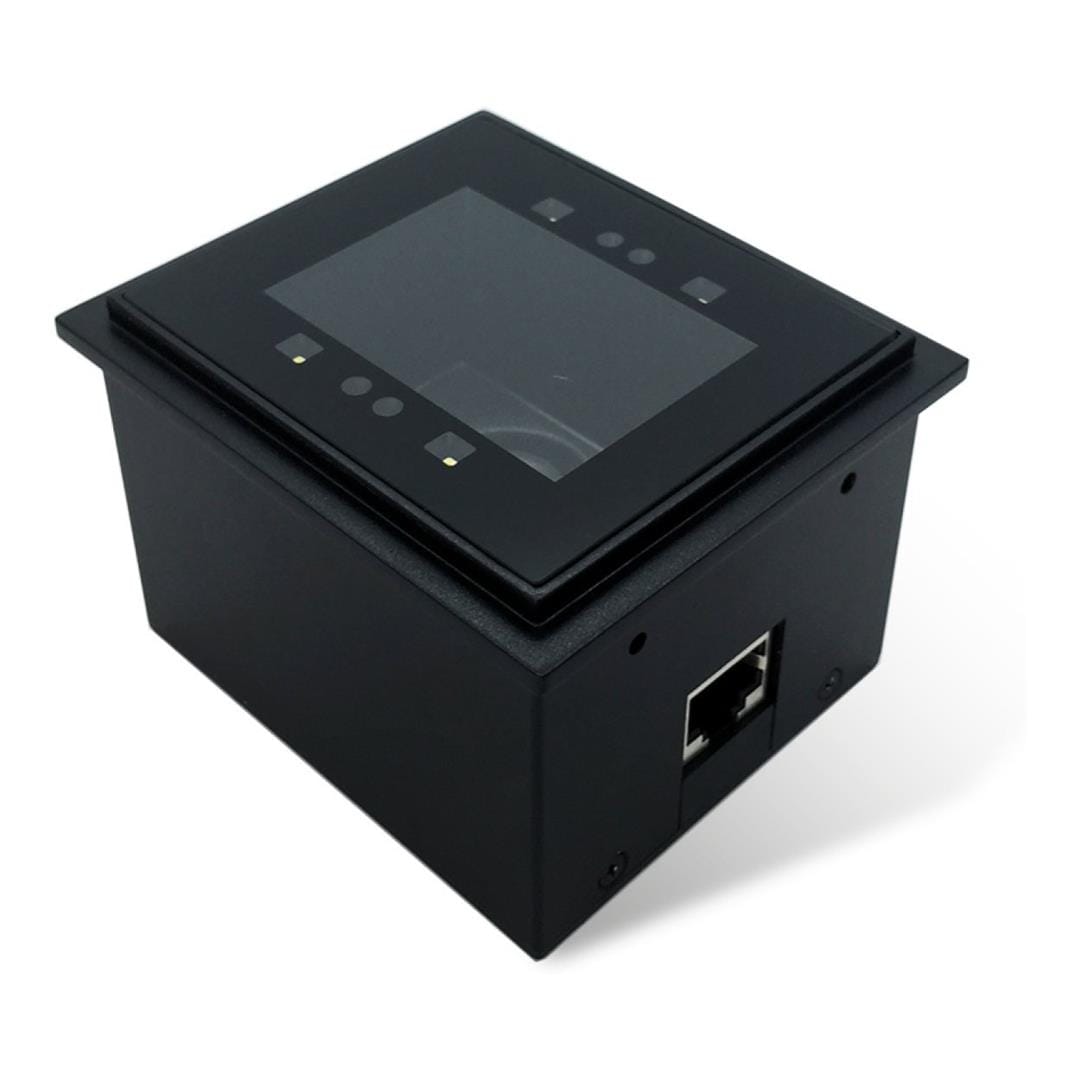

Newland FM3056 CMOS Fixed Mounted Barcode Reader NLS-FM3056-20

Newland FM3056 CMOS Fixed Mounted Barcode Reader NLS-FM3056-20

The FM3056 Grouper is a flush mount scanner with a minimal footprint. With a height of only 53mm, the device is small enough to fit into most kiosks and POS systems, while the flush mount ensures that the device suits any business environment. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether it’s an employee scanning a product label or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.

The FM3056 Grouper is the flush mount equivalent of the FM3051 Grouper.

Features:

• Durable Metal Housing: The scanner uses a durable metal housing, making it ideal for self-service applications.
• IR Trigger: The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented, markedly increasing throughput and productivity.
• Outstanding Power Efficiency: The advanced latest technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device..
• Snappy On-screen Barcode Capture: Armed with Newland's sixth-generation of UIMG® technology, the scanner excels at reading on-screen barcodes containing large amounts of data.

A plug-and-play simplicity enhances your experience right from the start

The FM3056 Grouper is a flush mount scanner with a minimal footprint. With a height of only 53mm, the device is small enough to fit into most kiosks and POS systems, while the flush mount ensures that the device suits any business environment. Built to read from contemporary LCD widescreen devices, the fixed scanner is ideal for mobile phone applications like loyalty programs and ticket validation. Whether it’s an employee scanning a product label or a customer scanning a voucher on their mobile phone, barcode scanning is always easy and quick.

Superior decoding performance

Your employees can scan virtually any barcode, including 1D and 2D, at an extraordinary speed.

Effortless scanning from mobile phone screen

Built to read from an LCD screen, the FM3056 Grouper can easily read barcodes from any mobile device screen. An extended capability of IR reading allows the device to detect barcodes under virtually any ambient light. Whether you operate at daytime or nighttime, scanning is quick and efficient.

Easily mounted in small spaces

The FM3056 Grouper is designed for businesses that require high performance and a minimal footprint. With its small size, the device is ideal for kiosk integration and other POS solutions.

Easy to install

The FM3056 Grouper can be set up quickly and easily. A plug-and-play simplicity enhances your experience right from the start. The device can be further configured according to your needs by using a simple barcode programming guide.

Application scenarios

POS Solutions, kiosk integration, scanning from a mobile phone screen, such as for loyalty programs or ticket validation.

Technical Specifications:

Performance
Image Sensor: 752 × 480 CMOS
Illumination: White LED

Supported Symbologies:

• PDF417
• Data Matrix
• QR Code
• Aztec
• Micro QR
• EAN-13
• EAN-8
• UPC-A
• UPC-E
• ISSN
• ISBN
• Codabar
• Code 128 (FNC1, FNC2, FNC3)
• Code 93
• ITF-6
• ITF-14
• Interleaved 2 Of 5
• Industrial 2 Of 5
• Standard 2 Of 5
• Matrix 2 Of 5
• GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)
• Code 39 (Full ASCII)
• Code 11
• MSI-Plessey
• Plessey
• GS1-128 (UCC/EAN-128)
• AIM 128

Resolution: ≥5 Mil

Scan Modes:

• Sense Mode
• Continuous Mode

Scan Angle:

• Roll: 360°
• Pitch: ±40°
• Skew: ±40°

Minimum Symbol Contrast: 25%
Scan Window: 31.5 × 46.5 Mm

Field of View:

• Horizontal: 75°
• Vertical: 50°

Physical Specifications
Dimensions (L × W × H): 78.7 × 67.7 × 53 Mm
Weight: 168 G
Notification Type: Beep

Power
Operating Voltage: 5 VDC ±5%
Current Consumption @ 5 VDC:

• Typical: 115 MA
• Maximum: 198 MA

Rated Power Consumption: 572 MW Typical

Interfaces
Supported Interfaces:

• RS-232
• USB

Environmental
Operating Temperature: -20°C To 60°C
Storage Temperature: -40°C To 70°C
Humidity: 5% To 95% Non-Condensing

ESD Protection:

• ±8 KV Air Discharge
• ±4 KV Direct Discharge

Certifications
Certificates & Protection:

• FCC Part 15 Class B
• CE EMC Class B
• RoHS

What's in the Box:

• Cable for Connecting the Scanner to a Host Device
• Power Adapter
