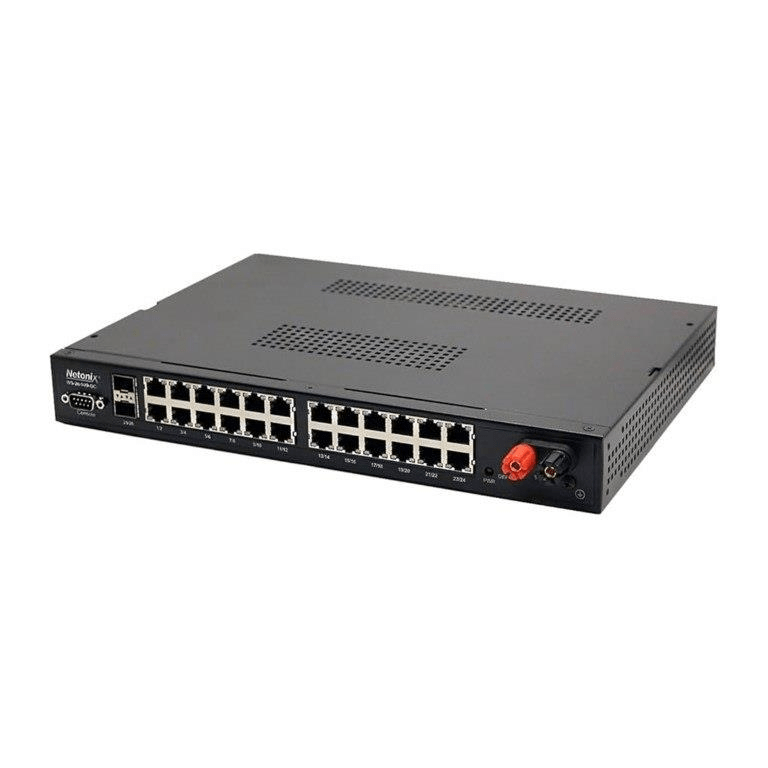

Netonix 24-port GbE PoE Managed WISP Switch with 2x SFP Ports WS-26-500-DC
The Netonix WISP Switch product line was designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful userinterface providing thesoftware featuresWISPs need in aswitch.
Features
- Managed POE Gigabit Switches with SFP
- Gigabit Ethernet RJ45 and SFP Ports
- Non-Blocking Throughput Switching Performance
- Software Configurable PassivePOE
- Powers airFIBER and other high power radios
Technical Specification
Chassis Earth Ground Lug: Yes
Max. Power Consumption: 500 Watts
Intelligent Forced Air Cooling with Fan RPM Monitoring: Yes
Switch Core and PHYs: Vitesse
Processor: MIPS 24K 416MHz
System Memory: 128MB
Flash Storage: 16MB
Total Non-Blocking Line Rate: 26Gbps
Console Port: RS-232
Ethernet Ports: 24x 10/100/1000 Ethernet Ports, 2x SFP Ports
Passive POE ConfiguredPer Port via UI / CLI
-
Ports 01-24: 24V 0.75A pins 4,5(+) 7,8(-)
-
Ports 01-24: 48V 0.75A pins 4,5(+) 7,8(-)
-
Ports 01-02: 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
-
Ports 01-06: 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
Passive POE Current Sensors Per Port: Yes
Dimensions (W x D x H): 343mm x 248mm x 44mm
Weight: <3kg
Please note
- Designed to hook directly to battery bank not a power supply / charging unit.
- This switch is not designed to operate on negative 48V site, using -48V DC will damage the switch as it does not have isolated input output power.
- Always use an inline fuse or breaker.
- Optional 19" rack mount kits sold separately.
