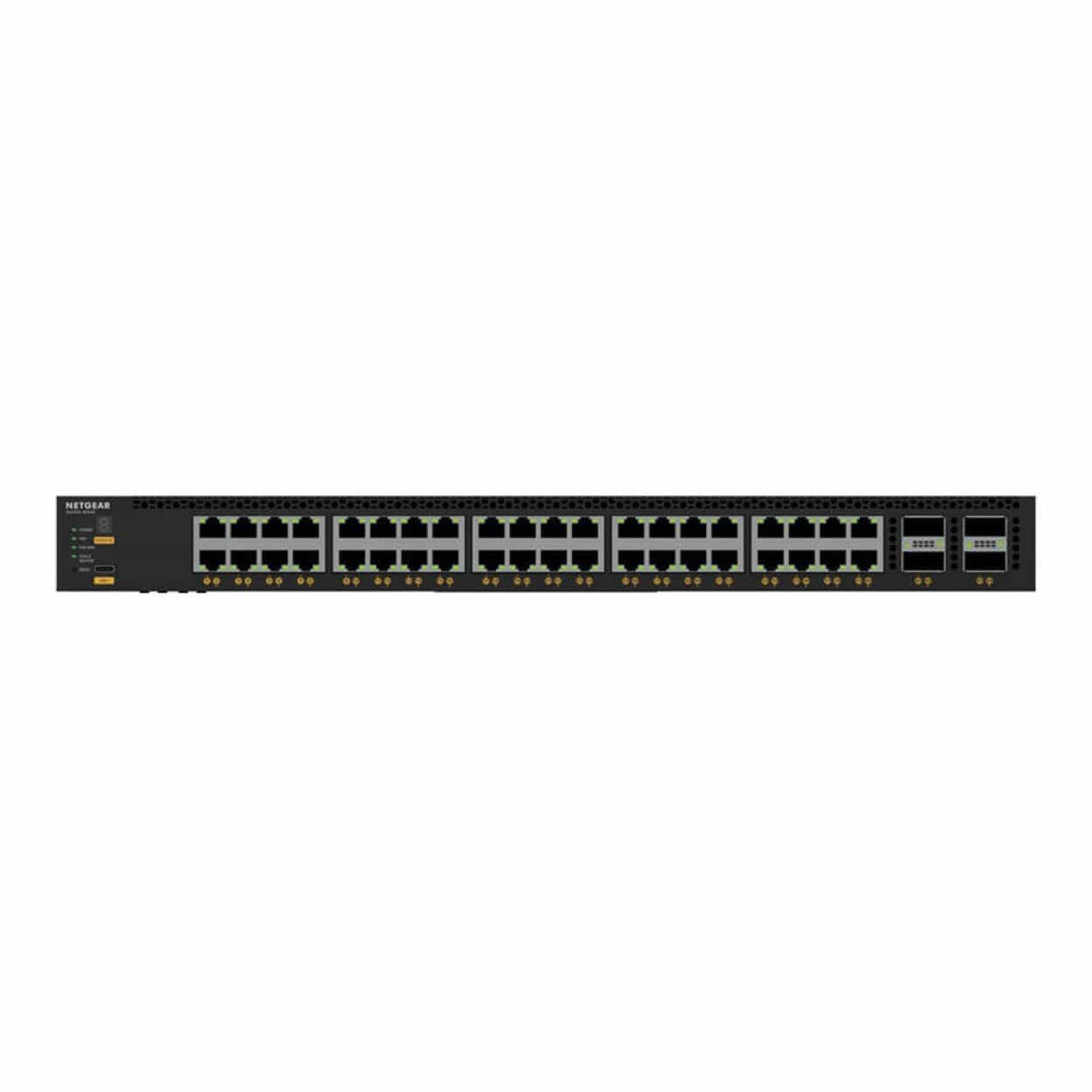

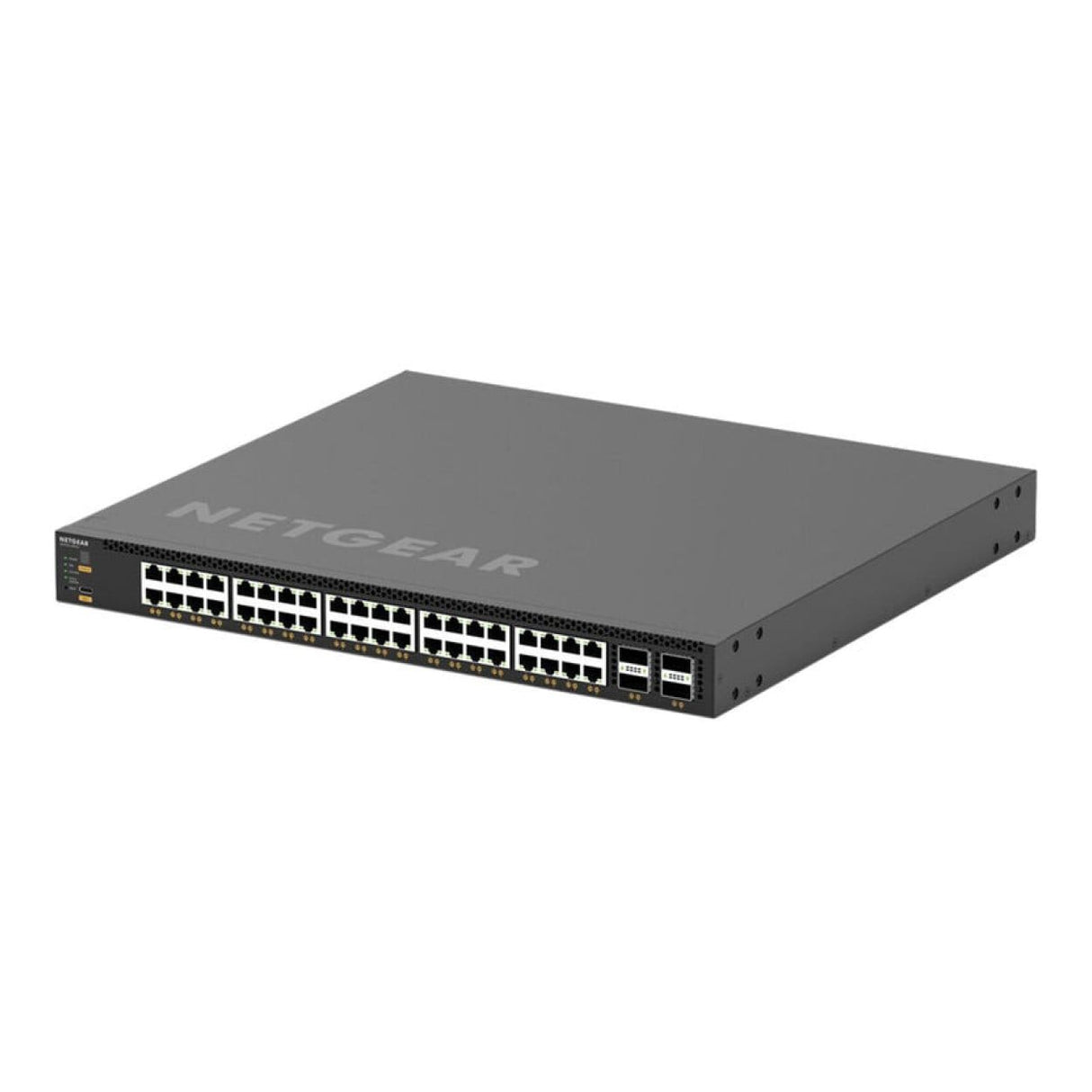

Netgear M4350-40X4C 40-Port 10G PoE++ Compliant Managed AV Network Switch XSM4344C-100NES

Netgear M4350-40X4C 40-Port 10G PoE++ Compliant Managed AV Network Switch XSM4344C-100NES

POWER AND THROUGHPUT

Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Features:

• 40 10G/Multi-Gig PoE++ ports with 4 100GBASE-X QSFP28 uplinks
• 750W internal power supply providing 196W of PoE budget

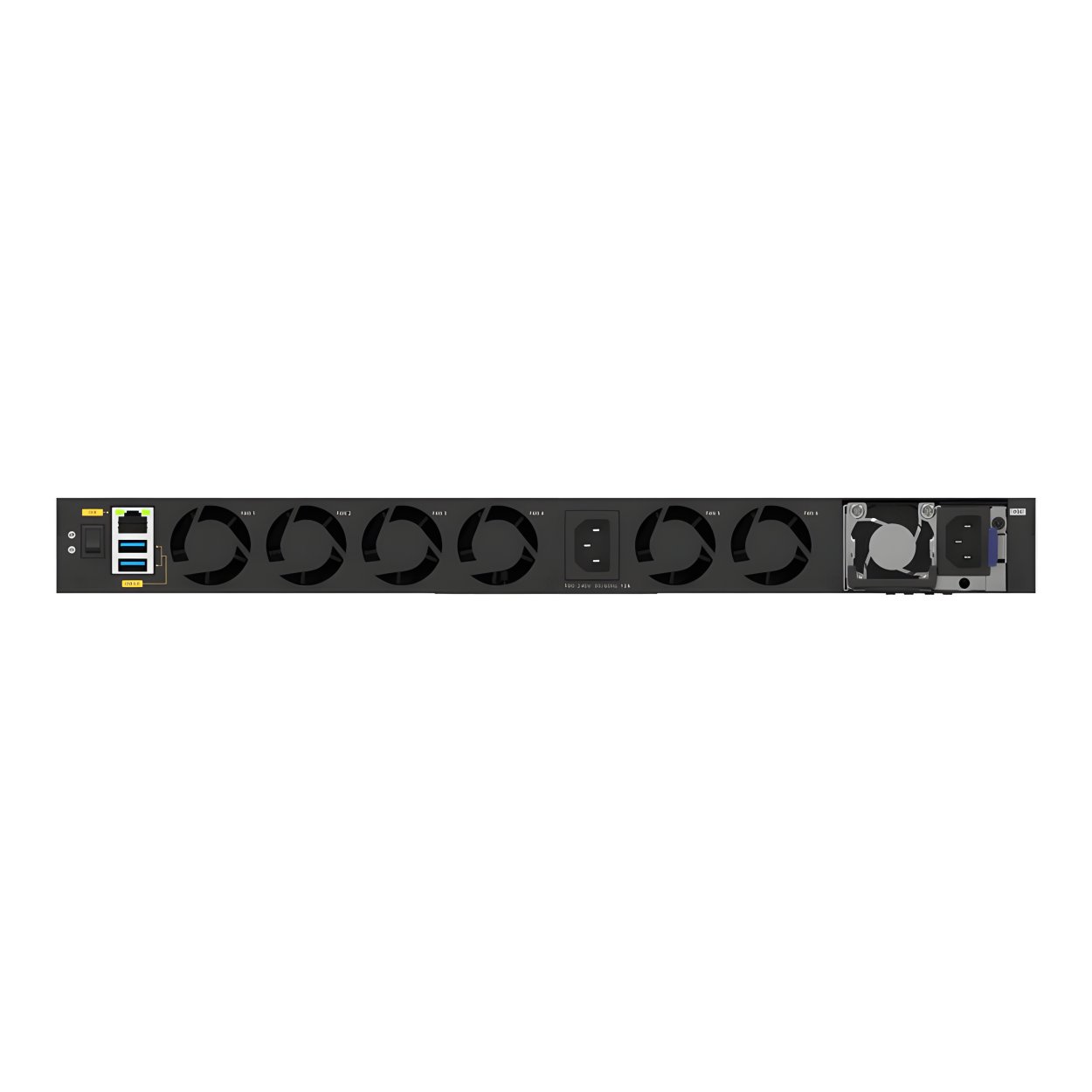

• 1 slot for modular power supply (1+1 redundancy and/or EPS share)
• Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
• The PoE budget can reach 1,676W, when the redundant PoE budget remains 196W
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
• Layer 3 feature set includes static, policy-based, and dynamic routing
• NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations
• NETGEAR ProSAFE^® Limited Lifetime Hardware Warranty
• Lifetime Next Business Day Hardware Replacement
• TAA compliant SKU is available. Contact your sales representative

Groundbreaking AV GUI

A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant

NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design

Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration

Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Technical Specifications:

Networking

RJ45 Ports

• 40 × RJ45 10 GbE PoE++ (100 W, 802.3bt Type 4)
• 1 × RJ45 Gigabit Ethernet

QSFP28 Ports

• 4 × QSFP28 100 GbE WAN

Other I/O Ports

• 1 × USB-C
• 2 × USB-A

Stackable: No

Protocols and Features

Layer Services Supported

• Layer 2
• Layer 3

Supported Protocols

• Link Aggregation
• DHCP Server
• Auto-MDIX/MDI
• IGMP Snooping
• DoS
• IPv6
• IPv4

Queuing Methods

• Strict Priority
• Weighted Round Robin (WRR)

Jumbo Frames Support: 12,000 Bytes
MAC Address Table Size: 16K

Security

Security Features

• DoS Attack Prevention

Performance

Forwarding Rate: 1190.4 Mpps
Switching Bandwidth: 1.6 Tb/s
Packet Buffer: 256 Mb

System Hardware

CPU: Quad-Core Cortex-A57 (Up to 1.8 GHz)
Memory: 4 GB DDR4

Electrical

PoE Power Budget: 196 W
Input Power: 100–240 VAC, 50 / 60 Hz
Power Supply Type: Internal

Environmental

Storage Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Cooling System: Fan (Noise Level: 54.3 dB)
Indicator Lights: Yes

Physical

Rack Mountable: Yes (1U)
Dimensions (W × D × H): 440 × 400 × 43.2 mm
Weight: 7.76 kg

Packaging

Package Weight: 24.25 lb
Box Dimensions (L × W × H): 23.4 × 22.6 × 4.9 inches
