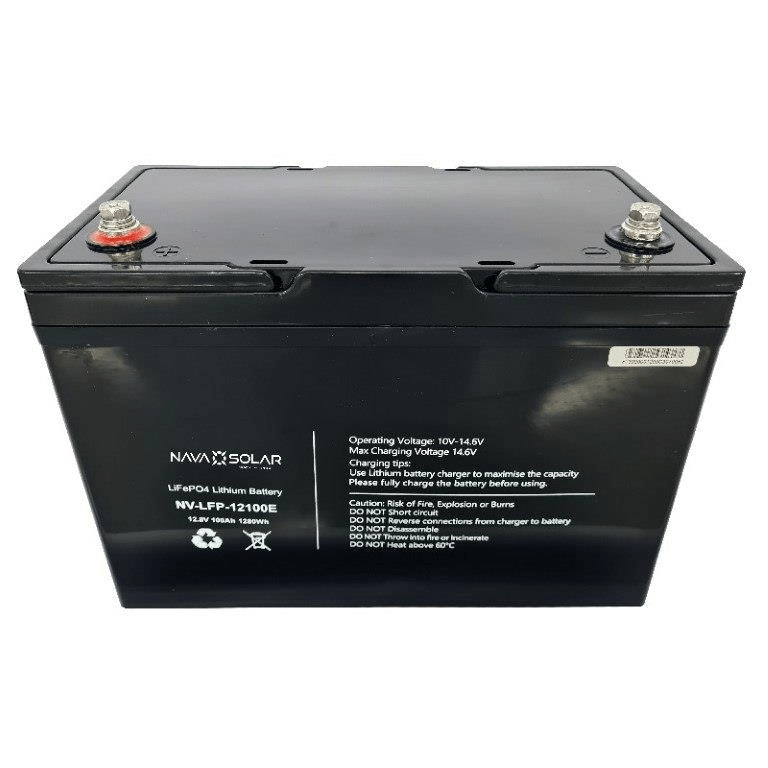

NavaSolar 12.8V 100AH 1.28kWH LifePO4 IP65 Battery Pack
NavaSolar NV-LFP series use quality trustable LiFePO4 cells, with build-in BMS system. IP65 protection, support series and parallel use, is an ideal choice for outdoor, small energy storage, marine and other fields.
Features
- Safest lithium battery technology
- Lithium iron Phosphate Battery(LiFePO4 )
- Eco-friendly
- Special protection plate, supporting parallel
- Multiple safety protection
- Intelligent balancing function
- 20 Years Designed service life
Technical Specification
Case Material: ABS
Cell Type -Chemistry: Prismatic LiFePO4
Terminal Type: M8
IP Grade: IP65
Recommended Charge Current: 50A
Maximum Charge Current: 100A
Maximum Continuous Discharge Current: 100A
Recommended Charge Voltage: 13.6~13.8V
Max Charge Voltage: 14.4V
Overcharge Protection Voltage: 14.8~15.0V
Charge Mode: CC/CV
Discharge Cut-off Voltage (BMS): 8.8V
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Standard Discharge Time: 100A @60min
Energy: 1.28K Wh
IR: <= 15mQ
Cycle Life: 2500 times
Size: 306x169x215
Weight: 10.1
Rated Charge Current: 50A
Maximum Charge Current: 100A
Rated Charge Voltage: 13.6~13.8V
Charge Cut-off Voltage: > 14.8V(0.5~1.5S)
Reconnect Voltage: <14.4 V
Rated Discharge Current: 100A
Pulse Current(<=5S): 600A
Minimum Discharge Cut-off Voltage: >10V
Reconnect Voltage: >10.4V
Short Circuit Protection: 200~800 μs
Short Circuit Current: Approx. 1200A
Discharge Temperature: -20~60℃
Charge Temperature: 0~45℃
Storage Temperature: -5~35℃
High Temperature Cut-off: 70℃
Reconnect Temperature: 50℃
