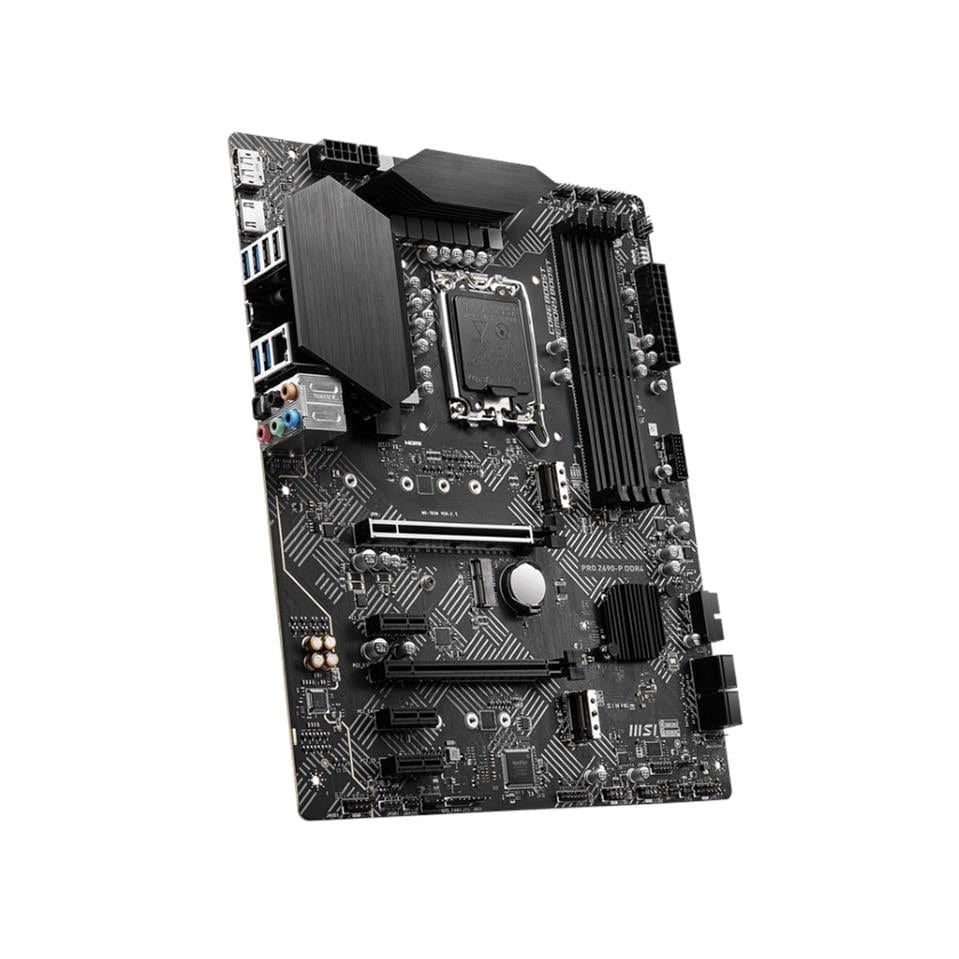

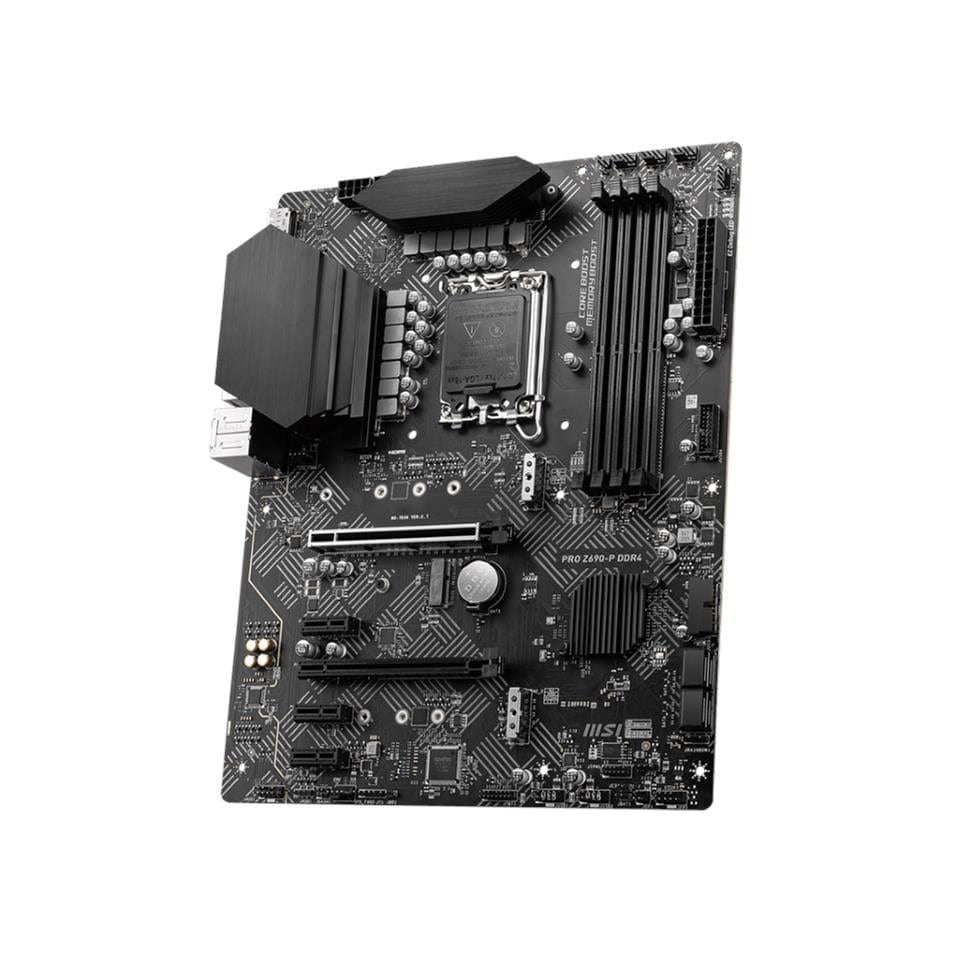

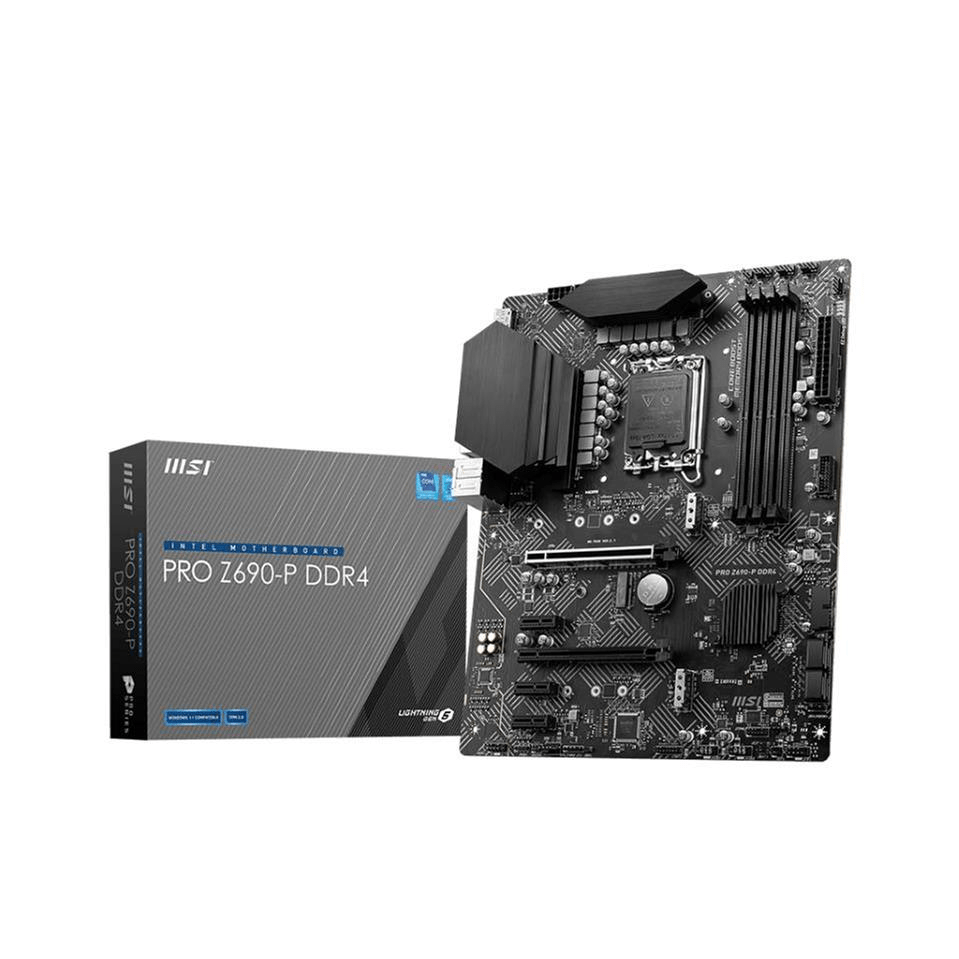

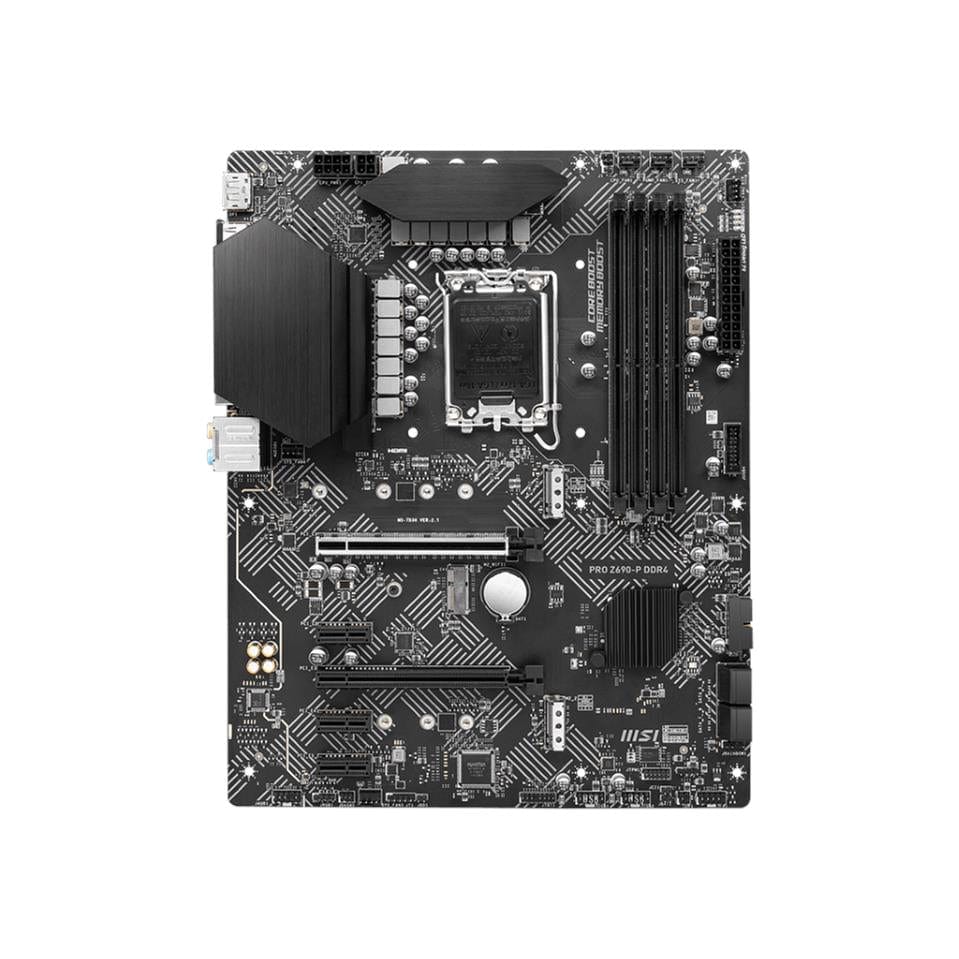

MSI PRO Z690-P DDR4 Intel LGA 1700 ATX Motherboard PRO Z690-P DDR4

MSI PRO Z690-P DDR4 Intel LGA 1700 ATX Motherboard

Specifications:

• CPU (MAX SUPPORT): i9
• SOCKET: 1700
• CHIPSET: Intel® Z690 Chipset
• DDR4 MEMORY: 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
• MEMORY CHANNEL: Dual
• DIMM SLOTS: 4
• MAX MEMORY (GB): 128
• PCI-E X16: 2
• PCI-E X1: 3
• SATAIII: 4
• M.2 SLOT: 2
• RAID: 0/1/5/10
• TPM (HEADER): 1
• LAN: Realtek® RTL8125BG 2.5Gbps LAN controller

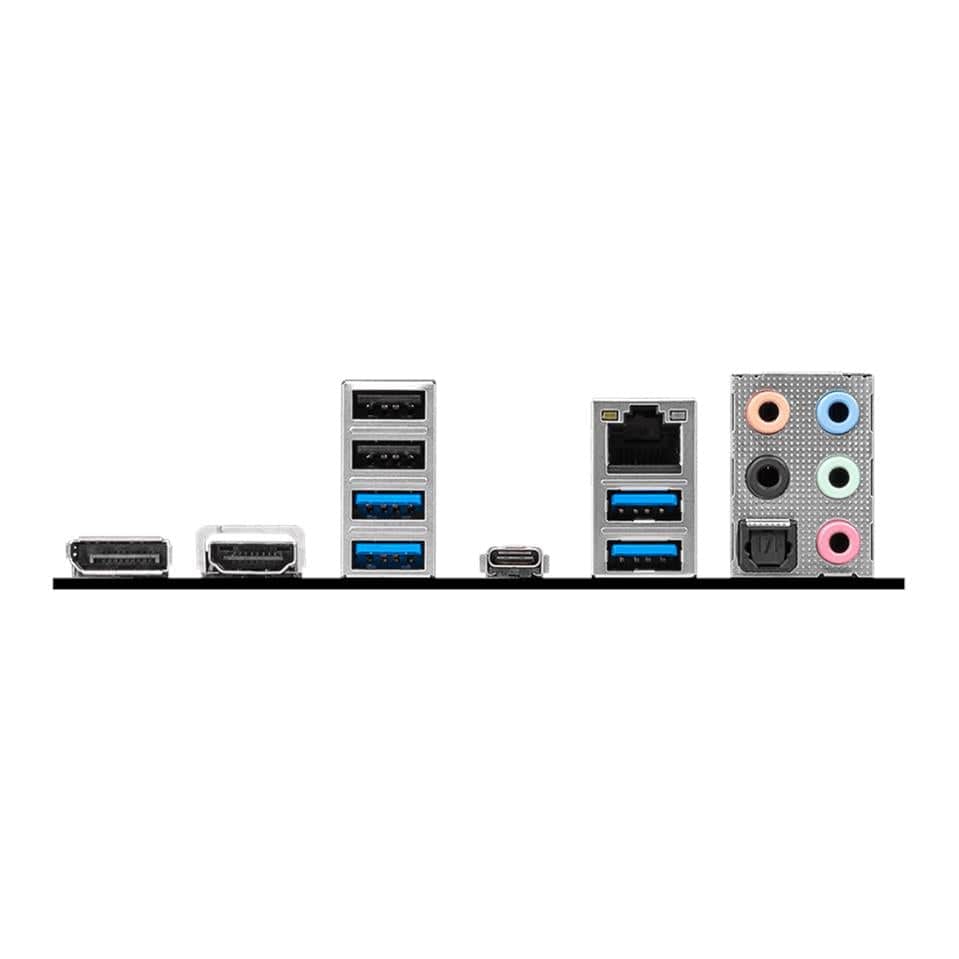

• USB 3.2 PORTS (FRONT): 4(Gen 1, Type A)
• USB 3.2 PORTS (REAR): 1(Gen 2x2, Type C), 4(Gen 1, Type A)
• USB 2.0 PORTS (FRONT): 4
• USB 2.0 PORTS (REAR): 2
• AUDIO PORTS (REAR): Realtek® ALC897 Codec
• DISPLAYPORT: 1
• HDMI: 1
• DIRECTX: 12
• CROSSFIRE: Yes
• OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
• FORM FACTOR: ATX
• DIMENSION: 30.5 cm x 24.4 cm
