MSI Pro B760M-A Wi-Fi DDR4 Intel LGA 1700 micro ATX Motherboard

MSI Pro B760M-A Wi-Fi DDR4 Intel LGA 1700 micro ATX Motherboard

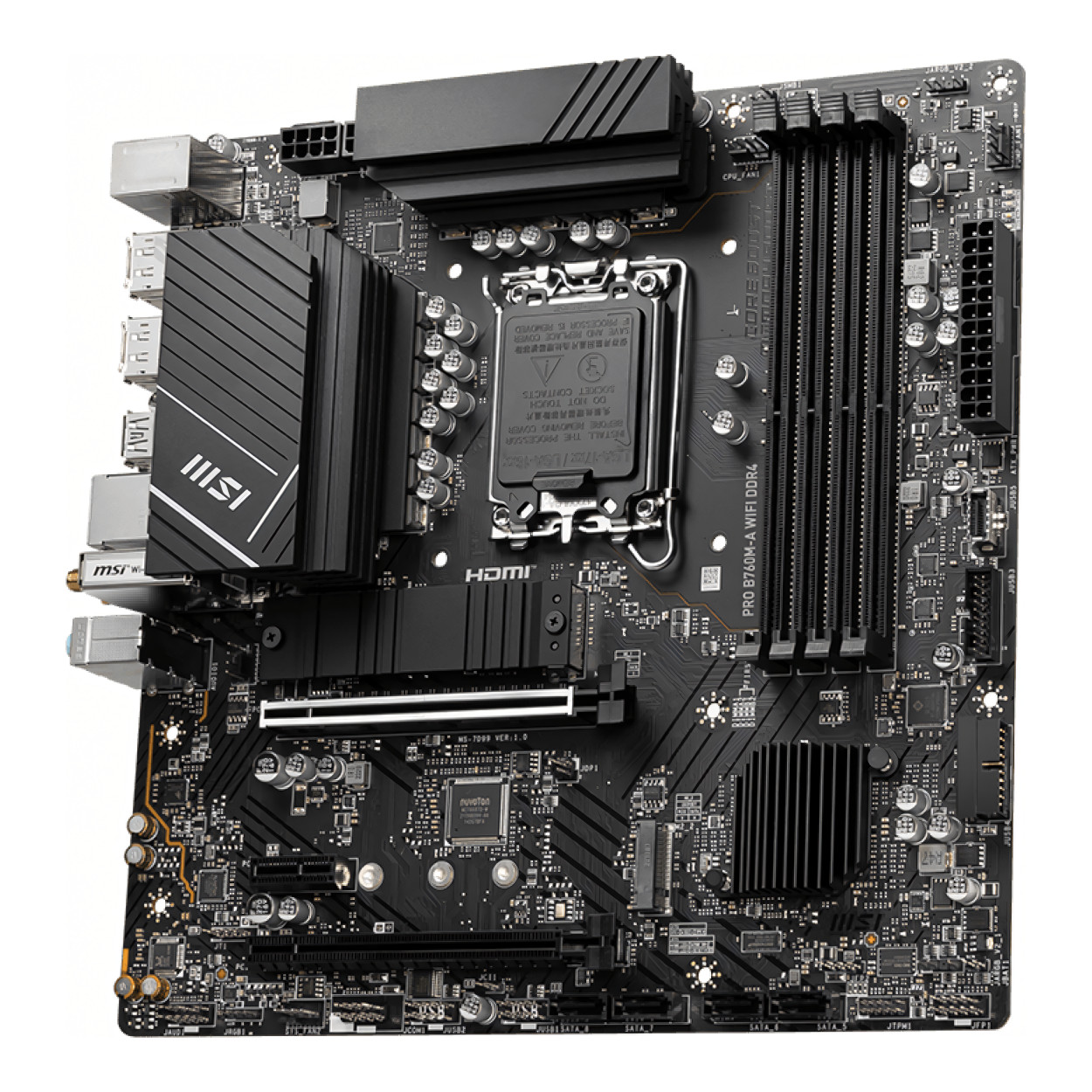

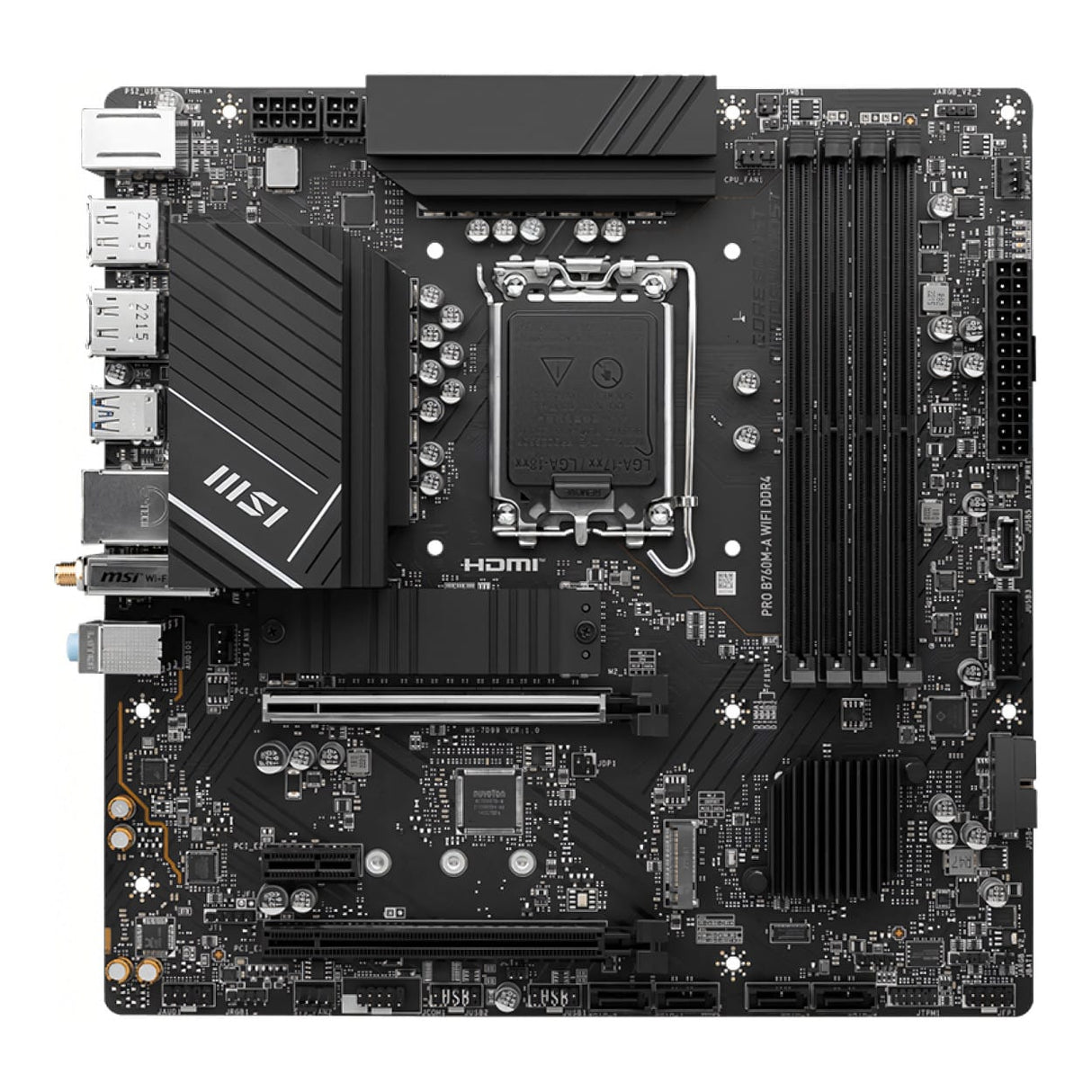

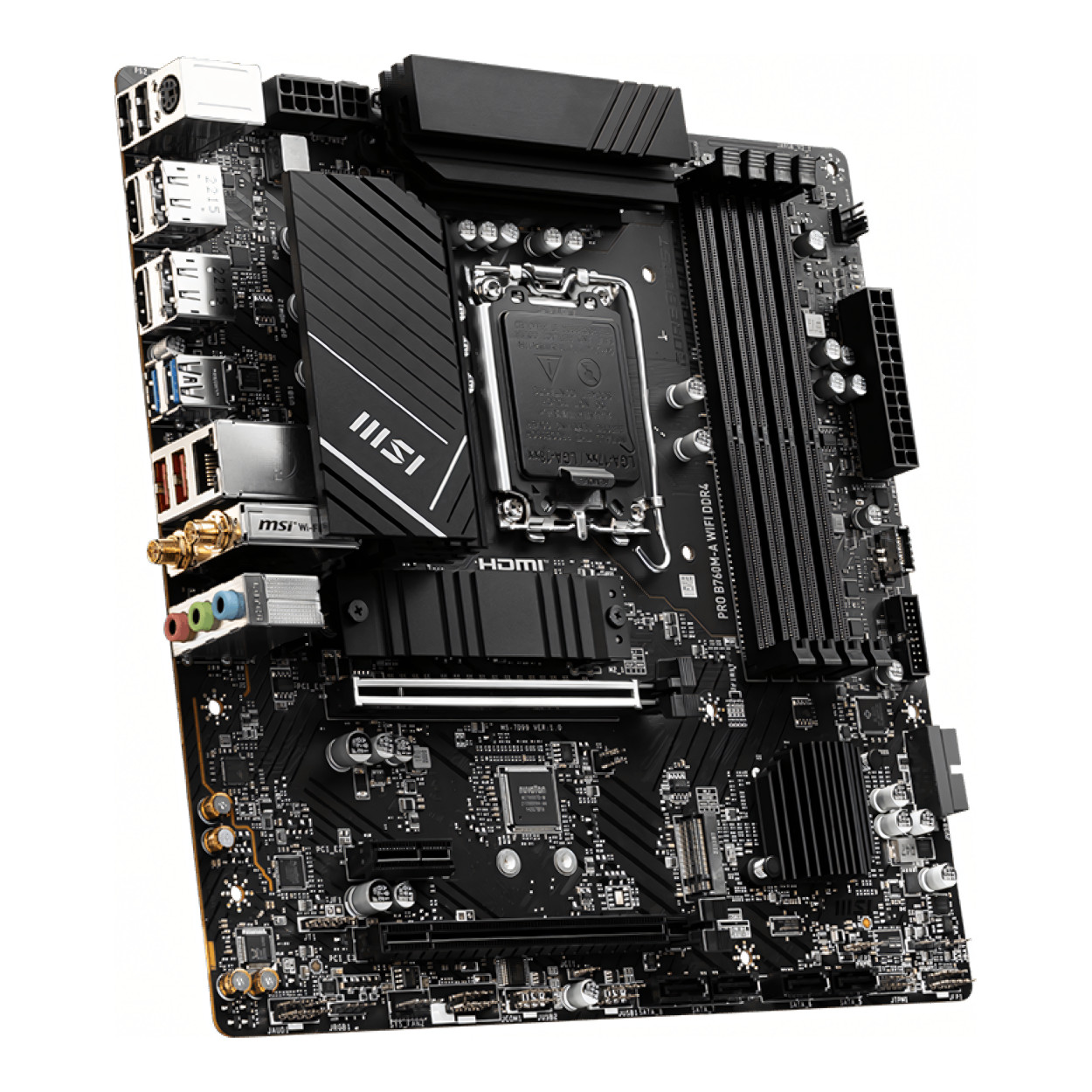

The MSI PRO B760M-A WIFI DDR4 is a feature-rich Micro-ATX motherboard designed for professional, productivity and general-purpose desktop PC builds based on compatible Intel LGA 1700 processors. Combining the Intel B760 chipset with four DDR4 memory slots, PCIe 4.0 expansion, dual Gen4 M.2 storage, 2.5 Gigabit Ethernet and Intel Wi-Fi 6E, it provides a versatile foundation for modern business and high-performance desktop systems.

Key Features

• Intel B760 chipset with LGA 1700 processor socket.
• Supports compatible 14th, 13th and 12th Gen Intel Core processors.
• 4 × DDR4 DIMM slots supporting up to 128GB of memory.
• DDR4 speeds up to 5333+ MHz with overclocking.
• PCIe 4.0 x16 primary expansion slot with MSI Steel Armor.
• 2 × PCIe 4.0 x4 M.2 storage slots.
• Realtek 2.5 Gigabit Ethernet networking.
• Intel Wi-Fi 6E with Bluetooth 5.3.

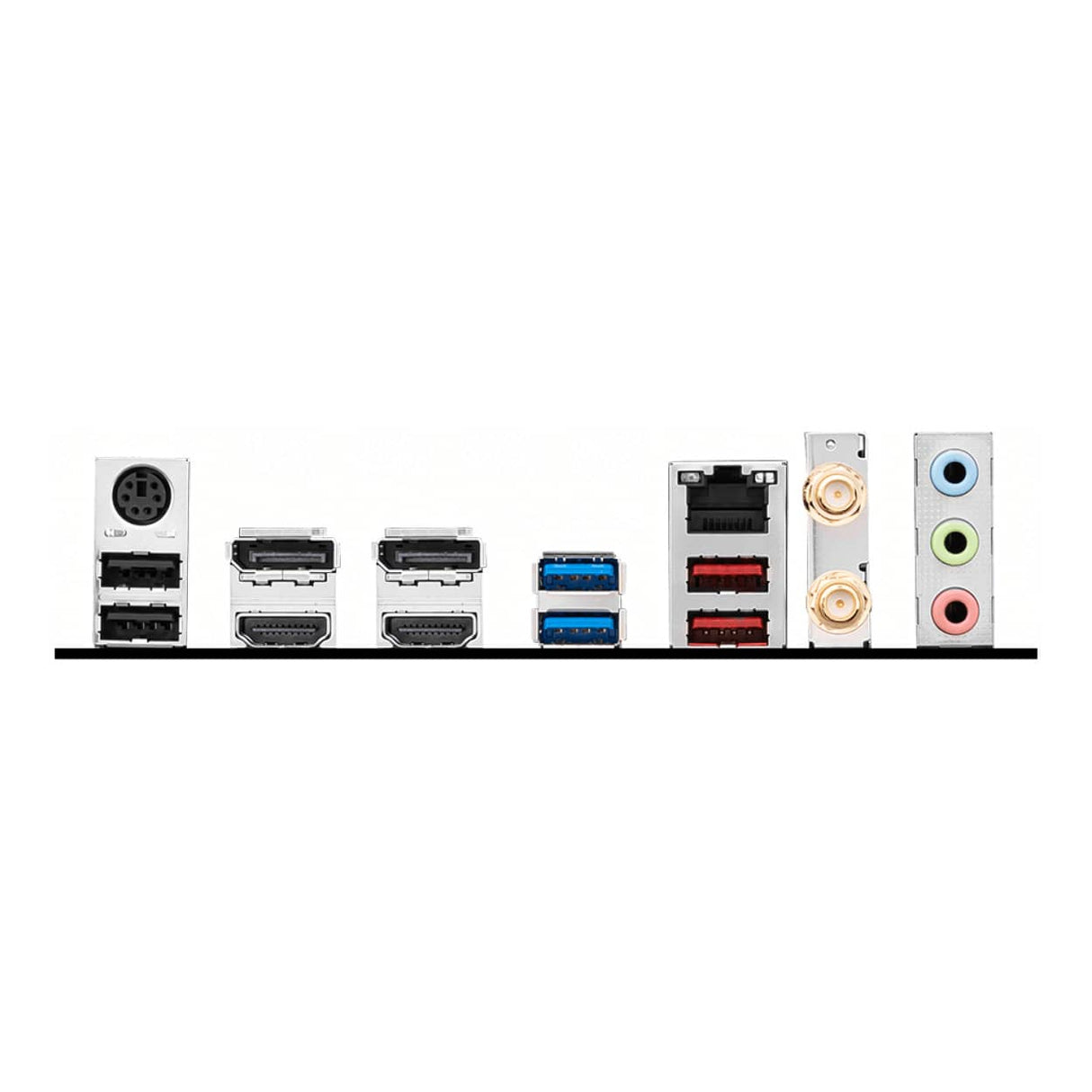

• 2 × HDMI 2.1 and 2 × DisplayPort 1.4 display outputs.
• 12+1+1 power design with Extended Heatsink and M.2 Shield Frozr.

Intel B760 Platform

The PRO B760M-A WIFI DDR4 combines the Intel B760 chipset with an LGA 1700 processor socket. MSI's current specifications list support for compatible 14th, 13th and 12th Gen Intel Core processors as well as Pentium Gold and Celeron processors, providing flexibility across a wide range of desktop configurations.

High-Speed DDR4 Memory

Four DDR4 DIMM slots support dual-channel memory configurations with a maximum capacity of 128GB. Memory frequencies up to 5333+ MHz are supported through overclocking, while Intel XMP support provides a convenient way to configure compatible performance memory modules.

PCIe 4.0 and Gen4 M.2 Storage

The primary processor-connected PCIe x16 slot supports PCIe 4.0 x16 connectivity for high-performance graphics and expansion cards. Two M.2 interfaces provide PCIe 4.0 x4 connectivity for high-speed NVMe SSDs, complemented by four SATA 6Gb/s interfaces for additional storage devices.

2.5GbE and Wi-Fi 6E

Integrated Realtek RTL8125BG 2.5 Gigabit Ethernet provides high-speed wired networking, while the pre-installed Intel Wi-Fi 6E module supports 2.4GHz, 5GHz and 6GHz wireless bands where permitted by regional regulations. Bluetooth 5.3 provides additional wireless connectivity for compatible peripherals.

Enhanced Cooling and Power Design

MSI combines a 12+1+1 power design with an Extended Heatsink, dedicated M.2 Shield Frozr and thermal pads to help maintain stable operation under demanding workloads. The motherboard also uses a six-layer PCB with 2oz thickened copper for reliable electrical performance.

Technical Specifications

What’s in the Box:

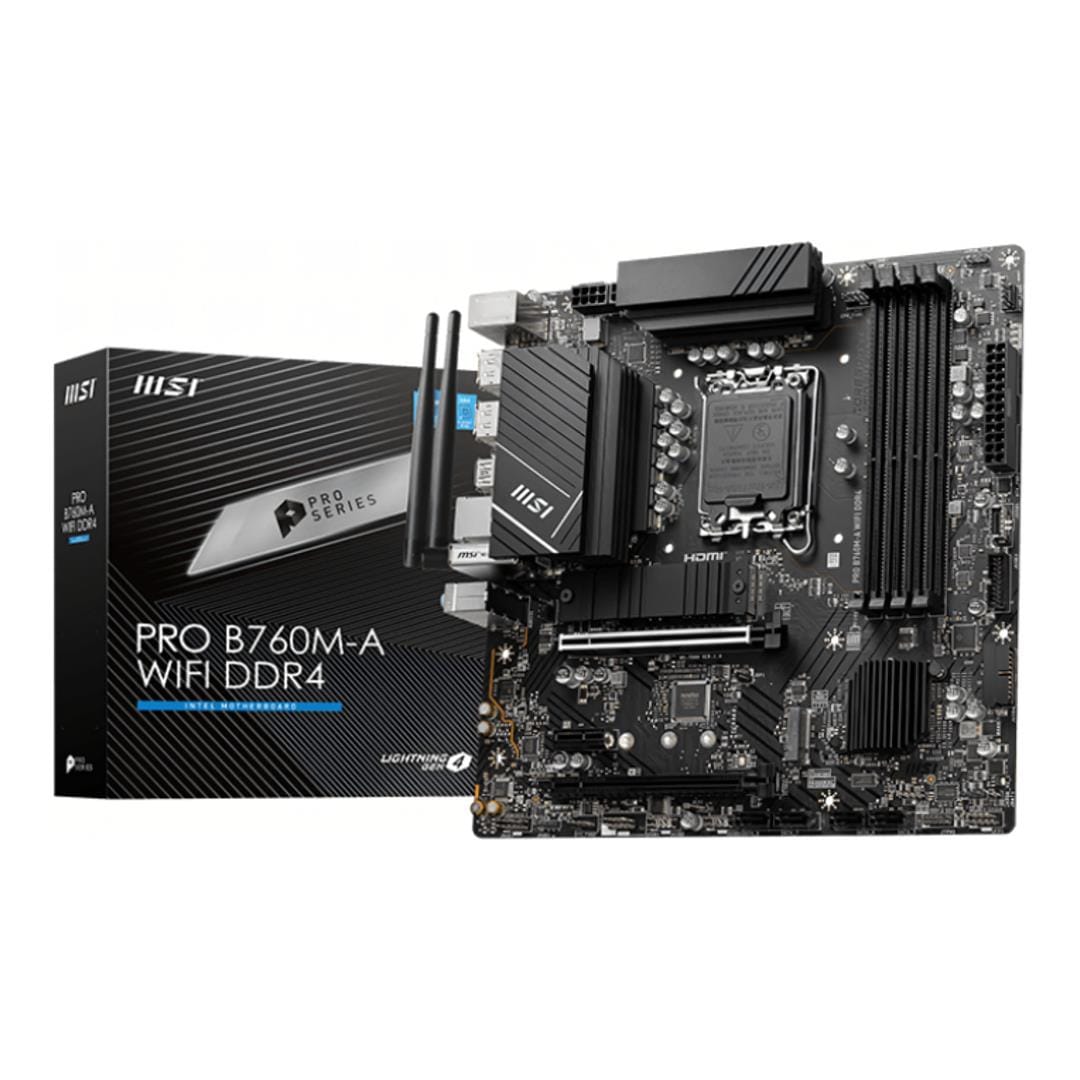

• MSI PRO B760M-A WIFI DDR4 Motherboard
• Wi-Fi Antenna
• Standard accessories and documentation supplied by MSI for the applicable regional package

The MSI PRO B760M-A WIFI DDR4 combines broad Intel LGA 1700 processor support with DDR4 memory, PCIe 4.0 expansion, dual Gen4 M.2 storage and comprehensive wired and wireless networking. Its compact Micro-ATX form factor, 2.5GbE, Wi-Fi 6E and professional-oriented thermal and power design make it a versatile foundation for business, productivity and general-purpose desktop systems.
