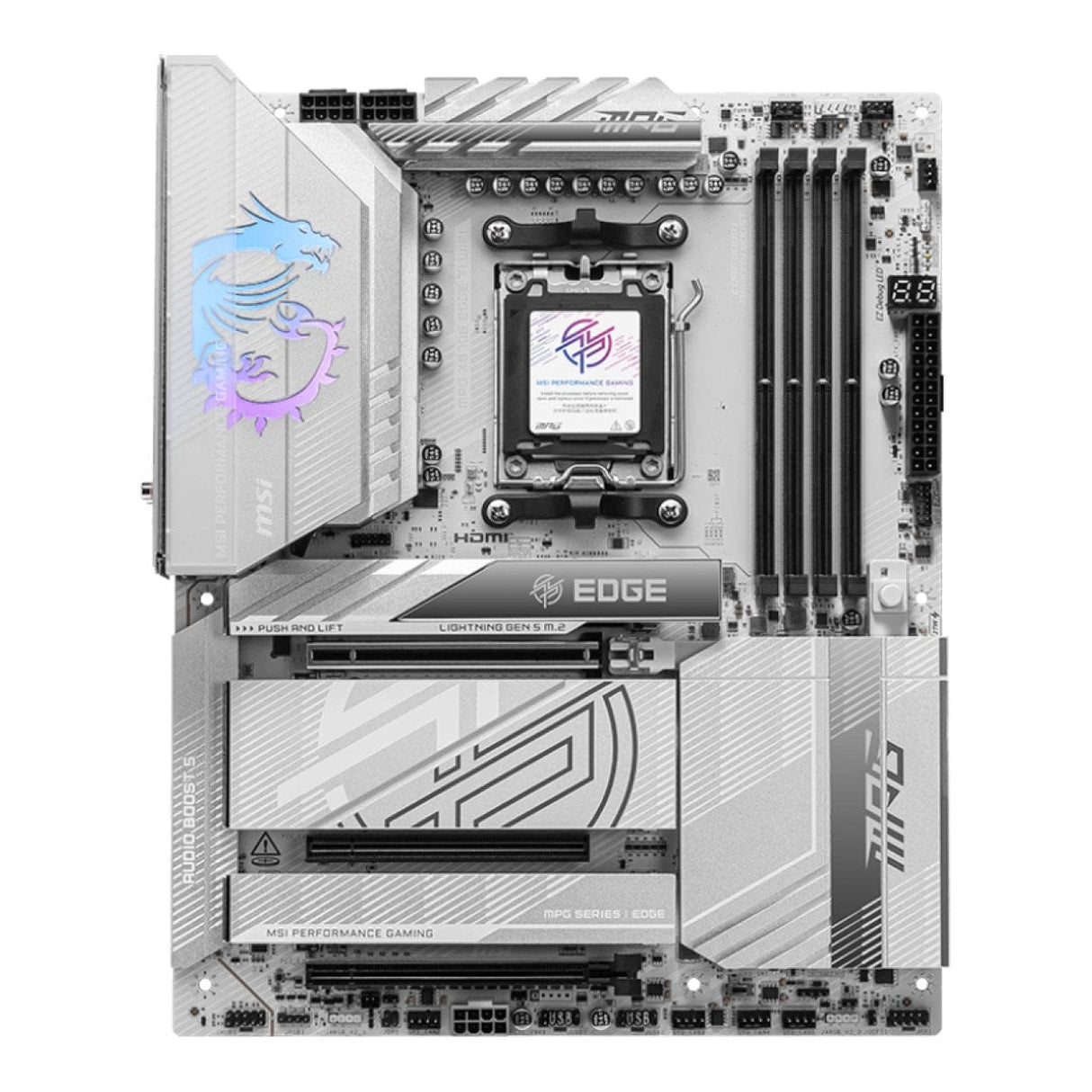

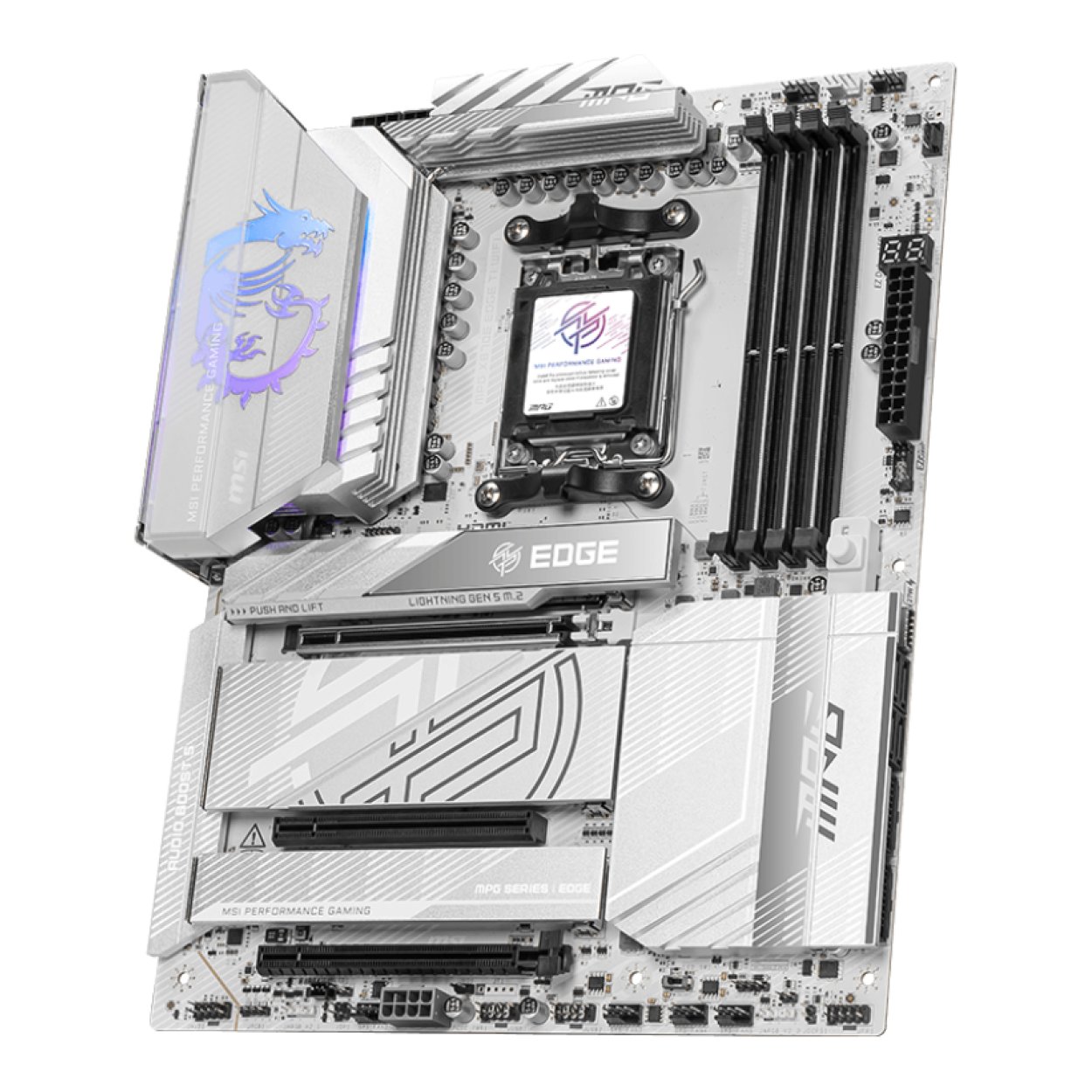

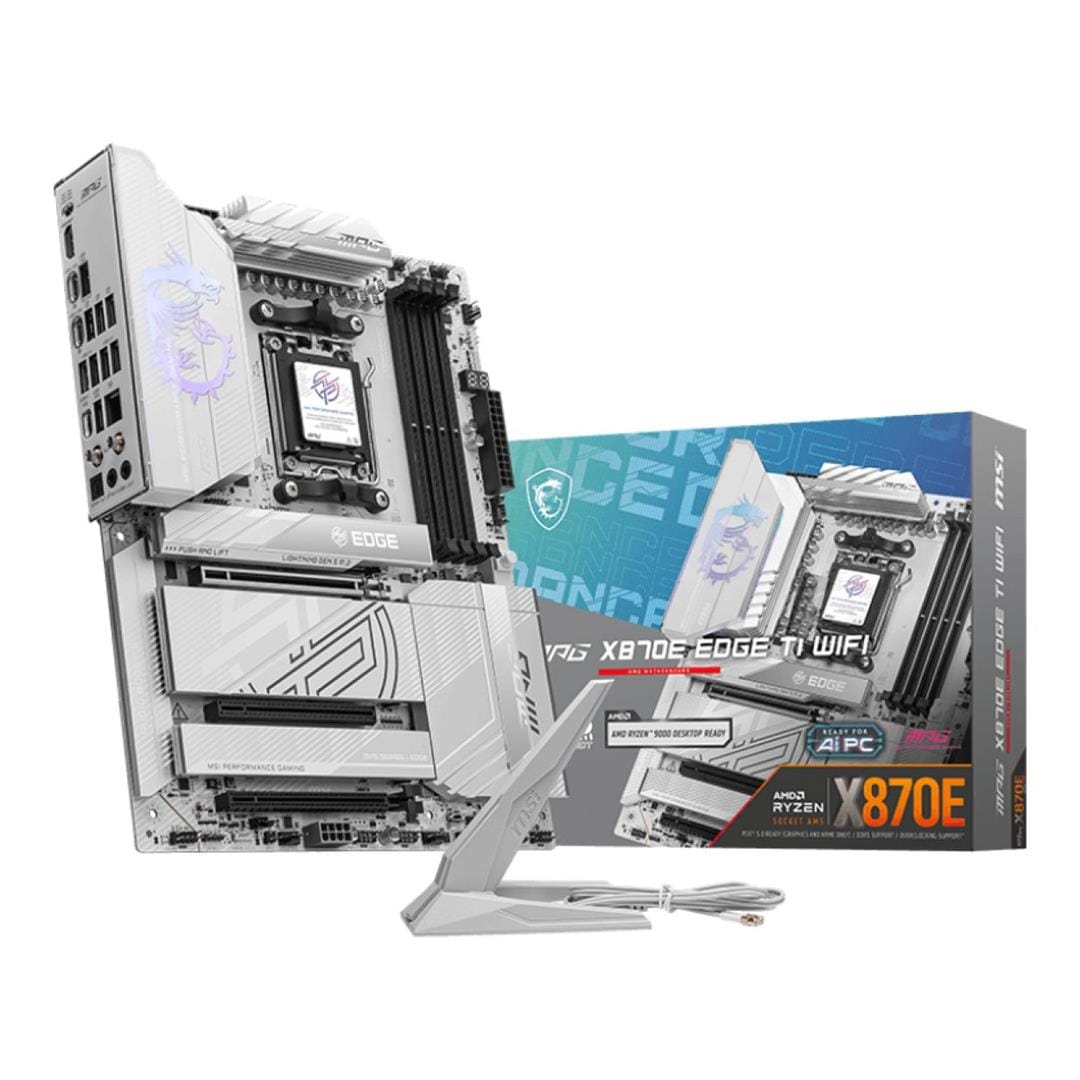

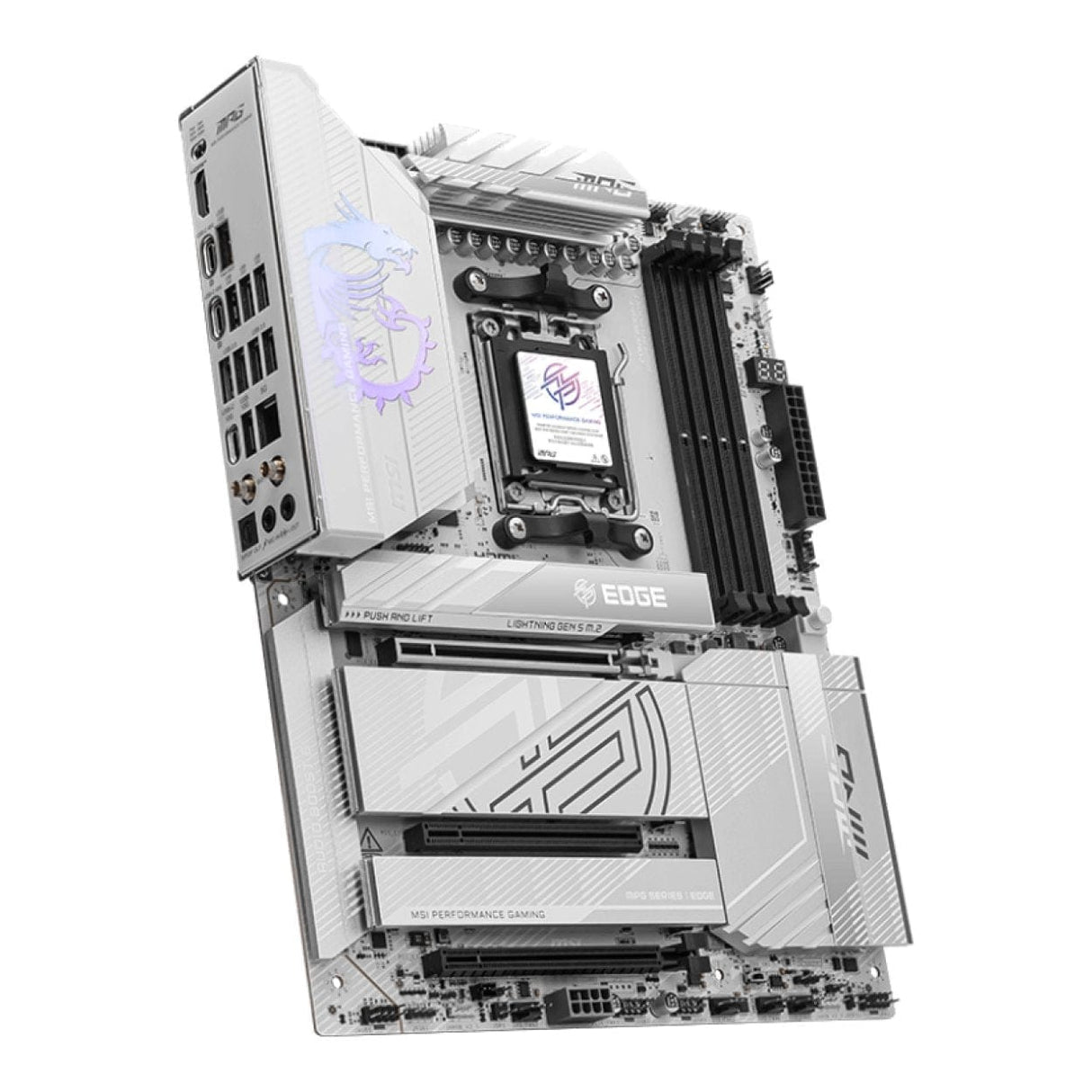

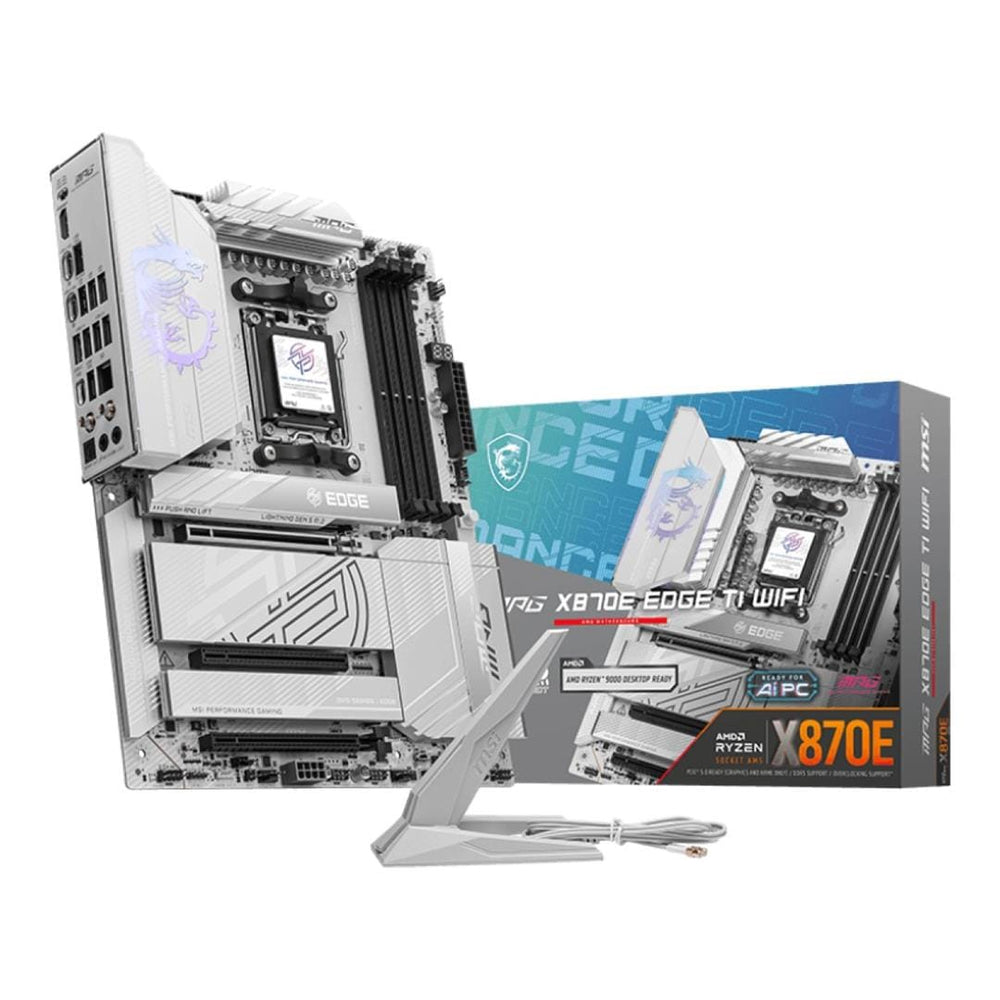

MSI MPG X870E Edge TI Wi-Fi AMD Socket AM5 ATX Motherboard

MSI MPG X870E Edge TI Wi-Fi AMD Socket AM5 ATX Motherboard

MPG X870E EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870E ATX motherboard for AMD Ryzen™ 9000 series processors.

Features:

• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
• Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER

optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling

automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost

is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

Technical Specifications:

Chipset
AMD X870E

CPU Support
AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, up to 256GB
Supported speeds: DDR5 8400–5600 (OC) MT/s / 5600–4800 (JEDEC) MT/s
Ryzen™ 9000 Series max OC:

• 1DPC 1R: 8400+ MT/s
• 1DPC 2R: 6400+ MT/s
• 2DPC 1R: 6400+ MT/s
• 2DPC 2R: 6400+ MT/s

Supports AMD POR & JEDEC speeds, EXPO, dual-channel, non-ECC unbuffered, CUDIMM (clock driver bypass only)

Note: CUDIMM support and boot frequency depend on CPU; future BIOS updates will improve compatibility.

Onboard Graphics
1x HDMI™ (2.1 FRL), max 8K@60Hz*
2x Type-C DisplayPort (DP 1.4), max 4K@60Hz*
Requires processor with integrated graphics

Expansion Slots
3x PCIe x16

• PCI_E1: PCIe 5.0 x16 (CPU)
• PCI_E2: PCIe 3.0 x1 (Chipset)
• PCI_E3: PCIe 4.0 x4 (Chipset)

PCI_E1 operation:

• Ryzen™ 9000/7000: PCIe 5.0 x16
• Ryzen™ 8700/8600/8400: PCIe 4.0 x8
• Ryzen™ 8500/8300: PCIe 4.0 x4

Audio
Realtek® ALC4080
7.1-channel USB audio, S/PDIF

Storage
4x M.2, 4x SATA 6G

M.2:

• M.2_1 (CPU): PCIe 5.0 x4, 22110/2280
• M.2_2 (CPU): PCIe 5.0 x4, 2280/2260
• M.2_3 (Chipset): PCIe 4.0 x4, 2280/2260
• M.2_4 (Chipset): PCIe 4.0 x4, 2280/2260

Bandwidth behavior:

• M.2_2 disabled on Ryzen™ 8500/8300
• M.2_2 and rear USB4 share lanes; both run PCIe 5.0 x2 when populated

RAID
SATA: RAID 0/1/10
M.2 NVMe: RAID 0/1/5/10

• RAID 5: Ryzen™ 9000 only
• RAID 10: Ryzen™ 9000/7000

USB

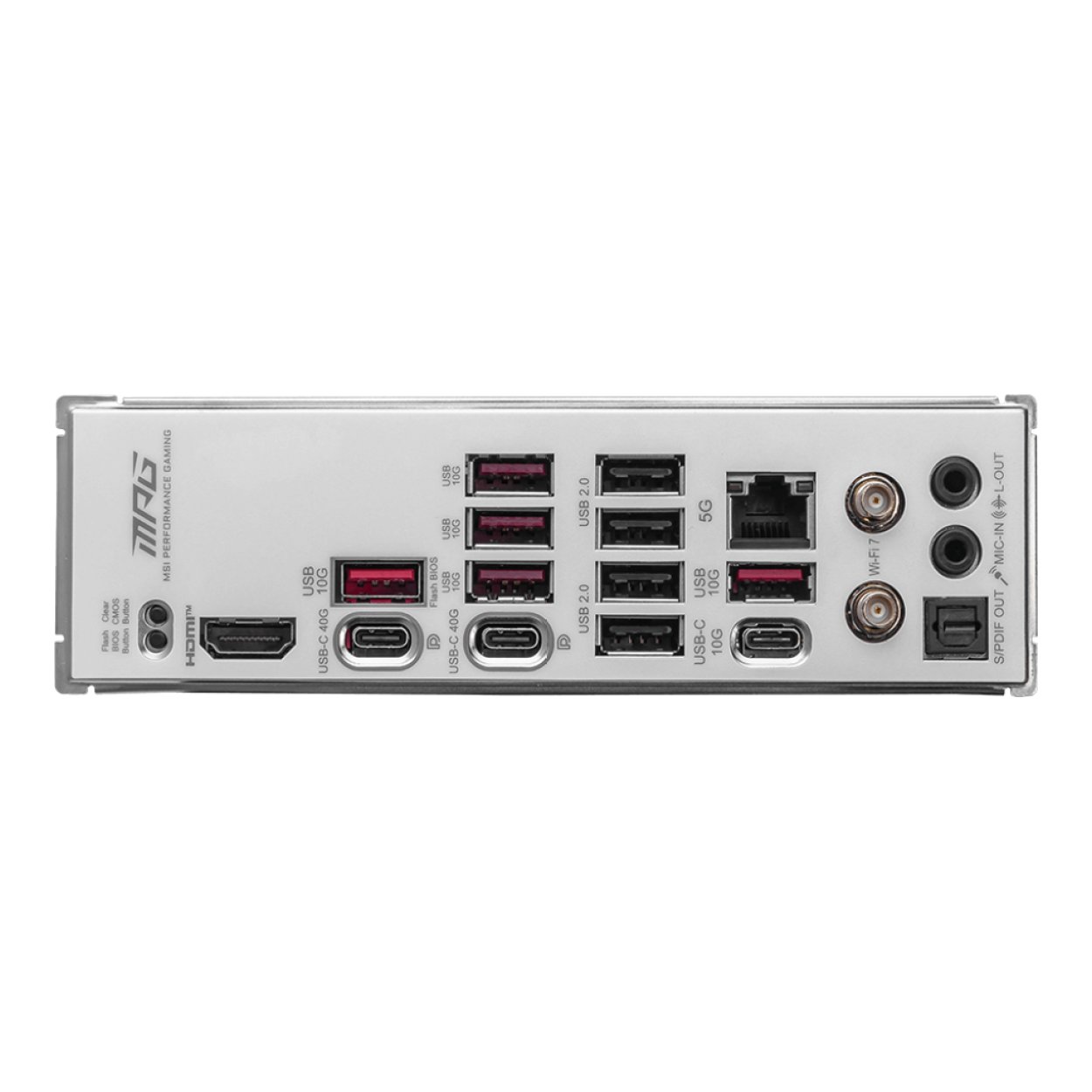

Rear: 4x USB 2.0, 5x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 2x USB 40Gbps Type-C
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C

LAN
1x Realtek® 8126 5G LAN

Internal I/O
ATX_PWR, 2x CPU_PWR, PCIE_PWR (8-pin)
1x CPU fan, 1x pump/sys fan, 6x system fan
Front panel, chassis intrusion, front audio
3x ARGB (V2), 1x RGB
TPM 2.0 header
Internal USB: 4x USB 2.0, 4x USB 5Gbps, 1x USB 20Gbps Type-C

Wireless
Wi-Fi 7 pre-installed (M.2 Key-E)
2.4/5/6GHz (320MHz), up to 5.8Gbps
BT 5.4**, MLO, 4KQAM

LED Features
4x EZ Debug LED
1x EZ Digi-Debug LED
