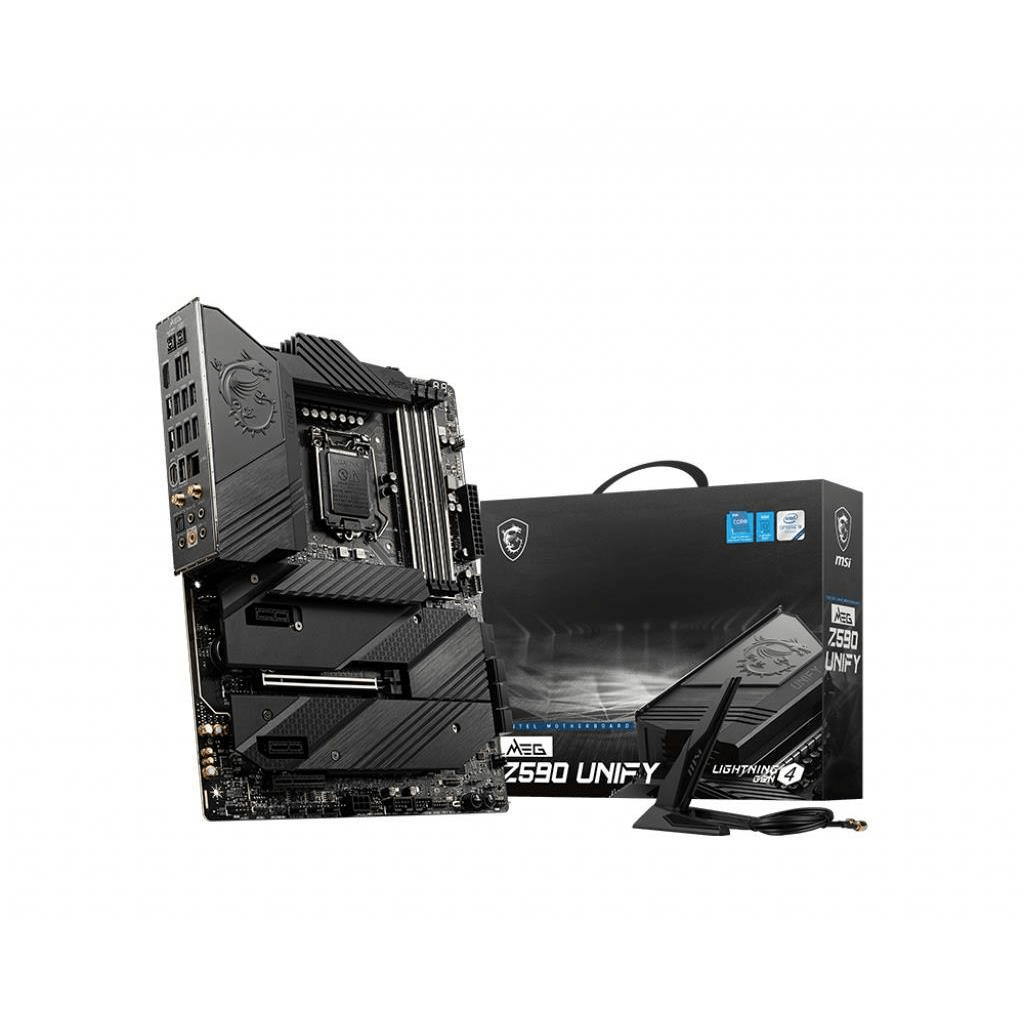

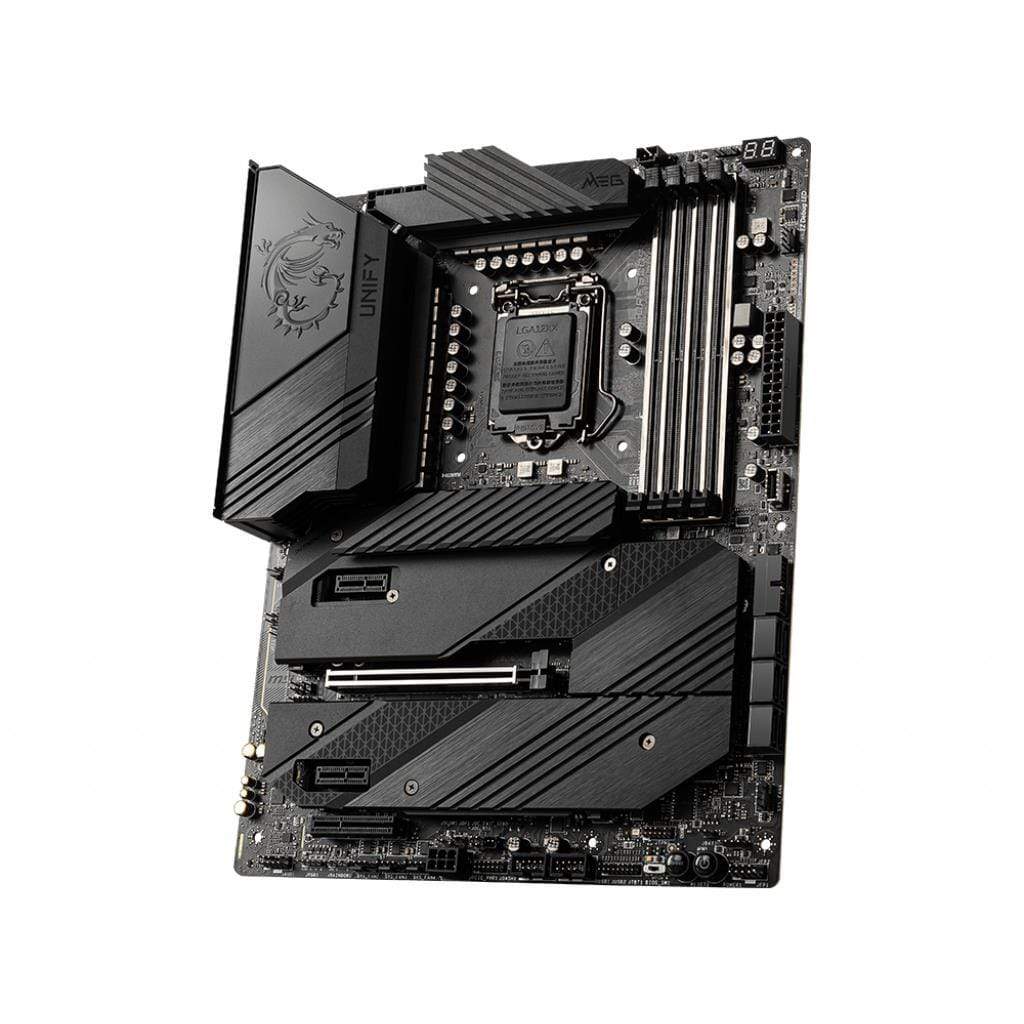

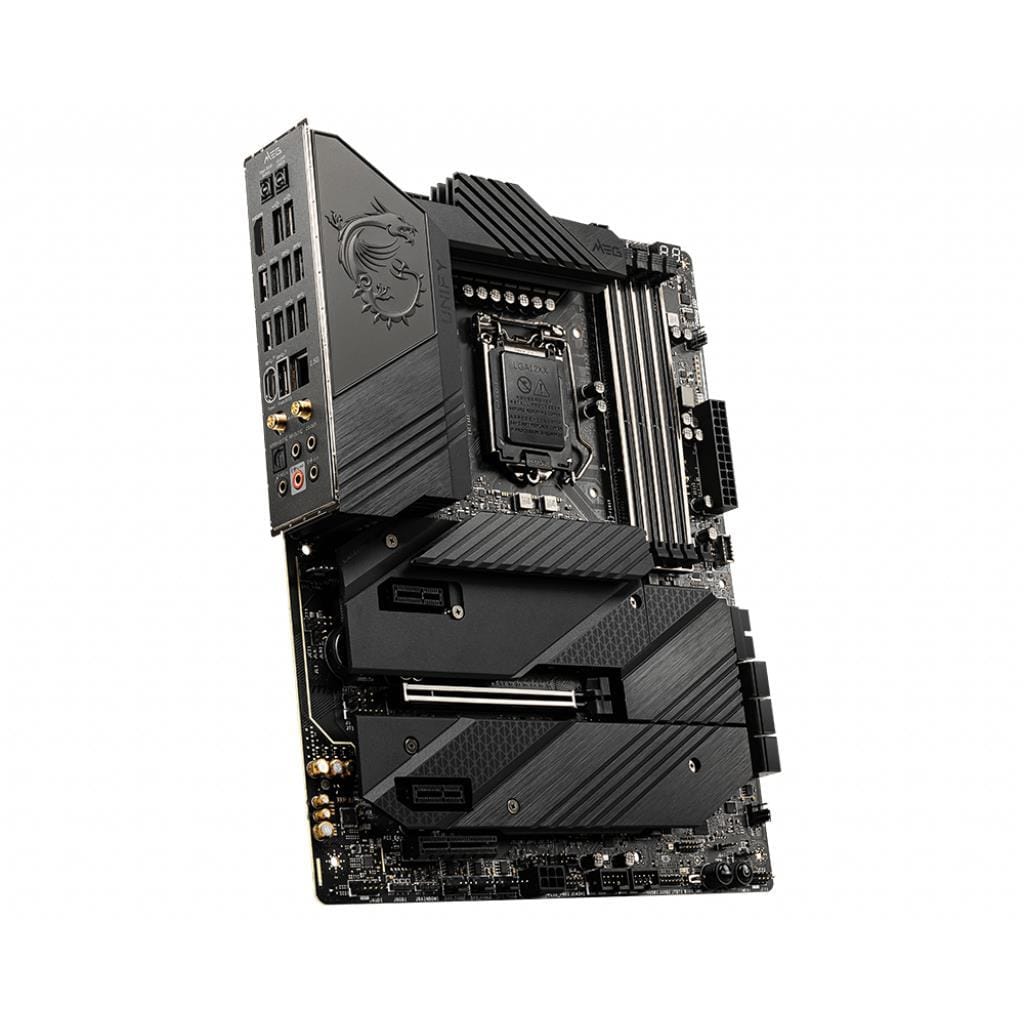

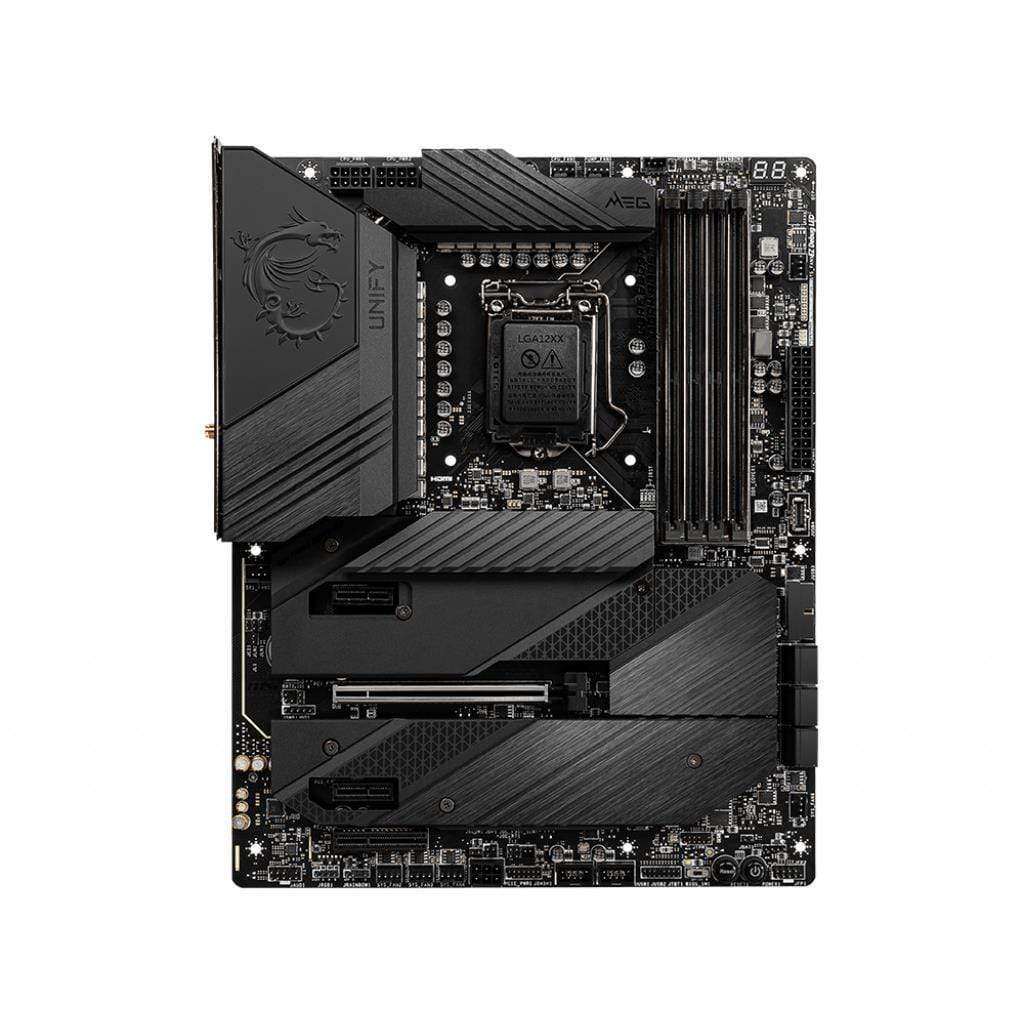

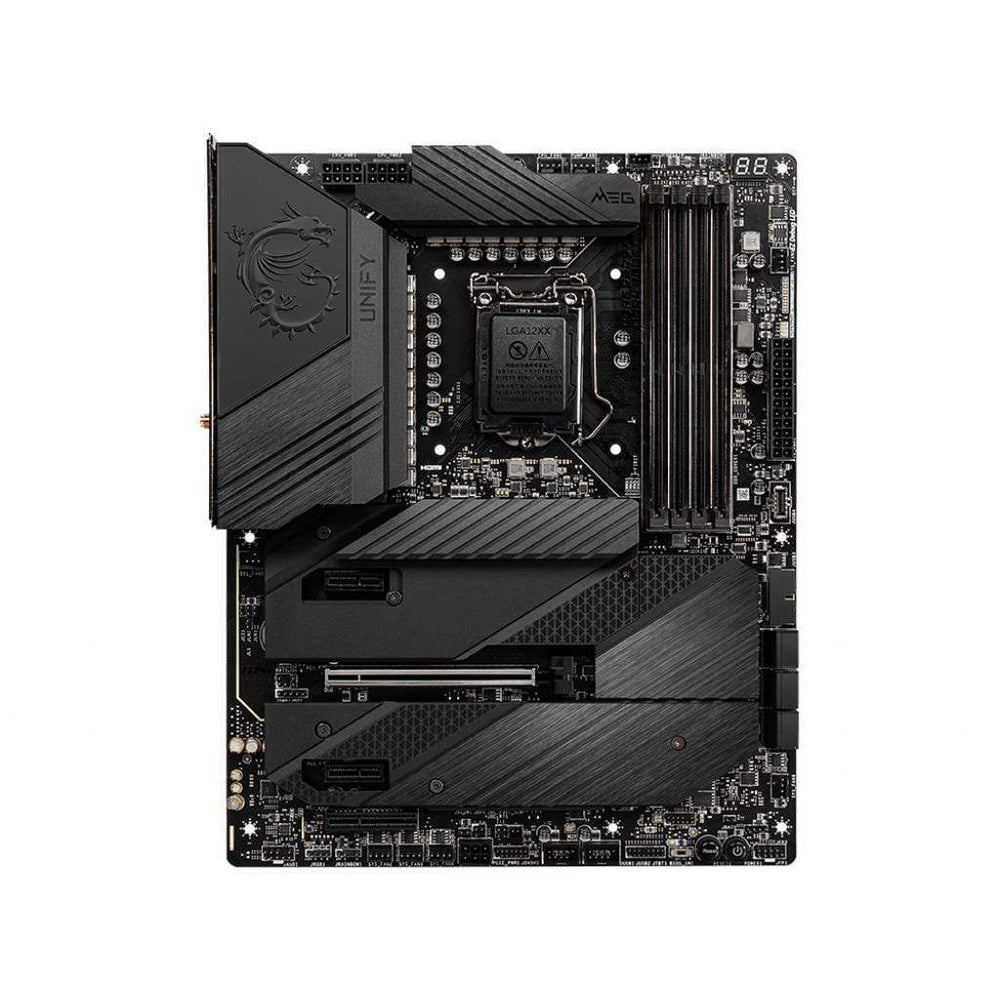

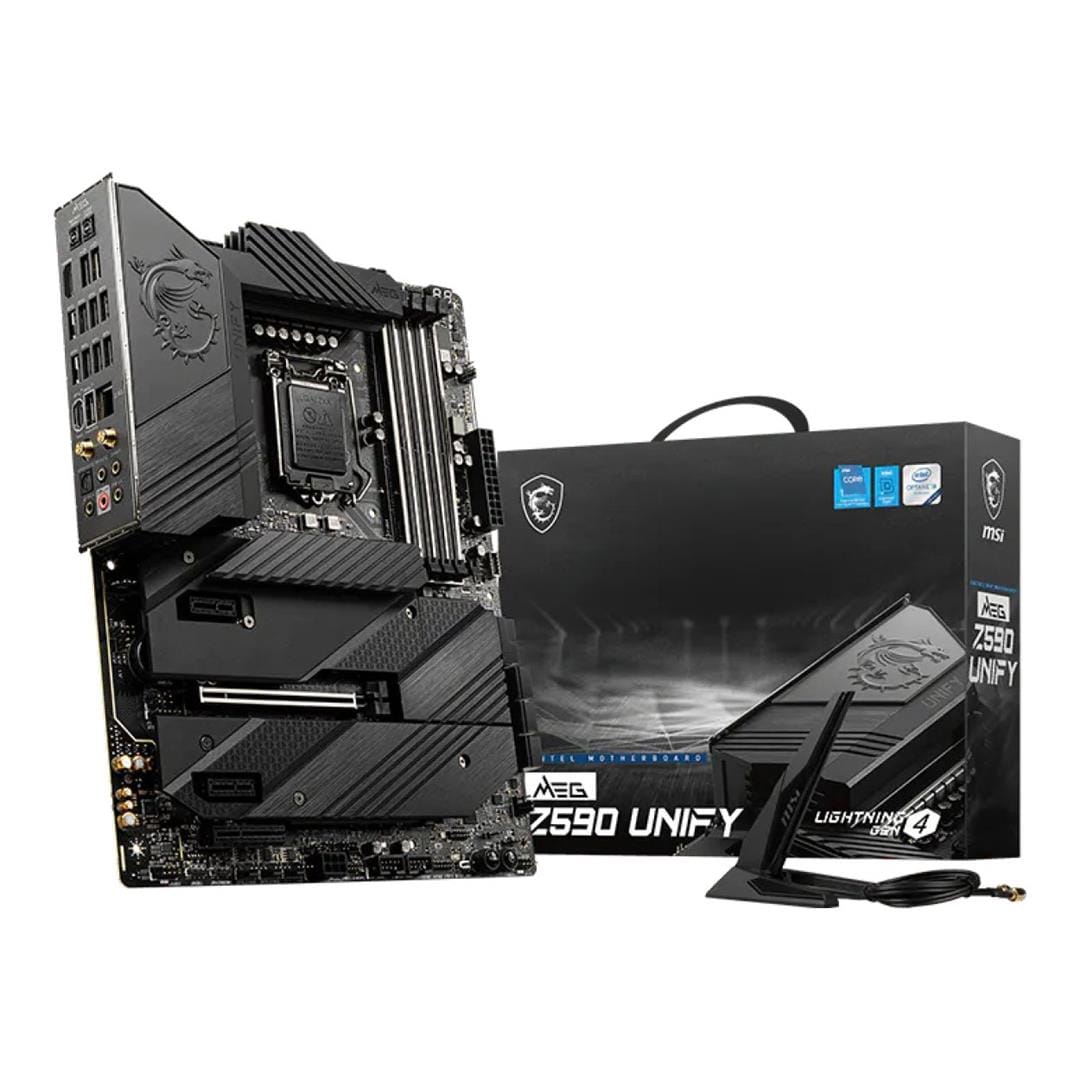

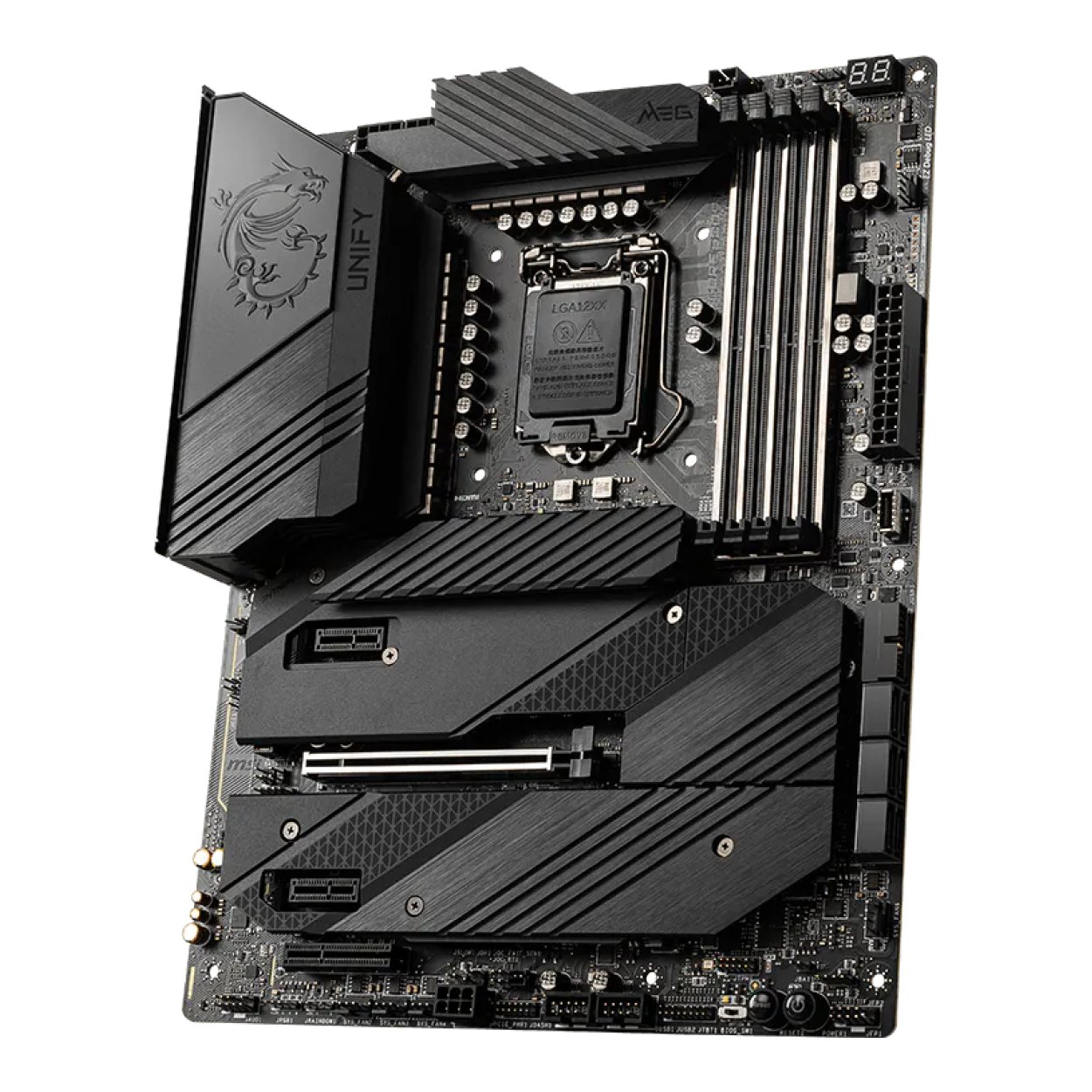

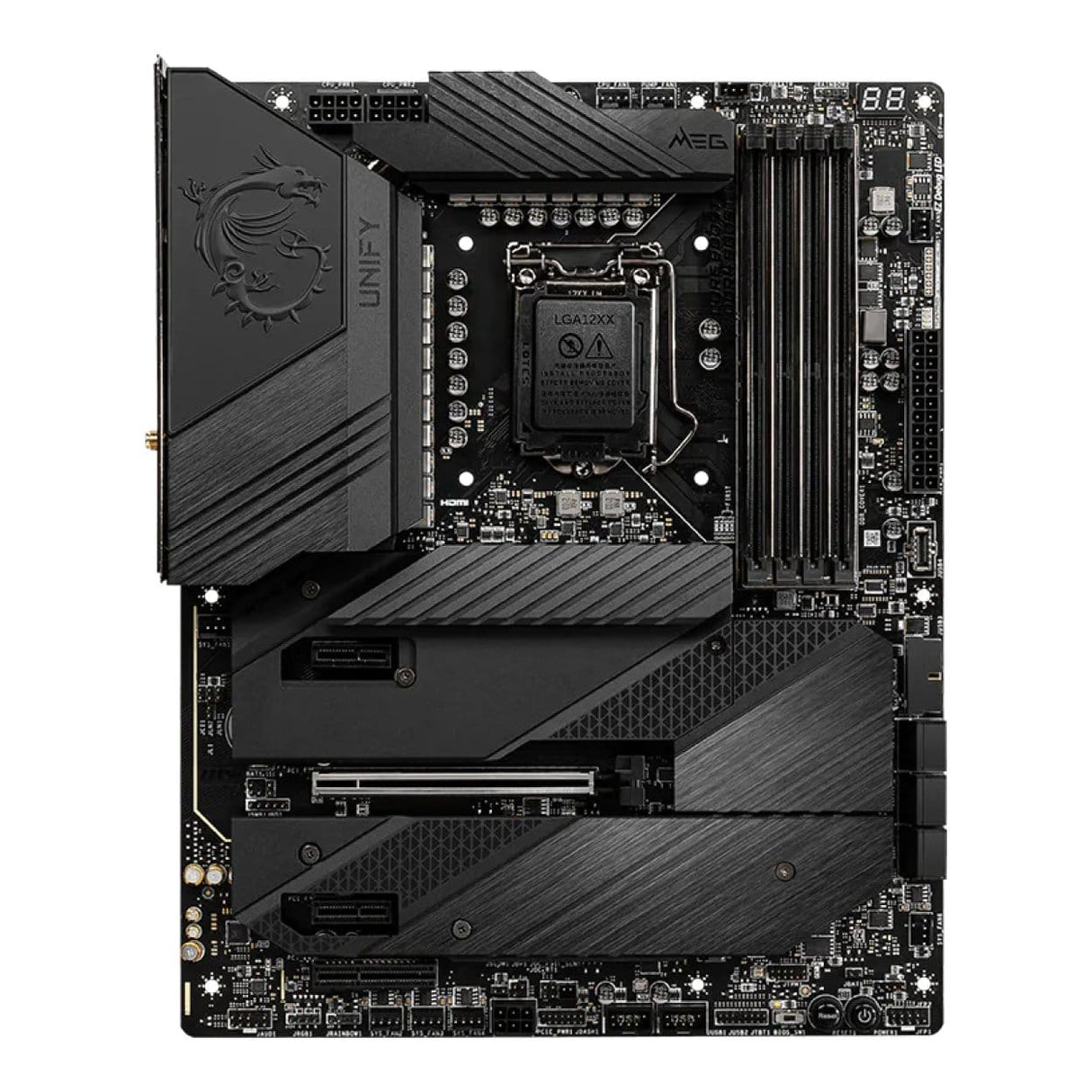

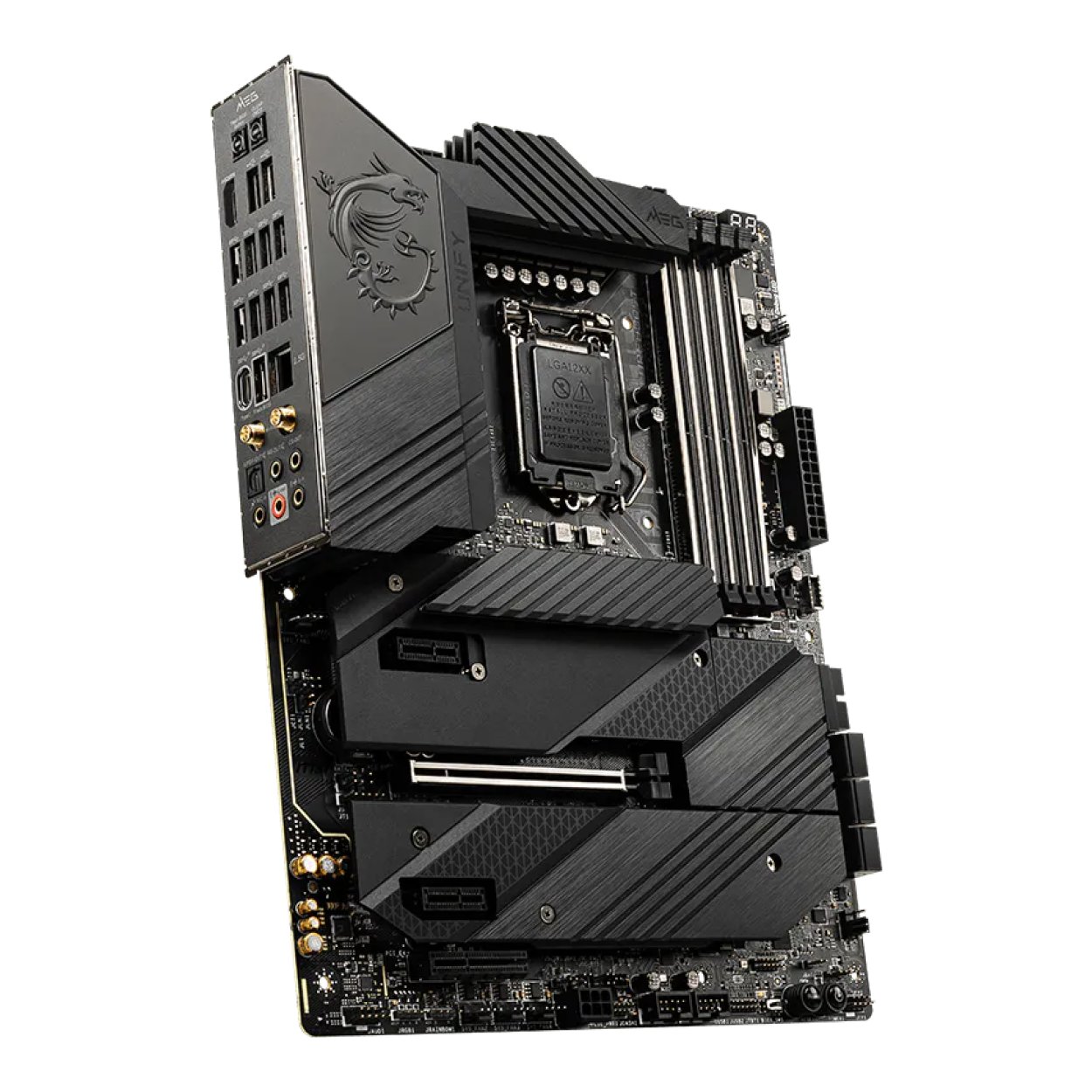

MSI MEG Z590 UNIFY LGA1200 ATX Motherboard
The MSI MEG Z590 UNIFY is a premium ATX gaming motherboard built for 10th and 11th Generation Intel Core processors. Featuring the Intel Z590 chipset, PCIe 4.0 support, four M.2 slots, Thunderbolt 4 readiness, Wi-Fi 6E, 2.5 Gigabit LAN and a robust 16+2+1 Duet Rail Power System, it delivers exceptional performance for gaming, content creation and enthusiast PC builds.
Key Features
- Supports 10th and 11th Generation Intel Core, Pentium Gold and Celeron processors.
- Intel Z590 Express chipset with LGA1200 socket.
- 16+2+1 Duet Rail Power System with 90A Smart Power Stages.
- Supports PCIe 4.0 with 11th Generation Intel processors.
- Four Lightning Gen4 M.2 slots with M.2 Shield Frozr.
- Wi-Fi 6E and Bluetooth 5.2 connectivity.
- 2.5 Gigabit LAN powered by Intel Ethernet.
- Audio Boost 5 HD with ESS DAC for premium sound quality.
Designed for Extreme Performance
The MEG Z590 UNIFY is engineered for enthusiasts with an advanced power delivery design, premium thermal solution and PCIe Gen4 support, providing the stability and performance required for high-end gaming, overclocking and demanding workloads.
Advanced Cooling Solution
An extended heatsink design, heat pipe, aluminium backplate and multiple M.2 Shield Frozr heatsinks help maintain optimal temperatures for sustained peak performance.
High-Speed Connectivity
Integrated Wi-Fi 6E, Intel 2.5Gb Ethernet, USB 3.2 Gen 2x2 and Thunderbolt 4 header support provide fast networking and next-generation peripheral connectivity.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | MEG Z590 UNIFY |
| Product Type | ATX Motherboard |
| CPU Socket | LGA1200 |
| Supported Processors | 11th and 10th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z590 Express |
| Form Factor | ATX |
| Memory Support | 4 × DDR4 DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Speed | Up to DDR4-5600+ (OC) |
| PCI Express Slots | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe Standard | PCIe 4.0 (11th Gen CPU), PCIe 3.0 (10th Gen CPU) |
| M.2 Slots | 4 × M.2 (Lightning Gen4) |
| SATA Ports | 6 × SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5 and RAID 10 |
| Wireless Connectivity | Intel Wi-Fi 6E (802.11ax) and Bluetooth 5.2 |
| LAN | Intel 2.5 Gigabit Ethernet |
| Audio | Audio Boost 5 HD with Realtek ALC4080 Codec and ESS DAC, 7.1-Channel High Definition Audio |

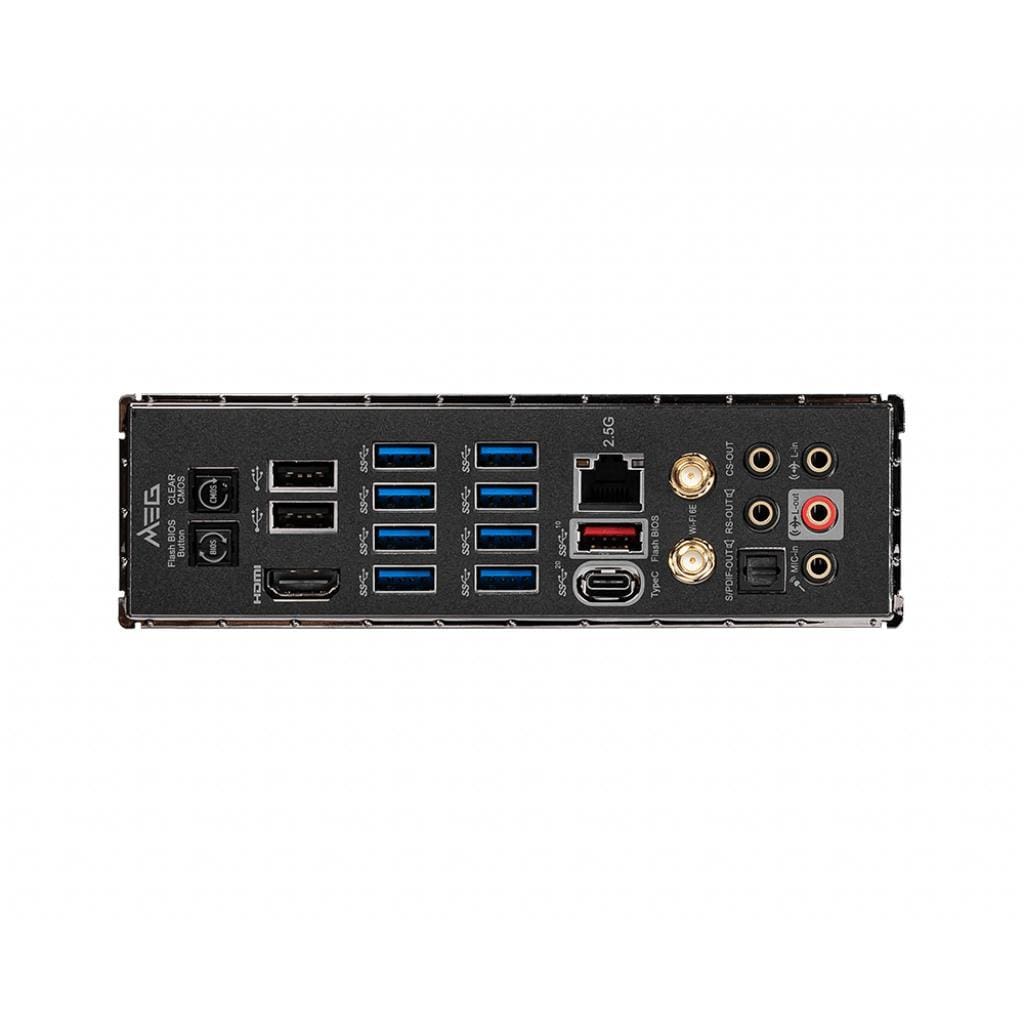

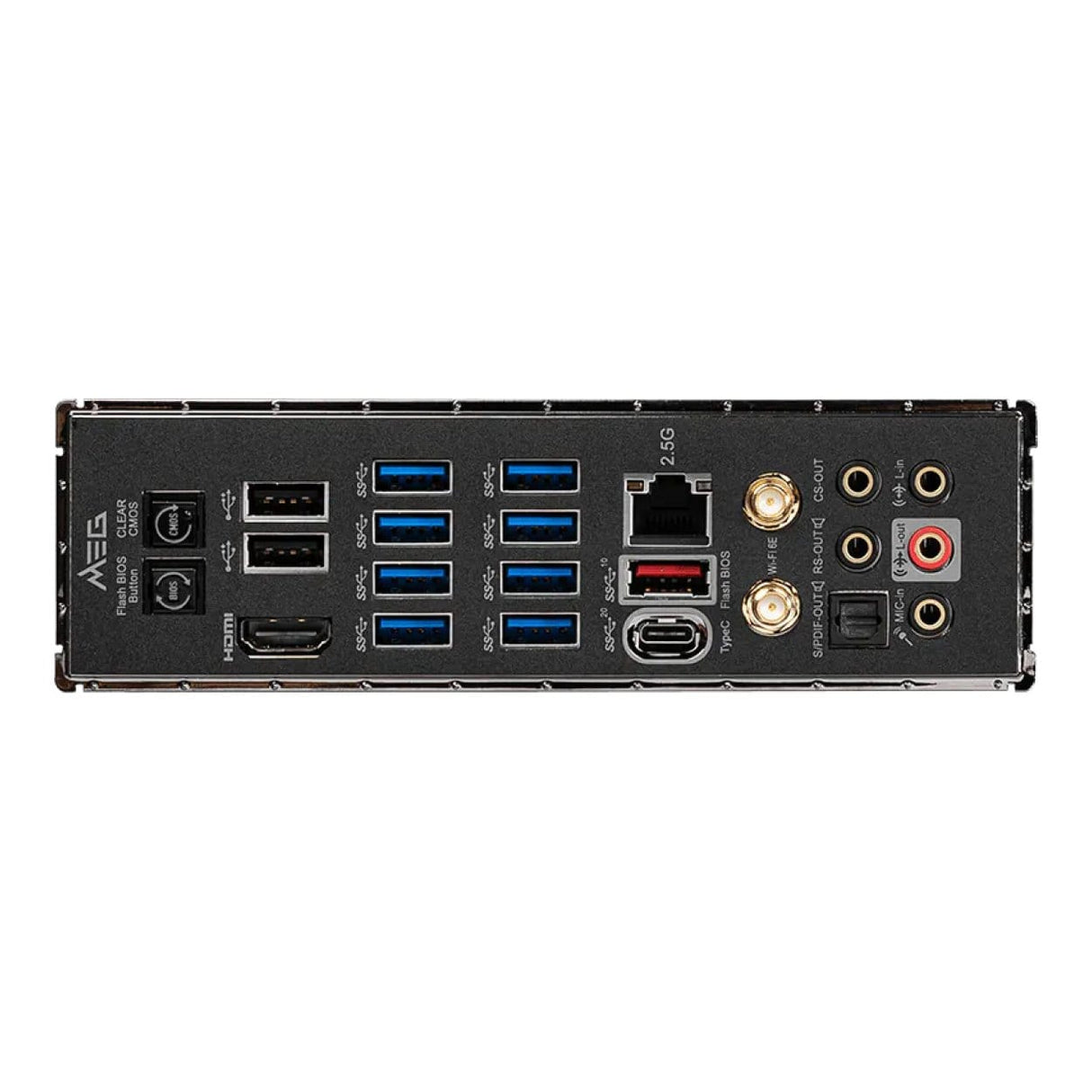

| USB Ports | USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0 |
| Video Outputs | 1 × HDMI, 1 × DisplayPort |
| Internal Headers | Thunderbolt 4 Header, USB Type-C Front Panel Header, RGB and ARGB Headers |
| Power Design | 16+2+1 Duet Rail Power System with 90A Smart Power Stages |
| Cooling Features | Extended Heatsinks, Direct Touch Heat Pipe, M.2 Shield Frozr, Aluminium Backplate and Frozr AI Cooling |
| BIOS | Click BIOS 5 with Flash BIOS Button |
| Operating System Support | Windows 10 64-bit |
| Package Contents | Motherboard, Wi-Fi Antennas, SATA Cables, M.2 Accessories, Driver/Utility Media, User Guide and Installation Accessories |
| Applications | Gaming PCs, Content Creation, Workstations, Enthusiast Builds and Overclocking |
The MSI MEG Z590 UNIFY combines premium power delivery, PCIe 4.0 performance, advanced networking and extensive storage capabilities, making it an excellent foundation for high-performance gaming and professional desktop systems.
