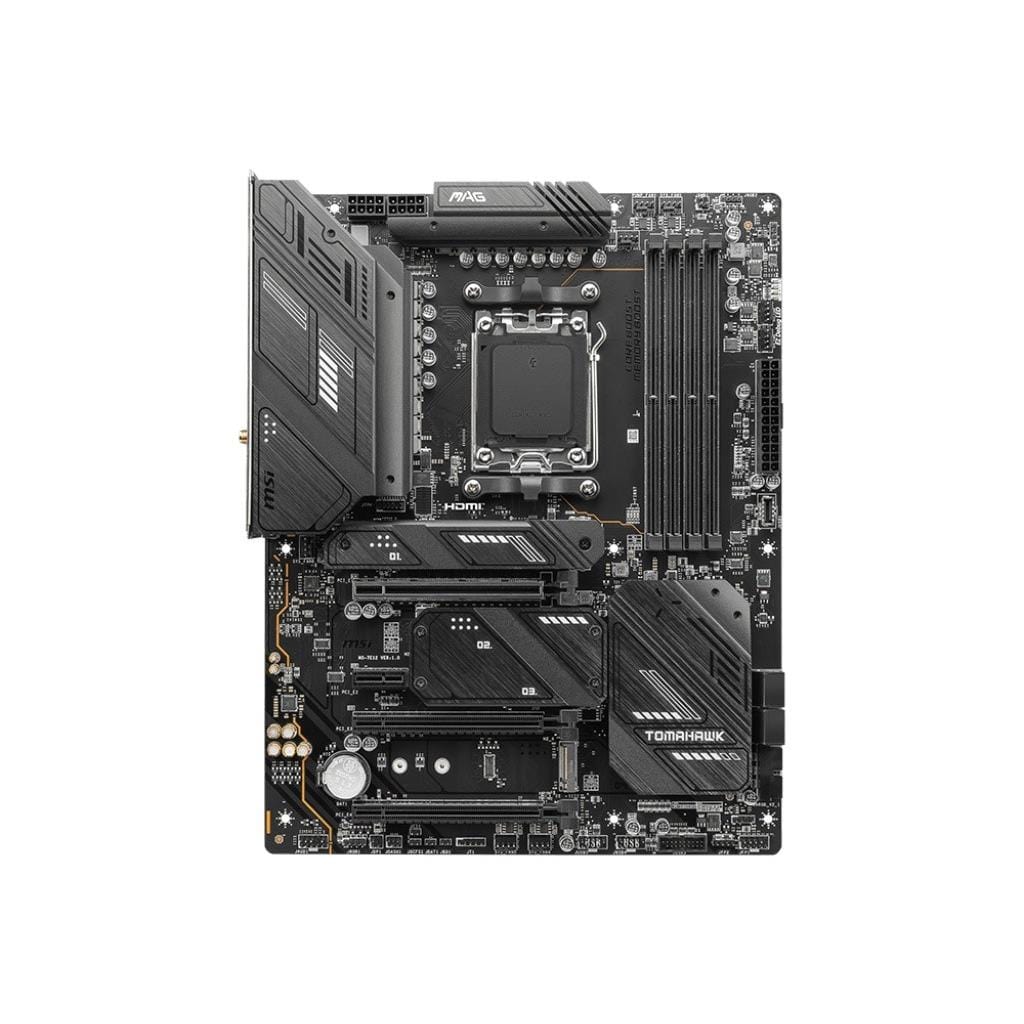

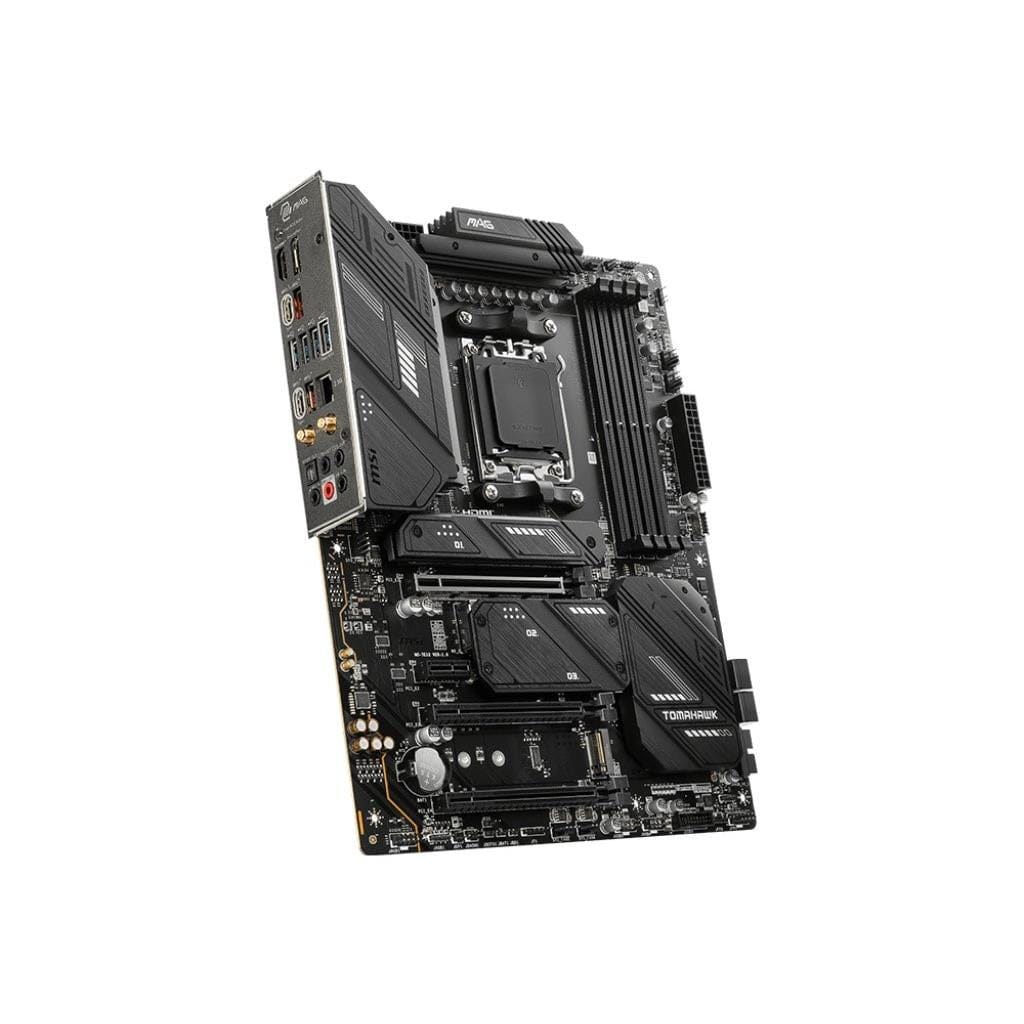

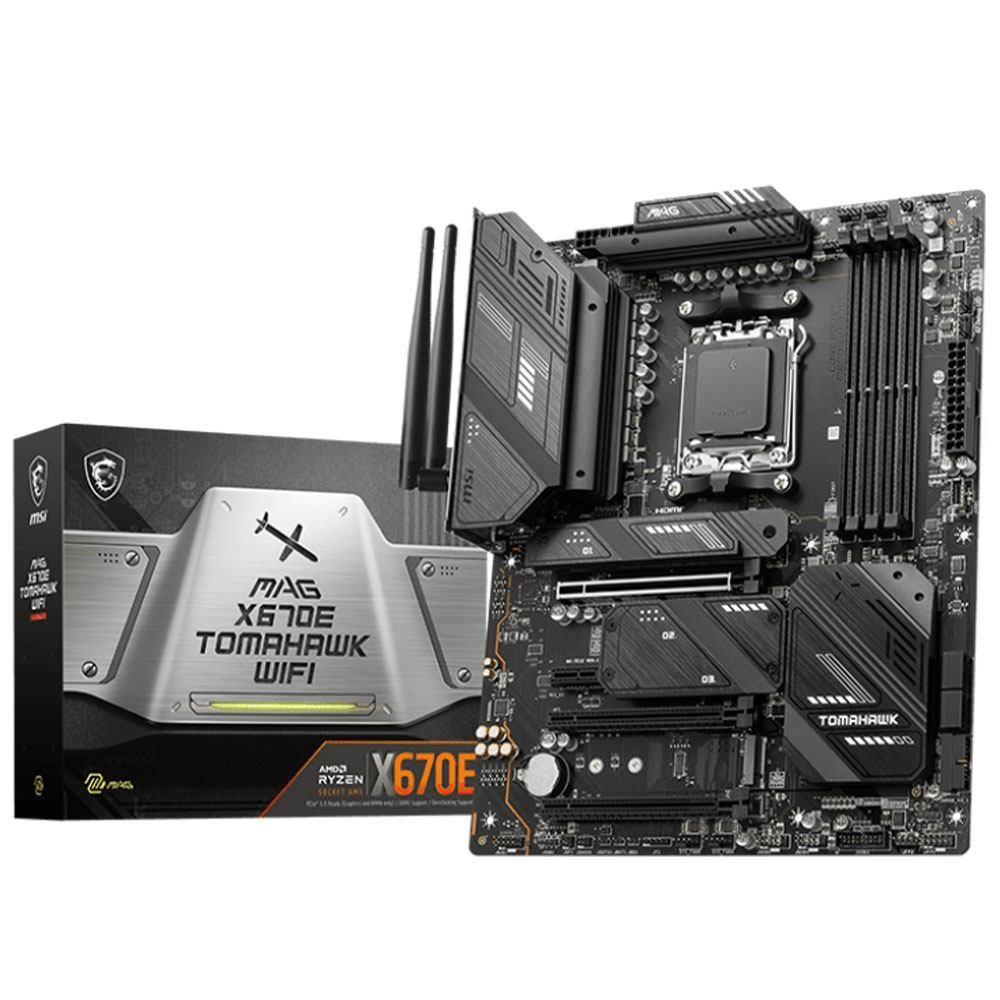

MSI MAG X670E Tomahawk Wi-Fi AMD Socket AM5 ATX Motherboard MAGX670ETOMAHAWKWIFI

MSI MAG X670E Tomahawk Wi-Fi AMD Socket AM5 ATX Motherboard MAGX670ETOMAHAWKWIFI

MAG UNITE AS ONE

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

EXCLUSIVE FEATURE

- Core Boost Technology
- 8 Layer PCB with 2oz Thickened Copper
- Digital PWM
- Steel Armor

PREMIUM THERMAL SOLUTION

- Extented Heatsink
- M.2 Shield Frozr
- Pump Fan Support
- Heatsink with 7W/mK Thermal Pad

HIGH-SPEED TRANSMISSION

- 2.5G Network Solution
- Wi-Fi 6E
- Memory Boost
- Lightning Gen 5

HARDWARE

COOLING

COOLING OVERVIEW

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high- end processors to run in full speed.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

FULLY FAN CONTROL

CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.

WATER COOLING

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

SYSTEM COOLING

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

POWER SOLUTION

STRUCTURE

14+2+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings.

DIGITALL POWER DESIGN
A fully digital power design allows for faster and undistorted current delivery to the CPU at pin-point precision.

DOUBLE POWER CONNECTORS
Two 8-pin connectors deliver adequate power even for an overclocked multi-core CPU.

CORE BOOST
Premium layout not only support the multi-core CPU, also create the perfect conditions for your CPU overclocking.

PCB DESIGN

OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

- 8 PCB layers
- IT-170GR PCB material
- 2oz Thickened Copper

EZ OC TUNING

PERFORMANCE SWITCH
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI’s own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.

PBO THERMAL POINT
MSI PBO Thermal profiles are setting maximum CPU temperature at 85°C, 75°C and 65°C levels. With the thermal profiles, the CPU operates at lower voltage and temperature but remaining the same performance.

CONFIG TDP
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don’t need to modify settings manually for each TDP.

MORE FOR PERFORMANCE

1-SECOND OVERCLOCKING!
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.

LOAD-LINE CALIBRATION
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.

OVERVOLTAGE PROTECTION
Prevents potential short-circuit damage to the CPU and other critical components.

DIY FRIENDLY

EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

MSI DRIVER UTILITY INSTALLER
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.

FLASH BIOS BUTTON
Run into trouble when updating your BIOS or somehow corrupted it? Don’t worry, MSI motherboards offer multiple options to successfully boot your system again.

Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.

MORE FOR DIY FRIENDLY

WINDOWS 11 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.

PRE-INSTALLED I/O SHIELD
The design protect your IO ports and makes your installation process easier and safer.

XL CLIP
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.

EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.

KEEP OUT ZONE
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.

PERFORMANCE

EXPANSION

LIGHTNING GEN 5 PCI-E

LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

STORAGE

FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

USB

LIGHTNING USB 20G

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MAG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

FRONT USB TYPE-C

USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

MEMORY

DDR5

LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X670E TOMAHAWK WIFI is ready to deliver the world class memory performance.

The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
