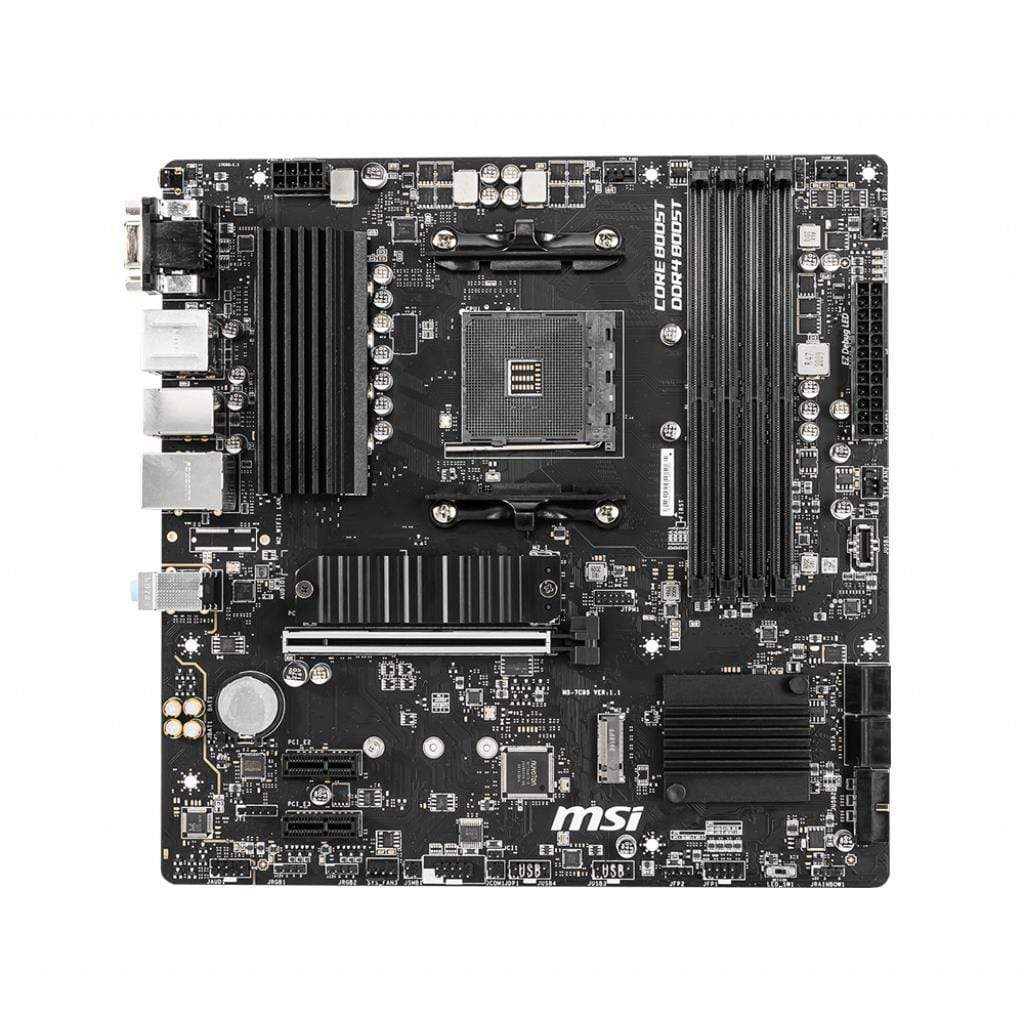

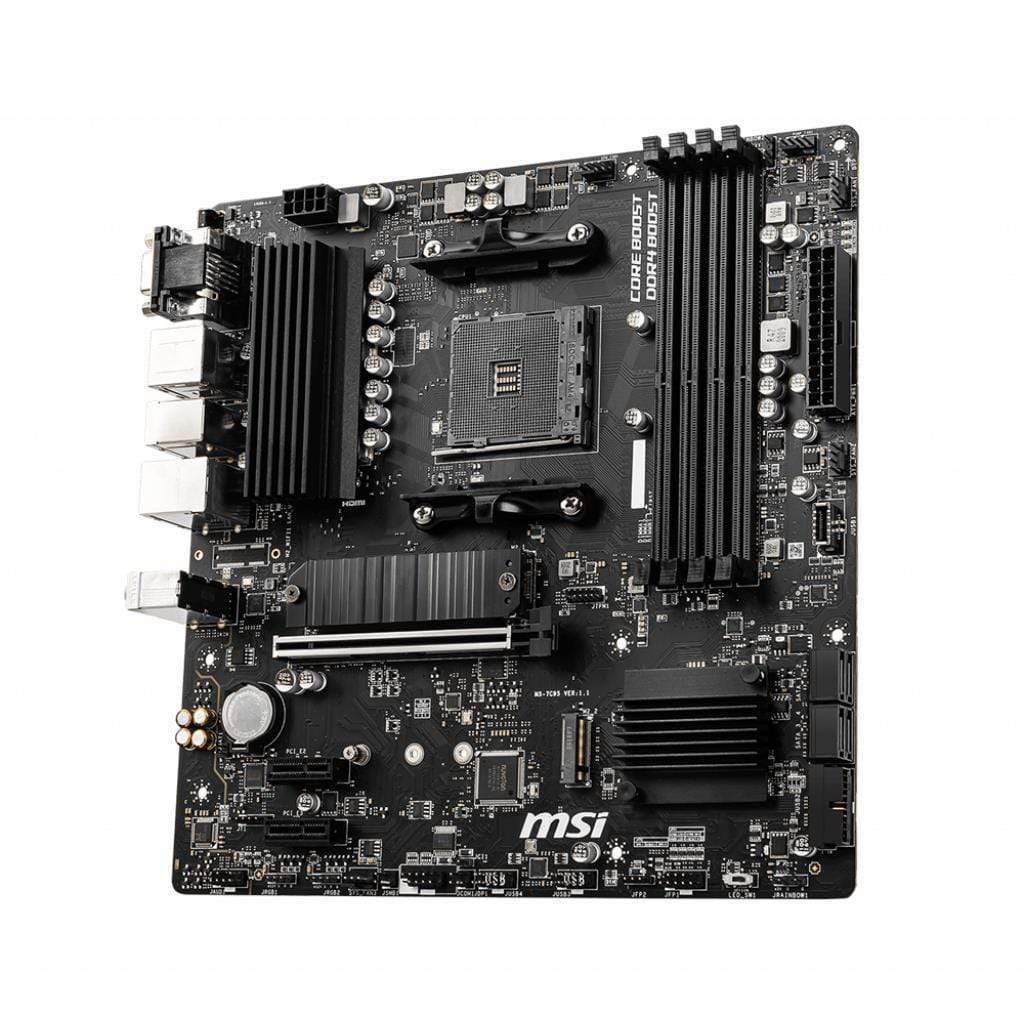

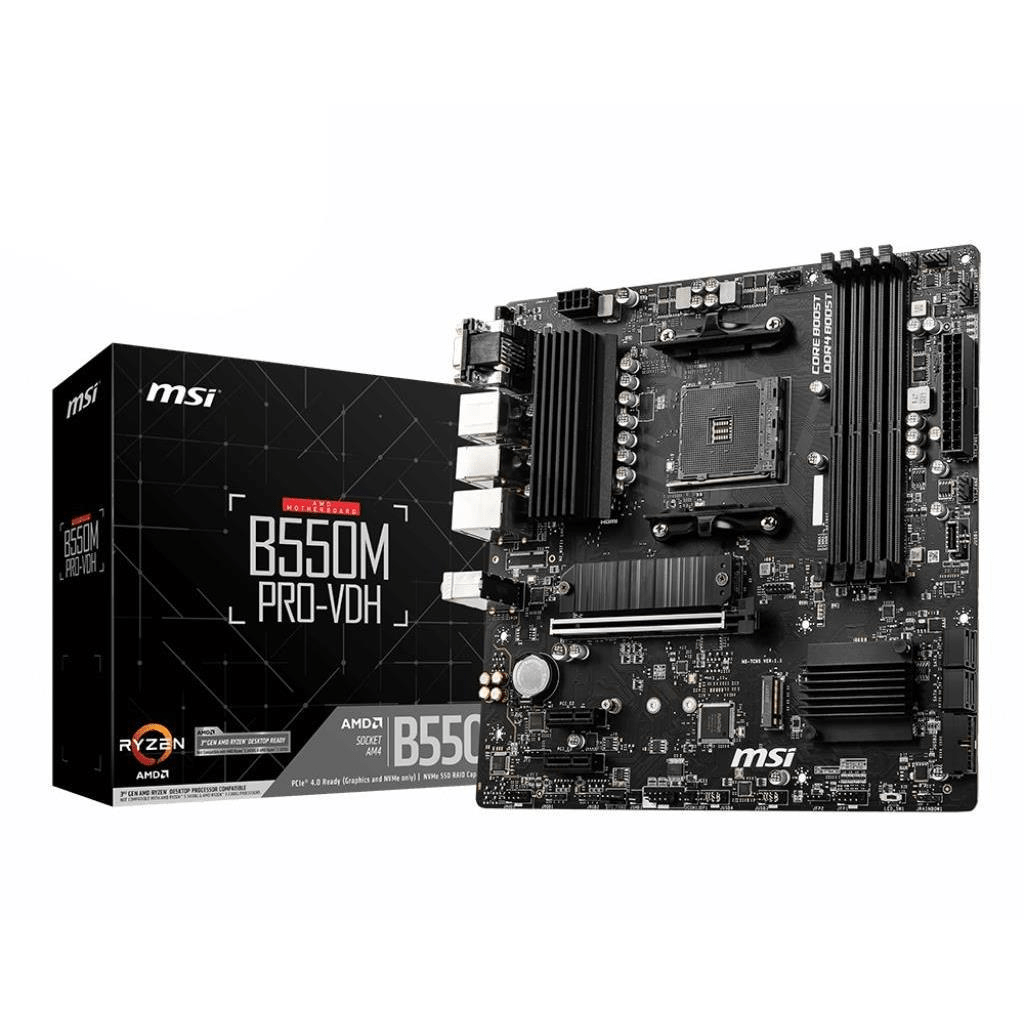

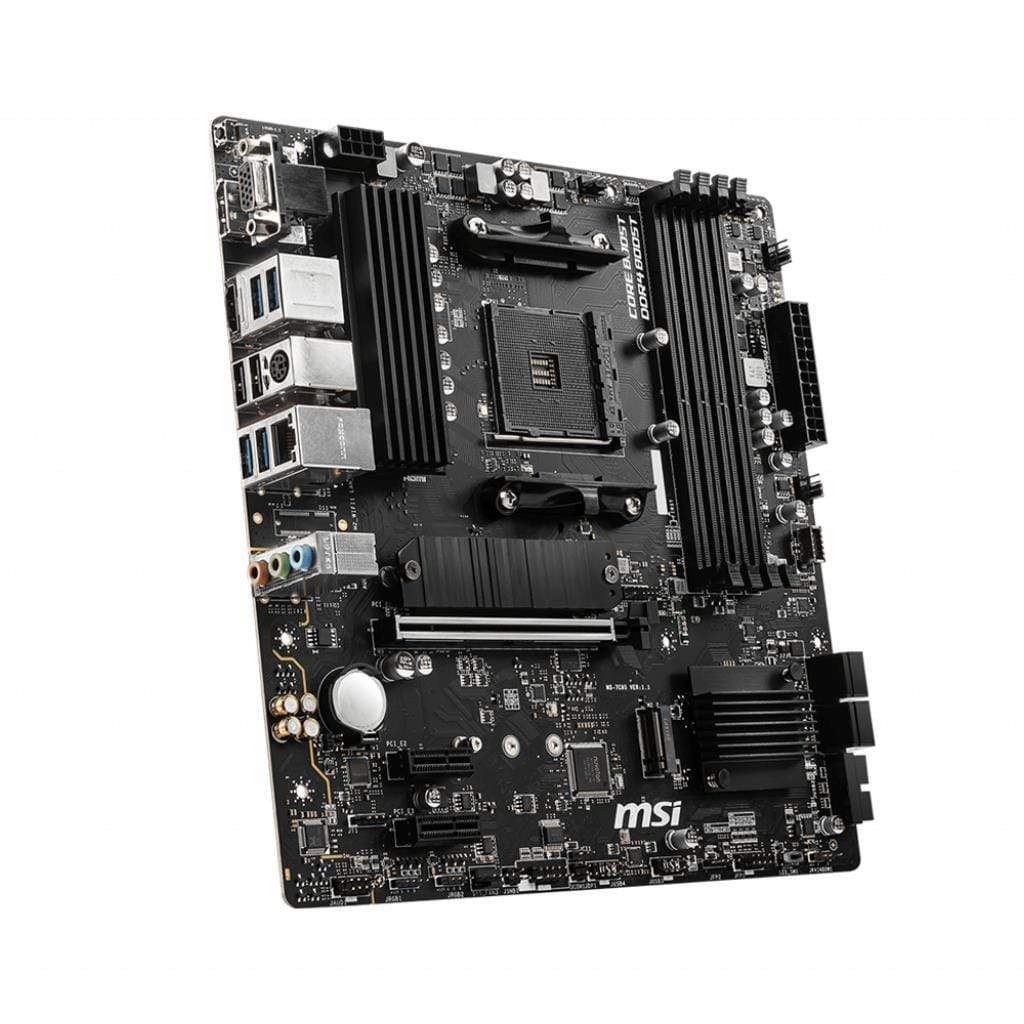

MSI B550M PRO-VDH AMD Socket AM4 micro-ATX Motherboard
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
MSI B550M PRO-VDH AMD Socket AM4 micro-ATX Motherboard
The MSI B550M PRO-VDH provides a practical foundation for a compact desktop built for work, everyday computing or gaming with compatible components. Combining the AMD B550 chipset with an AM4 socket, it offers four DDR4 memory slots, flexible storage options and PCIe 4.0 support with a suitable processor. Its micro-ATX format gives you room to expand without requiring a full-size ATX build.
A Flexible Platform for Your AMD Build
Choose from supported AMD Ryzen 5000 Series, 4000 G-Series and 3000 Series desktop processors to match your computing needs. Four dual-channel DDR4 slots support up to 128 GB of memory, giving you flexibility for multitasking and memory-intensive applications. A-XMP supports memory overclocking up to 4400 MHz with a compatible configuration.
Storage Options for Today and Future Upgrades
Two M.2 slots and four SATA ports let you combine SSD storage with additional drives for applications, documents and media. The primary M.2 slot supports PCIe 4.0 x4 with a compatible processor, while the second supports PCIe 3.0 x4. MSI M.2 Shield Frozr helps manage SSD heat during sustained use.
Cooling and Power Design
MSI Core Boost, digital power control and a PCB with thickened 2 oz copper support the board’s power and thermal design. Dedicated CPU, water-pump and system-fan headers provide connection options for your chosen cooling setup.
Connections for Work and Everyday Use
Gigabit Ethernet provides wired network connectivity, while rear USB ports accommodate peripherals and external storage. HDMI, DisplayPort and VGA offer connections for compatible monitors when used with a processor that has integrated graphics. An internal USB-C connector also supports a compatible case’s front USB-C port.
Key Features:
- AMD AM4 platform: Supports a range of Ryzen processors for a flexible desktop build.
- Four DDR4 memory slots: Accommodate up to 128 GB of RAM for multitasking and future upgrades.
- Dual M.2 storage: Connect compatible SSDs alongside four SATA drives.
- PCIe expansion: One PCIe x16 slot and two PCIe x1 slots provide options for graphics and add-in cards.
- Flash BIOS Button: Update the BIOS from USB without installing a CPU, memory or graphics card.
- Gigabit LAN and HD audio: Integrated wired networking and 7.1-channel audio support everyday connectivity and entertainment.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | MSI |
| Model / Product Code | B550M PRO-VDH |
| Product Type | Desktop motherboard |
| Form Factor | micro-ATX |
| Colour | Black |
| CPU Socket | AMD Socket AM4 |
| Chipset | AMD B550 |
| Processor Support | AMD Ryzen 5000 Series, 4000 G-Series and 3000 Series desktop processors. Not compatible with Ryzen 5 3400G or Ryzen 3 3200G. Check the required BIOS version for your selected processor. |
| Memory | 4 x DDR4 DIMM slots; dual-channel architecture; up to 128 GB |
| Memory Speed | Up to 4400 MHz through A-XMP overclocking; achievable speed depends on the processor and memory configuration |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16; 2 x PCIe 3.0 x1. Primary slot generation depends on the processor. |
| Primary M.2 Slot | PCIe 4.0/3.0 x4 and SATA 6 Gb/s; supports 2242, 2260 and 2280 drives. PCIe generation depends on the processor. |
| Secondary M.2 Slot | PCIe 3.0 x4; supports 2242, 2260 and 2280 drives |
| SATA Connections | 4 x SATA 6 Gb/s |
| Display Outputs | 1 x HDMI 2.1, 1 x DisplayPort and 1 x VGA. Requires a processor with integrated graphics. |
| Digital Display Resolution | HDMI and DisplayPort: up to 4096 x 2160 at 60 Hz, depending on the processor |

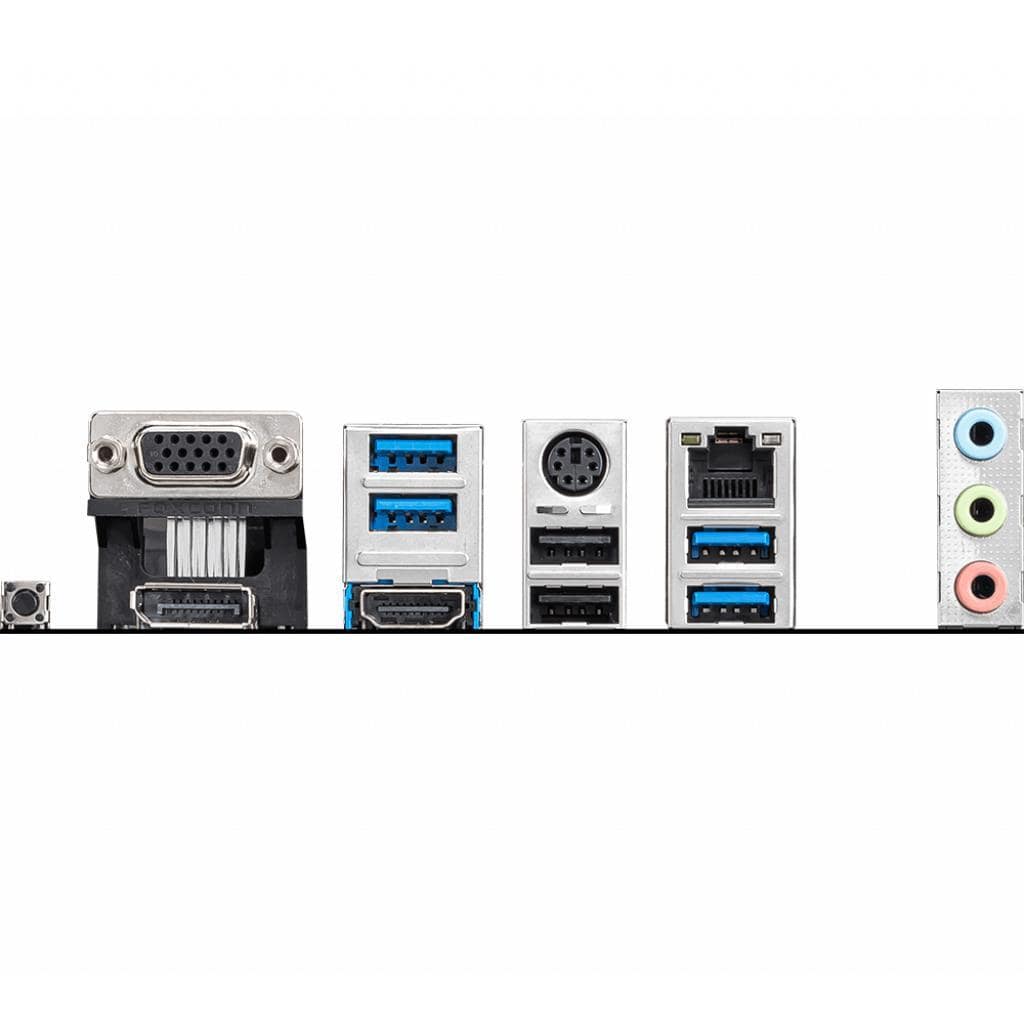

| Rear USB Ports | 4 x USB 3.2 Gen 1 Type-A, 5 Gb/s; 2 x USB 2.0 Type-A |
| Front USB Support | Internal connectors for 1 x USB 3.2 Gen 1 Type-C, 2 x USB 3.2 Gen 1 Type-A and 4 x USB 2.0 ports; requires compatible case connections |
| Wired Networking | Realtek 8111HN Gigabit LAN; 1 Gb/s |
| Audio | Realtek ALC892/ALC897 codec; 7.1-channel high-definition audio |
| Cooling Headers | 1 x CPU fan, 1 x water-pump fan and 3 x system fan; all 4-pin |
| Power Connections | 1 x 24-pin ATX and 1 x 8-pin ATX 12 V |
| BIOS Update Feature | Rear Flash BIOS Button |
| Dimensions | 244 x 244 mm |
What’s in the Box:
- 1 x MSI B550M PRO-VDH motherboard
- 2 x SATA cables
- 1 x I/O shield
- 1 x Quick Installation Guide
Build a compact AMD desktop with room for memory and storage upgrades, and add the MSI B550M PRO-VDH to your cart today.
