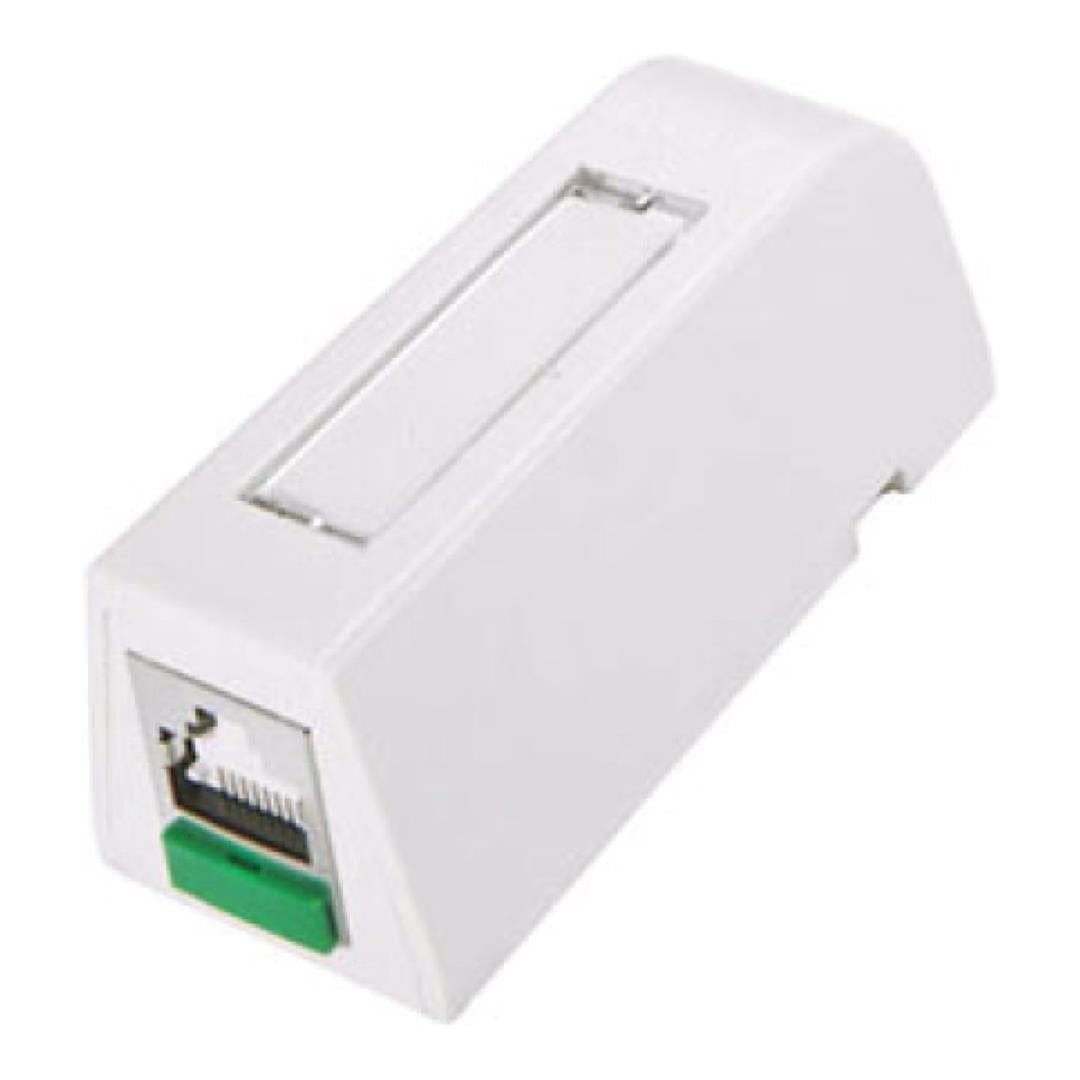

The single-port Synergy DataGate and Surface Mount Box is a small, compact solution ideal for use in open office spaces. One DataGate+ Cat 6A module with a unique anti-dust cover is installed in the box. Cable can be installed from the side or from the bottom. The contacts of the IDC (IDC - Insulation Displacement Contact), unlike other available designs, are V-shaped with flexible arms. Thanks to this, when connecting the cable cores, the contacts bend only slightly, which minimizes material fatigue and significantly extends the product life. The specially selected shape of the slot connector housing facilitates the installation process, allowing the conductors to align themselves in the appropriate slots of the connector. The reinforcing cap completely protects the cable conductors against being pulled out. The double color marking system allows the configuration of wires in 568A or 568B sequence. The RJ45 port is equipped with a unique integral shutter, which not only protects the interior against the ingress of dirt, but also indicates correct cable connection. This is due to the spring mechanism that ejects the shutter each time the patch cord is disconnected. When the plug is not properly connected, the spring force of this mechanism causes it to be fully rejected, thus eliminating false connections that do not allow transmission but make it difficult to pinpoint the source of error. In addition, the movable shutter cleans all socket contacts during each connection / disconnection of the patch cord, further reducing maintenance requirements. Individual modules can be labeled with descriptive overlays that are available in a range of colours.

Specifications:

Industry Standards: ANSI/TIA-568.2-D Cat 6A, ISO/IEC 11801-1 A1.1 Class EA, FCC Part 68.5, ISO 60603-7, PN-EN 50173 Class EA

RJ45 Socket (DataGate Cat 6A Module):

Housing Material: Nickel-plated zinc alloy with copper admixture
Durability: Minimum 750 cycles
Contact Material: Copper alloy
Contact Coating: 1.27 μm Au / Ni
Press Force: Minimum 100 g
Release Force: Minimum 6.8 kg

IDC Connector:

Housing Material: Polycarbonate, UL94V-0
Durability: Minimum 20 terminations
Contact Material: Copper alloy
IDC Contact Coating: Matte coated tin

Accepts Conductors: Solid or stranded wire, 22–24 AWG

Housing Width: 32 mm
Housing Height: 30 mm
Housing Depth: 66 mm
Housing Material (Outer): Plastic UL94V-0
Color: White

Electrical Resistance: ≤ 20 mΩ
Resistance Tolerance: ≤ 2.5 mΩ
Insulation Resistance: > 100 MΩ

PoE Compatibility: Suitable for IEEE 802.3bt Type 1 to Type 4 and Cisco UPoE+, HD Base-T PoH up to 100W. RP3 compliant as defined by EN 50174-2:2018, ISO/IEC 14763-2:2019 and AS/NZS 14763.2:2020

What's in the box:

• Molex Single Port Synergy DataGate and PowerCat 6A STP Surface Mount Box
