Molex PowerCat 6 UTP Field Termination Plug KSP-00003

Molex PowerCat 6 UTP Field Termination Plug KSP-00003

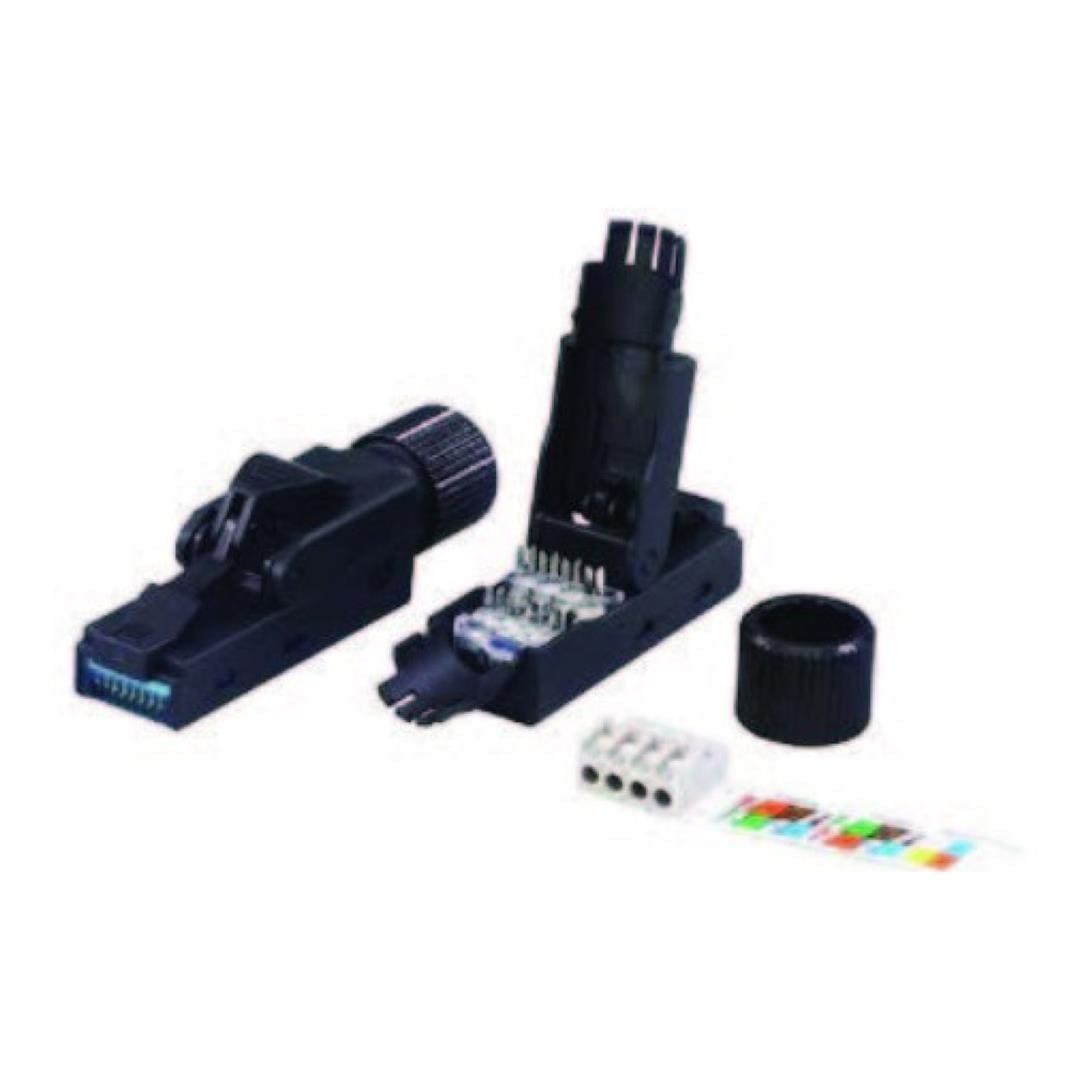

The Molex Category 6 field termination plug is designed to support 1gb networks and can be easily terminated using parallel jaw pliers. Termination is accomplished by placing the conductors into the proper wire slots in the wire cap. Place the wire cap onto the plug and use pliers to squeeze the wiring cap. All eight conductors are simultaneously terminated when the wire cap is squeezed. This process ensures quick, consistent, reliable terminations. The IDC is designed to accommodate different diameter conductors from 23 AWG- 26 AWG Solid Wire. The Field Termination Plug meets TIA-568.2-D Category 6 component performance. Ideal for use to provide wireless access points and other IP-enabled devices such as: Surveillance cameras and infrastructure monitoring. A field modular plug that is simple to terminate and meets Cat 6 performance requirements is also ideal in premise network applications, premise automation such as lighting, HVAC and other environmental sensor applications

Specifications

Industry Standards: ANSI/TIA-568.2-D Cat 6A, ISO/IEC 11801-1 A1.1 Class EA, FCC Part 68.5, ISO 60603-7, PN-EN 50173 Class EA

RJ45 Socket (DataGate Cat 6A Module):

Housing Material: Nickel-plated zinc alloy with copper admixture
Durability: Minimum 750 cycles
Contact Material: Copper alloy
Contact Coating: 1.27 μm Au / Ni
Press Force: Minimum 100 g
Release Force: Minimum 6.8 kg

IDC Connector:

Housing Material: Polycarbonate, UL94V-0
Durability: Minimum 20 terminations
Contact Material: Copper alloy
IDC Contact Coating: Matte coated tin

Accepts Conductors: Solid or stranded wire, 22–24 AWG

Housing Width: 32 mm
Housing Height: 30 mm
Housing Depth: 66 mm
Housing Material (Outer): Plastic UL94V-0
Color: White

Electrical Resistance: ≤ 20 mΩ
Resistance Tolerance: ≤ 2.5 mΩ
Insulation Resistance: > 100 MΩ

PoE Compatibility: Suitable for IEEE 802.3bt Type 1 to Type 4 and Cisco UPoE+, HD Base-T PoH up to 100W. RP3 compliant as defined by EN 50174-2:2018, ISO/IEC 14763-2:2019 and AS/NZS 14763.2:2020

Warranty Note: For PoE Type 3 / Class 5 and above installations, Category 6A cable must be used throughout to qualify for the Molex 25-year Application Assurance Warranty. Design validation with the Molex PoE Calculator is required.
