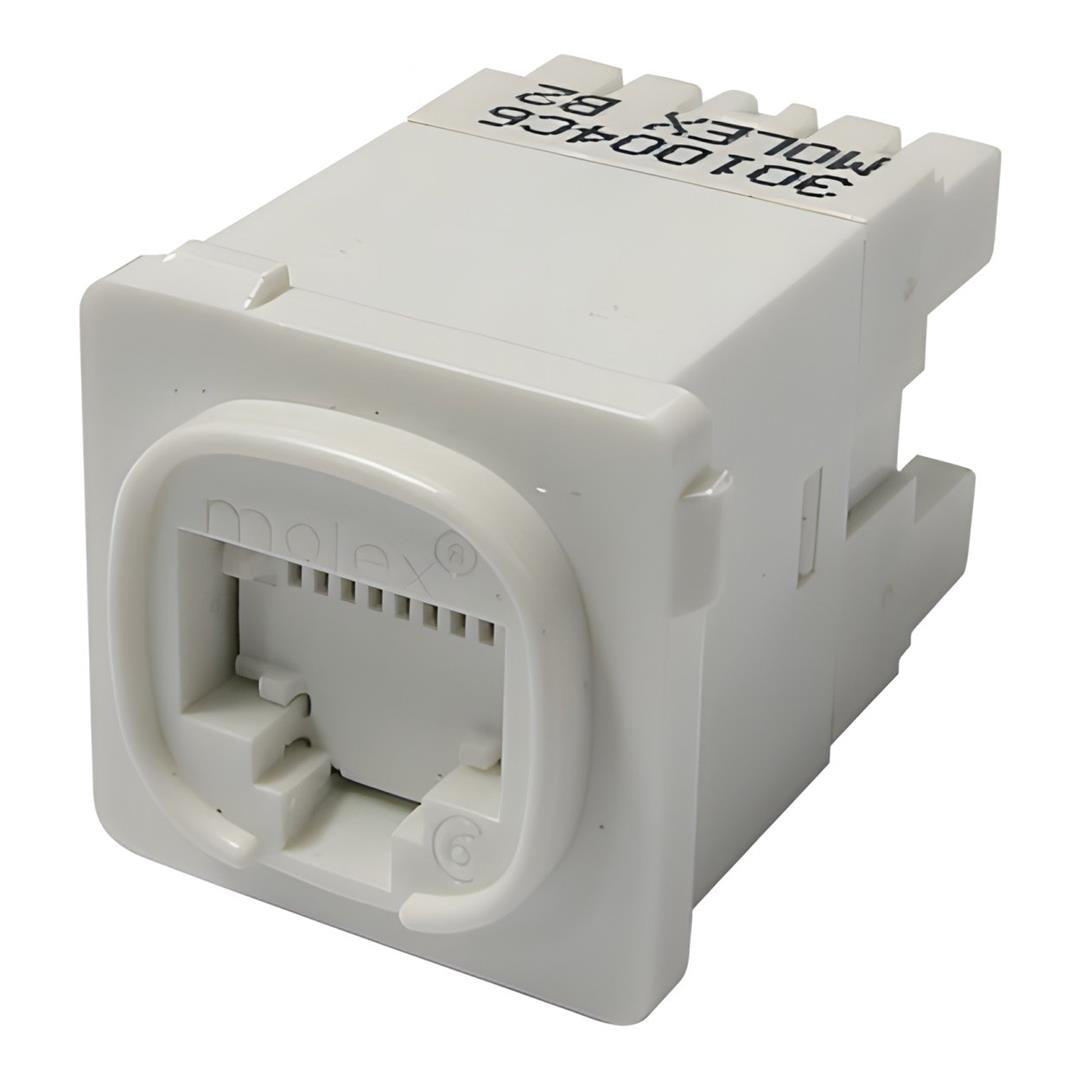

Molex PowerCat 6 MOD-Clip DataGate Jack MMC-00010-02

Molex PowerCat 6 MOD-Clip DataGate Jack MMC-00010-02

The PowerCat 6 MOD-Clip DataGate jack is designed to maintain clean secure connections. The RJ45 jack features a patented ‘spring-loaded shutter’ which protects it from dust and contaminants as well as provides tactile feedback – the spring-loaded shutter pops out an improperly seated patch cord – all with single-handed plug-in and removal. Available in seven colors MOD-Clip DataGate jacks utilize patented IDC V-shaped contacts that flex not fatigue when terminated.

Termination Process: Videos

The videos below, created by the Molex Technical Services Team, show the process for terminating cable into a Molex PowerCat C6 UTP MOD-Clip DataGate Jack, p/n MMC-00010, using a 110 Punchdown tool and a Multipair tool.

Benefits

• Patented Spring-Loaded Shutter: prevents incomplete mating and protects from dust and contaminants
• Patented IDC V-shaped contacts that flex not fatigue when terminated
• Features pointed IDC towers to speed termination and enhance cable retention
• Dual color-coding allows for 568A/B wiring configuration
• Can be terminated using industry standard punchdown tools
• RJ-11 & RJ-12 compatible
• Allows rear and side entry cable termination
• Engineered for use with Clipsal®, HPM® and PDL® wallplate systems

Technical Specifications:

Mechanical Characteristics

Jack Connector
Plastic Housing: Polycarbonate, UL94V-0 Rated or Equivalent
Operating Life: Minimum 750 Insertion Cycles
Contact Material: Copper Alloy
Contact Plating: 50 µ" Gold / 100 µ" Nickel
Contact Force: Minimum 100 g
Plug Retention Force: 15 lb.

IDC Connector
Plastic Housing: Polycarbonate, UL94V-0 Rated or Equivalent
Operating Life: Minimum 200 Reterminations
Contact Material: Copper Alloy
IDC Contact Plating: Tin/Lead Plate
Contact Force: Minimum 100 g
Wire Accommodation: 22–24 AWG Solid

Commercial Standards
Standards:

• TIA/EIA-568-C.2:2009 Category 6
• EN 50173-1:2011 Class E
• ISO/IEC 11801:2010 (Ed. 2.2) Class E
• FCC Subpart F68.5

Pending Approvals
Approvals:

• UL 1863
• CSA

Electrical Characteristics
Interface Resistance: 20 Milliohms
Initial Contact Resistance: 2.5 Milliohms
Insulation Resistance: >100 Megaohms

PoE
Supported PoE Standards:

• IEEE 802.3bt Type 1 to Type 4
• Cisco UPoE+
