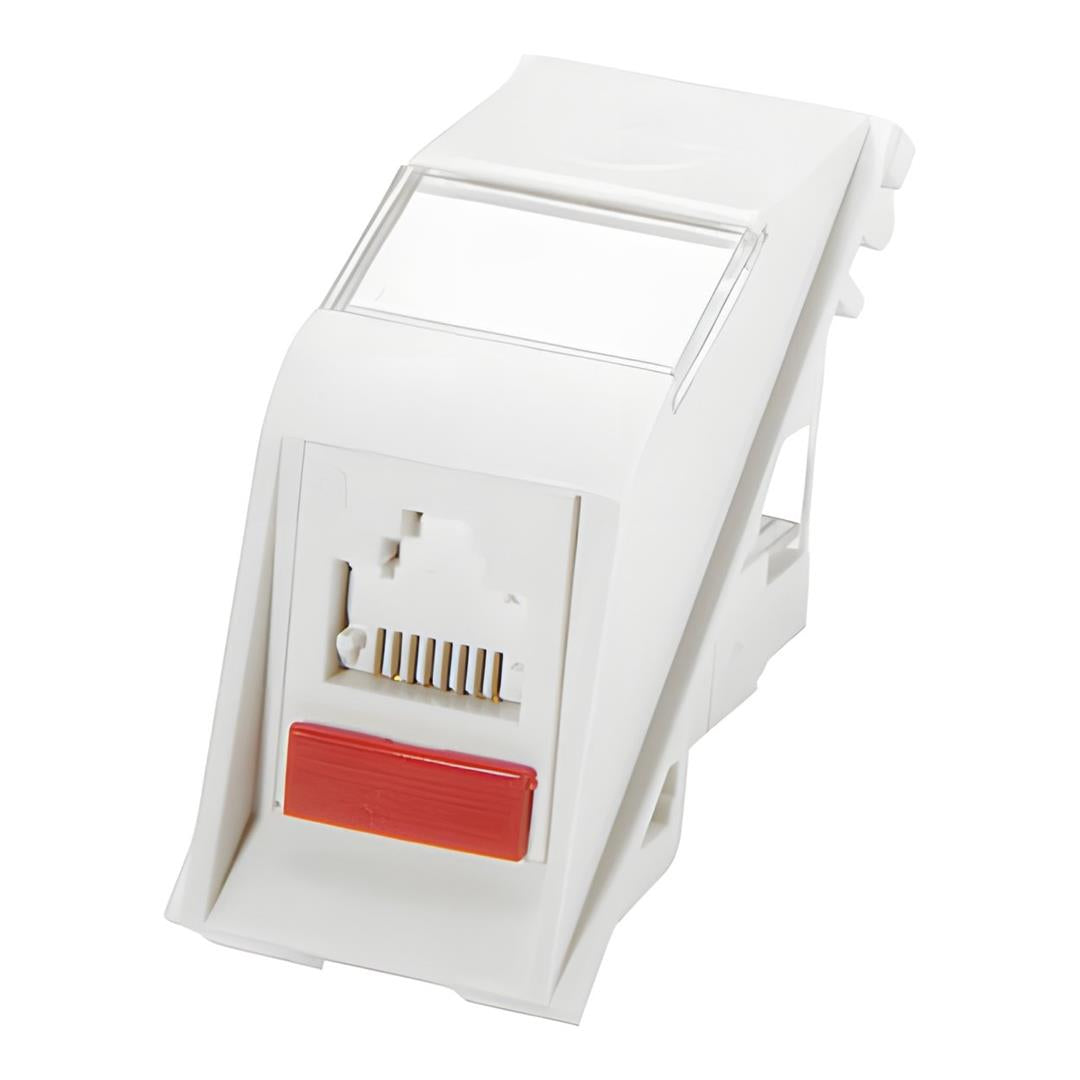

The Euromod modular system provides a flexible and versatile method of installation, allowing the user the choice of installing as many data outlets as required. The module is compatible with the Euromod range of wallplates and its angled design reduces patch cord bend radius, essential for C6 installations. The Angled Euromod II module features the DataGate Category 6 connector. This superior RJ45 IDC includes a unique integral shutter that not only protects the connector from dust and contaminants, but the ingenious spring-loaded design also ejects improperly seated patch cords. The DataGate connector is dual color coded for either 568A or 568B wiring schedules and is RJ11 compatible.

Benefits

• 25 x 50mm fascia
• Shuttered RJ45 DataGate connector
• Protected labeling facility
• Euromod wall plate compatible
• Angled fascia reduces patch cord bend radius

Technical Specifications:

Mechanical Characteristics

Jack Connector
Plastic Housing: Polycarbonate, UL94V-0 Rated or Equivalent
Operating Life: Minimum 750 Insertion Cycles
Contact Material: Copper Alloy
Contact Plating: 50 µ" Gold / 100 µ" Nickel
Contact Force: Minimum 100 g
Plug Retention Force: 15 lb.

IDC Connector
Plastic Housing: Polycarbonate, UL94V-0 Rated or Equivalent
Operating Life: Minimum 200 Reterminations
Contact Material: Copper Alloy IDC
Contact Plating: Tin/Lead Plate
Contact Force: Minimum 100 g
Wire Accommodation: 22–24 AWG Solid

Electrical Characteristics
Interface Resistance: 20 Milliohms
Initial Contact Resistance: 2.5 Milliohms
Insulation Resistance: >100 Megaohms

PoE
Supported PoE Standards:

• IEEE 802.3bt Type 1 to Type 4
• Cisco UPoE+
