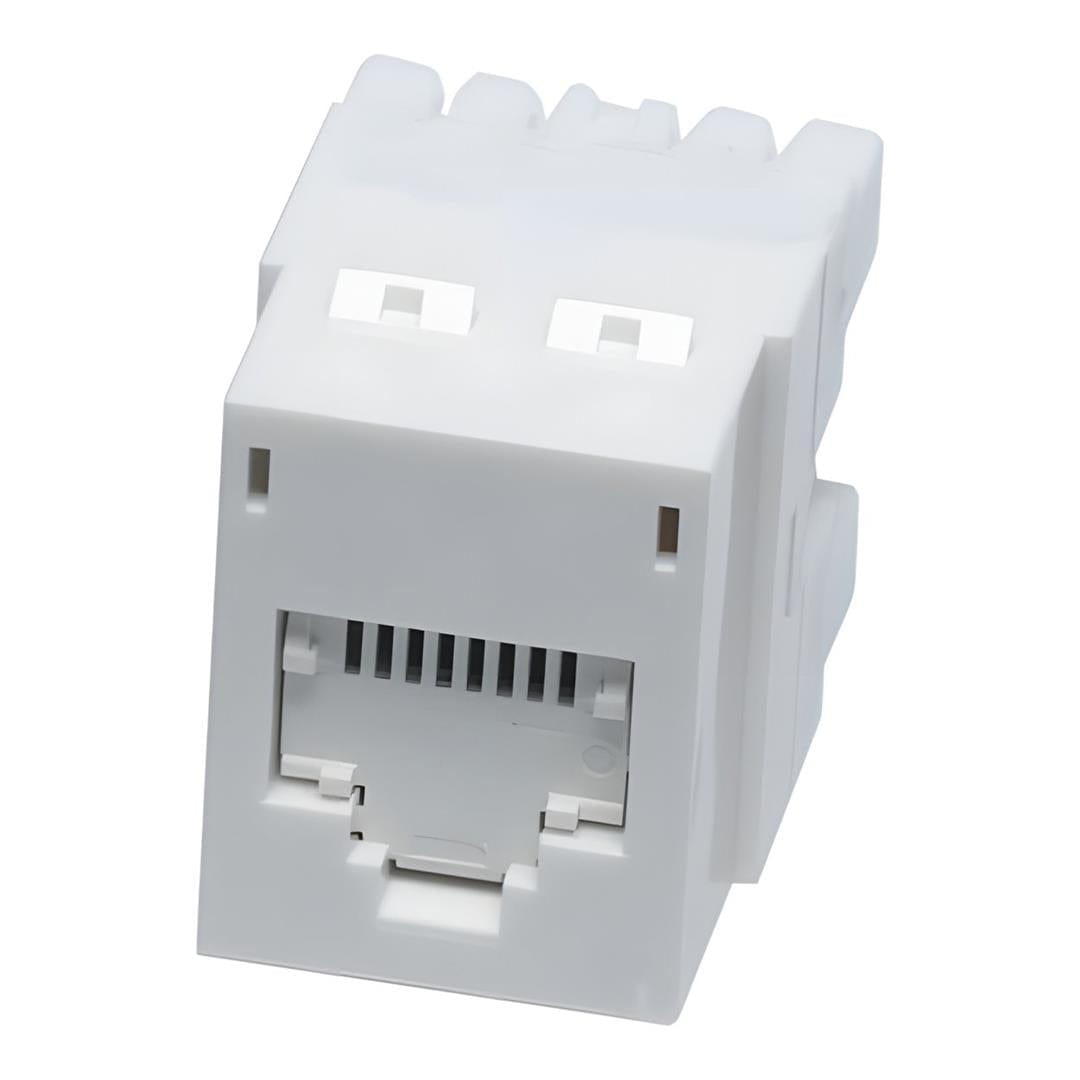

Molex PowerCat 6 DataGate Jack/ 568A/B UTP - White KSJ-00018-02

Molex PowerCat 6 DataGate Jack/ 568A/B UTP - White KSJ-00018-02

The PowerCat 6 DataGate Jack is designed to maintain clean secure connections. The RJ-45 jack features a patented ‘spring-loaded shutter’ which protects it from dust and contaminants as well as provides tactile feedback – the spring-loaded shutter pops out an improperly seated patch cord–all with single-handed plug-in and removal. DataGate jacks utilize patented IDC V-shaped contacts that flex not fatigue when terminated. The DataGate jack is engineered for use across a broad range of Molex products.

Termination Process: Videos

The videos below, created by the Molex Technical Services Team, show the process for terminating cable into a Molex PowerCat 6 DataGate Jack, p/n KSJ-00018, using a 110 Punchdown tool and a Multipair tool.

Features:

• Patented Spring-Loaded Shutter:
• Prevents incomplete mating
• Protects from dust and contaminants
• Patented IDC V-shaped contacts that flex not fatigue when terminated
• Features pointed IDC towers to speed termination and enhance cable retention
• Dual color-coding allows for 568 A/B wiring configuration
• Can be terminated using industry standard punch-down tools
• RJ-11 compatible
• Molded category identification on jack face as well as optional port identification icons
• USOC Wiring Sequences Available
• Integrated bend-limiting and strain-relief unit for cable entry
• RoHS Compliant

Technical Specifications:

Mechanical

Jack Connector

Plastic Housing
Thermoplastic UL94V-0 rated or equivalent

Operating Life
Minimum 750 insertion cycles

Contact Material
Copper Alloy

Contact Plating
50μ” Gold / 100μ” Nickel

Contact Force
100 g minimum

Plug Retention Force
11 lbf minimum

IDC Connector

Plastic Housing
Thermoplastic UL94V-0 rated or equivalent

Operating Life
Minimum 200 reterminations

Contact Material
Copper Alloy

IDC Contact Plating
Tin matte finish

Wire Accommodation
22–24 AWG solid

Electrical

Interface Resistance
20 mΩ

Initial Contact Resistance
2.5 mΩ

Insulation Resistance

100 Megohms

Current
1.5 A

Contact Resistance
≤ 0.2 Ω

DC/AC Endurance
1000 V DC/AC peak between contactors

Physical

Dimensions
23.9 mm (H) × 17.8 mm (W) × 32.3 mm (D)
(0.94” H × 0.70” W × 1.27” D)

Shipping Weight
14 g (0.49 oz)

Operating Temperature
-10°C to +70°C

Corrosion
ASTM B117: 2019

Commercial Standards

• TIA-568.2-D: Cat.6
• EN 50173-1:2011 Class E
• ISO/IEC 11801:2010 (Ed 2.2) Class E
• FCC Subpart F68.5
• IEC 60603-7
• UL Listed
• AS/CA S008:2020 25 kg
• RoHS Directive 2011/65/EU and (EU) 2015/863

PoE

Our PowerCat 6 system is suitable for PoE applications as defined below:

• IEEE 802.3bt from Type 1 to Type 4
• CISCO UPoE+
