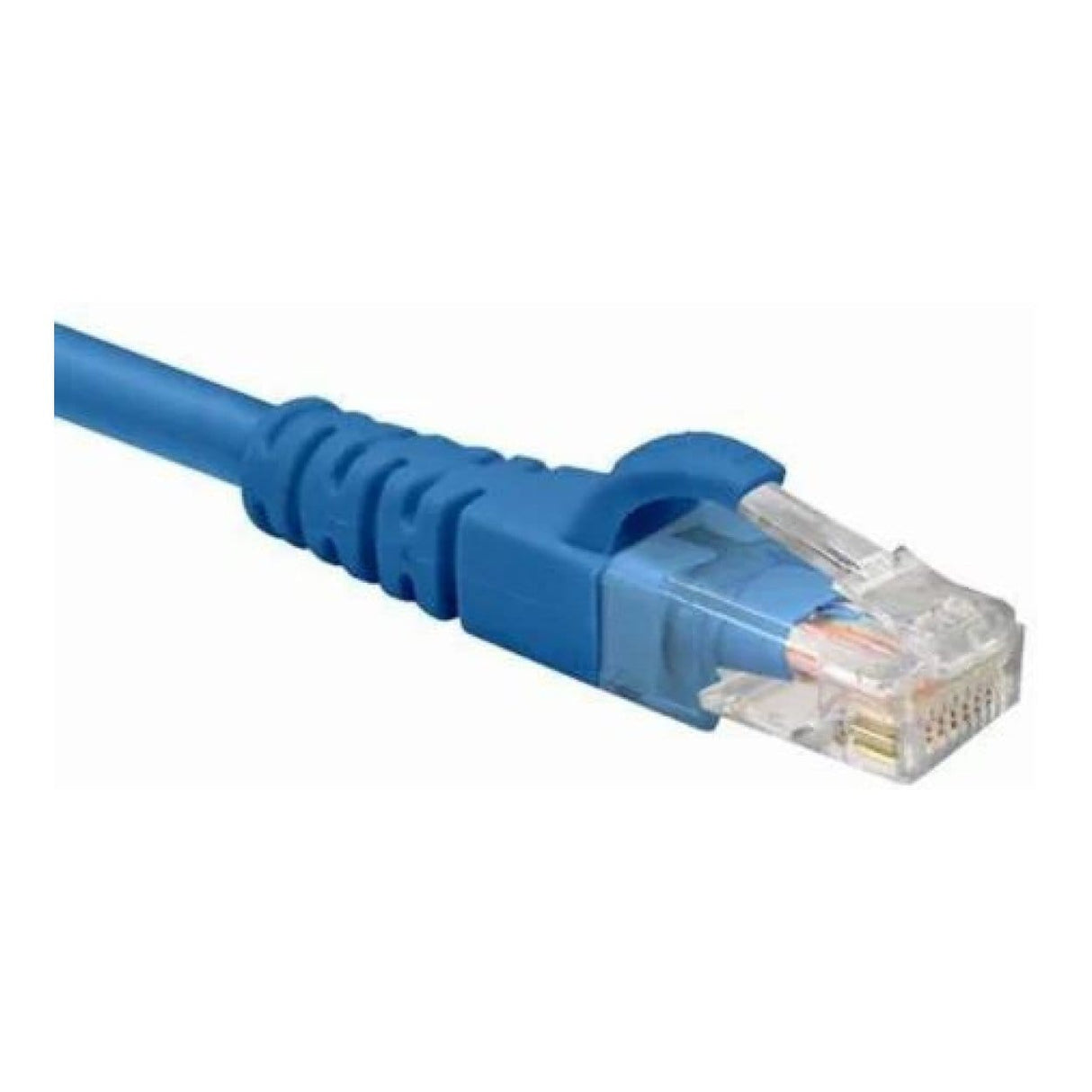

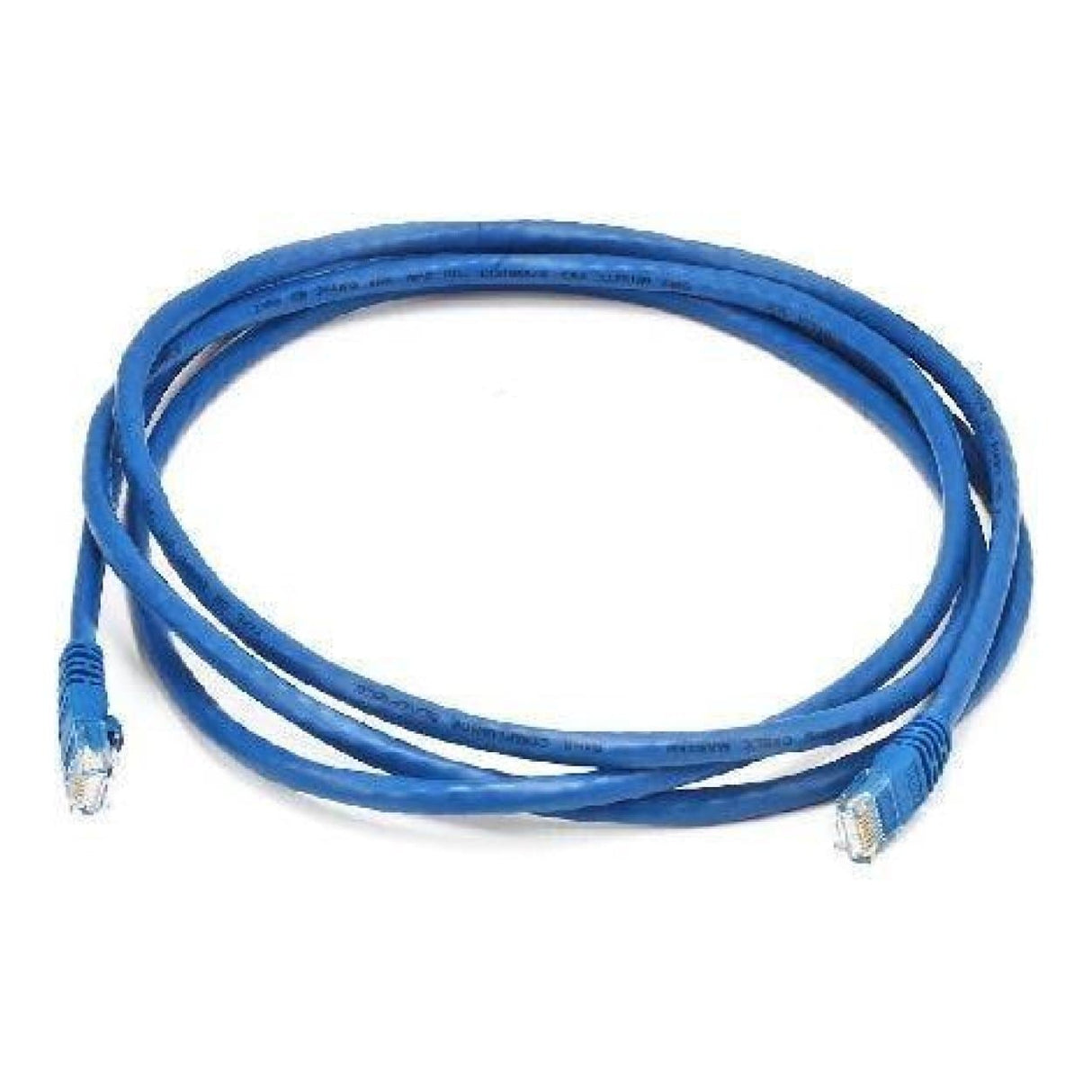

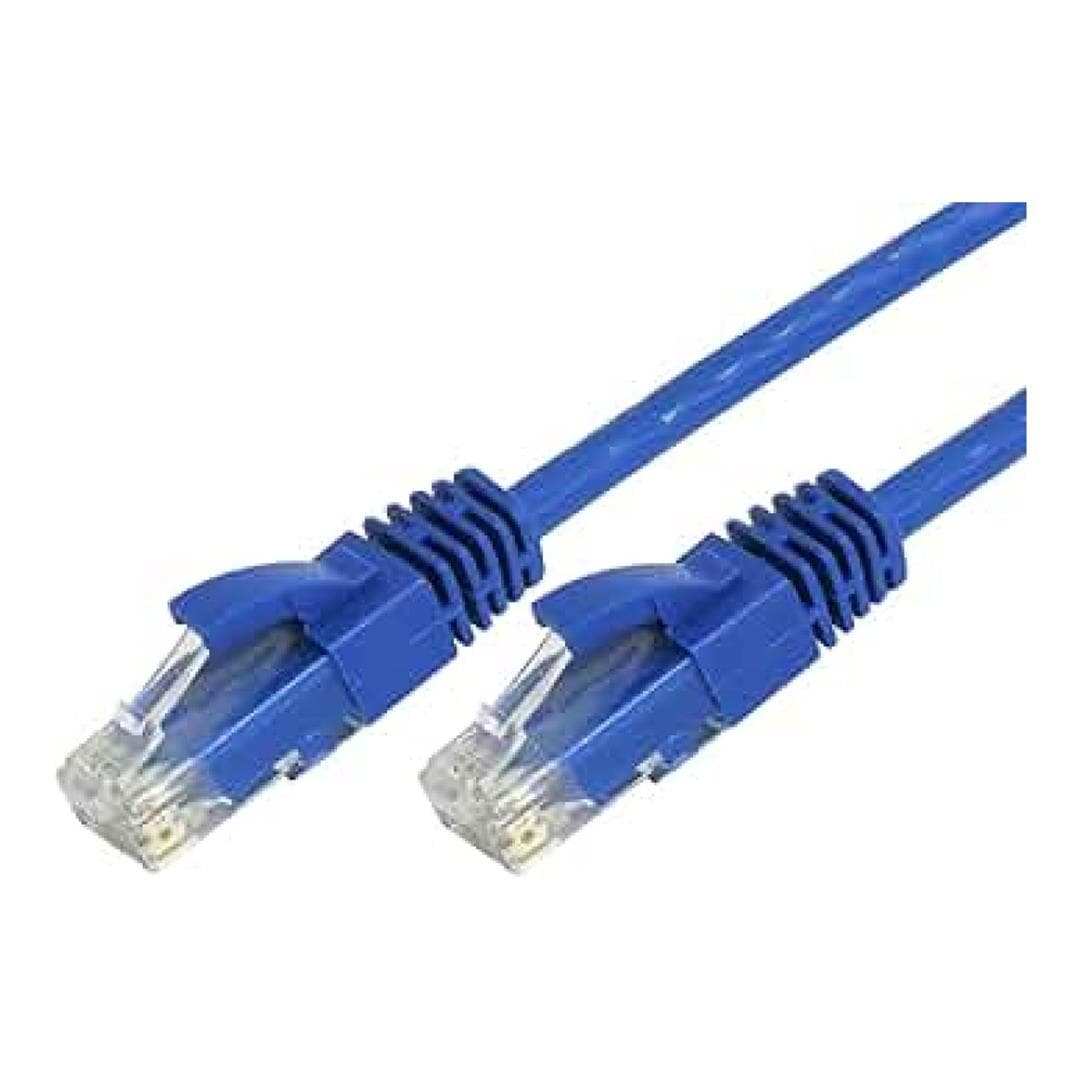

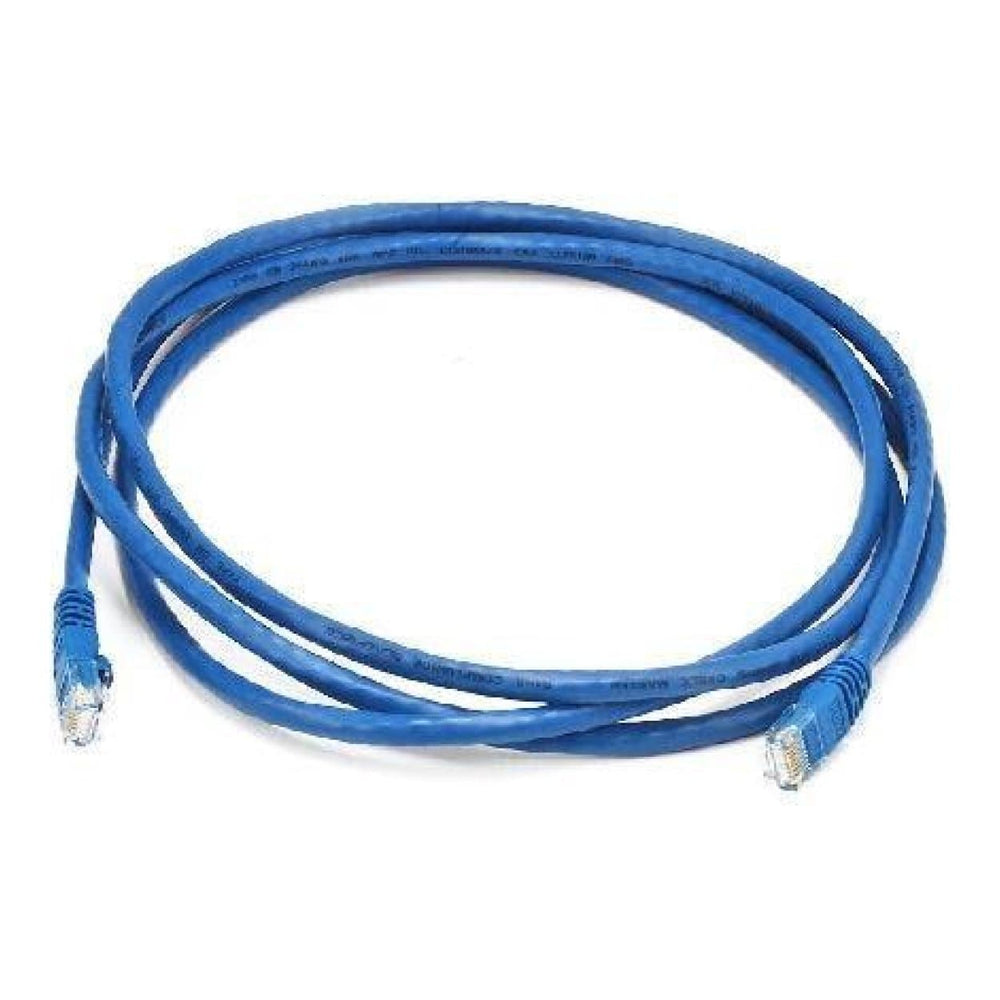

Molex 7m PowerCat 6A Shielded Patch Cord Blue PCD-07006-0H

Molex 7m PowerCat 6A Shielded Patch Cord Blue PCD-07006-0H

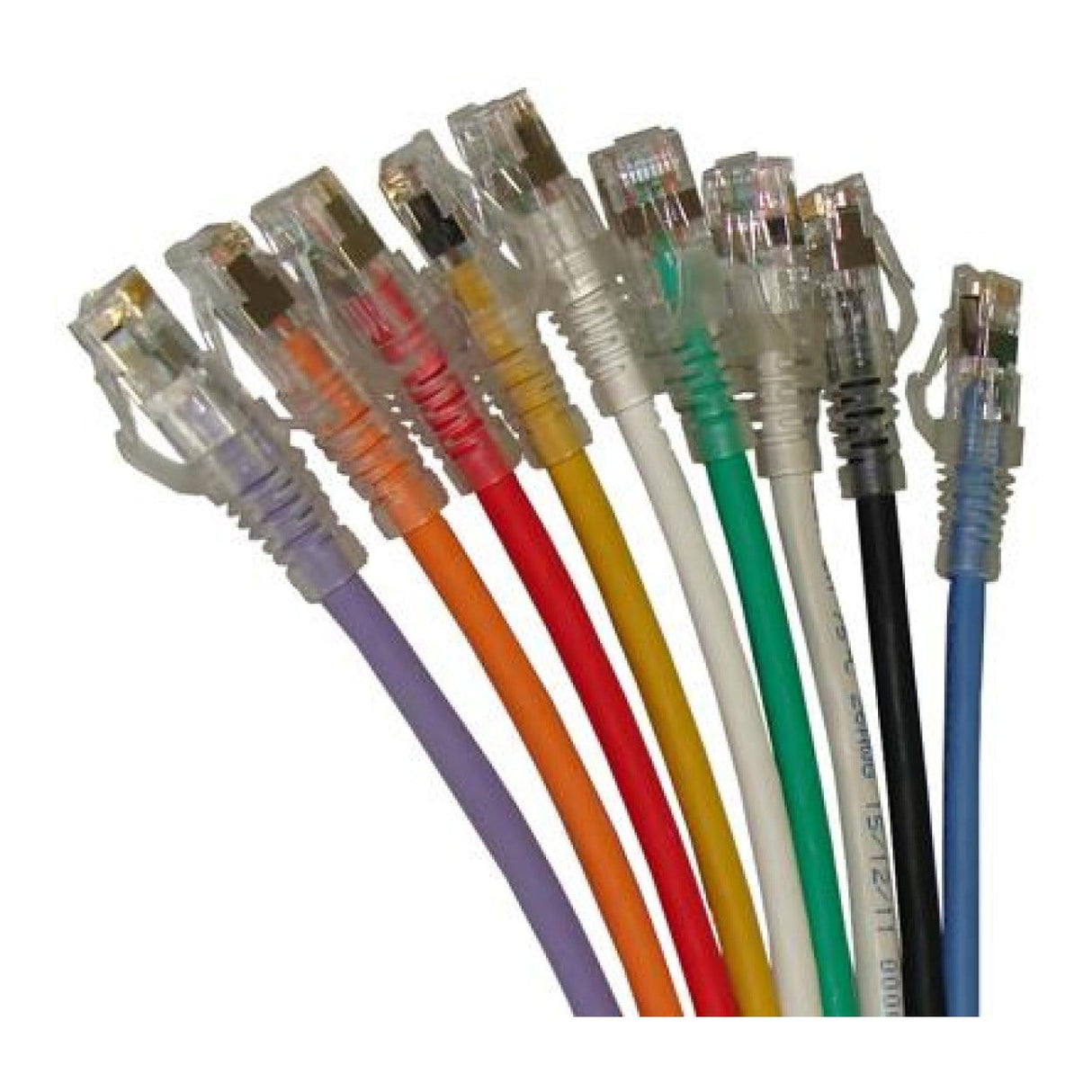

The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution. Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

• Conductor: 4 pair 26 AWG stranded copper wire
• Boot Design: Slim clear anti-snag slip-on boots
• Termination: Pre-terminated with RJ45 plugs
• Wiring Compatibility: Suitable for EIA 568A or 568B wiring
• Sheath Type: Low Smoke Zero Halogen (LS0H)
• Performance: 10G performance when installed as a complete PowerCat 6A system

Specifications:

Commercial Standards: ANSI/TIA-568-D-2018; ISO/IEC 11801-1:2017; UL 1863; CSA C22.2; RoHS compliant

Fire Propagation Tests: IEC 60332-3-22; IEC 60332-1-1; IEC 61034-2; IEC 60754-2

Conductor Size: 26 AWG stranded copper wire

Screen Material: Aluminum/polyester shield with tinned copper drain wire

Nominal Outer Diameter: 6.5 mm

Sheath: Low Smoke Zero Halogen (LS0H)

Bend Radius: 8 x O.D.

Operating Temperature: -25°C to +75°C

What's in the box:

• Molex 7m PowerCat 6A Shielded Patch Cord Blue
