Molex 3m PowerCat 6 U/UTP Patch Cord Yellow PCD-02005-0K

Molex 3m PowerCat 6 U/UTP Patch Cord Yellow PCD-02005-0K

Molex PowerCat 6 U/UTP Patch Cords are key components of PowerCat 6 U/UTP End-to-End Solution and are designed to support data networks for 10/100BASE-T and 1000BASE-T applications.

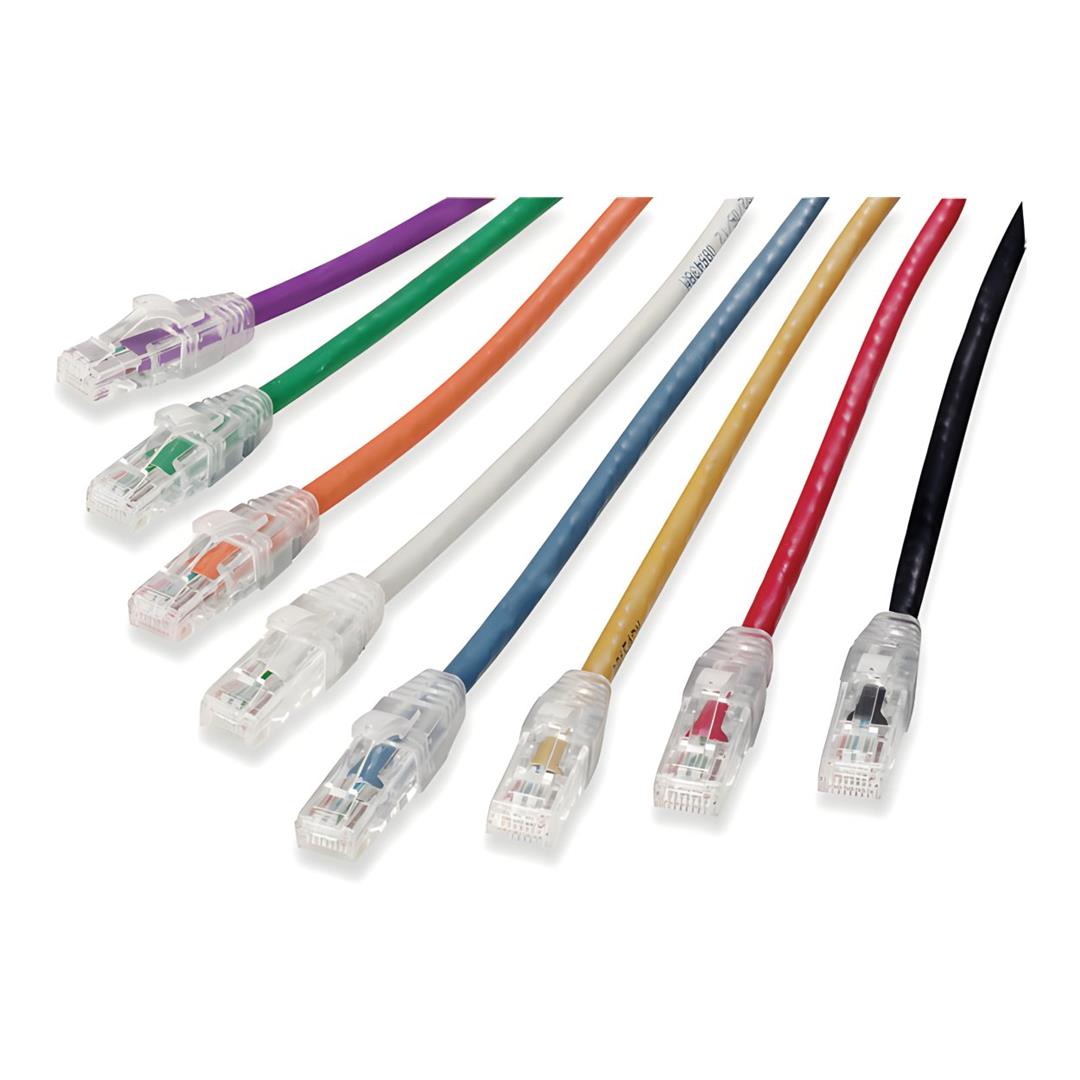

The patch cable is made from high quality four pair 24 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6 patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

Benefits

• 4 pair 24 AWG stranded copper wire
• Pre-terminated with WE8W plugs
• Slim clear anti-snag slip on boots
• Suitable for EIA 568A or 568B wiring
• LS0H sheath
• RoHS Compliant

Technical Specifications:

Mechanical

Cable
Conductor Size: 24 AWG Stranded Copper Wire
Insulation Diameter: 0.98 ± 0.05 mm
Nominal Outer Diameter: 5.9 mm
Sheath: LS0H
Bend Radius: 4 × O.D.
Operating Temperature: -25°C to +60°C
Storage Temperature: -40°C to +60°C

Plug
Minimum Operating Life: 750 Insertion Cycles
RJ45 Plug and Boot Material: Clear Polycarbonate (PC), UL 94V-0
Contact Material: 0.35 mm Thick Copper Alloy
Contact Plating: Selective Gold
RJ45 Plug Dimensions Compliance: ISO/IEC 60603-7-4 and FCC 47 Part 68

Electrical
Maximum Voltage: 150 VAC (Max.)
Maximum Current: 1.5 A @ 25°C

Commercial Standards
Standards:

• ANSI/TIA-568.2-D-2018
• ISO/IEC 11801-1:2017
• UL Listed
• ETL Verified
• AS/CA S008:2020
• RoHS Compliant
• IEC 61935-2

Fire Propagation Tests
LS0H Sheath Standards: CSA FT1, IEC 60332-1, IEC 61034, IEC 60754

PoE
Supported PoE Applications:

• IEEE 802.3bt Type 1 to Type 4
• Cisco UPoE+
• HDBaseT PoH up to 100 W

RP3 Compliance: EN 50174-2:2018, ISO/IEC 14763-2:2019, AS/NZS 14763.2:2020
