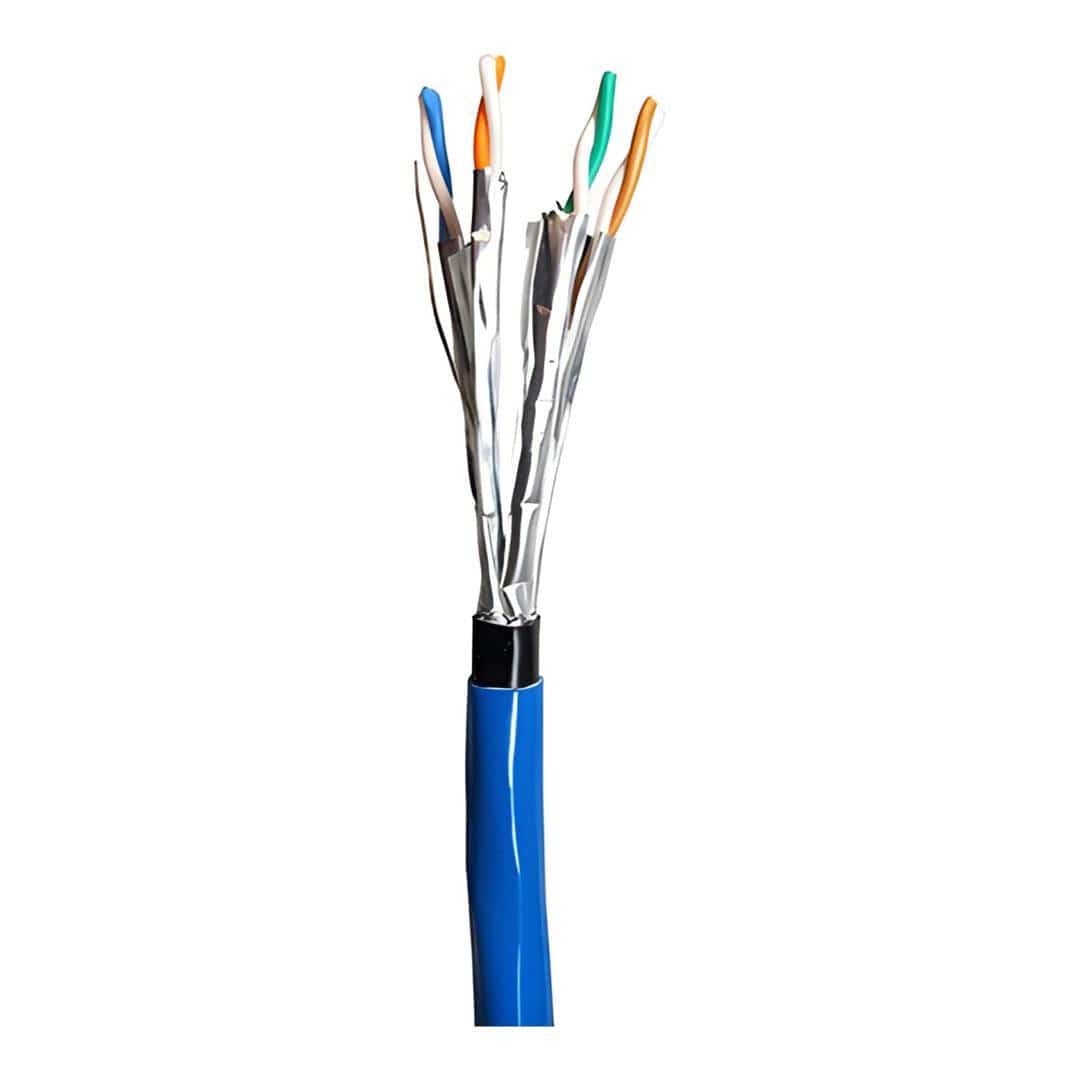

Molex 305m Cat6A PE Nylon Outdoor Ethernet Cable Blue CAA-00418

Molex 305m Cat6A PE Nylon Outdoor Ethernet Cable Blue CAA-00418

The Molex CAA-00418 is an outside plant Gel-Filled Category 6A 4 Pair U/FTP cable. A HDPE compound insulates the cores while a PE (UV) sheath provides protection against moisture and UV. An additional nylon outer jacket provides protection against abrasion and termites. The rugged construction of this cable makes it ideal for outdoor/underground installations.

Molex uses a Gel Foam which is easier to clean than current water resistant gels.

Features:

• Category 6A compliant
• PE (UV) and nylon sheathed for greater protection
• UV resistant
• Suitable for outdoor/underground installations
• Water resistant gel

Technical Specifications:

Mechanical

Conductor Size
Solid 0.560 solid bare copper

Primary Insulation
HDPE

Nominal Outer Diameter
1.330 ± 0.05 mm

Sheath Type
Inner: LDPE, Outer: Nylon

Overall Nominal Diameter

• Overall: 8.3 ± 1.0 mm
• Inner: 0.55 ± 0.05 mm
• Outer: 0.35 ± 0.1 mm

Operating Temperature
-20° to 75°C

NVP
65%

Maximum Pulling Force
50 N/sq mm

ELECTRICAL
Refer to datasheet for more information

COMMERCIAL STANDARDS

• Cat 6A ANSI/TIA/EIA-568-C.2
• ISO/IEC 11801
• UL444

Length
305 meters
