Molex 2m PowerCat 6A Shielded Patch Cord LS0H Grey PCD-07001-0E

Molex 2m PowerCat 6A Shielded Patch Cord LS0H Grey PCD-07001-0E

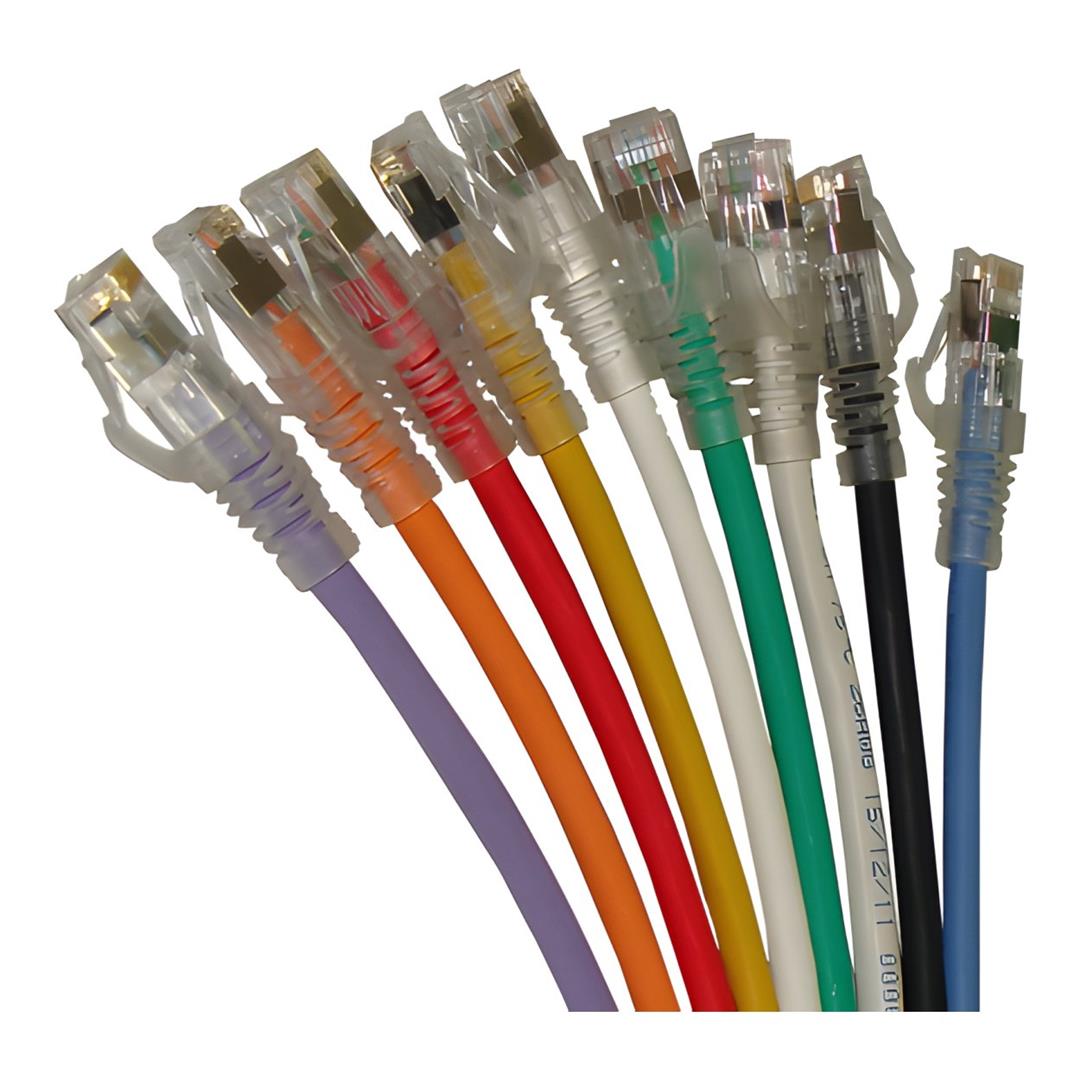

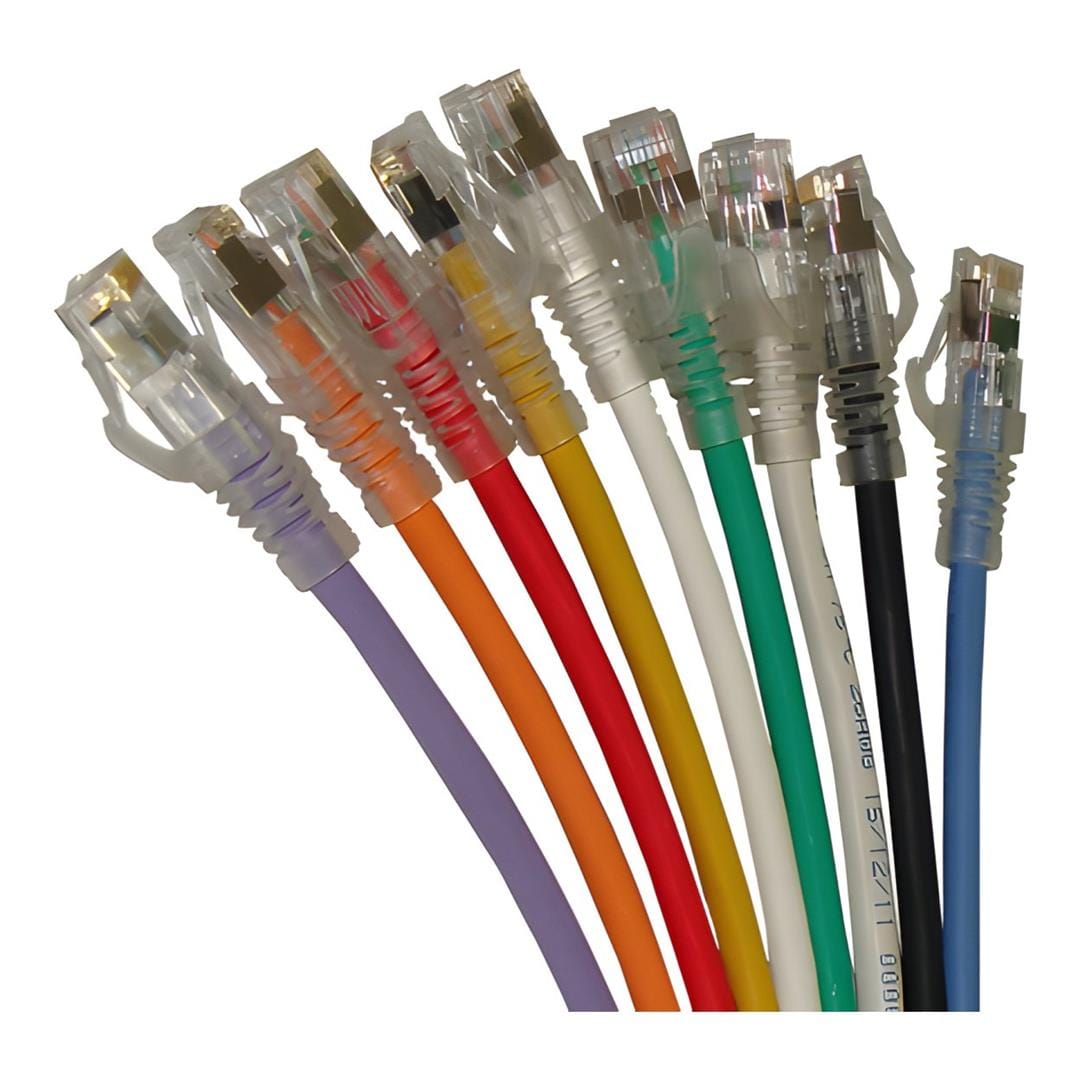

The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution.

Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

Benefits

• 4 pair 26 AWG stranded copper wire
• Pre-terminated with RJ45 plugs
• Slim clear anti-snag slip on boots
• Suitable for EIA 568A or 568B wiring
• LS0H sheath
• 10G Performance when installed as a complete PowerCat 6A Shielded System

Technical Specifications:

Mechanical

Cable
Conductor Size: 26 AWG Stranded Copper Wire
Screen Material: Aluminium/Polyester Shield with Tinned Copper Drain Wire
Nominal Outer Diameter: 6.5 mm
Sheath: Low Smoke Zero Halogen (LS0H)
Bend Radius: 8 × O.D.
Operating Temperature: -25°C to +75°C

Plug
Minimum Operating Life: 750 Insertion Cycles
RJ45 Plug Material: Clear Polycarbonate (PC)
Boot Material: Clear Polycarbonate (PC)
Contact Plating: 1.27 µm Gold
RJ45 Plug Dimensions Compliant With: ISO/IEC 60603-7 and FCC 47 Part 68

Electrical
Maximum Voltage: 150 VAC (Max.)
Maximum Current: 1.5 A @ 25°C

Commercial Standards
Standards:

• ANSI/TIA-568-D-2018
• ISO/IEC 11801-1:2017
• UL 1863
• CSA C22.2
• RoHS Compliant

Fire Propagation Tests
Standards:

• IEC 60332-1-1
• IEC 61034-2
• IEC 60754-2

PoE
Supported PoE Applications:

• IEEE 802.3bt Type 1 to Type 4
• Cisco UPoE+
• HDBaseT PoH up to 100 W

RP3 Compliance:

• EN 50174-2:2018
• ISO/IEC 14763-2:2019
• AS/NZS 14763.2:2020
