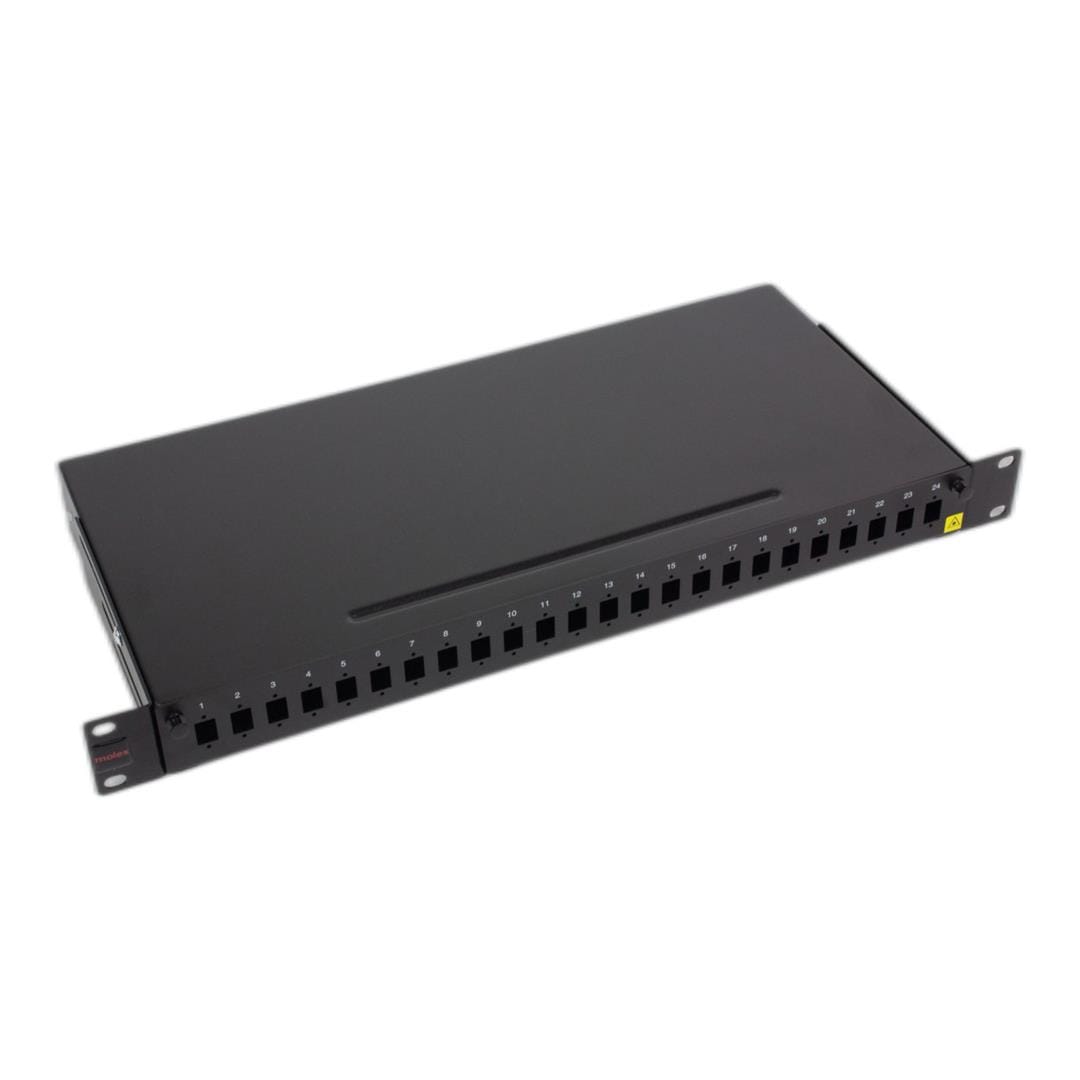

Molex 24-port Fiber Patch Panel Unpopulated Black RFR-00326

Molex 24-port Fiber Patch Panel Unpopulated Black RFR-00326

The Molex 48 fiber duplex LC enclosure is a cost-effective and convenient sliding drawer unit for the connection, protection and management of up to 48 fibers in 1U.

Features:

• Straightforward, cost effective 1U DLC enclosure for low density installations
• Robust steel construction, finished in black
• Optional port density, up to 24 DLC adapters (48F). Fiber adapters are supplied separately
• Sliding drawer unit for ease of installation and access
• Adjustable mounting brackets allow flush or recessed mounting
• Rear access apertures provide four convenient cable or pre-terminated harness assembly, entry options
• Permanently marked port numbering for patch identification
• The self-adhesive cable management hub (provided) can be split into segments, allowing each segment to be positioned as required for convenient pigtail cable routing
• A self-adhesive splice holder, a M20 gland (9-13.2mm cable o.d.), blank grommet, kevlar clamp and fixing kit are included

Designed for simple low-density fiber installations on a budget, the Utility Fiber Enclosure includes only the essential features for the connection, protection and management of up to 48 fibers in 1U.

The product is manufactured from cold rolled steel with an integral sliding drawer accepting up to 24 duplex LC adapters and generous space provided for splice holder and cable managers. Traditional fiber cable or preterminated fiber harnesses can be managed in the drawer. The drawer is fitted with nylon slides allowing quick and easy access for installation and MACs. The connections are protected by a steel cover.

The Utility Fiber Enclosure is supplied with adjustable mounting brackets, a Kevlar retention clamp, M20 cable gland, self-adhesive fiber cable management hub, 24 fiber self-adhesive splice holder and a cabinet/rack screw fixing kit.

Technical Specifications:

Mechanical

Enclosure Material
CRS (Cold Rolled Steel)

Material Thickness
1.52 mm

Finish
Powder Coat Black

Physical

Dimensions (W × D × H)
482 × 201 × 43.6 mm

Shipping Weight
2.9 kg

Environmental Standards

Compliance
RoHS Compliant
REACH Compliant
