Molex PowerCat 6A shielded modules are an integral work area outlet for the support of a 10GBASE-T cabling system.

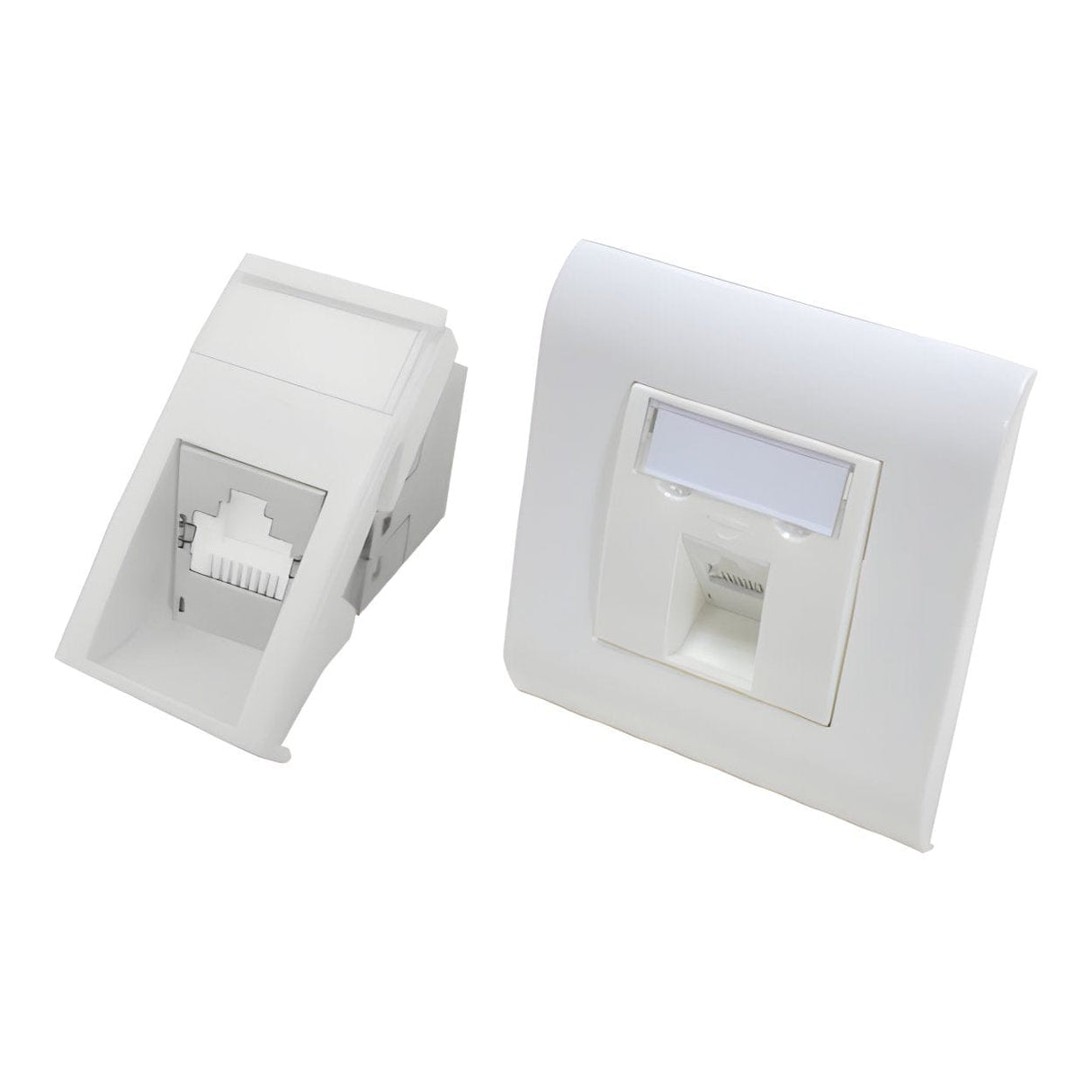

The Molex work area outlet modules feature the Molex shielded C6A DataGate Jack offering superior alien crosstalk suppression and enhanced electromagnetic interference (EMI) protection. Specifically designed for compatibility with UK and European wall outlet styles, the angled designs reduce patch cord bend radius preventing degradation of transmission performance.

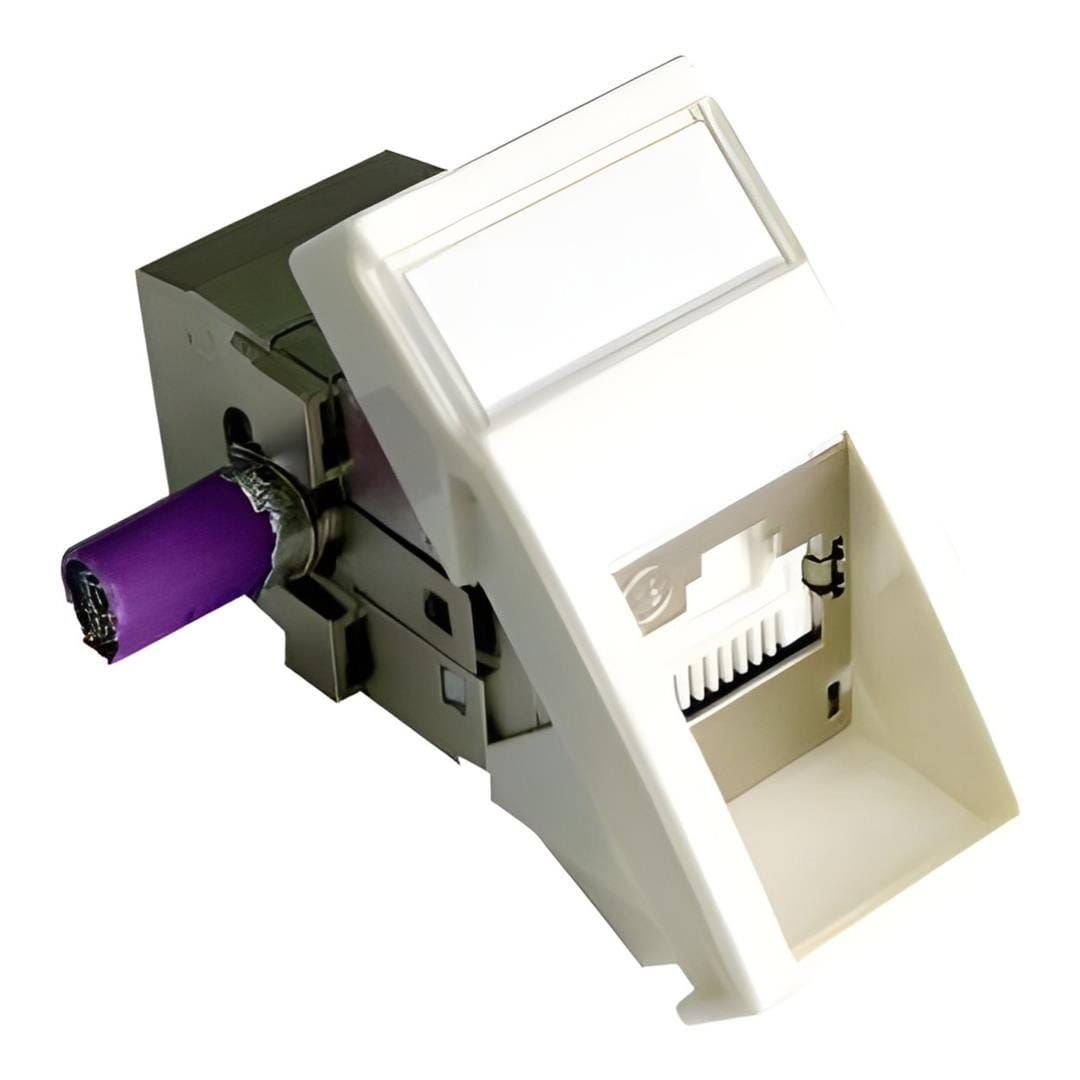

The Molex C6A DataGate RJ45 360° shielded jack accommodates flexible cable routing by allowing 90° or 180° cable entry. Side cable entry (90°) is ideal for shallow backboxes, floor boxes and trunking where space is limited and maintaining the C6A cable bend radius is challenging. The jack also features an ingenious spring-loaded internal shutter which protects the jack from dust and contaminants, but also ejects improperly seated patch cords.

Features:

• Compatible with UK and European wall plate styles
• 360° shielded C6A DataGate Jack provides superior alien crosstalk suppression and enhanced electromagnetic interference (EMI) protection
• Angled design reduces the patch cord bend radius
• Dual color coded for either 568A or 568B wiring
• Protected labeling feature for clear port labeling
• IDC V-shaped contacts designed to flex, not fatigue when terminated for reliable termination
• Accommodates flexible cable routing by allowing 90° or 180° cable entry
• Category 6A system performance when installed as part of the Molex PowerCat 6A shielded system
• Spring-loaded internal shutter protects the jack from dust and contaminants and ejects improperly seated patch cords
• Molex DataGate Jacks may accommodate both solid (AWG 22 to AWG 24) and stranded (AWG 26) cables

Technical Specifications:

International Standards

ANSI/TIA-568.2-D-2018

ISO 11801:2017

IEC 60603-7

Environmental Standards

RoHS compliant

REACH compliant

Physical

RJ45 Connector

Connector Housing:

Zinc Alloy plated bright Ni/Cu

Operating Life:

Minimum 750 insertion cycles

Contact Material: Copper Alloy

Contact Plating:

50μ Gold/ 50μ Nickel minimum

Contact Force: 100g minimum

Plug Retention Force: 6.8kg minimum

IDC Connector

Jack Housing: Thermoplastic, UL94V-0

Operating Life:

Minimum 20 re-terminations

Contact Material: Copper Alloy

IDC Contact Plating: Matte Tin

Contact Force: 100g minimum

Wire Accommodation:

22-24 AWG solid & 26 AWG stranded

Module Fascia:

Thermoplastic UL94V-0

Electrical/Optical Characteristics

Interface Resistance: 20mΩ

Initial Contact Resistance: 2.5mΩ

Insulation Resistance: >100 MΩ
