Molex 1m PowerCat 6A Shielded Patch Cord LS0H Grey PCD-07000-0E

Molex 1m PowerCat 6A Shielded Patch Cord LS0H Grey PCD-07000-0E

The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution.

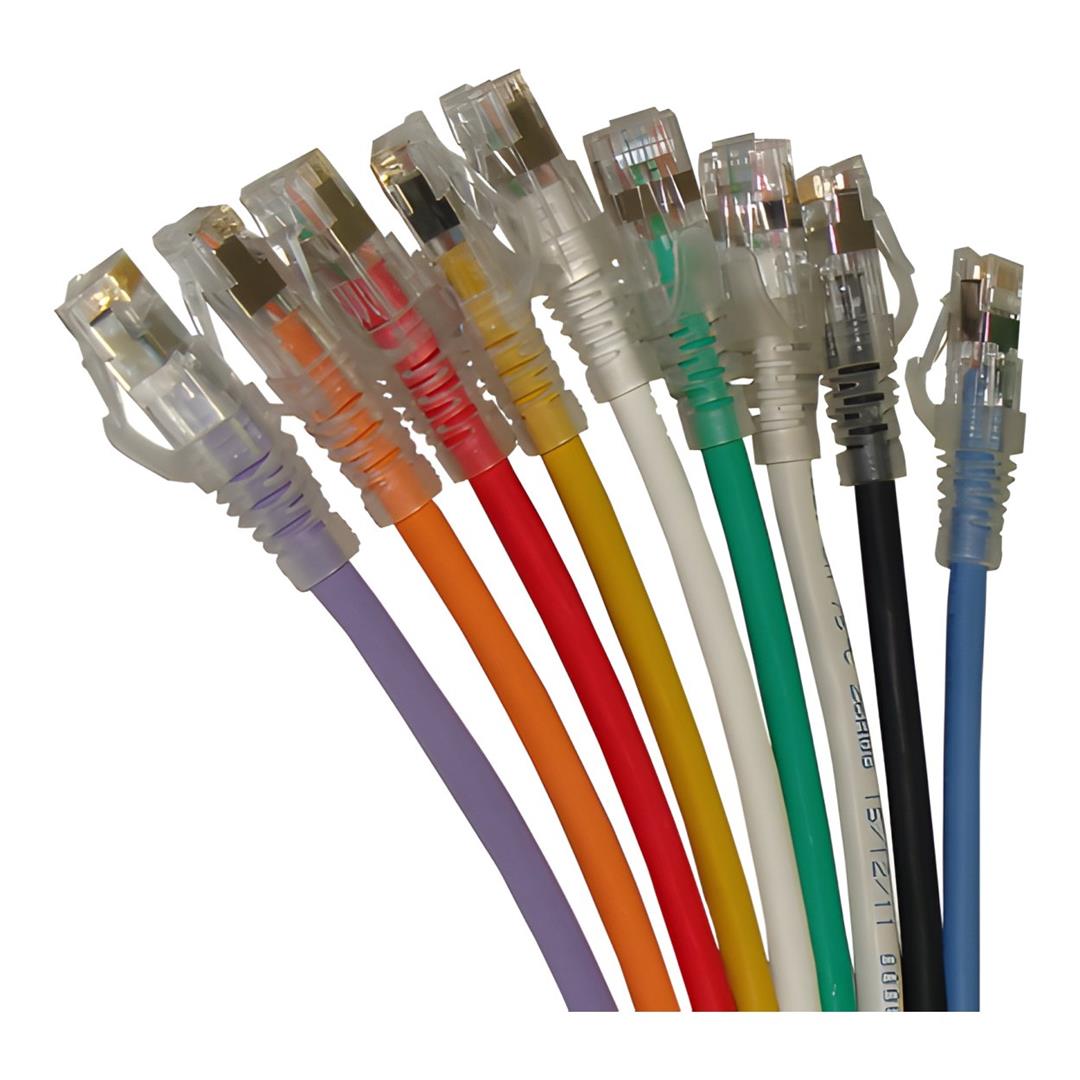

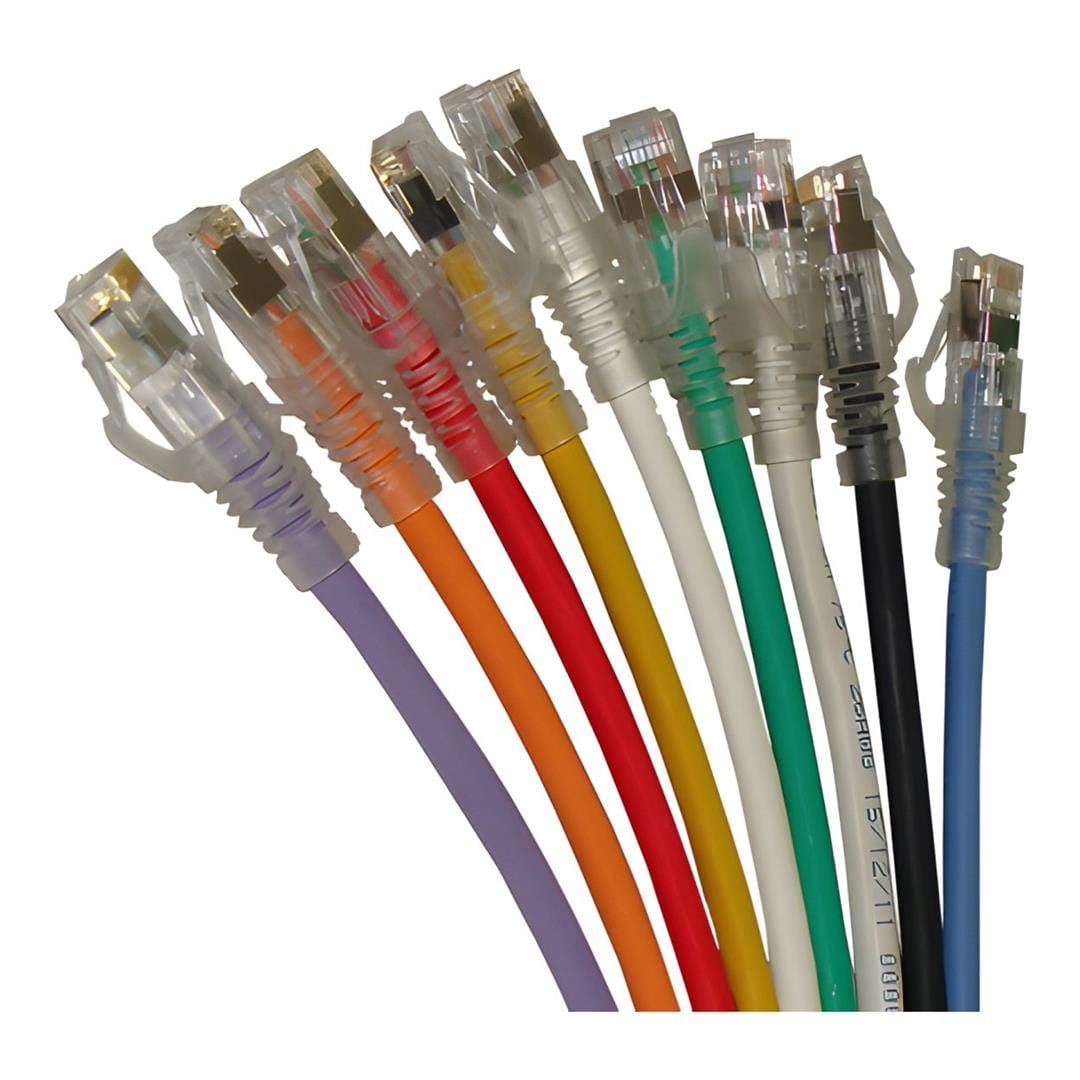

Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

Benefits

• 4 pair 26 AWG stranded copper wire
• Pre-terminated with RJ45 plugs
• Slim clear anti-snag slip on boots
• Suitable for EIA 568A or 568B wiring
• LS0H sheath
• 10G Performance when installed as a complete PowerCat 6A Shielded System

MECHANICAL
Cable
Conductor Size: 26 AWG stranded copper wire
Screen Material: Aluminum/polyester shield with tinned copper drain wire
Nom. O.D.: 6.5mm
Sheath: Low Smoke Zero Halogen (LS0H)
Bend Radius: 8X O.D.
Operating Temperature: -25 to +75°C

Plug
Minimum operating life: 750 insertion cycles
RJ45 Plug Material: Clear polycarbonate (PC)
Boot Material: Clear polycarbonate (PC)
Contact Plating: 1.27um gold
RJ45 Plug Dimensions compliant with:
ISO/IEC 60603-7 and FCC 47 Part 68

ELECTRICAL
Max voltage: 150 VAC (max)
Max current: 1.5A @ 25°C

COMMERCIAL STANDARDS
ANSI/TIA-568-D-2018
ISO/IEC 11801-1:2017
UL 1863
CSA C22.2
RoHS compliant

FIRE PROPAGATION TESTS
IEC 60332-1-1
IEC 61034-2
IEC 60754-2

PoE
Our PowerCat 6A system is suitable for the most demanding PoE applications:
– IEEE 802.3bt from Type 1 to Type 4, and CISCO UPoE+
– HD Base-T PoH up to 100W
– RP3 compliant as defined by EN 50174-2:2018, ISO/IEC 14763-2:2019 and AS/NZS 14763.2:2020
