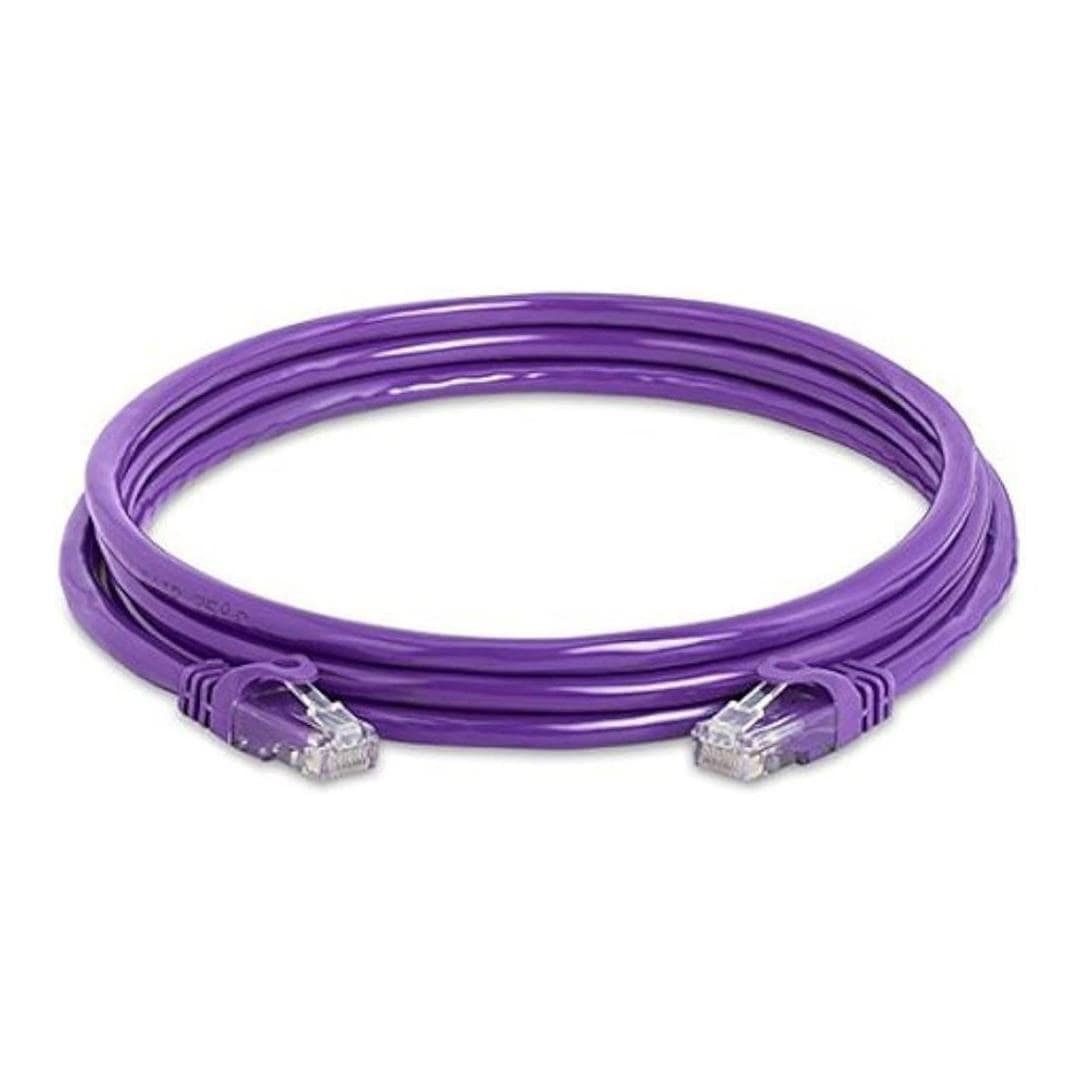

Molex 10m Cat6a Networking Cable Purple PCD-07009-0P

Molex 10m Cat6a Networking Cable Purple PCD-07009-0P

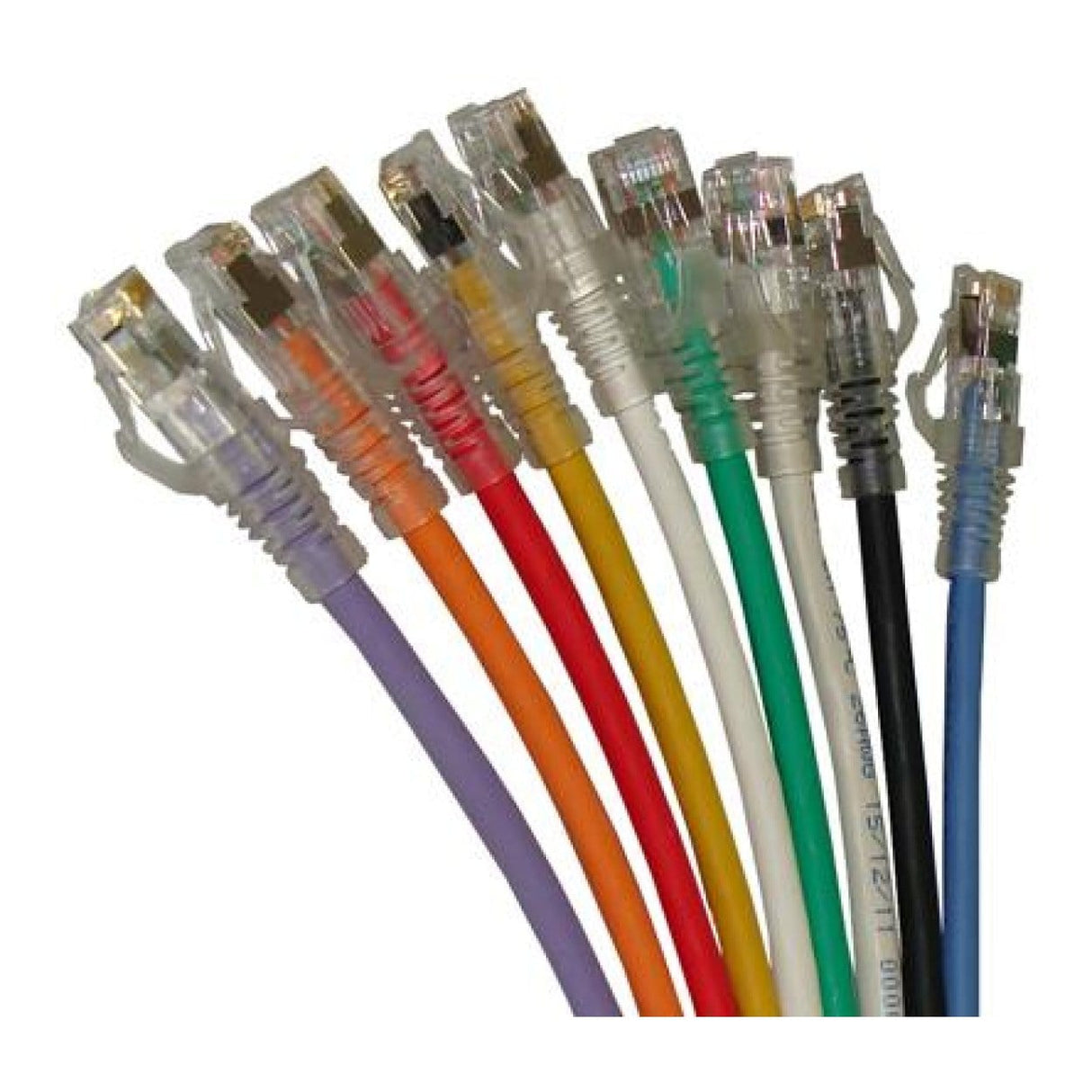

The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution. Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

• Conductor: 4-pair 26 AWG stranded copper wire
• Cable Type: Slim profile
• Boot Type: Clear anti-snag slip-on boots
• Connectors: Pre-terminated with RJ45 plugs
• Wiring Standard: Suitable for EIA 568A or EIA 568B
• Sheath Type: LS0H (Low Smoke Zero Halogen)
• Performance: 10G performance when installed as a complete PowerCat 6A system

Specifications:

Standards Compliance: ISO/IEC 11801 2nd Edition and Amendment 1 Class EA; TIA-568.2-D Category 6A; UL 1863; CSA C22.2

Fire Propagation Tests: IEC 60332-1-1; IEC 61034-2

Conductor Size: 26 AWG stranded copper wire

Screen Material: Aluminium/polyester shield with tinned copper drain wire

Nominal Outer Diameter: 6.5 mm

Sheath: Low Smoke Zero Halogen (LS0H)

Bend Radius: 8 x O.D.

Operating Temperature: -25°C to +55°C

PoE Warranty Note: For new installations of PoE Type 3 / Class 5 and above to qualify for the Molex 25-year Application Assurance Warranty, Category 6A cable must be used throughout. Design eligibility must be verified using the Molex PoE Calculator.

Installation Recommendation: PoE on individual switch ports should be power-disabled before unplugging the associated powered device.

System Recommendation: Use the full range of PowerCat 6A products to maximise cabling and PoE performance.

Plug Minimum Operating Life: 750 insertion cycles

RJ45 Plug Material: Clear polycarbonate (PC)

Boot Material: Clear polycarbonate (PC)

Contact Plating: 1.27 µm gold

RJ45 Plug Compliance: ISO/IEC 60603-7 and FCC 47 Part 68

Maximum Voltage: 150 VAC

Maximum Current: 1.5A @ 25°C

PoE Support: Suitable for IEEE 802.3bt Type 1 to Type 4, Cisco UPoE+, HDBaseT PoH up to 100W

RP3 Compliance: EN 50174-2:2018; ISO/IEC 14763-2:2019; AS/NZS standards

What's in the box:

• Molex 10m Cat6a Networking Cable Purple
