FirstShop  |  SKU: PCD-07009-0J

Molex 10m Cat6a Networking Cable Green PCD-07009-0J

Regular price R 61000
In stock

    Delivery and Shipping

    * Fast Delivery Available - Learn more about FirstShop delivery

    Easy Returns

    Buy With Confidence. 14 Day Returns. Online. Learn More

    Price Match Guarantee

    Found a Better Price? We'll Match It - Guaranteed - Learn More

    Description

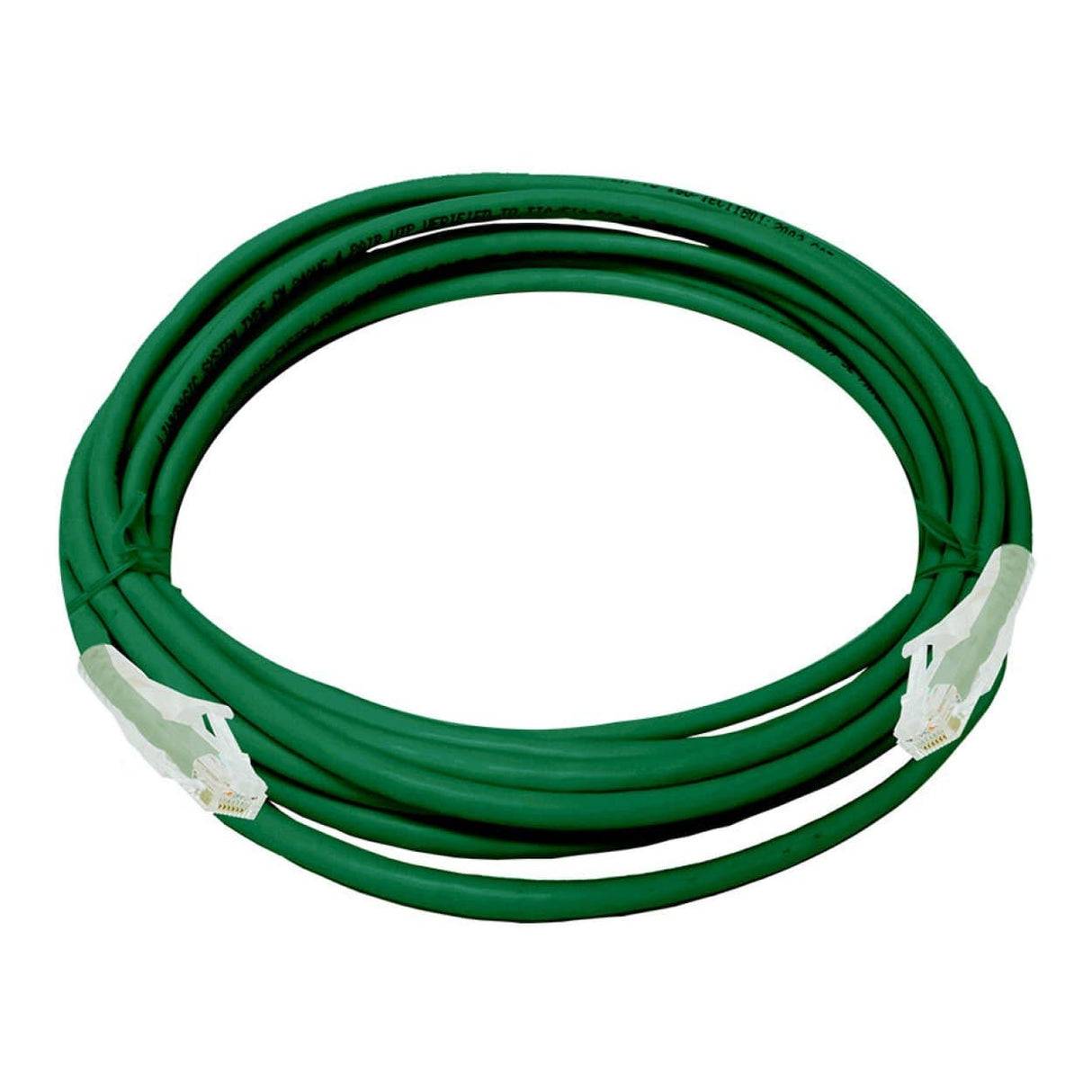

    Molex 10m Cat6a Networking Cable Green PCD-07009-0J

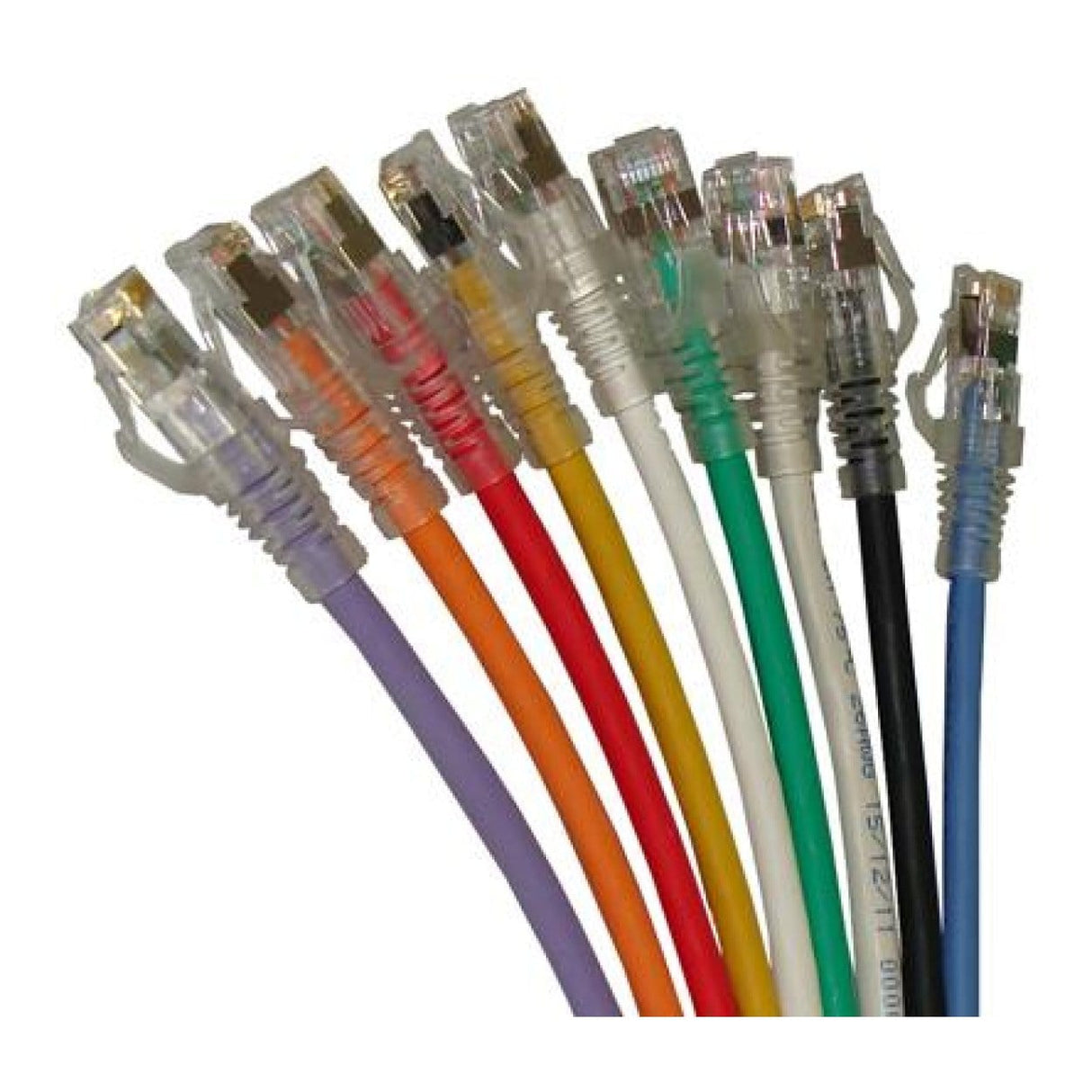

    The Molex PowerCat 6A shielded patch cords are key components of the PowerCat 6A shielded end-to-end solution. Molex PowerCat 6A Patch Cords are designed to support high speed 10GBASE-T networks and are backward compatible with 10/100/1000BASE-T networks. The patch cable is made from high quality four pair 26 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 6A patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

    • Conductor: 4-pair 26 AWG stranded copper wire
    • Cable Type: Slim profile
    • Boot Type: Clear anti-snag slip-on boots
    • Connectors: Pre-terminated with RJ45 plugs
    • Wiring Standard: Suitable for EIA 568A or EIA 568B
    • Sheath Type: LS0H (Low Smoke Zero Halogen)
    • Performance: 10G performance when installed as a complete PowerCat 6A system

    Specifications:

    Standards Compliance: ISO/IEC 11801 2nd Edition and Amendment 1 Class EA; TIA-568.2-D Category 6A; UL 1863; CSA C22.2

    Fire Propagation Tests: IEC 60332-1-1; IEC 61034-2

    Conductor Size: 26 AWG stranded copper wire

    Screen Material: Aluminium/polyester shield with tinned copper drain wire

    Nominal Outer Diameter: 6.5 mm

    Sheath: Low Smoke Zero Halogen (LS0H)

    Bend Radius: 8 x O.D.

    Operating Temperature: -25°C to +55°C

    PoE Warranty Note: For new installations of PoE Type 3 / Class 5 and above to qualify for the Molex 25-year Application Assurance Warranty, Category 6A cable must be used throughout. Design eligibility must be verified using the Molex PoE Calculator.

    Installation Recommendation: PoE on individual switch ports should be power-disabled before unplugging the associated powered device.

    System Recommendation: Use the full range of PowerCat 6A products to maximise cabling and PoE performance.

    Plug Minimum Operating Life: 750 insertion cycles

    RJ45 Plug Material: Clear polycarbonate (PC)

    Boot Material: Clear polycarbonate (PC)

    Contact Plating: 1.27 µm gold

    RJ45 Plug Compliance: ISO/IEC 60603-7 and FCC 47 Part 68

    Maximum Voltage: 150 VAC

    Maximum Current: 1.5A @ 25°C

    PoE Support: Suitable for IEEE 802.3bt Type 1 to Type 4, Cisco UPoE+, HDBaseT PoH up to 100W

    RP3 Compliance: EN 50174-2:2018; ISO/IEC 14763-2:2019; AS/NZS standards

    What's in the box:

    • Molex 10m Cat6a Networking Cable Green
