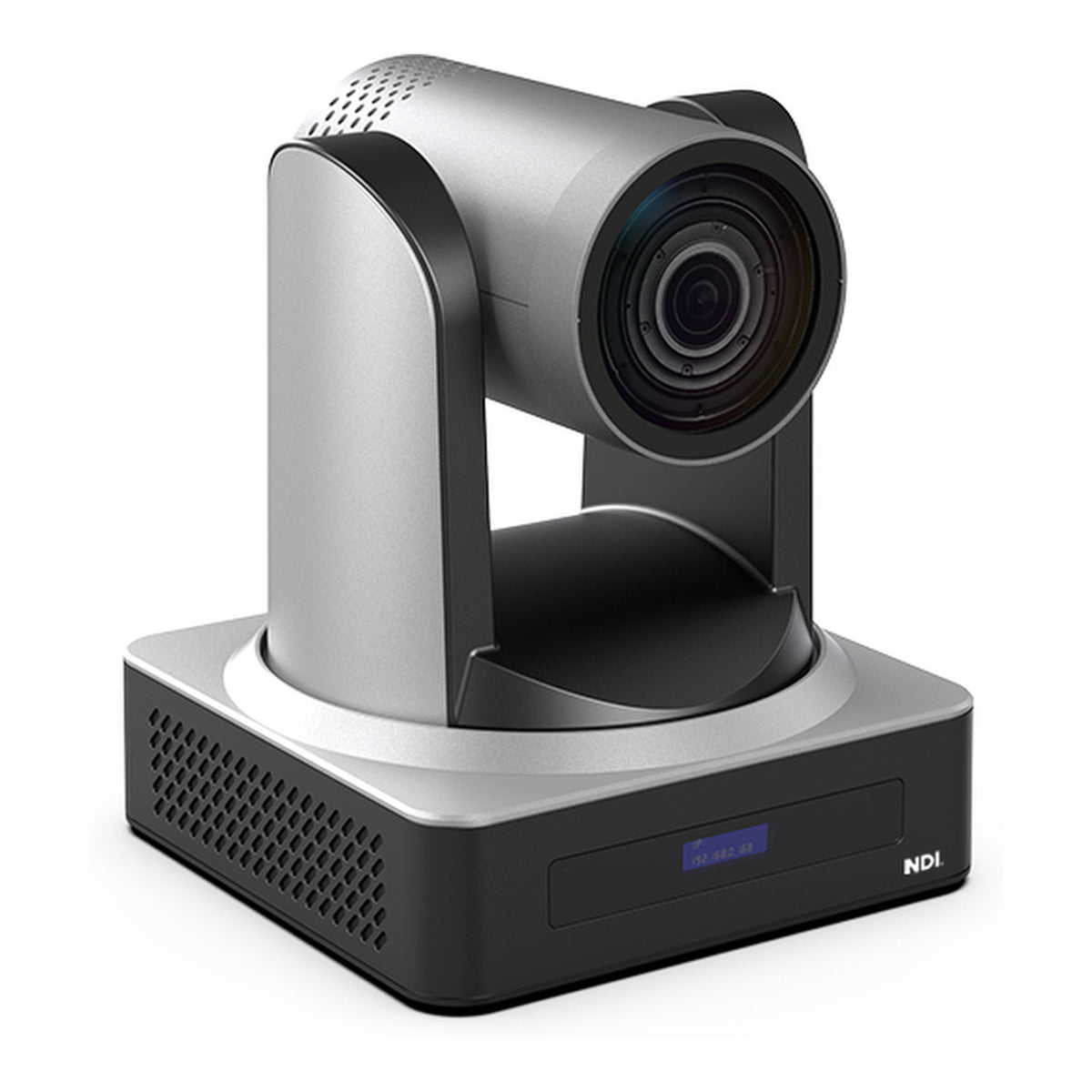

Minrray UV510K1 8.42MP 4K AI PTZ Camera

Minrray UV510K1 8.42MP 4K AI PTZ Camera

Capture professional 4K video with the Minrray UV510K1 AI PTZ Camera. Featuring an 8.42MP Sony CMOS sensor, 20x optical zoom and Ultra HD video at up to 60fps, this camera delivers detailed footage for video conferencing, live streaming and lecture capture. AI-powered presenter tracking, intelligent autofocus and smooth motorised pan-tilt movement enable automated recording. HDMI, SDI, USB 3.0 and Gigabit Ethernet connections provide flexible integration with professional audiovisual systems.

Key Features:

• 8.42MP 1/2.8-inch Sony CMOS image sensor
• 4K UHD resolution up to 3840 x 2160 at 60fps
• 20x optical zoom and 16x digital zoom
• 5.05–91.49mm focal length
• 60.04-degree maximum horizontal viewing angle
• AI presenter tracking and automatic framing
• Face and human-shape recognition
• Real-time, stage, regional and smart framing modes
• Fast and accurate automatic focus
• Advanced 2D and 3D noise reduction
• Quiet motorised pan and tilt
• HDMI, SDI, USB 3.0 and IP video outputs
• H.264 and H.265 video compression
• RTSP, RTMP, SRT and ONVIF support
• Gigabit Ethernet with PoE+ support
• RS-232 and RS-485 control interfaces
• VISCA and Pelco protocol compatibility
• Up to 255 programmable camera presets
• Built-in OLED status display
• Optional NDI and Dante AV configurations
• Infrared remote control included

Features

4K Ultra HD Video

The 1/2.8-inch 8.42MP Sony CMOS sensor captures detailed 3840 x 2160 video at up to 60fps through supported interfaces, delivering clear footage for presentations, conferencing and professional broadcasting.

20x Optical Zoom

The UV510K1 features a 20x optical zoom lens with a 5.05–91.49mm focal range. Capture wide room views or detailed close-ups of presenters and participants from a distance.

AI Dynamic Tracking

Intelligent face and human-shape recognition enable automatic subject tracking. Four tracking modes support real-time tracking, stage tracking, regional tracking and smart framing.

Fast Automatic Focus

Advanced autofocus algorithms help maintain sharp image quality during zoom adjustments, camera movement and changes in subject distance.

Smooth Motorised PTZ

High-precision stepper motors enable smooth, quiet horizontal and vertical movement for professional recordings and live productions.

Advanced Image Processing

Integrated ISP processing and 2D/3D noise reduction improve image clarity, colour reproduction and video performance under varying lighting conditions.

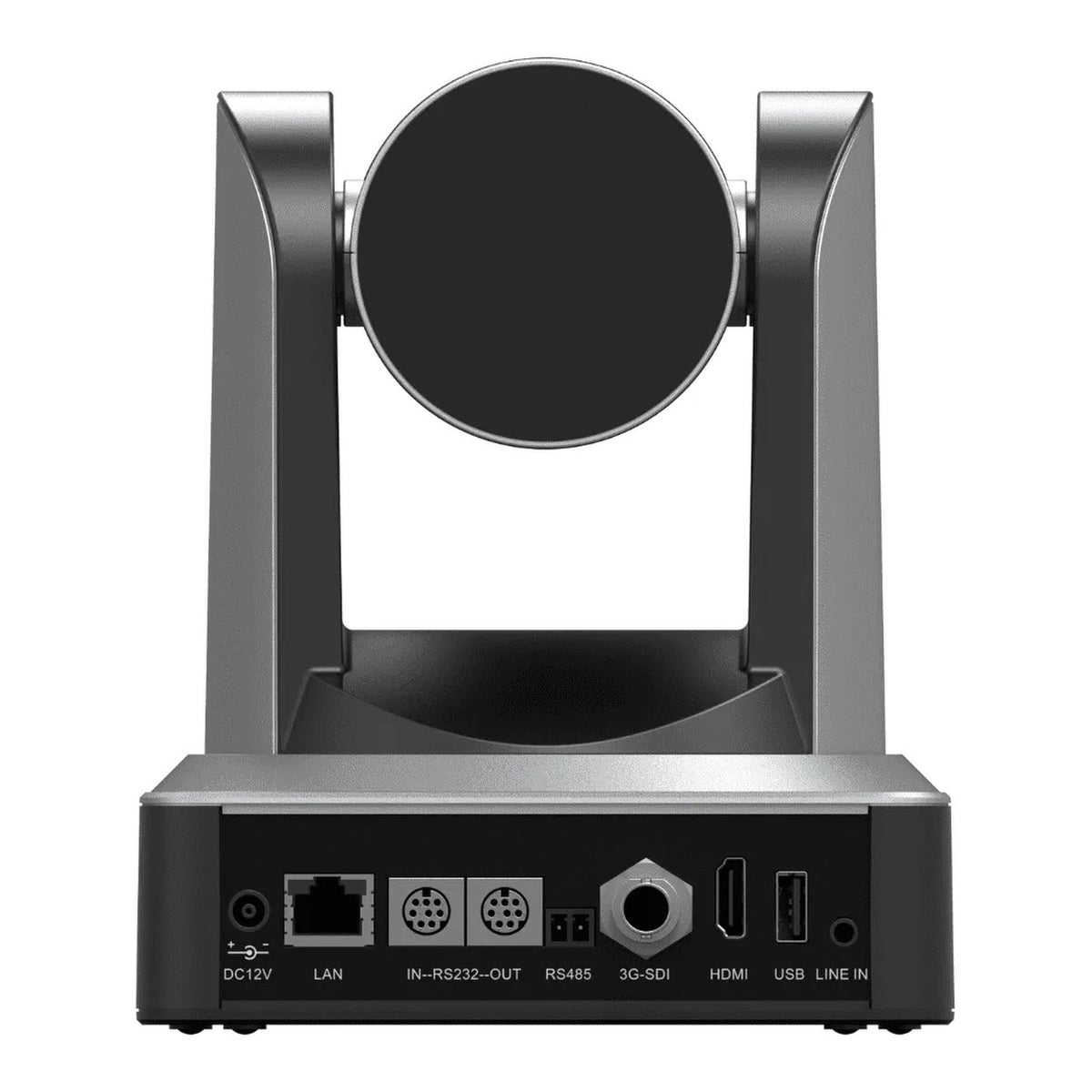

Professional Video Connectivity

HDMI supports 4K output, while SDI provides up to Full HD 1080p60. USB 3.0 and Gigabit LAN offer additional connections for compatible computers, recorders and production systems.

Network Streaming

H.264 and H.265 compression enable efficient video streaming. Support for RTSP, RTMP, SRT and ONVIF allows integration with compatible network video systems.

Flexible Camera Control

RS-232, RS-485 and IP control enable integration with professional AV controllers. VISCA and Pelco protocols support remote operation and up to 255 camera presets.

PoE+ Connectivity

Compatible PoE+ equipment can provide network connectivity and power through Ethernet, simplifying supported camera installations.

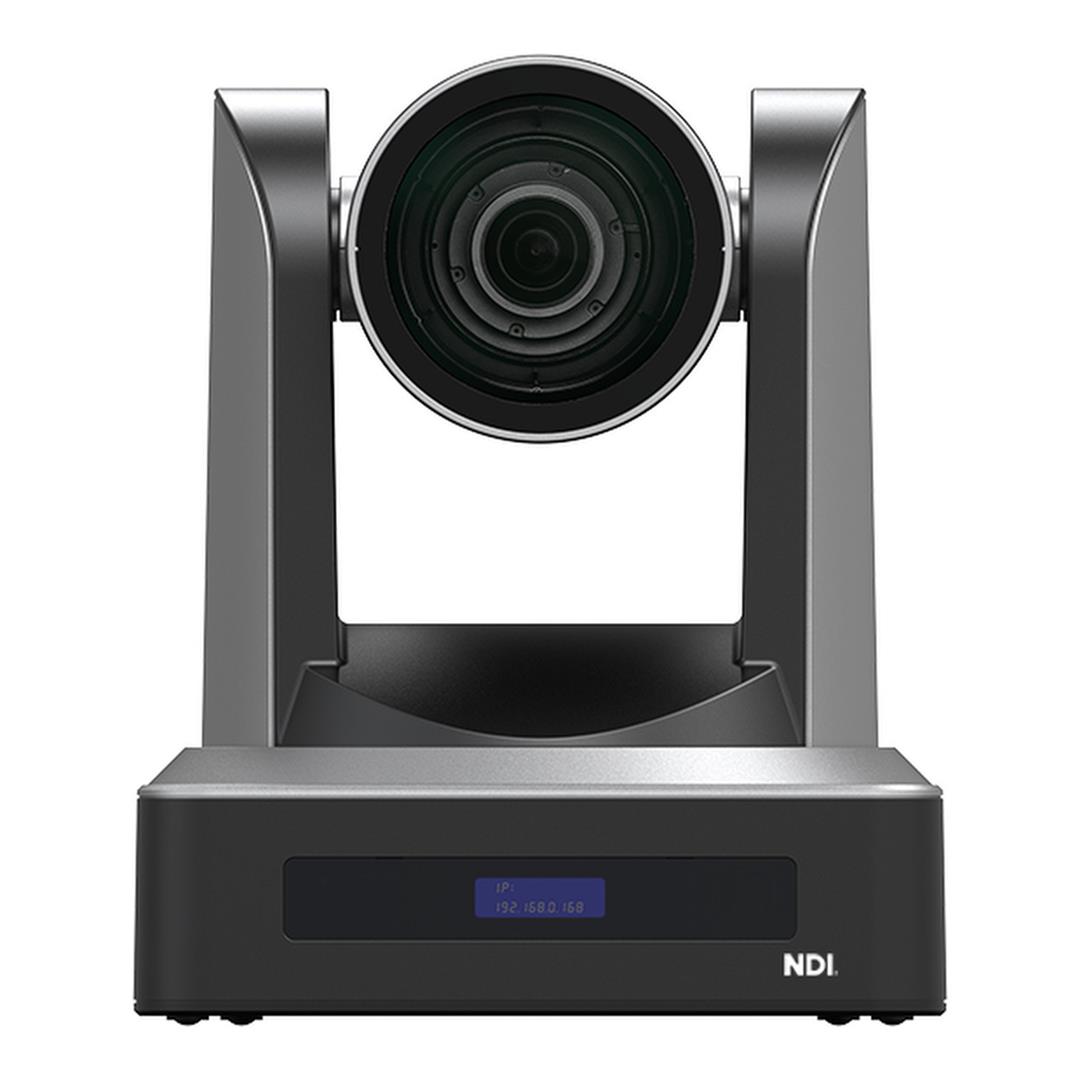

OLED Status Display

The integrated OLED display provides useful camera information, including output resolution and network IP address.

Important Information:

• Model UV510K1 is the 20x optical zoom version.
• Maximum 4K video output is 60fps on supported interfaces.
• SDI supports up to 1080p60, not 4K.
• NDI and Dante AV depend on the ordered configuration.
• PoE+ requires compatible network equipment.
• External microphones and streaming equipment are not included.
• Warranty is subject to regional supplier terms.

Technical Specifications:

What's in the Box:

• 1 x Minrray UV510K1 4K AI PTZ Camera
• Power Adapter
• RS-232 Control Cable
• Infrared Remote Control
• User Manual
