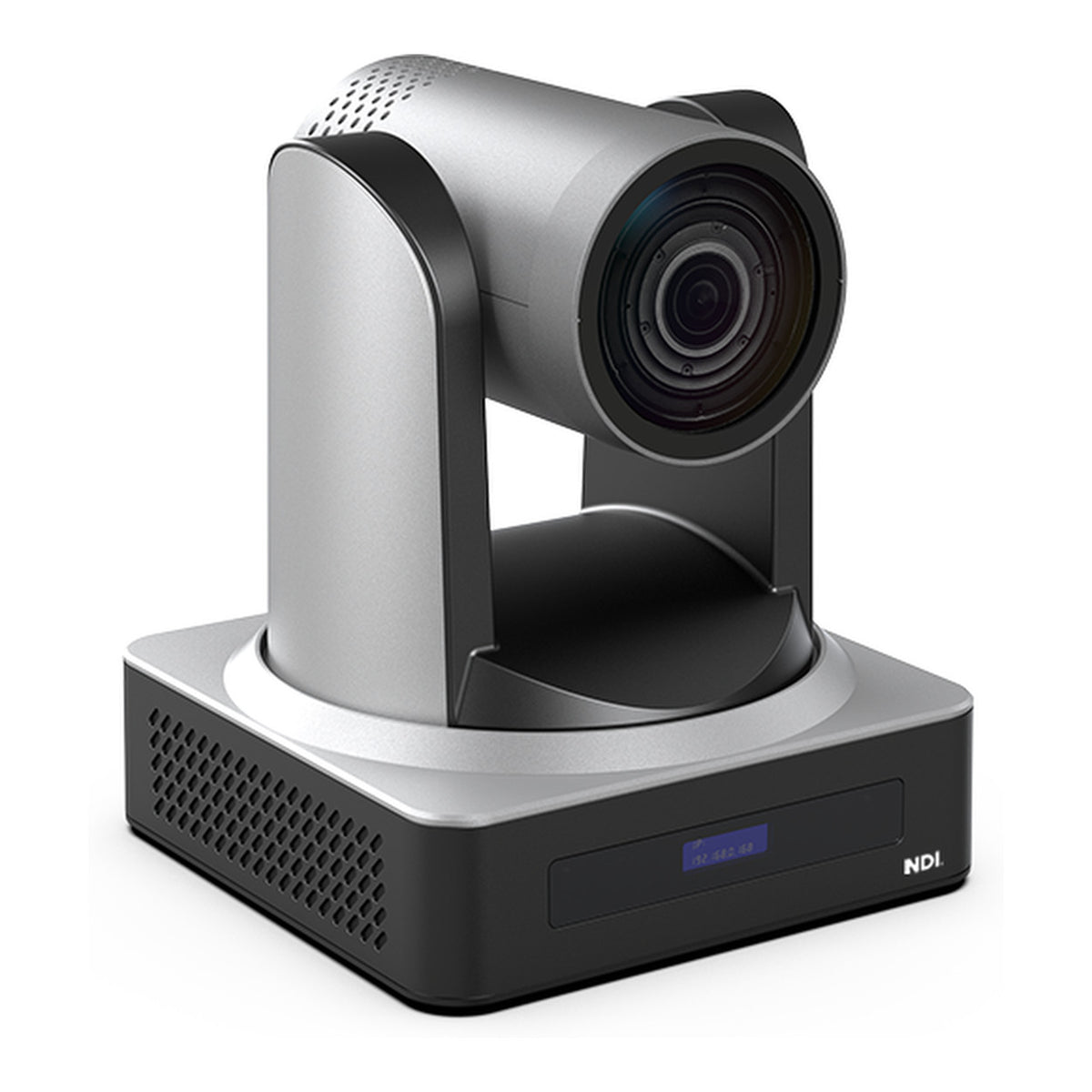

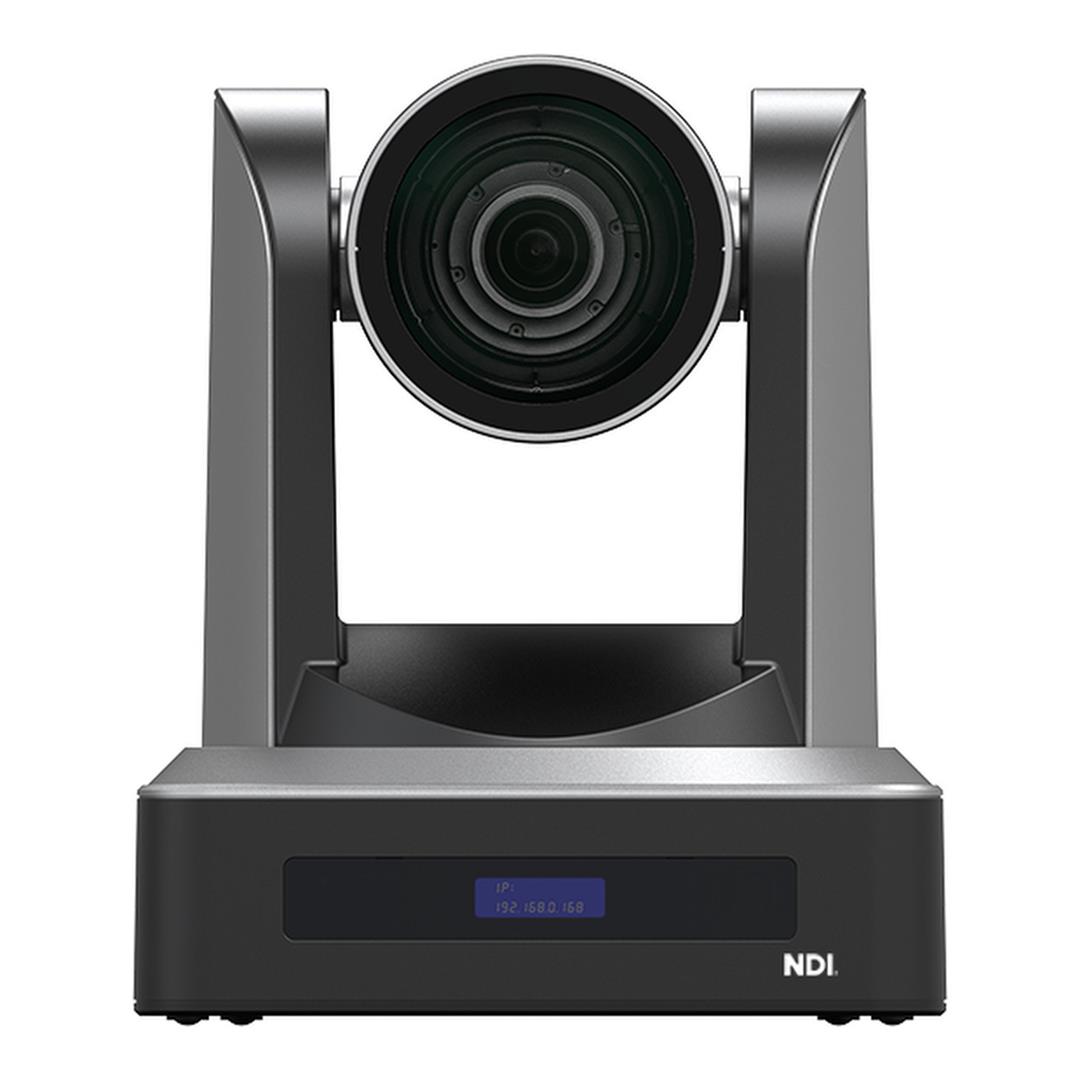

Minrray UV510K0 8.42MP 4K AI PTZ Camera

Minrray UV510K0 8.42MP 4K AI PTZ Camera

Capture professional 4K video with the Minrray UV510K0 AI PTZ Camera. Featuring an 8.42MP CMOS sensor, 12x optical zoom and Ultra HD video at up to 60fps, it delivers detailed footage for conferencing, live streaming and lecture capture. AI-powered presenter tracking, precise autofocus and quiet motorised movement enable automated recording. HDMI, SDI, USB 3.0, Gigabit LAN and PoE+ support offer flexible professional AV connectivity.

Key Features:

• 8.42MP 1/2.8-inch CMOS image sensor
• 4K UHD resolution up to 3840 x 2160 at 60fps
• 12x optical and 16x digital zoom
• 4.1–49.2mm focal length
• 70.4-degree maximum horizontal viewing angle
• AI-powered presenter tracking and auto-framing
• Face and human-body recognition
• Four intelligent tracking modes
• Fast, accurate automatic focus
• Advanced 2D and 3D noise reduction
• Quiet motorised pan and tilt
• HDMI, SDI, USB 3.0 and IP video outputs
• H.264 and H.265 video compression
• RTSP, RTMP and SRT network streaming
• Gigabit Ethernet with PoE+ support
• RS-232 and RS-485 control interfaces
• VISCA and Pelco control compatibility
• Up to 255 programmable camera presets
• Optional NDI and Dante AV configurations
• Infrared remote control included

Features

4K Ultra HD Image Quality

The 1/2.8-inch 8.42MP CMOS sensor captures detailed 3840 x 2160 video at up to 60fps through supported outputs, providing clear footage for professional presentations and events.

12x Optical Zoom

The UV510K0 features a 4.1–49.2mm lens with 12x optical zoom, allowing wide room coverage and detailed close-ups without digital enlargement.

Intelligent AI Tracking

AI face and human-body recognition enable automatic presenter tracking. Real-time, stage, regional and intelligent framing modes support different recording environments.

Fast Automatic Focus

Advanced autofocus algorithms help maintain sharp image quality during camera movement and changes in subject distance.

Quiet Motorised PTZ

Precision stepper motors deliver smooth pan and tilt movement with minimal operational noise, supporting recordings and presentations.

Advanced Noise Reduction

Built-in 2D and 3D noise reduction helps improve image clarity and reduce visible noise in challenging lighting conditions.

Professional Video Connectivity

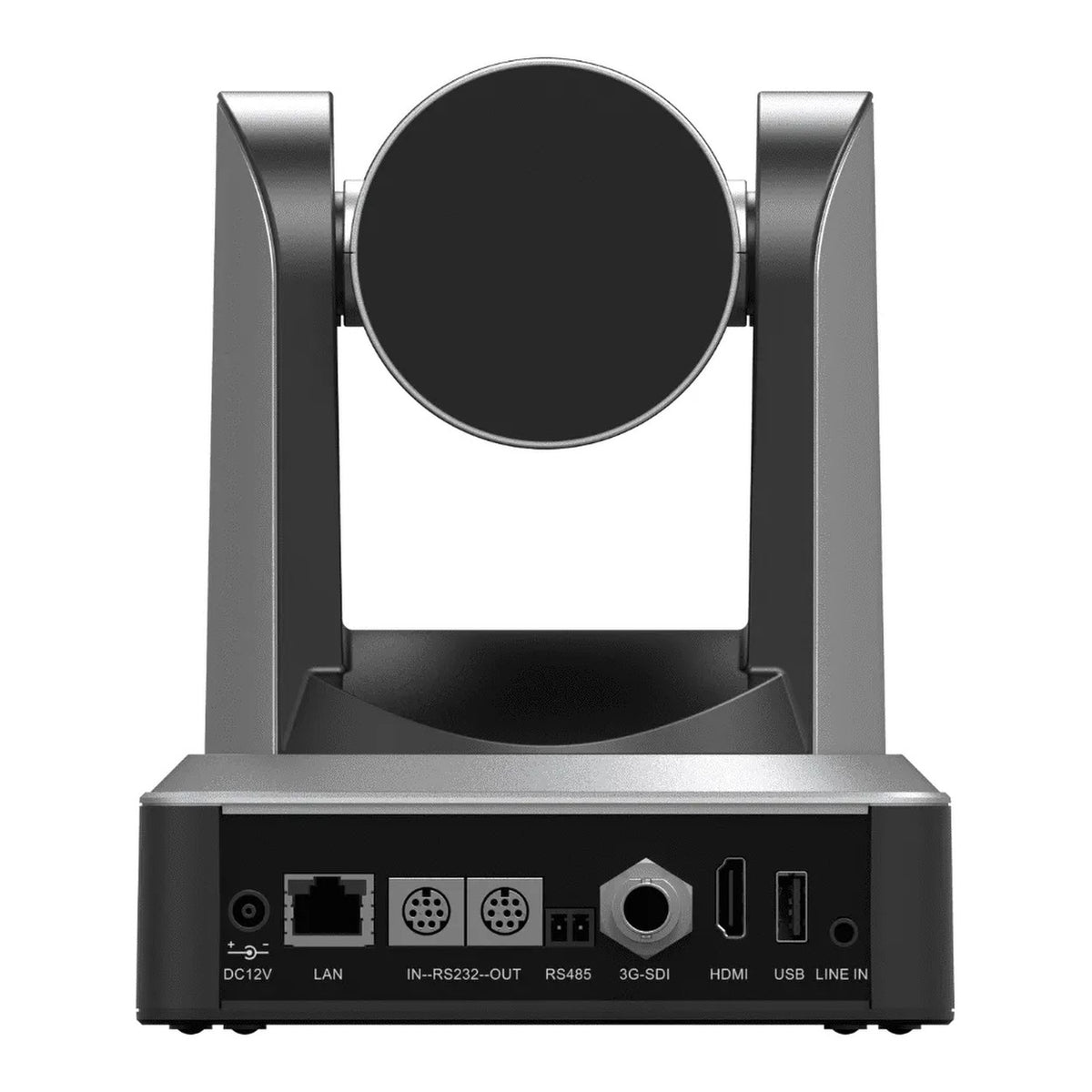

HDMI supports 4K output, while SDI supports up to 1080p60. USB 3.0 and Ethernet provide additional connectivity for compatible computers and production equipment.

IP Streaming

H.264 and H.265 compression support efficient network video transmission. Compatible streaming protocols include RTSP, RTMP and SRT.

Flexible Camera Control

RS-232, RS-485 and IP control support integration with compatible professional AV controllers. Up to 255 presets enable quick selection of programmed camera positions.

PoE+ Power Support

Compatible PoE+ network equipment can provide power over Ethernet, simplifying installation and reducing cabling requirements.

Important Information:

• Model UV510K0 is the 12x optical zoom version.
• Maximum 4K output is 60fps on supported interfaces.
• SDI supports up to 1080p60, not 4K.
• NDI and Dante AV are optional configurations.
• PoE+ requires compatible networking equipment.
• External microphones are not included.
• Warranty depends on regional supplier terms.

Technical Specifications:

What's in the Box:

• 1 x Minrray UV510K0 4K AI PTZ Camera
• Power Adapter
• RS-232 Control Cable
• Infrared Remote Control
• User Manual
