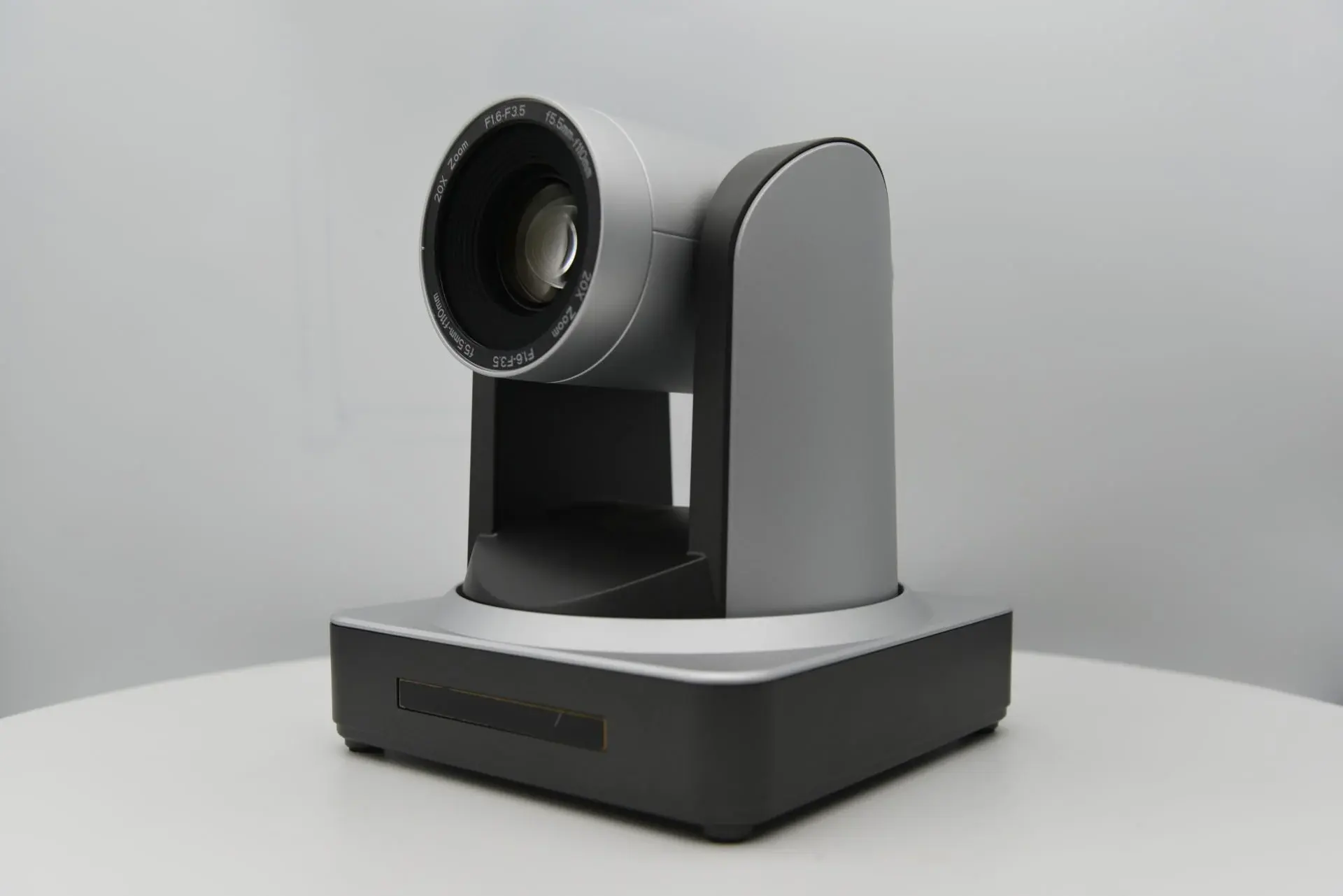

Minrray UV510E7-20 FHD PoE PTZ Camera

Minrray UV510E7-20 FHD PoE PTZ Camera

The Minrray UV510E7-20 FHD PoE PTZ Camera delivers professional Full HD video performance for conferencing, live streaming, education and broadcasting. Featuring a 2.07MP Sony CMOS sensor, 20x optical zoom and smooth pan-tilt-zoom operation, this camera captures detailed 1080p video at up to 60fps. With HDMI, 3G-SDI, USB 2.0 and LAN connectivity, H.265/H.264 compression, Power over Ethernet and remote PTZ control, the UV510E7-20 provides flexible integration into professional audiovisual environments.

Key Features:

• Professional Full HD PTZ camera
• Model: UV510E7-20
• 1/2.8-inch Sony CMOS image sensor
• 2.07MP effective resolution
• 1920 x 1080 Full HD video at up to 60fps
• 20x optical zoom for detailed close-ups
• 10x digital zoom
• Viewing angle: 3.45° to 60.04°
• Advanced autofocus technology
• Automatic exposure and white balance
• Smooth, quiet pan-tilt-zoom movement
• Advanced 2D and 3D noise reduction
• H.265 and H.264 video compression
• HDMI and 3G-SDI video outputs
• USB 2.0 and LAN connectivity
• Power over Ethernet support
• RS232 and RS422/RS485-compatible control
• Remote camera positioning and operation
• Suitable for video conferencing and live streaming

Features

Professional Full HD Video

The UV510E7-20 captures video at resolutions up to 1920 x 1080 with frame rates reaching 60fps. This provides smooth motion and detailed image quality for professional meetings, presentations and video production.

2.07MP Sony CMOS Sensor

Equipped with a 1/2.8-inch Sony CMOS sensor, the camera delivers detailed images with accurate colour reproduction. Advanced image processing helps maintain balanced brightness and improved clarity across different lighting conditions.

20x Optical Zoom

The integrated 20x optical zoom lens enables precise close-up framing of distant subjects while maintaining optical image detail. This makes the camera suitable for conference rooms, lecture halls and larger presentation spaces.

Flexible Viewing Angle

Featuring a viewing angle ranging from approximately 60.04° at wide-angle to 3.45° at telephoto, the camera supports flexible framing of both wider scenes and individual subjects.

Smooth PTZ Movement

High-precision stepping motors provide controlled pan and tilt movement for accurate camera positioning. The quiet motor system supports smooth adjustments during meetings, presentations and recordings.

Automatic Image Adjustment

Advanced autofocus, automatic exposure and automatic white balance functions help optimise image quality as lighting and subject positions change, reducing the need for frequent manual adjustments.

Advanced Noise Reduction

Integrated 2D and 3D noise reduction technologies minimise unwanted image noise while preserving clarity, helping produce cleaner video in challenging lighting environments.

H.265 and H.264 Compression

Support for H.265 and H.264 encoding enables efficient video transmission across IP networks. These compression technologies help maintain image quality while managing network bandwidth requirements.

Multiple Video Interfaces

HDMI, 3G-SDI, USB 2.0 and LAN interfaces allow integration with compatible video conferencing systems, computers, capture equipment and professional video production infrastructure.

Power over Ethernet

The PoE-enabled LAN interface supports network connectivity and power delivery through a compatible Ethernet connection, helping simplify installation and reduce additional power cabling.

Remote PTZ Control

RS232 and RS422/RS485-compatible control interfaces support remote camera operation through compatible controllers and AV control systems. Users can adjust camera positioning and zoom without accessing the camera directly.

Professional AV Integration

The UV510E7-20 is designed for use in video conferencing rooms, educational facilities, houses of worship, live streaming environments and professional audiovisual installations.

Technical Specifications:

What's in the Box:

• 1 x Minrray UV510E7-20 FHD PoE PTZ Camera
• 1 x Power Adapter
• 1 x RS232 Control Cable
• 1 x Remote Control
• 1 x User Manual
• Warranty Documentation

The Minrray UV510E7-20 FHD PoE PTZ Camera combines Full HD 1080p video, 20x optical zoom, precise motorised movement and versatile connectivity in a professional camera system. With PoE support, advanced image processing and multiple video outputs, it provides reliable functionality for modern conferencing, streaming and audiovisual applications.
