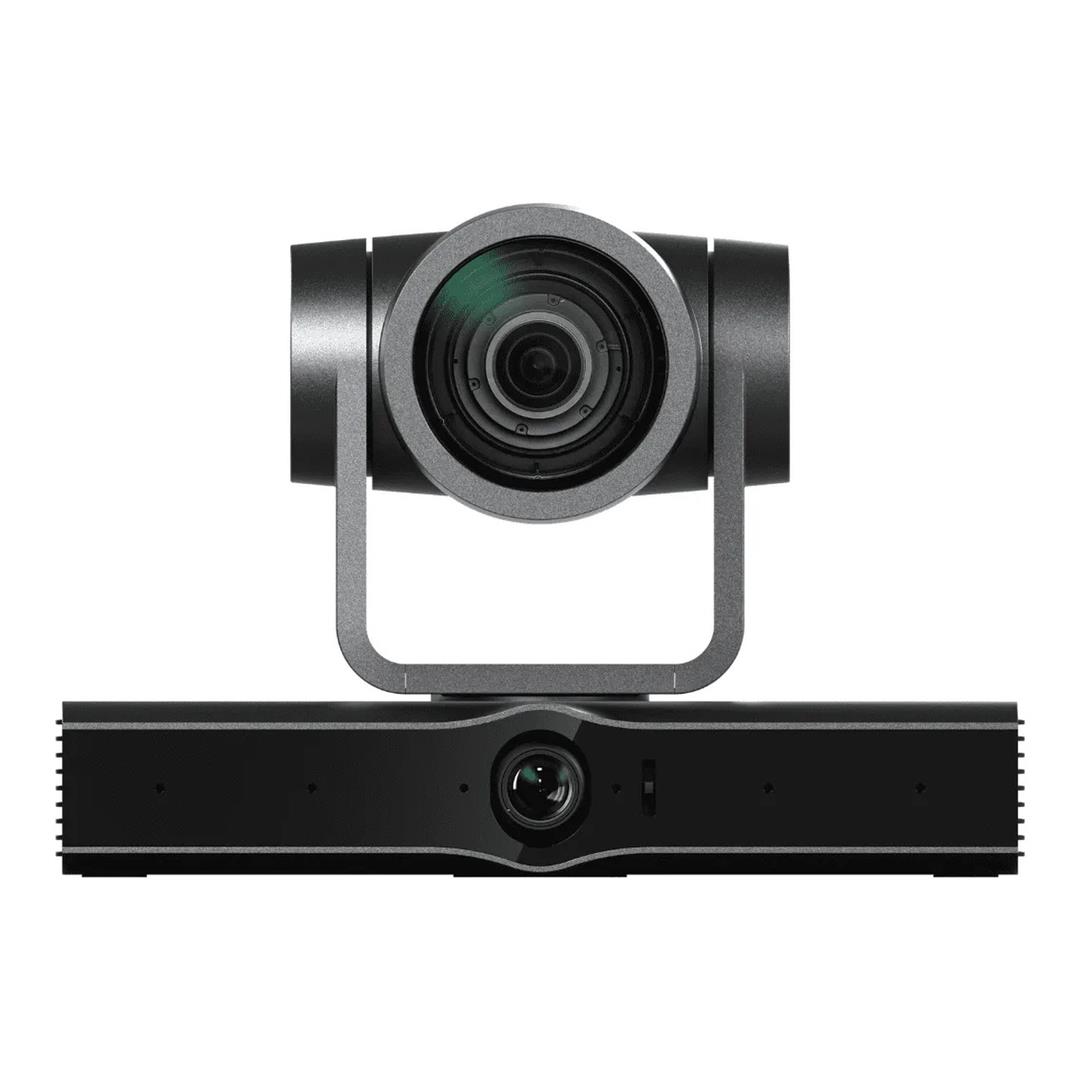

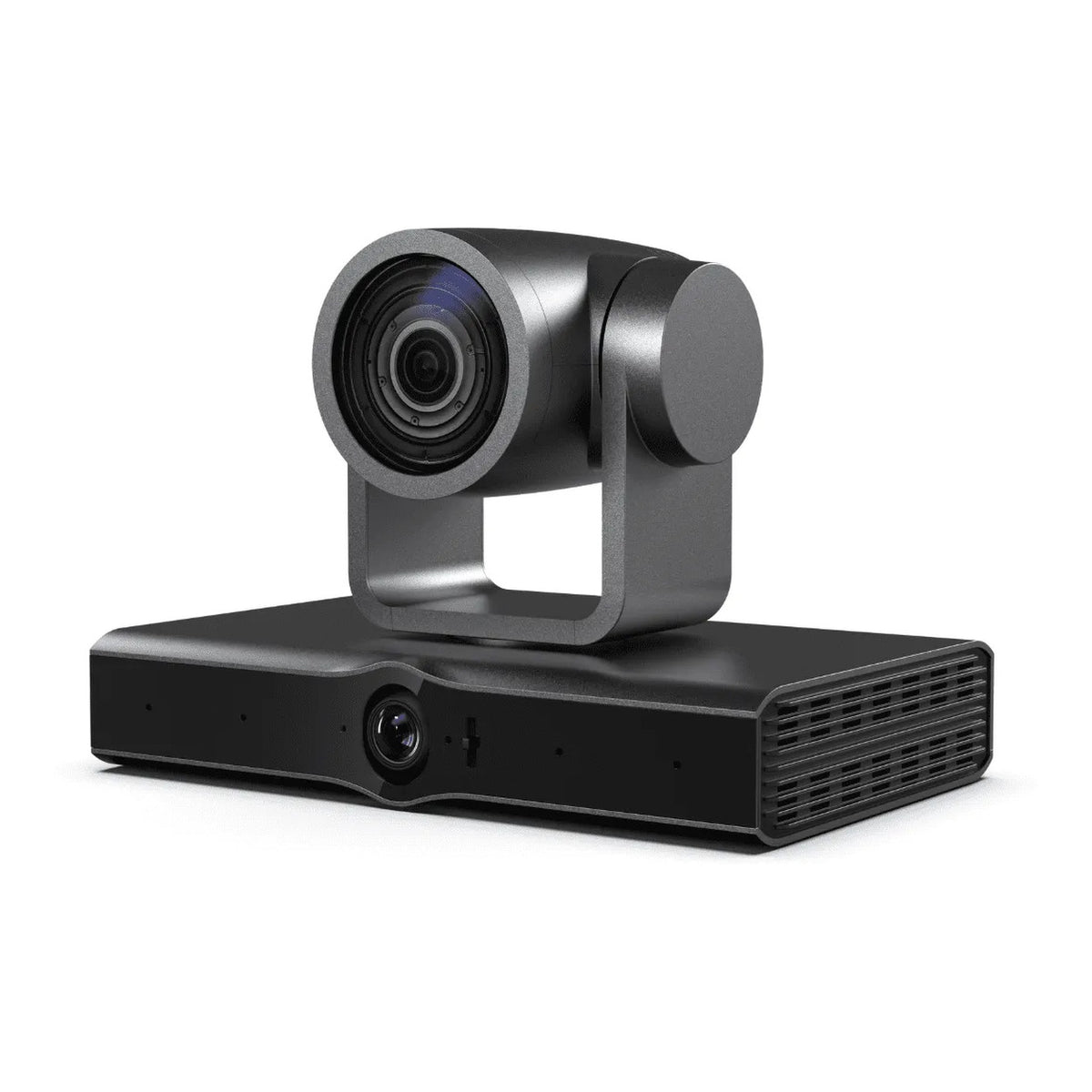

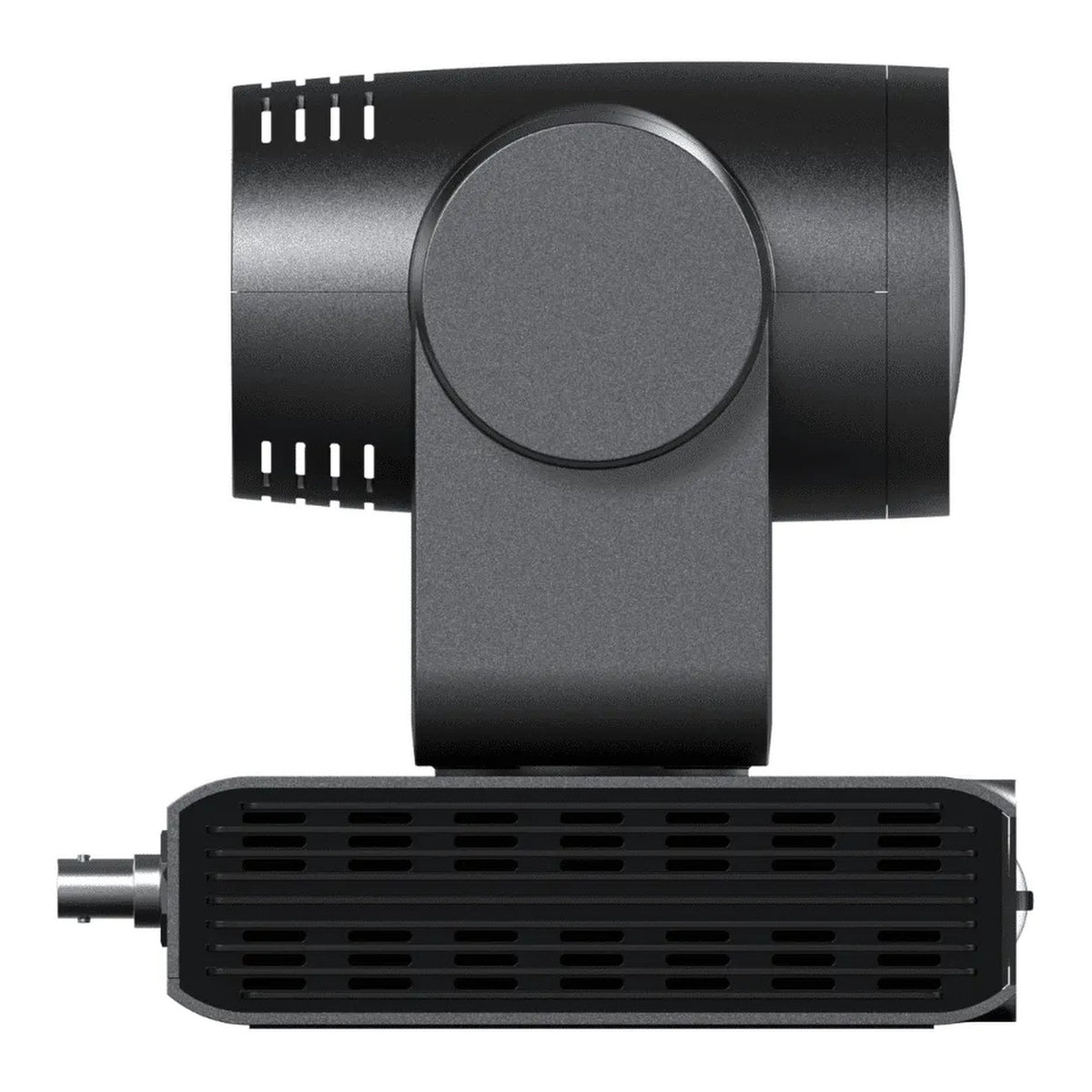

Minrray UV490D3 8.42MP 4K Dual-Lens AI PTZ Camera

Minrray UV490D3 8.42MP 4K Dual-Lens AI PTZ Camera

Capture professional video with the Minrray UV490D3 4K Dual-Lens AI PTZ Camera. Combining an 8.42MP Sony CMOS sensor, 12x optical zoom and a dedicated panoramic lens, it delivers 4K UHD video at up to 30fps with intelligent subject tracking. A built-in six-microphone array enables speaker localisation, while HDMI, SDI, USB 3.0 and Gigabit Ethernet support professional conferencing, lecture capture and live streaming applications.

Key Features:

• 8.42MP Sony CMOS image sensor
• 4K UHD resolution up to 3840 x 2160 at 30fps
• Integrated panoramic and PTZ camera lenses
• 12x optical and 10x digital zoom
• 80-degree wide-angle PTZ lens
• 110-degree panoramic horizontal view
• Adjustable panoramic lens angle of ±15 degrees
• AI-powered automatic subject tracking
• Real-time, stage and regional tracking modes
• Intelligent group framing and face detection
• ReID technology for consistent subject tracking
• Six-microphone array with voice localisation
• Advanced autofocus and 2D/3D noise reduction
• HDMI, SDI, USB 3.0 and IP video outputs
• H.264 and H.265 video compression
• RTSP, RTMP, RTMPS, SRT and ONVIF support
• Gigabit Ethernet with PoE+ support
• RS-232, RS-485 and IP camera control
• Up to 255 programmable presets
• Quiet motorised pan and tilt operation
• Suitable for conferencing and lecture capture

Features

4K Ultra HD Video

The 1/2.8-inch Sony CMOS sensor captures detailed 3840 x 2160 video at up to 30fps, providing clear image reproduction for meetings, presentations and recorded events.

Integrated Dual-Lens Design

The camera combines a wide panoramic lens with a motorised close-up lens. This allows it to monitor the wider scene while capturing detailed views of speakers and presenters.

12x Optical Zoom

The PTZ lens offers 12x optical zoom and an 8 to 80-degree horizontal viewing range, enabling wide room coverage and detailed close-up shots.

Advanced AI Tracking

Four tracking modes support real-time tracking, stage tracking, regional tracking and intelligent framing. ReID technology helps maintain tracking of the selected subject.

Intelligent Voice Tracking

Six integrated omnidirectional microphones detect the direction of speech, allowing the camera to locate and follow speakers automatically.

Automatic Group Framing

Face detection and intelligent image analysis help position participants within the frame, reducing the need for manual camera adjustment.

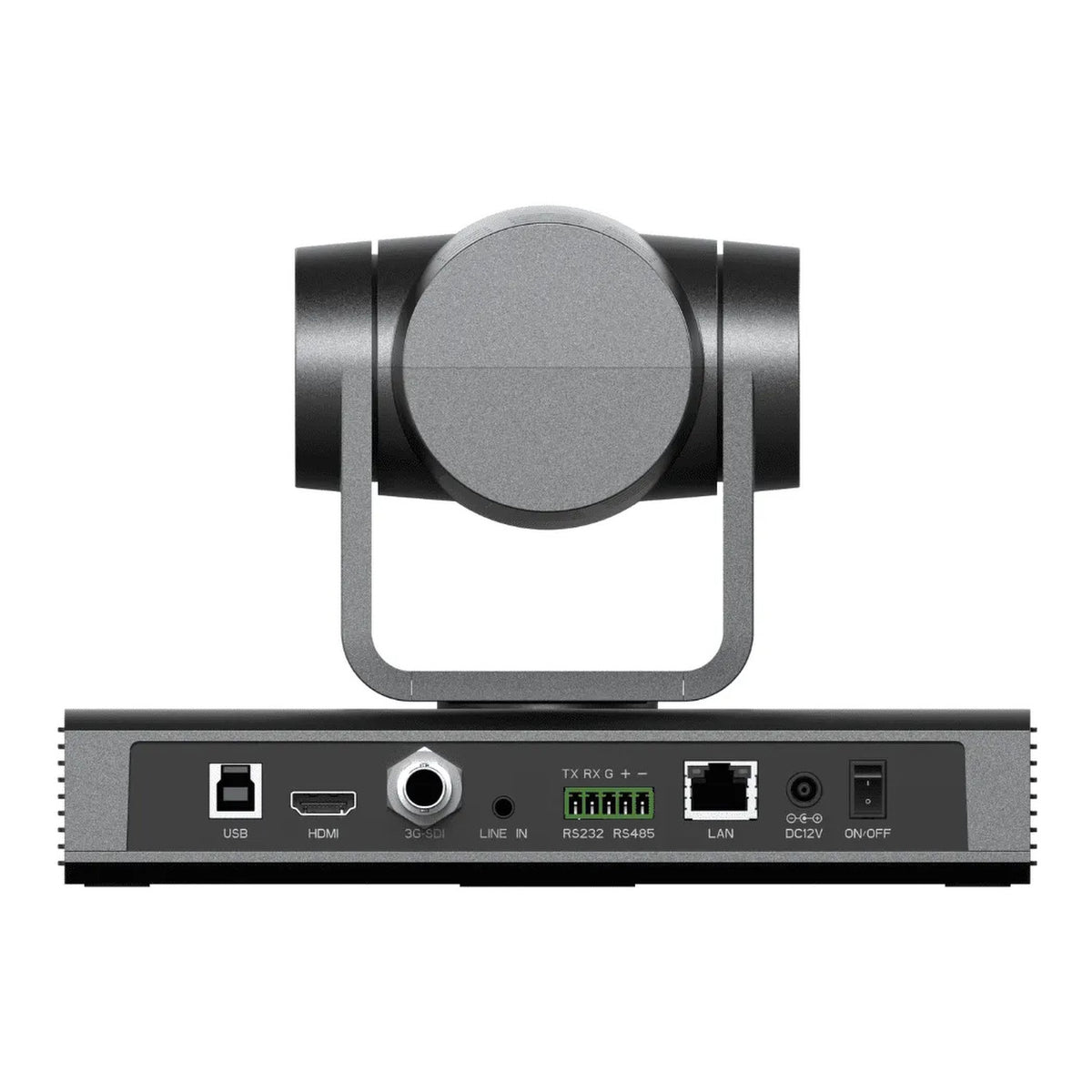

Professional Video Connectivity

HDMI, SDI, USB 3.0 and Gigabit Ethernet outputs enable integration with compatible computers, recording equipment, video switchers and streaming systems.

Flexible Network Streaming

H.264 and H.265 compression support efficient video transmission, while RTSP, RTMP, RTMPS, SRT and ONVIF provide network integration options.

Remote PTZ Control

VISCA, Pelco-D and Pelco-P protocols support compatible control systems. Up to 255 presets allow quick selection of programmed camera positions.

PoE+ Power Support

PoE+ enables compatible network equipment to provide power through Ethernet, reducing the need for a separate power adapter in supported installations.

Important Information:

• Model: UV490D3.
• Maximum 4K output is 30fps.
• The camera uses 12x optical zoom.
• The panoramic and close-up streams support different resolutions.
• PoE+ requires compatible network equipment.
• Streaming and conferencing compatibility depends on the connected system.
• Designed for professional indoor applications.
• Warranty terms depend on the regional supplier.

Technical Specifications:

What's in the Box:

• 1 x Minrray UV490D3 Dual-Lens PTZ Camera
• Power Adapter
• Remote Control
• USB Connection Cable
• Control Cable
• User Documentation
