Minrray UV417 8.29MP 4K AI Tracking PTZ Camera

Minrray UV417 8.29MP 4K AI Tracking PTZ Camera

The Minrray UV417 8.29MP 4K AI Tracking PTZ Camera delivers professional Ultra HD video for conferencing, education, live streaming and broadcasting. Featuring a 1/2.8-inch Sony CMOS sensor, 10x optical zoom and intelligent AI human tracking, the camera captures detailed 4K video at up to 30fps. With HDMI, USB 3.0 and LAN connectivity, advanced autofocus, automatic subject tracking and smooth motorised PTZ operation, the UV417 provides versatile video functionality for professional audiovisual environments.

Key Features:

• Professional 4K Ultra HD AI tracking PTZ camera
• Model: UV417
• 1/2.8-inch Sony CMOS image sensor
• 8.29MP effective resolution
• 3840 x 2160 video at up to 30fps
• 10x optical zoom and 16x digital zoom
• 67.5-degree wide-angle lens
• Intelligent AI human tracking technology
• Real-time and area tracking modes
• Fast, accurate automatic focusing
• Advanced 2D and 3D noise reduction
• Smooth and quiet motorised PTZ operation
• HDMI, USB 3.0 and LAN video outputs
• USB 2.0 multifunctional interface
• H.265, H.264 and MJPEG compression
• RTSP, RTMP, ONVIF and SRT support
• RS232 camera control interface
• VISCA, Pelco-D and Pelco-P protocols
• Up to 255 programmable presets
• Built-in gravity sensor for automatic image flipping
• Infrared remote control
• Optional PoE configuration
• Low-power sleep functionality

Features

Professional 4K Ultra HD Video

The UV417 captures video at resolutions up to 3840 x 2160 at 30fps. Its advanced image processing provides detailed imagery, natural colours and excellent clarity for professional conferencing, presentations and video production.

8.29MP Sony CMOS Sensor

The integrated 1/2.8-inch Sony CMOS sensor provides high-resolution video with accurate colour reproduction. Advanced ISP processing optimises brightness, image detail and overall picture quality.

Intelligent AI Human Tracking

Built-in AI image recognition automatically detects and follows human subjects. This enables presenters to move naturally while the camera adjusts its position to maintain suitable framing.

Real-Time and Area Tracking

The UV417 supports real-time tracking and area tracking modes. These functions provide flexible automated camera operation for lecture capture, presentations and live streaming environments.

10x Optical Zoom

The integrated 10x optical zoom lens enables close-up recording of distant subjects without sacrificing optical detail. Additional 16x digital zoom supports flexible subject framing.

Wide-Angle Lens

Featuring a 67.5-degree wide-angle lens, the camera captures broader views of meeting rooms, classrooms and presentation spaces while supporting focused close-up shots.

Advanced Autofocus

Fast and accurate autofocus technology helps maintain sharp video as subjects move or zoom settings change, reducing the need for manual focus adjustments.

Advanced Noise Reduction

Integrated 2D and 3D noise reduction minimises unwanted image noise while preserving detail, helping maintain clear video in different lighting environments.

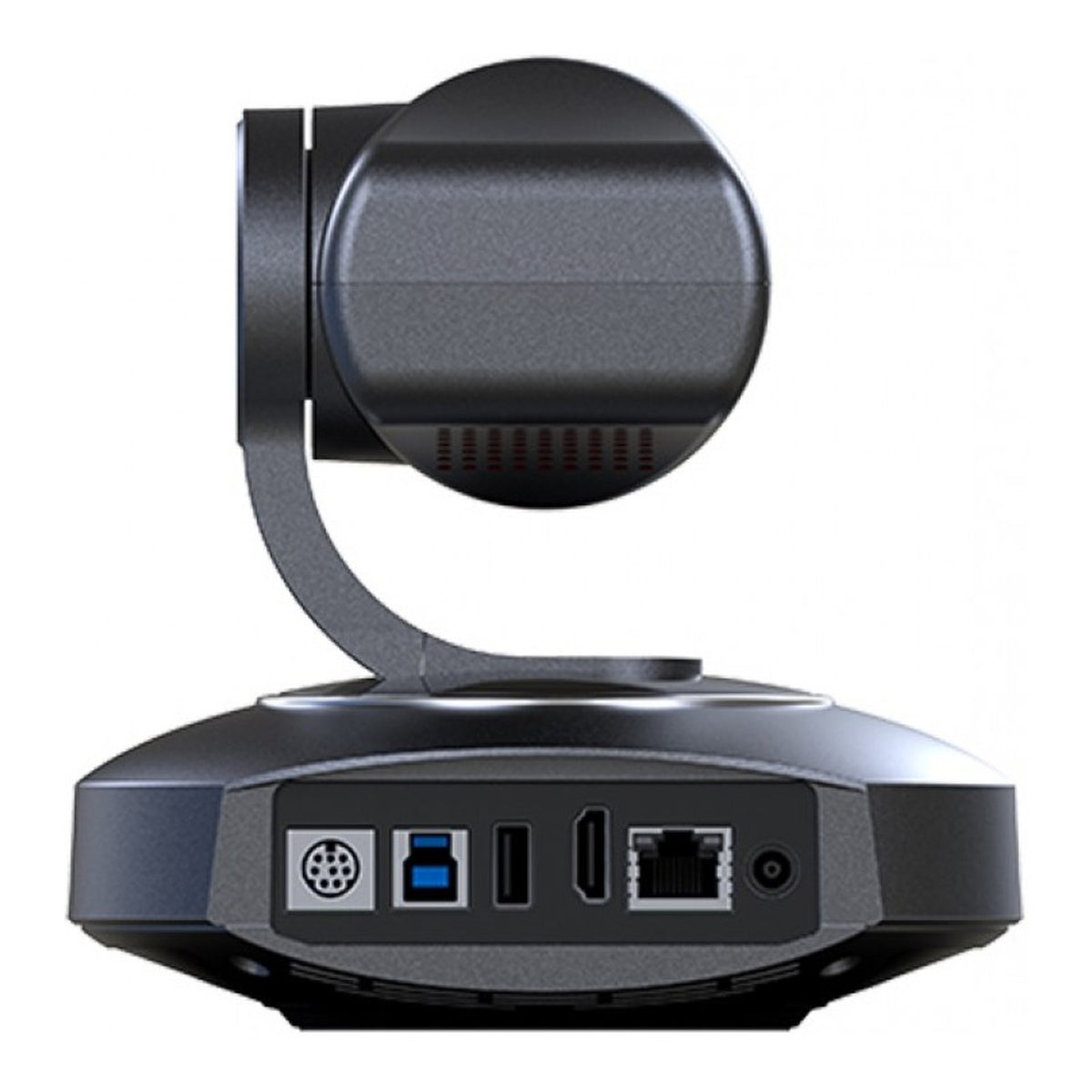

Multiple Video Interfaces

HDMI, USB 3.0 and wired LAN interfaces support flexible integration with compatible computers, recording equipment and professional AV systems. USB 3.0 also supports dual video streams.

Professional Network Streaming

Support for H.265, H.264 and MJPEG encoding enables efficient video transmission. Network protocols including RTSP, RTMP, ONVIF and SRT provide compatibility with supported streaming and control systems.

Smooth and Quiet PTZ Operation

High-precision stepping motors provide smooth pan and tilt movement with minimal operating noise, supporting professional automated tracking and remote camera positioning.

Remote Camera Control

The RS232 interface supports VISCA, Pelco-D and Pelco-P control protocols. Up to 255 camera presets are supported, with 10 accessible through the infrared remote control.

Flexible Installation

The integrated gravity sensor supports automatic image flipping for suitable installation configurations. PoE is available on optional configurations and is not supported by the standard version.

Technical Specifications:

What's in the Box:

• 1 x Minrray UV417 4K AI Tracking PTZ Camera
• 1 x Power Adapter
• 1 x RS232 Control Cable
• 1 x USB 3.0 Cable
• 1 x Infrared Remote Control
• 1 x User Manual
• 1 x Warranty Card

The Minrray UV417 8.29MP 4K AI Tracking PTZ Camera combines intelligent subject tracking, 10x optical zoom, professional 4K video and versatile connectivity. With advanced image processing, smooth PTZ movement and flexible network streaming, it provides reliable video functionality for conferencing, education and professional audiovisual applications.
