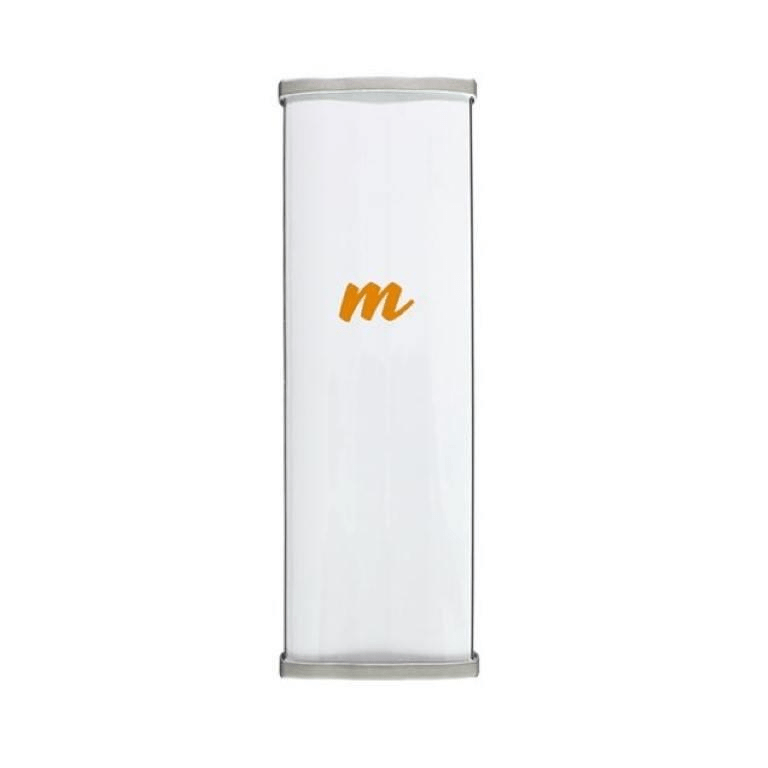

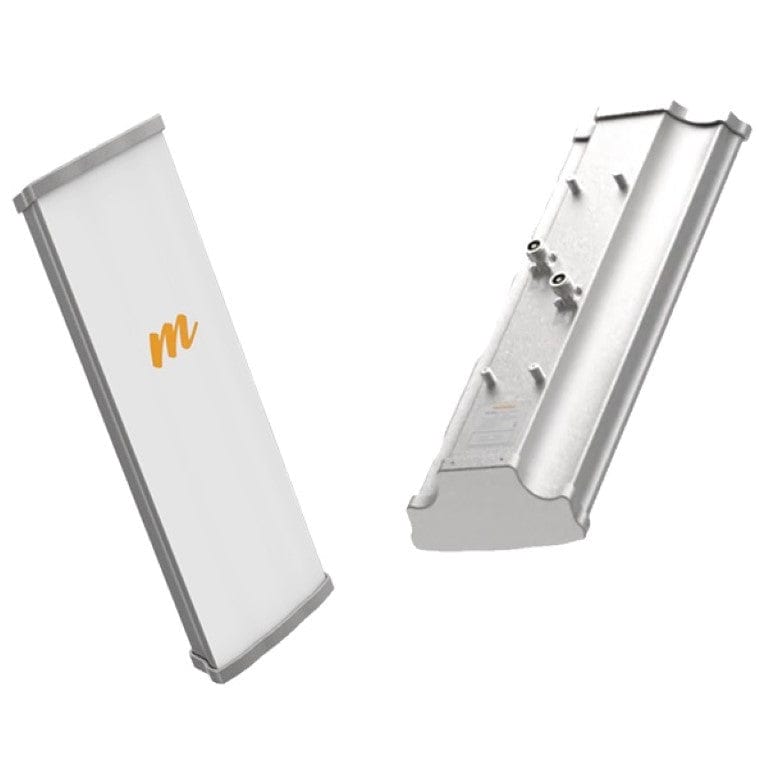

Mimosa N5 45X2 4.9-6.4GHz 45-degree 19dBi 2x N-type Female Ports Slant Horn Antenna

Mimosa N5 45X2 4.9-6.4GHz 45-degree 19dBi 2x N-type Female Ports Slant Horn Antenna

The Mimosa N5-45x2 is the industry’s first sector antenna to deliver the best of both worlds — incredible noise rejection and long-distance performance, with wideband 4.9–6.4 GHz operation for fixed wireless broadband. The dual-slant polarization, 45º sector can be used with any third-party 2x2 MIMO radio solution, or two N5-45x2 antennas can be connected to the 4x4 MIMO Mimosa A5c access point, aimed in different directions, for 2x spectrum reuse, superior range and noise rejection at collocation and tower sites.

Features

• Industry-Leading Front-to-Back Ratio for 2x Spectrum Reuse

• World-Class Noise Rejection

• High-Gain for Long Distances

• Wideband 4.9–6.4 GHz Sector

Technical Specification

Product: Mimosa Networks N5-45x2

Antenna gain level (max): 19 dBi

Frequency band: 4.9 - 6.4 GHz

Impedance: 50 Ω

Antenna type: Horn antenna

Antenna connector type: N-type

Connector gender: Female

Width: 143 mm

Depth: 76 mm

Height: 427 mm

Quantity per pack: 1 pc(s)

What's In The Box

• N5-45x2
• Two LMR-240 Cables with Weatherized Boots
• Pivot Bracket
• Sliding Bracket
• Warranty and Compliance Sheet
