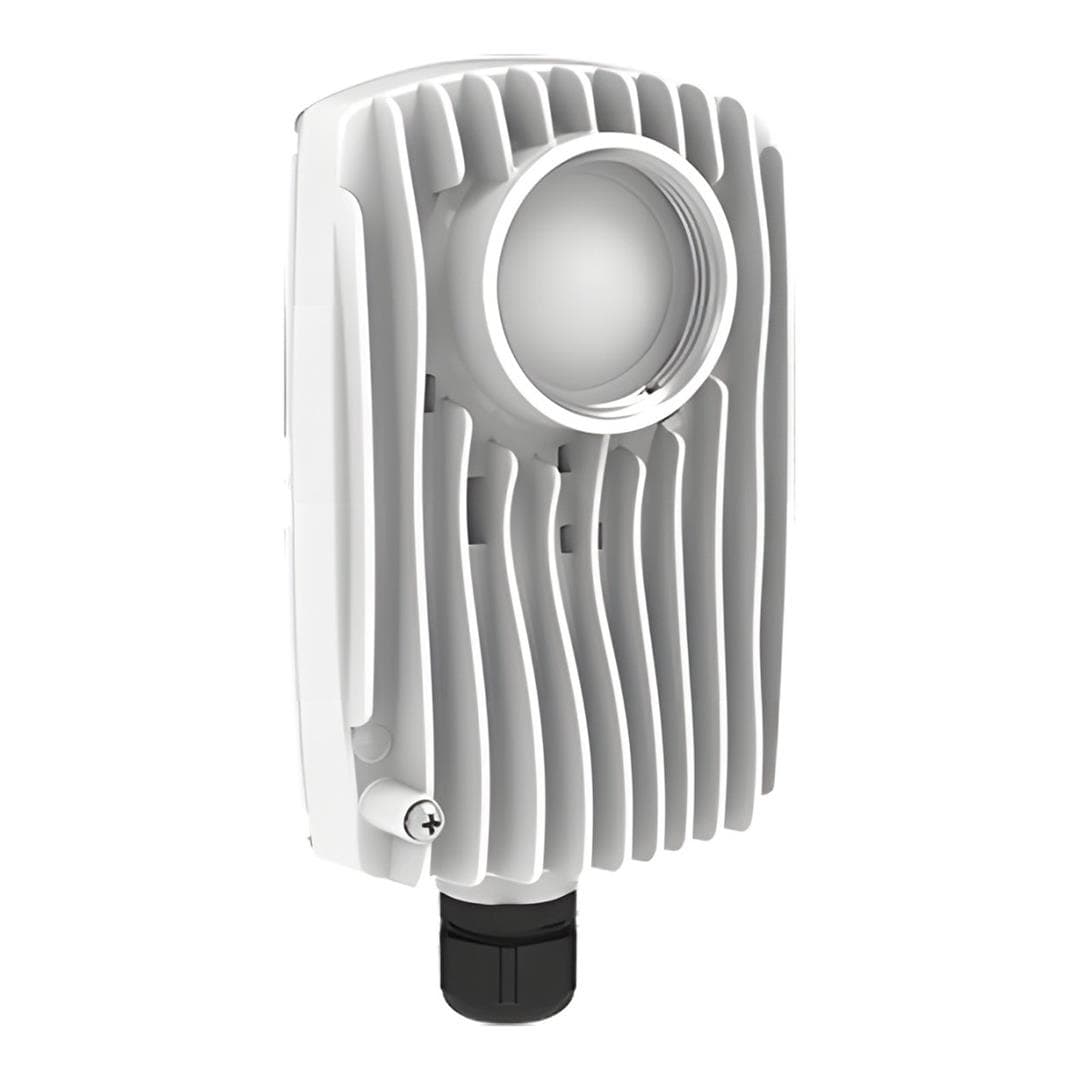

Mimosa C6X Lite 6GHz PtP/PtMP Modular Radio 100-00111-01

Mimosa C6X Lite 6GHz PtP/PtMP Modular Radio 100-00111-01

Super Fast and Super Flexible

The Mimosa C6x: a powerful fixed wireless radio delivering up to 1.75 Gbps in Point-to-Multipoint and 2.0 Gbps in Point-to-Point modes. With adaptable range options and a durable IP67-rated design, the C6x is built for seamless client and backhaul applications, offering reliable, high-speed connectivity in any environment.

Value

Price Performance Leader

Mimosa’s rugged C6x redefines affordable high-speed connectivity with versatile Point-to-Point and Point-to-Multipoint capabilities, delivering up to 2.0 Gbps. Leveraging the latest wireless technologies and new 6 GHz bands, the C6x achieves ultra-low latency with advanced interference reduction for high reliability in challenging environments.

Performance

Take PTMP to a New Level

Achieving up to 1.75 Gbps in PTMP (point-to-multipoint) deployments, the C6x pairs with beamforming technologies on the A6 access point to enable significant subscriber scaling, advanced noise management, and access to the new, low-noise 6 GHz band.

Design

Ultra-Rugged

The C6x is IP67 rated, which means it can withstand the harshest elements and environments. Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity.

Link Planning

Going the Distance

The Mimosa Design Tool simplifies PTP and PTMP connectivity evaluation by calculating expected performance and reliability with visual aids like terrain elevation. It provides precise installation reports and heatmap-based access point coverage planning, accounting for factors like weather and interference.

Flexible Antenna Options

The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Technical Specifications:

Physical Specifications

Dimensions
175 mm (H) × 70 mm (W) × 61 mm (D)

Weight
0.7 kg (1.54 lbs)

Performance

Maximum Output Power
27 dBm

Power Consumption
20 W Maximum

Environmental And Protection

IP Rating
IP67
