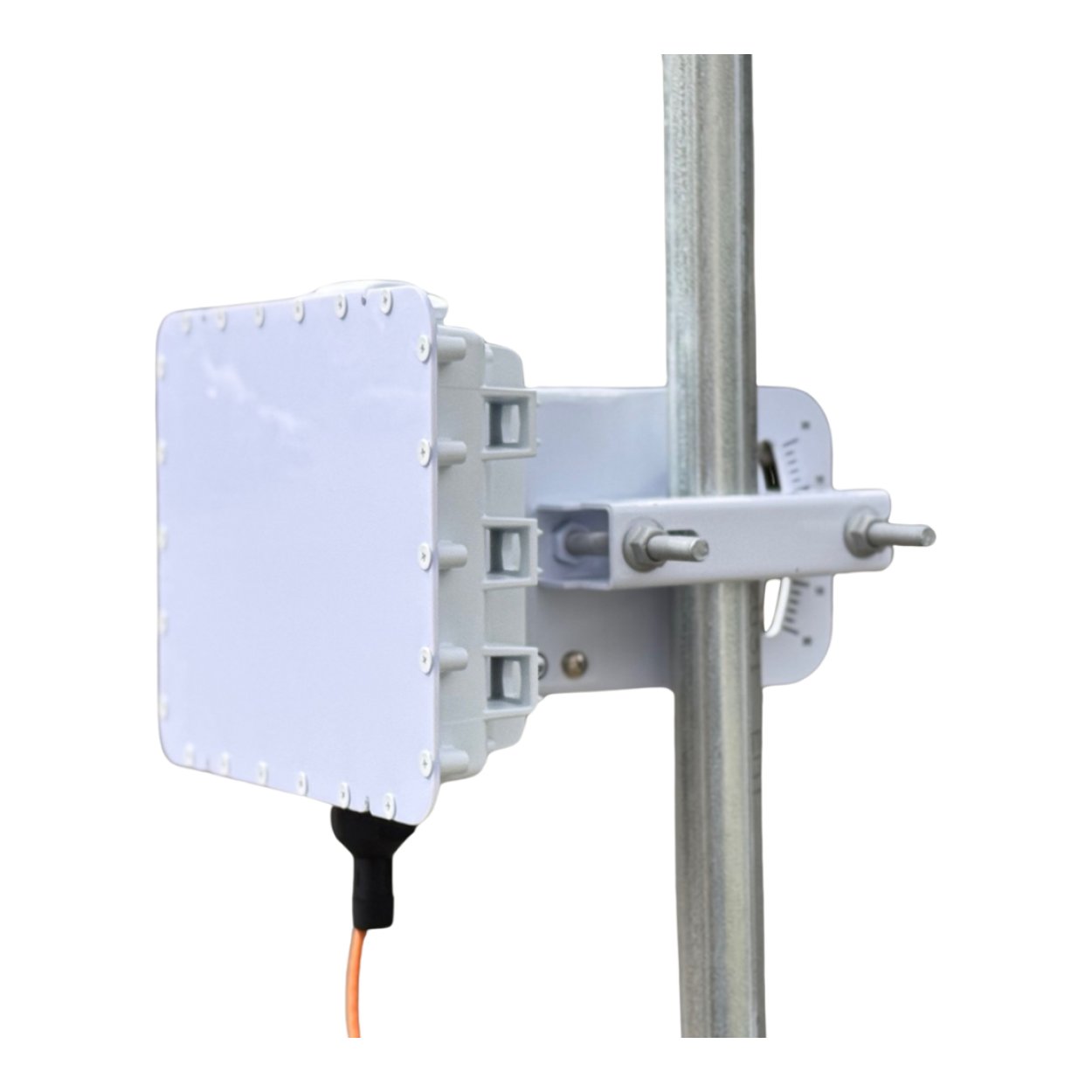

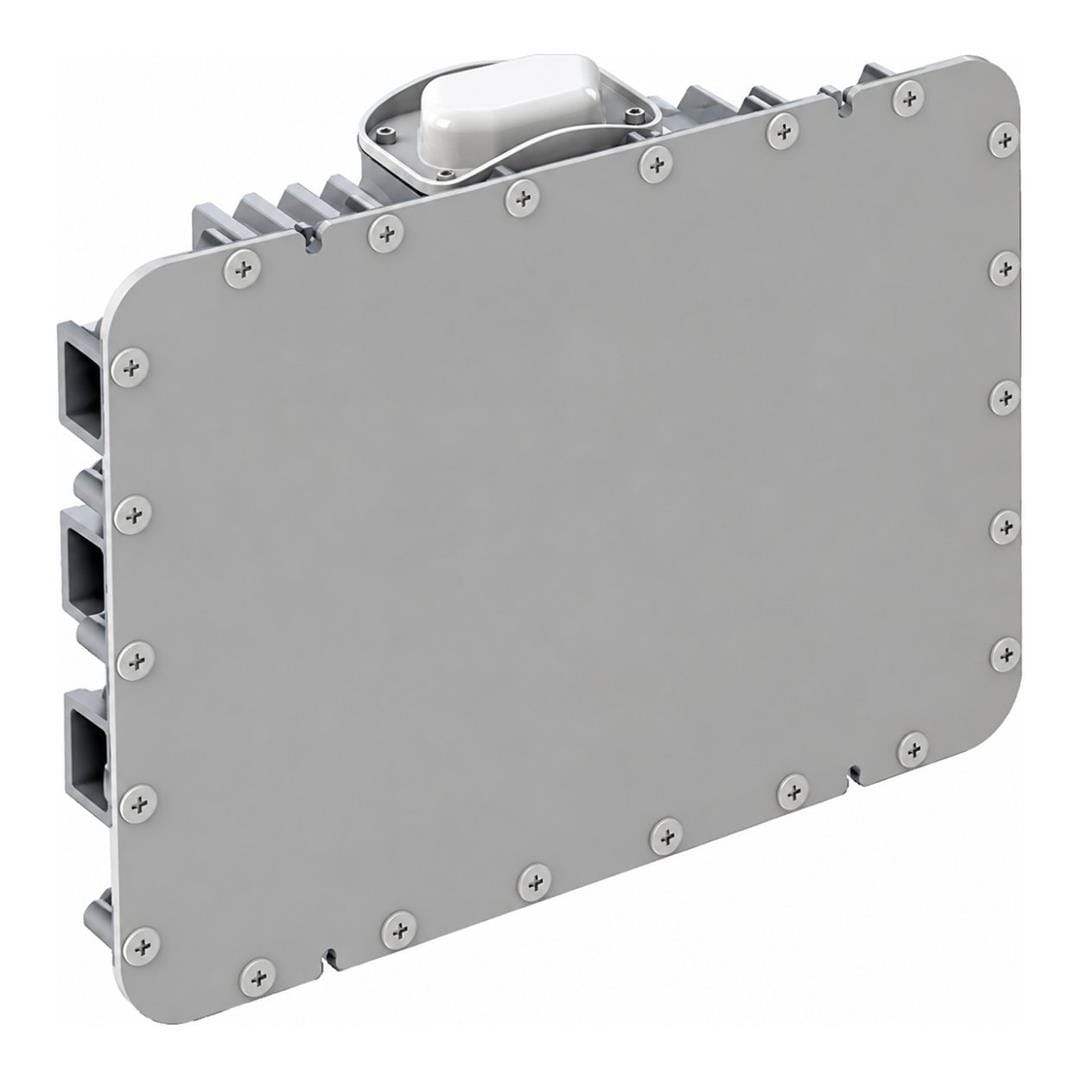

Mimosa C6 Non-Line-of-Sight PTMP Client Radio Antenna C6 NLSO

Mimosa C6 Non-Line-of-Sight PTMP Client Radio Antenna C6 NLSO

The Mimosa C6 is a high-performance Non-Line-of-Sight (NLOS) client radio engineered for Point-to-Multipoint fixed wireless broadband networks. Designed to maintain reliable connectivity in Line-of-Sight, near-Line-of-Sight and obstructed environments, the C6 combines four spatial streams, 8T8R radio architecture and intelligent beamforming with support for 5 GHz and 6 GHz spectrum. With up to 2.5 Gbps aggregate capacity at the wireless interface and an integrated high-gain antenna, it provides service providers with a powerful solution for extending broadband into challenging locations.

Key Features

• Purpose-built Non-Line-of-Sight fixed wireless client radio.
• Supports LOS, near-Line-of-Sight and NLOS deployments.
• Up to 2.5 Gbps aggregate capacity at the wireless interface.
• Four spatial streams with 8T8R radio architecture.
• Integrated 16-element patch array antenna with intelligent beamforming.
• 14 dBi integrated antenna gain, with up to 20 dBi using software beamforming.
• Supports 5 GHz and 6 GHz spectrum, subject to regional regulations.
• 20, 40, 80 and 160 MHz channel widths.
• Gigabit Ethernet wired network interface.
• IP67-rated construction for demanding outdoor installations.

Designed for Non-Line-of-Sight Connectivity

The C6 is engineered specifically for difficult fixed wireless environments where buildings, vegetation, terrain and other obstacles can prevent a clear line of sight. Four spatial streams, 8T8R chains and beamforming technology help maintain stable broadband connectivity across LOS, near-LOS and NLOS deployments.

High-Capacity Wireless Performance

With up to 2.5 Gbps aggregate wireless-interface capacity, the C6 provides substantial over-the-air performance for modern broadband networks. Its Wi-Fi 6 / 802.11ax-based radio technology supports 1024-QAM and advanced wireless techniques designed to improve capacity and spectral efficiency.

Integrated Beamforming Antenna

The integrated 16-element patch array eliminates the need for a separate external antenna. Its 14 dBi native gain is complemented by software beamforming, which can provide up to 20 dBi of effective gain for improved performance in challenging RF environments.

Rugged Outdoor Deployment

An IP67-rated outdoor enclosure protects the C6 against dust and water ingress, making it suitable for carrier-grade installations in urban, suburban and rural environments. Passive 50V PoE simplifies installation by carrying network connectivity and power to the outdoor radio.

Technical Specifications

What’s in the Box:

• Mimosa C6 Non-Line-of-Sight Client Radio
• Standard mounting hardware supplied with the applicable C6 package

The Mimosa C6 gives fixed wireless operators a purpose-built solution for extending high-speed broadband into locations where conventional line-of-sight radios struggle. Its high-capacity radio, integrated beamforming antenna, NLOS capabilities and IP67 outdoor construction make it particularly well suited to dense urban, suburban and difficult-terrain PTMP deployments.
