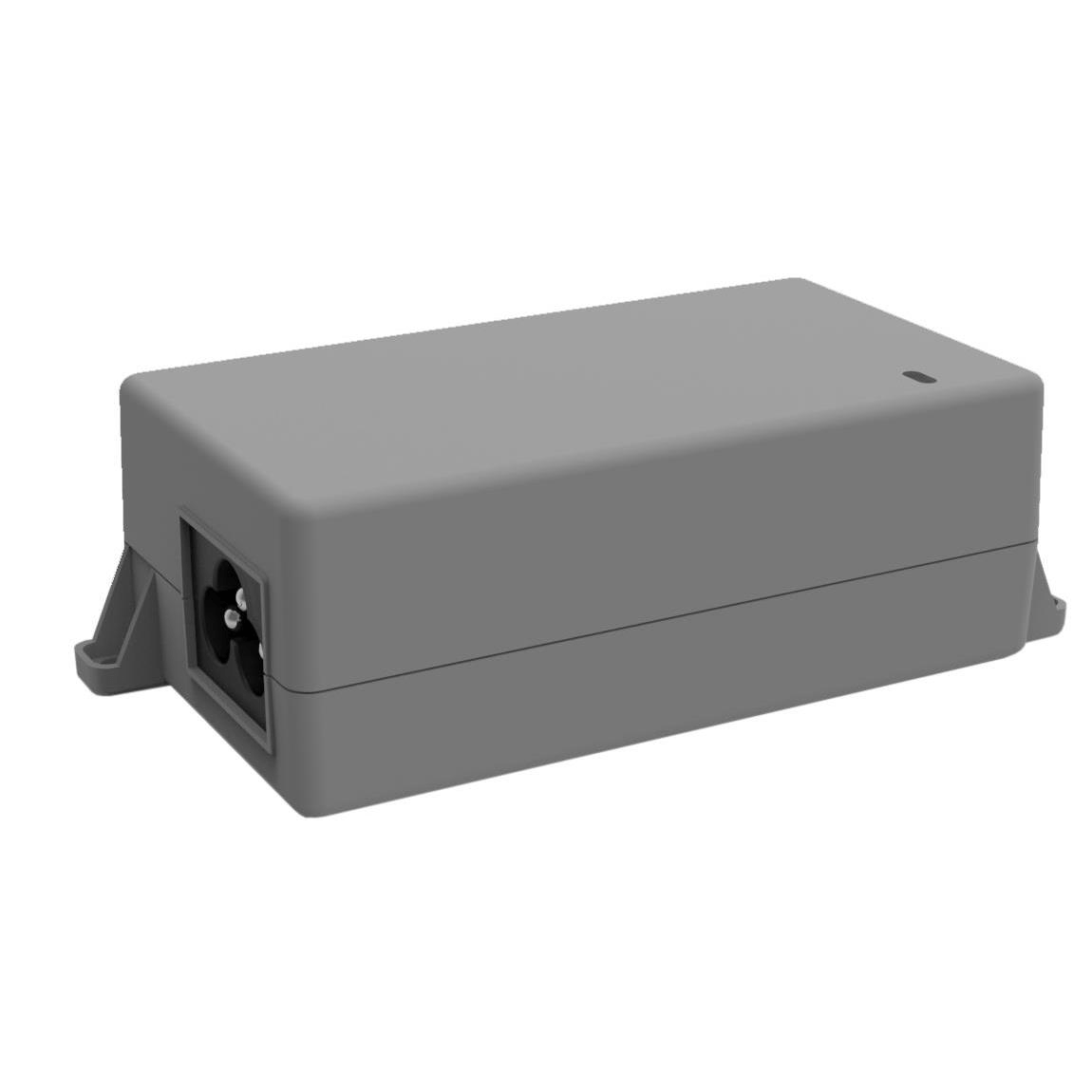

Mimosa 24V 0.5A Gigabit PoE injector 502-00025
The Mimosa 502-00025 Gigabit PoE injector supplies 24 V DC power to compatible Mimosa wireless equipment through Ethernet cabling. With a 0.5 A output rated at 12 W and Gigabit LAN support, it combines power delivery and network connectivity for a straightforward wireless installation.
Power and Data Through Ethernet
Deliver power and network data to a compatible radio through its Ethernet connection, reducing the need for a separate power cable at the device. Two Gigabit RJ-45 ports support the wired connection between your network and powered equipment.
Key Features:
- 24 V DC, 0.5 A output: Provides up to 12 W for compatible equipment.
- Gigabit connectivity: Supports Gigabit Ethernet links through two RJ-45 ports.
- Electrical protection: Includes overcurrent and overvoltage protection.
- Blue LED indicator: Provides a visible operating indication.
- Compact housing: Measures 97 × 53.5 × 35.5 mm for convenient placement.
Power Cable Requirements
The injector has an IEC C6 three-pin inlet and requires a country-appropriate power lead with an IEC C5 connector. The power lead is sold separately. Check your device’s power requirements before connecting.
Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Mimosa |
| Model | Gigabit PoE Injector (24 V) |
| Manufacturer Part Number | 502-00025 |
| Product Type | Power over Ethernet injector |
| Colour | Grey |
| Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A |
| Maximum Output Power | 12 W |
| Network Ports | 2 × metal-shielded RJ-45; Gigabit LAN support |
| Input Voltage | 100–240 V AC |
| AC Power Connector | IEC C6 three-pin inlet; requires an IEC C5 power lead |
| Protection | Overcurrent and overvoltage |
| Status Indicator | 1 × blue LED |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90%, non-condensing |
| Dimensions (L × W × H) | 97 × 53.5 × 35.5 mm |
| Weight | 130 g |
| Power Lead | Sold separately |
Add the Mimosa 24 V Gigabit PoE injector to your cart to power your compatible wireless equipment.
