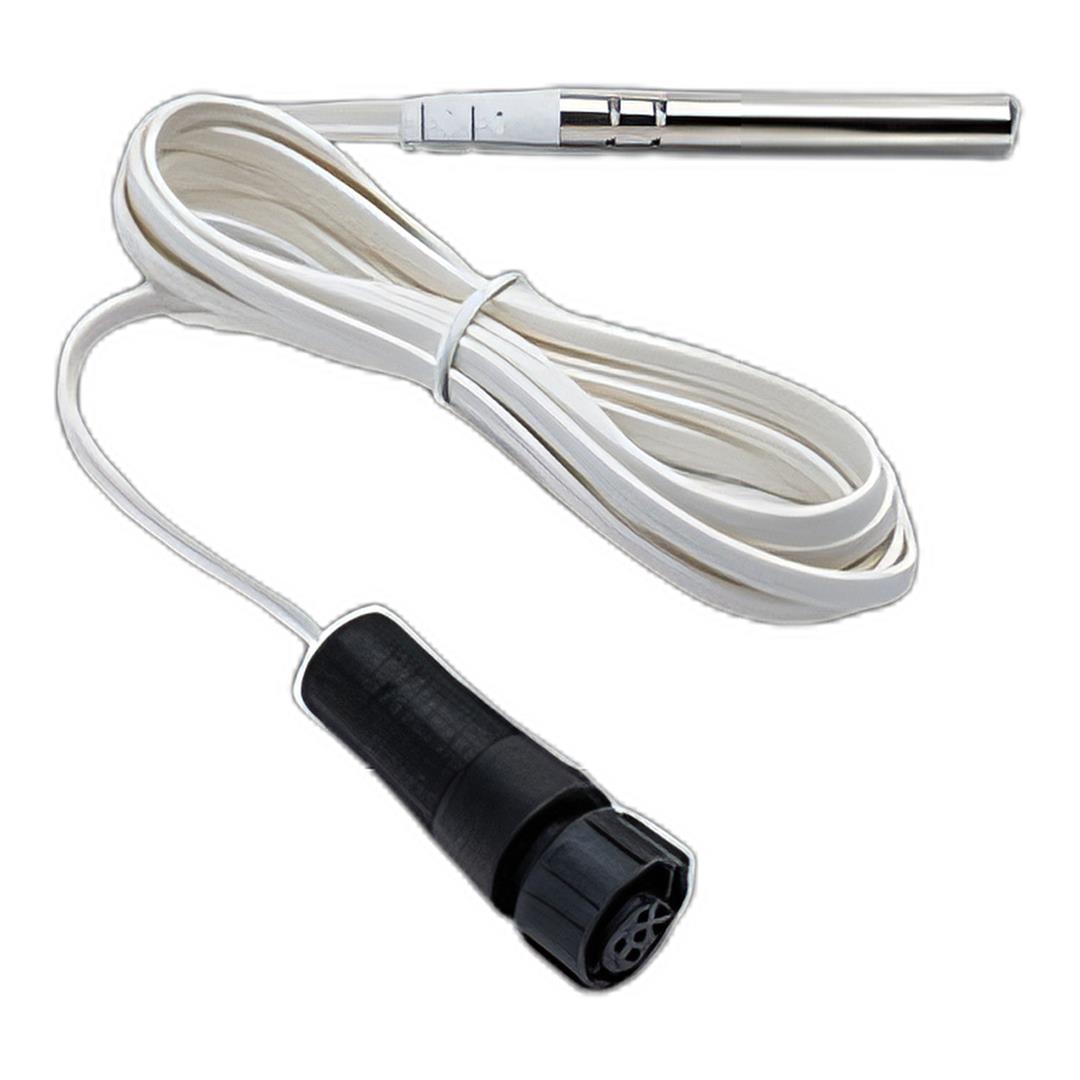

Milesight Independent Calibration DS18B20 Probe SP12-125-150

Milesight Independent Calibration DS18B20 Probe SP12-125-150

The Milesight SP12-125-150 is an external DS18B20 temperature probe designed for compatible Milesight temperature monitoring devices. With a -40°C to 125°C measuring range and a 1.5 m cable, it provides a practical way to measure temperature away from the main sensor unit, including locations where positioning the monitoring device itself may be inconvenient.

Key Features

• DS18B20 temperature probe: Provides external digital temperature sensing for compatible Milesight monitoring devices.
• Wide measuring range: Supports temperature measurements from -40°C to 125°C for a variety of monitoring applications.
• Specified measurement accuracy: Provides ±0.5°C accuracy between -10°C and 85°C, with ±2°C accuracy across the outer portions of its supported temperature range.
• 1.5 m probe cable: Allows the sensing point to be positioned away from the connected Milesight device.
• Broad Milesight compatibility: Listed for use with Milesight TS201, TS602, TS301 and TS302 devices.
• Calibration service support: Milesight lists the SP12-125-150 as compatible with its optional temperature calibration service when requested as part of an order.

External Temperature Monitoring

The SP12-125-150 extends temperature sensing away from the main monitoring device through its 1.5 m cable. This makes it suitable for applications where the probe needs to be positioned at the required measurement point while the compatible Milesight sensor or monitoring unit remains installed in a more accessible location.

Wide Temperature Range

The DS18B20 probe measures temperatures from -40°C to 125°C. Milesight specifies an accuracy of ±0.5°C between -10°C and 85°C, while temperatures from -40°C to -10°C and from 85°C to 125°C have a specified accuracy of ±2°C.

Technical Specifications

Extend a compatible Milesight temperature monitoring system with a 1.5 m external DS18B20 probe for measurements from -40°C to 125°C, and add the SP12-125-150 to your cart today.
