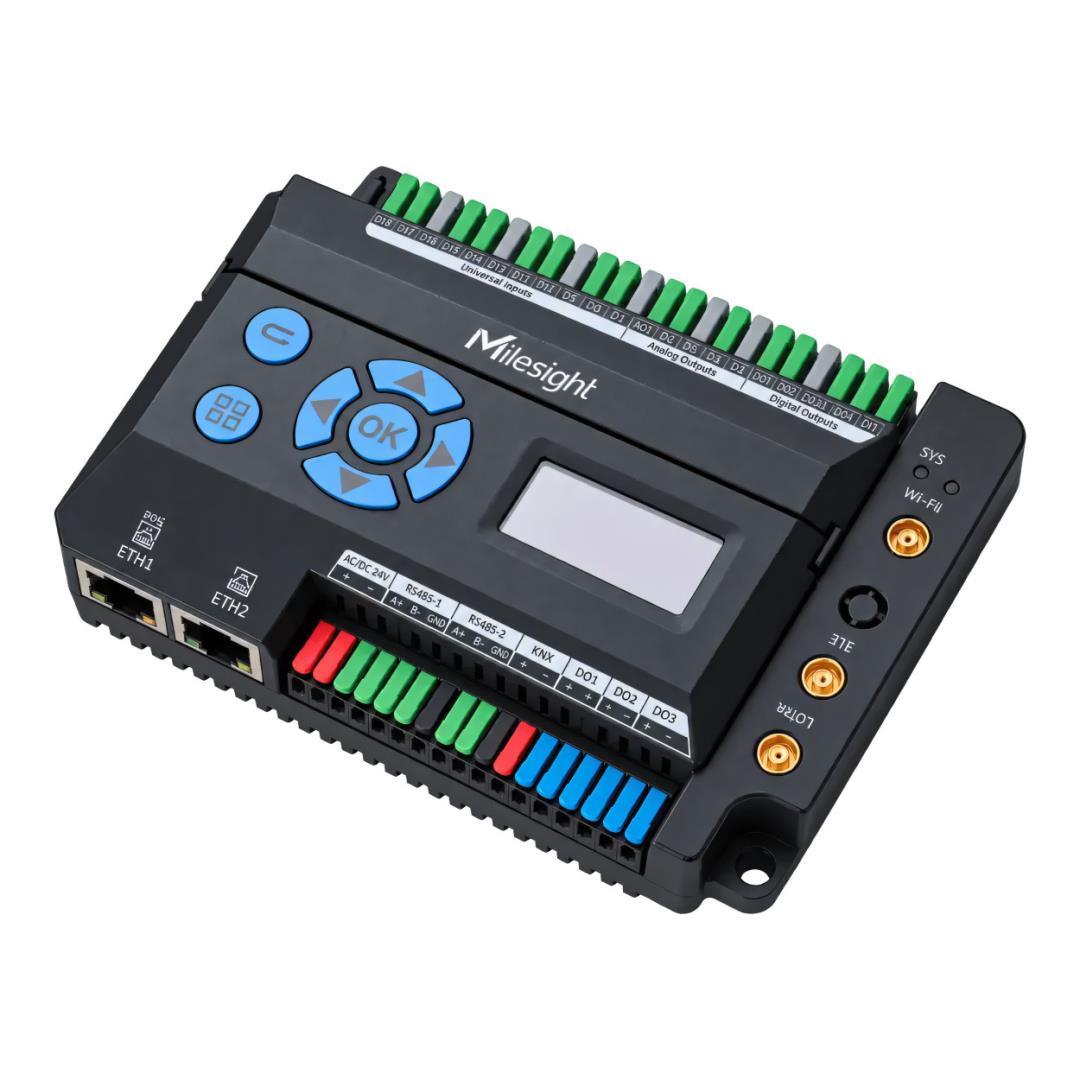

Milesight EG71 Building IoT LTE Gateway EG71-L08L-868M
The Milesight EG71-L08L-868M is a building IoT gateway that connects wired equipment and wireless sensors to building management systems. It combines LoRaWAN, LTE, Wi-Fi and Ethernet with protocol conversion and local automation capabilities.
Key Features
- Integrates BACnet, Modbus, KNX and M-Bus equipment.
- An eight-channel LoRaWAN gateway connects compatible wireless sensors.
- LTE, Wi-Fi and Ethernet provide flexible network connectivity.
- Built-in inputs and outputs support field-device monitoring and control.
- Node-RED, Python and Docker support local application development.
- DIN rail or wall mounting suits building control installations.
Streamline Your BMS Deployment and Retrofit:
Faster, Smarter, Cost-Effective
Deploying or retrofitting a modern Building Management System (BMS) is often complex and costly. The EG71 enables seamless integration of wired and wireless devices, reducing cabling, accelerating deployment, and offering long-term flexibility. It's an ideal choice for both new and existing commercial buildings, campuses, hotels, and industrial facilities.
Designed to Integrate with Existing Building Management Systems
EG71 integrates seamlessly with mainstream Building Management Systems, allowing system integrators to connect new and existing devices without replacing current BMS architectures. By converting field data into standard building protocols, EG71 reduces integration complexity while maintaining full interoperability and system scalability.
Edge Intelligence Designed for the Field
Edge intelligence processes data and executes control locally—cutting latency, lowering operational risk, and reducing cloud dependence. Even when networks are unstable, on-site intelligence keeps HVAC and energy systems running reliably.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Milesight |
| Product Code | EG71-L08L-868M |
| Processor | Quad-core 1.5 GHz ARM Cortex-A53 |
| Memory / Storage | 2 GB DDR4 / 32 GB eMMC; microSD slot |
| LoRaWAN | EU868; eight channels; Classes A, B and C; built-in network server |
| Network Interfaces | 4G LTE, 2.4 GHz Wi-Fi, 2 × Gigabit Ethernet |
| SIM Slot | Nano-SIM (4FF) |
| Building Interfaces | 2 × RS485, 1 × KNX/TP1, 1 × M-Bus |
| Inputs / Outputs | 8 universal inputs, 4 dry-contact inputs, 3 relay outputs, 4 analogue outputs |
| Display | 1.3-inch OLED |
| Power Options | 24 V AC/DC, IEEE 802.3af PoE, or USB-C 5 V / 3 A |
| Operating Temperature | -40°C to +60°C |
| Ingress Protection | IP30 |
| Dimensions / Weight | 123 × 90 × 36 mm / 375.6 g |
Power selection: Use PoE or the 24 V power input when using M-Bus or universal inputs; these interfaces do not operate properly under USB power.

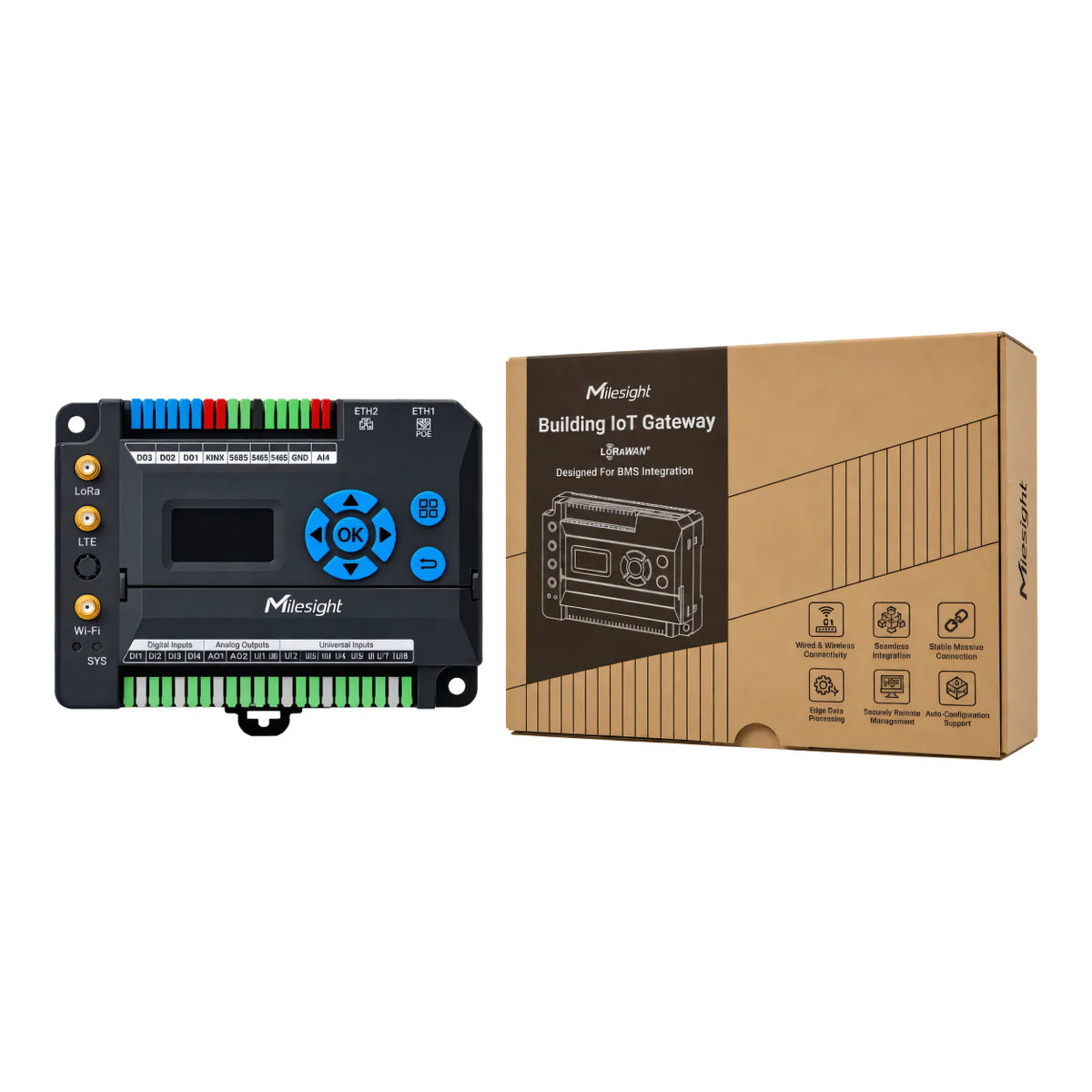

What's in the Box
- 1 × EG71 gateway

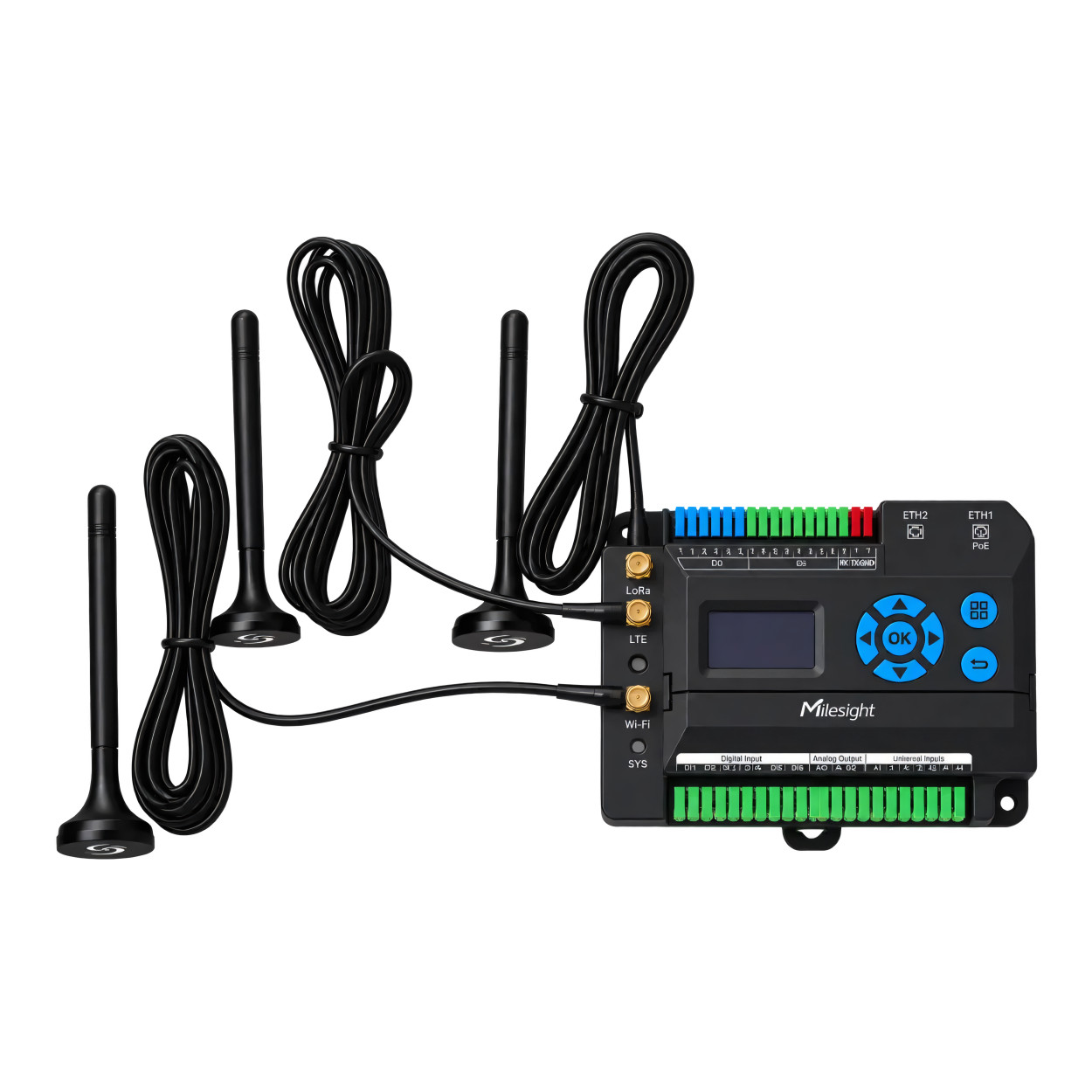

- 1 × LoRaWAN magnetic antenna
- 1 × cellular magnetic antenna
- 1 × Wi-Fi magnetic antenna
- 2 × wall mounting screw sets
- 1 × label sticker
- 1 × quick guide
- 1 × warranty card
Add the Milesight EG71-L08L-868M to your cart to bring compatible building systems into one connected deployment.
