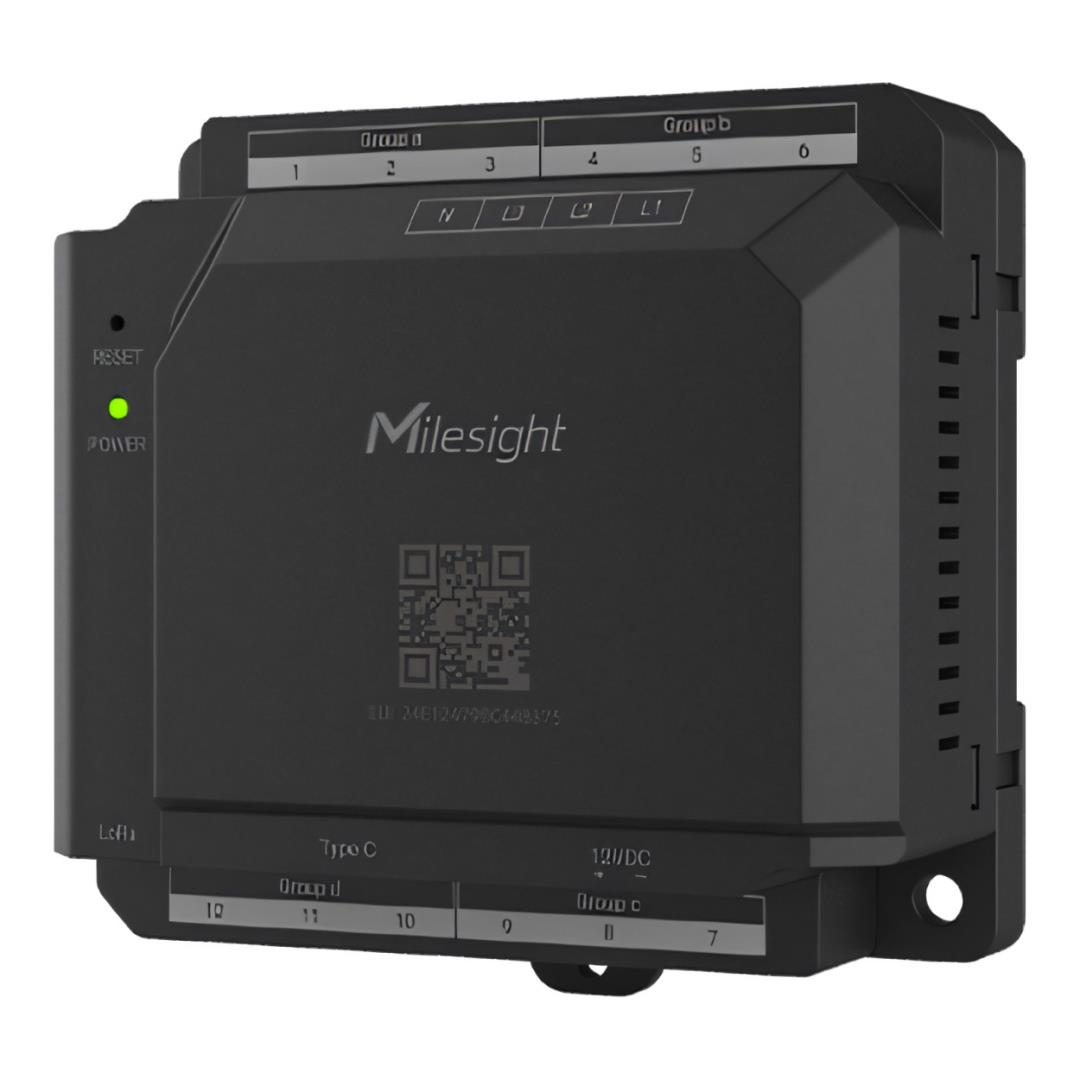

Milesight CTH01 Smart Power Monitor Hub CTH01-868M
The Milesight CTH01-868M is a 12-channel LoRaWAN power monitoring hub for tracking electrical consumption across multiple circuits. It supports single-phase, three-phase and mixed configurations, helping facilities teams understand energy use and electrical conditions.
Key Features
- Monitor up to 12 single-phase circuits or four three-phase circuits.
- Measure voltage, current, power factor, power and energy consumption.
- Analyse harmonic distortion and three-phase voltage imbalance.
- Monitor cable temperature using the included external NTC sensor.
- Configure settings through Bluetooth using the Milesight ToolBox app.
- Use threshold alarms and stored records to investigate electrical events.
Measurement accessories: Compatible current transformers or Rogowski coils are required and sold separately. Installation must be completed by a qualified electrician.
12-Circuit Insights. Single Hub.
Minimal Footprint
CTH01 redefines sub-metering efficiency by monitoring up to 4 three-phase or 12 single-phase circuits simultaneously. This 12-in-1 design drastically reduces hardware investment, simplifies network infrastructure, and fits perfectly into space-constrained electrical cabinets.
Connected Precision, Maintenance-Free Efficiency
Expand your energy visibility from the main distribution board to every individual branch. While CTH01 provides high-density hub-level monitoring, Milesight's CT Series offers unparalleled flexibility for distributed loads. Together, they create a unified LoRaWAN® ecosystem, delivering granular consumption data with non-invasive, maintenance-free operation across your entire facility.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Milesight |
| Model | CTH01-868M |
| Current Inputs | 12 × RJ11 channels |
| Compatible Current Sensors | 100/300/500/1,000 A split-core CTs; optional 4,000 A Rogowski coils |
| Voltage Measurement Range | 100–500 V AC; maximum 290 V RMS line-to-neutral and 500 V RMS line-to-line |
| Operating Frequency | 50–60 Hz |
| Wireless Connectivity | LoRaWAN EU868; Class C; OTAA/ABP |
| Temperature Measurement | External NTC sensor, -20°C to +100°C |
| Power Supply | 12 V DC ±10% |
| Maximum Consumption | 5.8 W |
| Operating Temperature | -20°C to +70°C |
| Ingress Protection | IP30 |
| Mounting | 35 mm DIN rail |
| Dimensions | 49.3 × 98 × 90 mm |
| Weight | 163 g |
What's in the Box
- 1 × CTH01 hub
- 1 × power adaptor
- 1 × power terminal wire
- 1 × power terminal block
- 2 × mounting screw kits
- 1 × voltage terminal block
- 1 × LoRaWAN magnetic antenna
- 1 × USB-C NTC temperature sensor
- 4 × magnetic voltage measuring cables
- 1 × warranty card
- 1 × quick guide
Add the Milesight CTH01-868M and suitable current sensors to your cart to expand your electrical monitoring setup.
