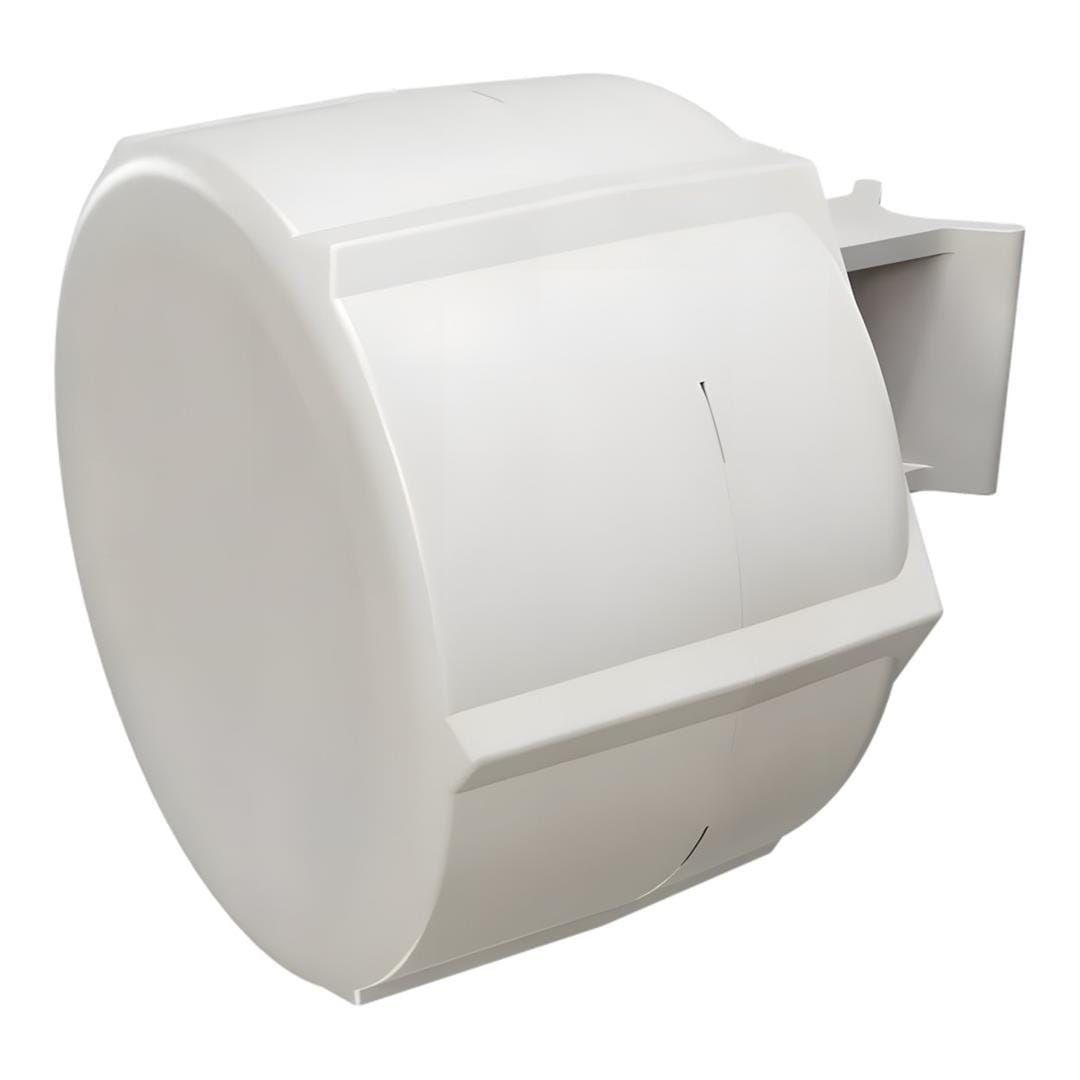

MikroTik SXT LTE7 Outdoor PoE CPE Antenna SXTR&R11e-LTE7

MikroTik SXT LTE7 Outdoor PoE CPE Antenna SXTR&R11e-LTE7

A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online.

Features:

• IP 54
• LTE Cat7
• Mini PCI-e
• Outdoors
• PoE
• ROS v7

The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide – but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.

Mount it outside, point it at the nearest tower, and always stay connected!

SXT has always been about reliable connectivity with minimal visual impact:

• Weatherproof/Snow-resistant
• Unobtrusive, durable and discreet
• Designed to attract less unwanted attention

The SXT LTE7 kit keeps everything that made the platform popular – and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.

We’ve included two Micro-SIM slots – for backup. It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation,allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. Andhigher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internetspeed doubling in rural areas after switching to carrier aggregation, so there is no need to wait forcable network expansions.

The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!

Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.

Technical Specifications:

General

Product Code
SXTR&R11e-LTE7

Architecture
MIPSBE

CPU
QCA9531

CPU Core Count
1

CPU Frequency
650 MHz

Switch Chip Model
QCA9531

Operating System
RouterOS v7

RouterOS License Level
Level 3

Memory

RAM
64 MB

Storage
16 MB Flash

Mean Time Between Failures (MTBF)
Approximately 200,000 Hours At 25 °C

Tested Ambient Temperature
-40 °C To 60 °C

Power

Power Input
1 × PoE-In

PoE Standard
802.3af/at

PoE Input Voltage
12–57 V

Maximum Power Consumption
24 W

Maximum Power Consumption (Without Attachments)
7 W

Cooling Type
Passive

PoE Output

PoE-Out Ports
Ether2

PoE Output Type
Passive PoE Up To 57 V

Low Voltage PoE-Out Current Limit
600 mA

High Voltage PoE-Out Current Limit
400 mA

Maximum Total Output Current
600 mA

Mobile Connectivity

3G Category
R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)

3G Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 8 (900 MHz)

LTE Category
Category 7 (DL: 300 Mbps; UL: 100 Mbps)

MIMO

• Downlink: 2 × 2
• Uplink: 1 × 1

LTE FDD Bands

• Band 1 (2100 MHz)
• Band 3 (1800 MHz)
• Band 5 (850 MHz)
• Band 7 (2600 MHz)
• Band 8 (900 MHz)
• Band 20 (800 MHz)
• Band 28 (700 MHz)
• Band 32 (1500 MHz)

LTE TDD Bands

• Band 38 (2600 MHz)
• Band 40 (2300 MHz)
• Band 41 (2500 MHz)

SIM Support
2 × Micro SIM Slots

MiniPCI-e Slots
1

Network Interfaces

Ethernet Ports
2 × 10/100 Mbps Ethernet Ports

Controls And Features

Mode Button
Yes

Environmental And Protection

IP Rating
IP54

Certifications
CE, EAC, RoHS

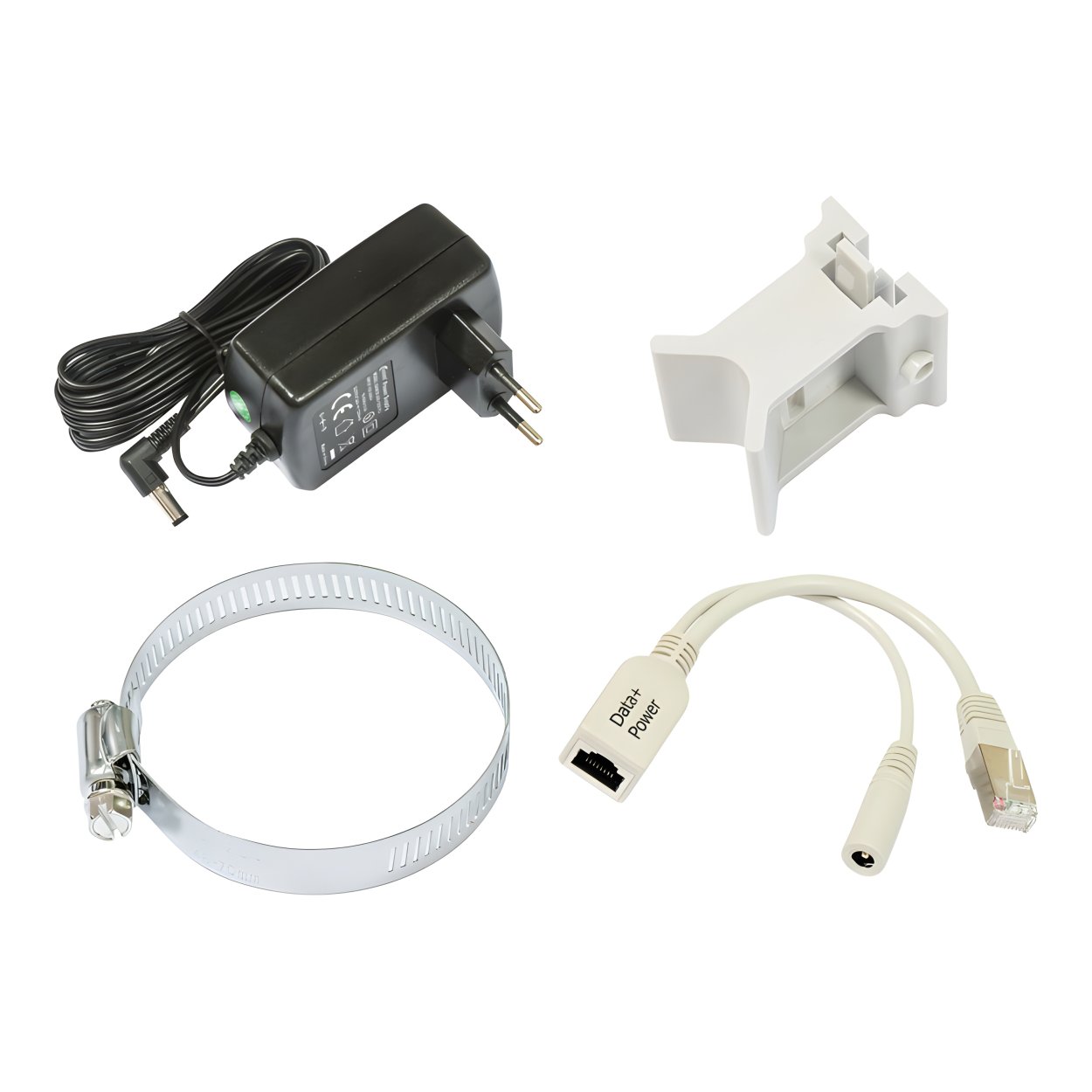

What's in the Box:

• 24 V 1.2 A Power Adapter
• Metal Ring
• Pole Mounting Bracket
• PoE Injector
